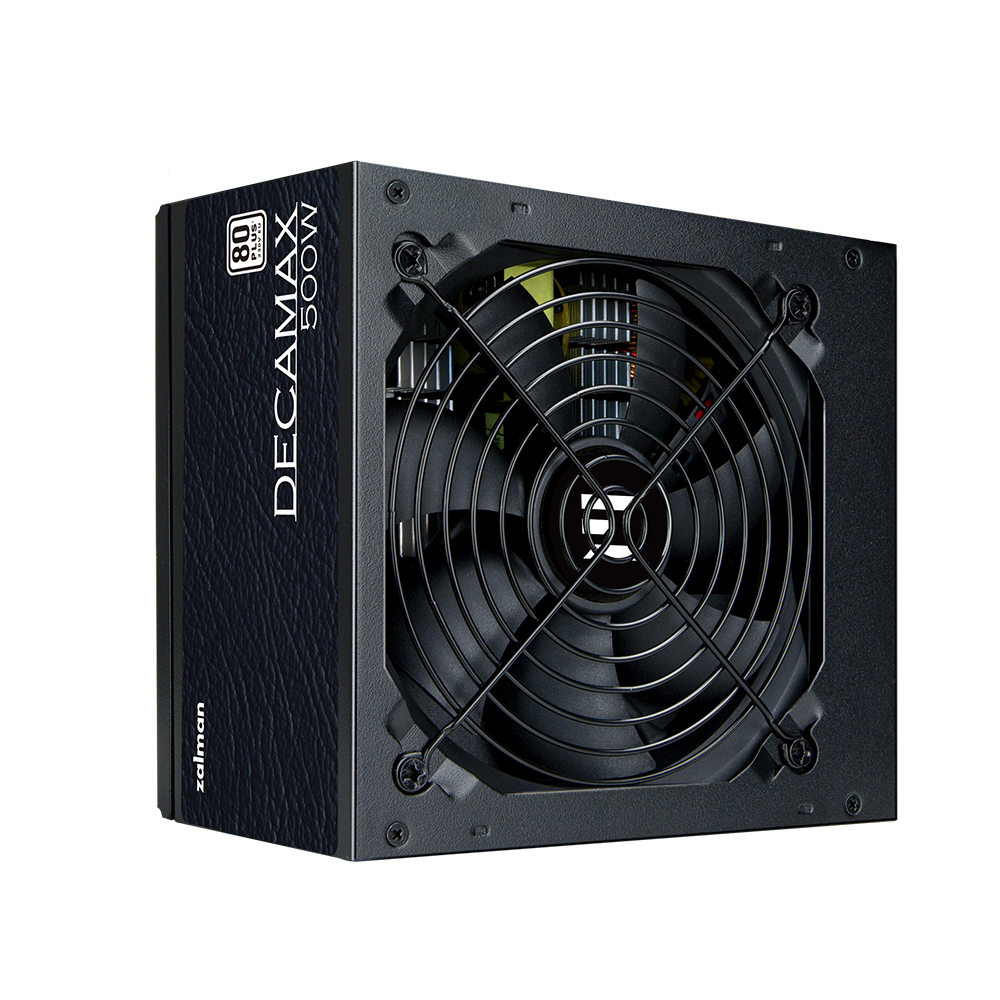

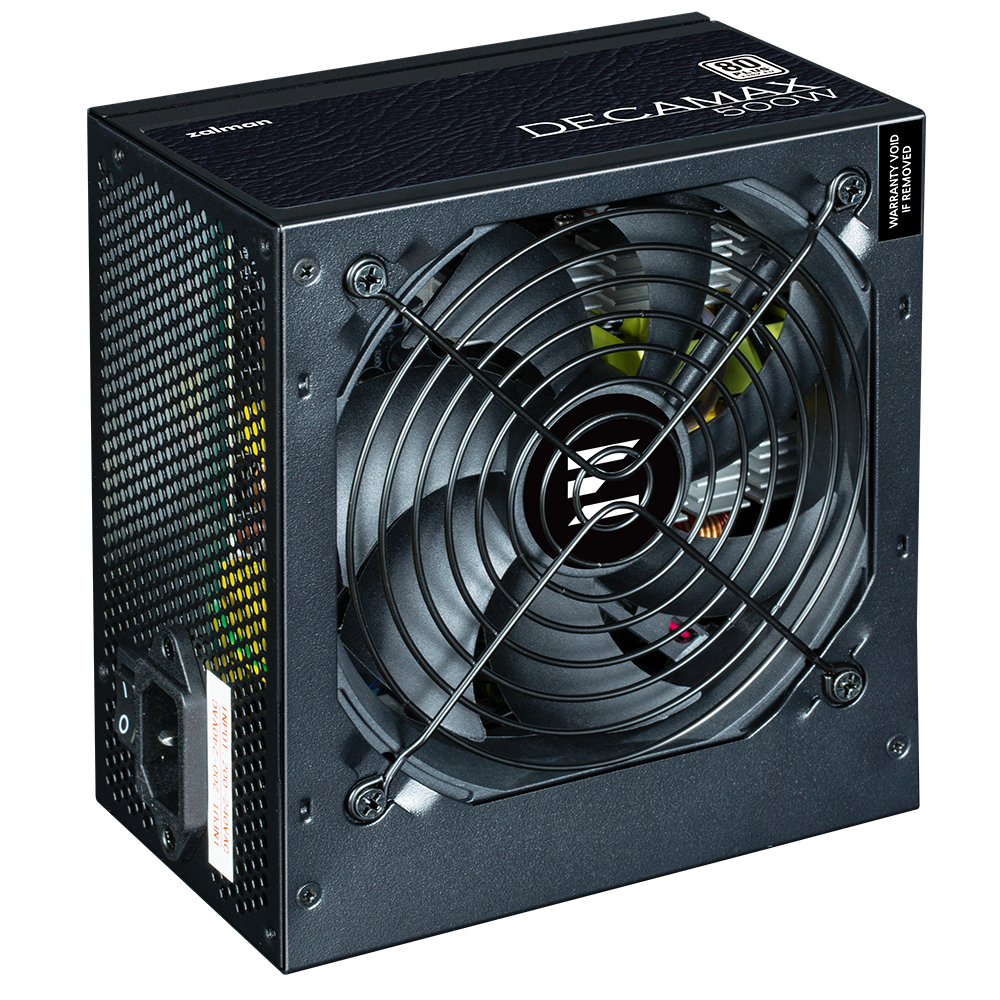

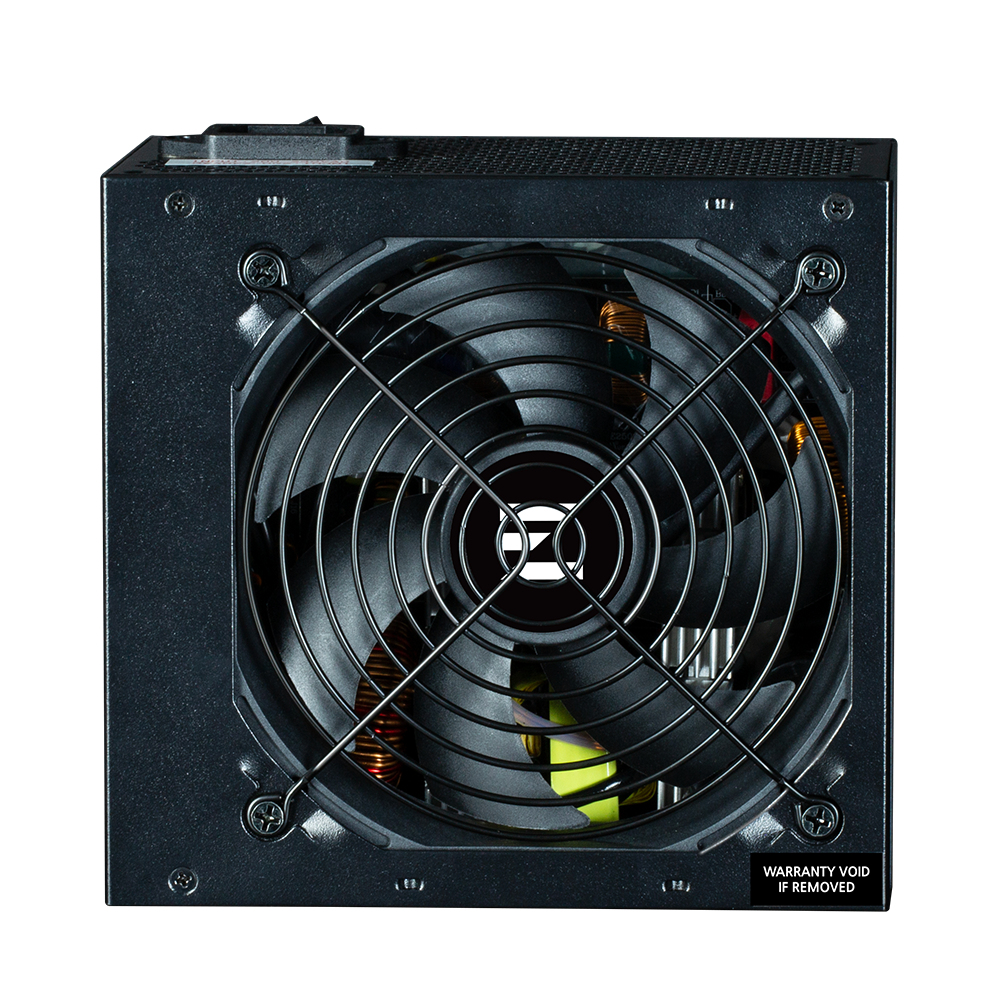

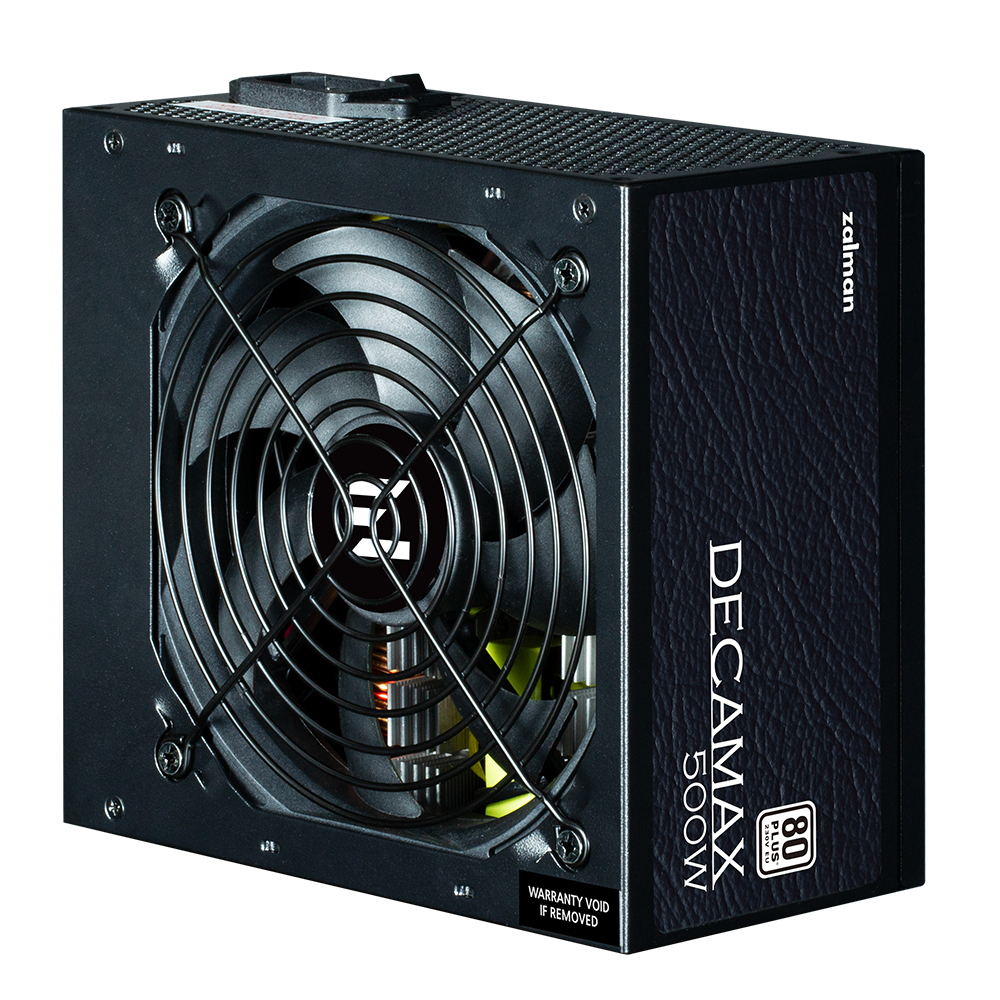

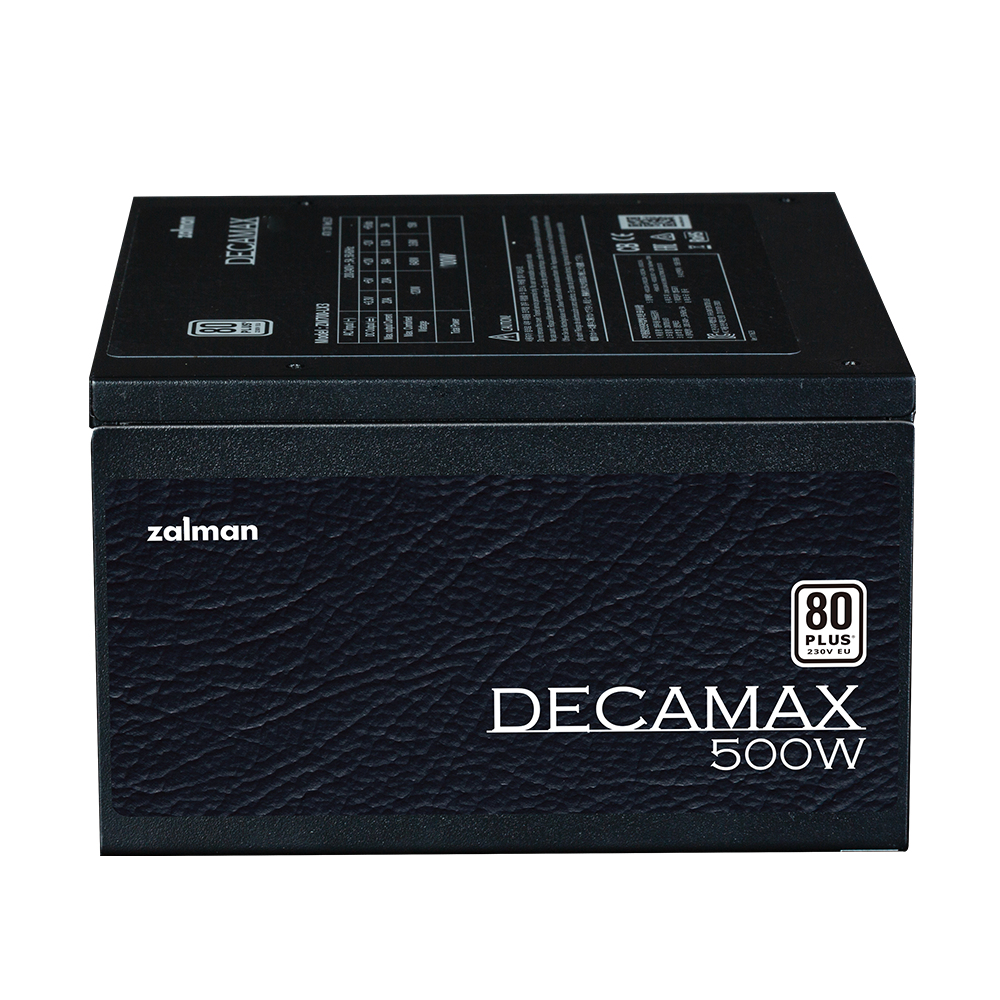

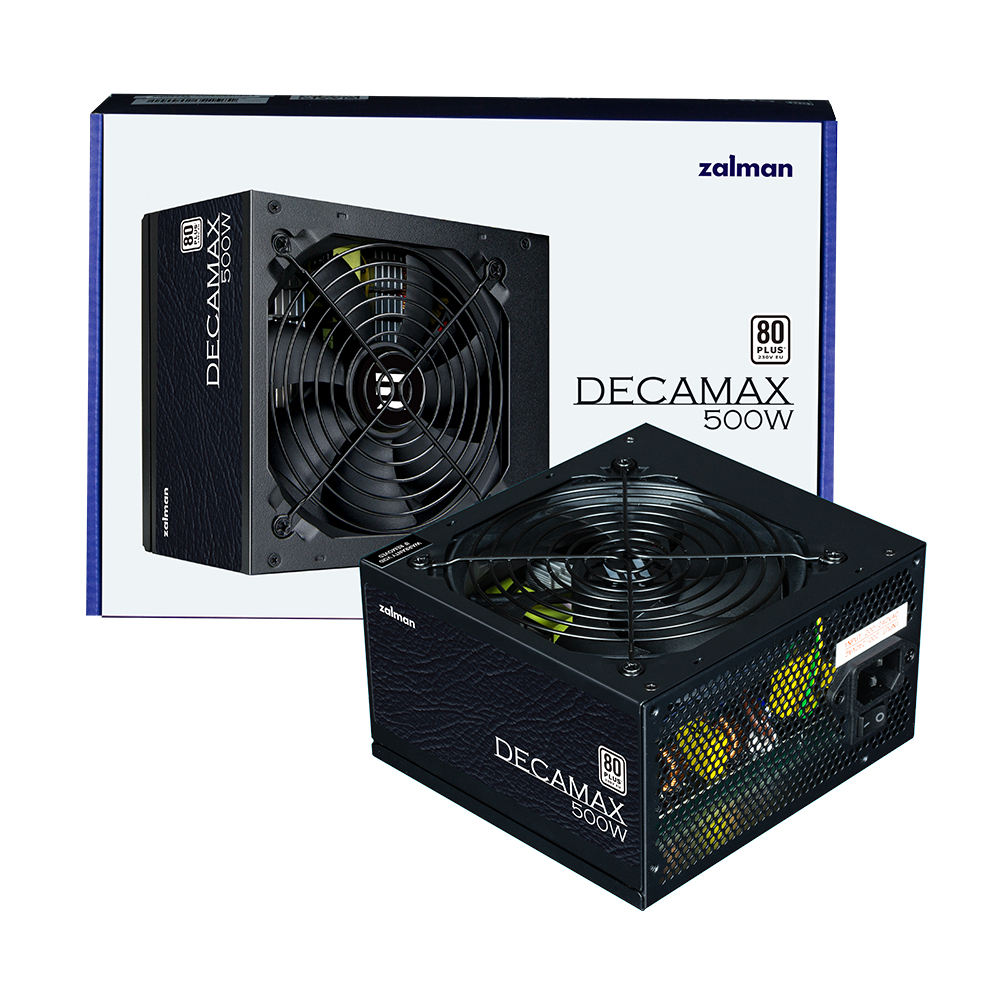

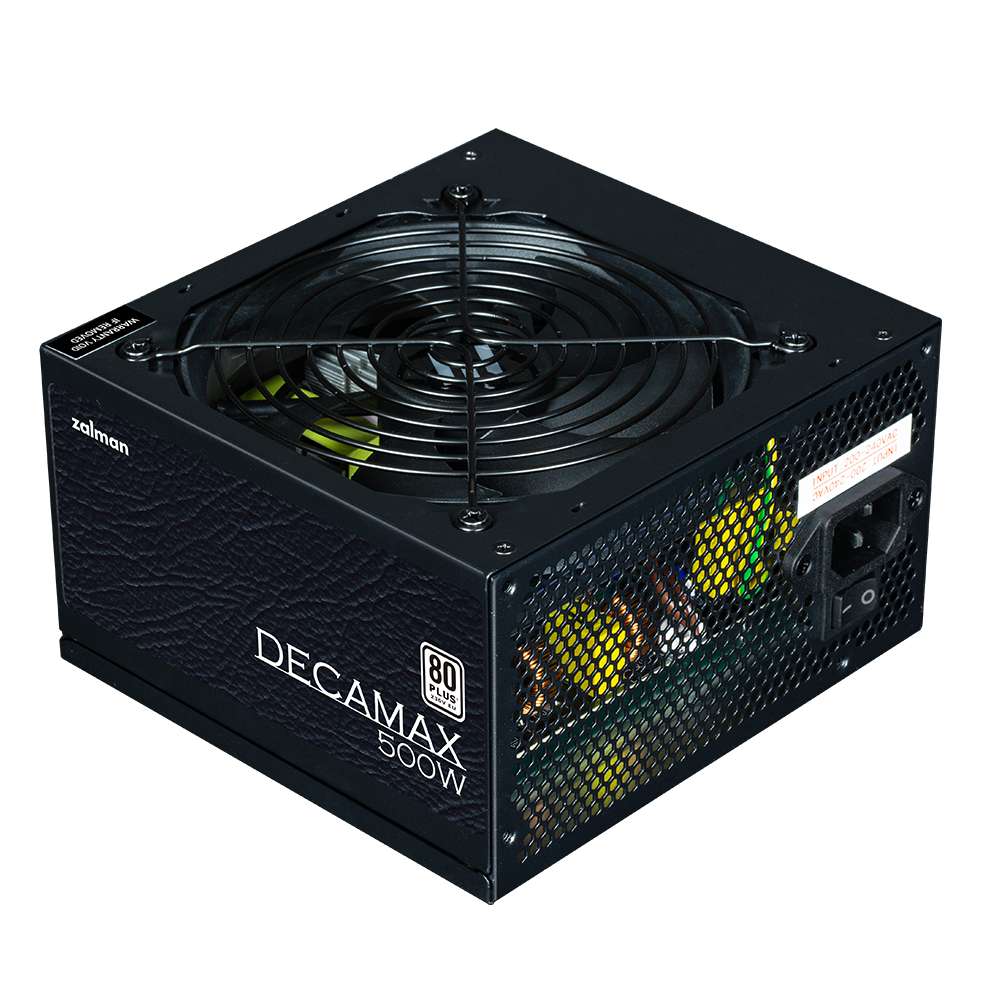

Decamax power supply unit
500 W ATX Black
Model DecamaxPart no. ZM700-LX3EAN 8809213764240
29 specifications
- Weight1.35 kg
- ColourBlack
- Total power500 W
- PurposePC
- Operating temperature (T-T)10 - 45 °C
- Width140 mm
Overview
- Weight
- 1.35 kg
- Colour
- Black
- Total power
- 500 W
- Purpose
- PC
- Operating temperature (T-T)
- 10 - 45 °C
- Width
- 140 mm
- Brand
- Zalman
- Category
- Power Supply Unit
- Model
- Decamax
- Part numbers
- ZM700-LX3, ZM500-LX3, ZM600-LX3
- EAN / UPC
- 8809213764240, 8809213764066, 8809213764073, 823884204001
- Also known as
- Zalman Decamax power supply unit 500 W ATX Black
Specifications
29 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 5 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 456 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 38 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 85% |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| Bearing technology | HDB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 45 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CB, CE, EAC, KC, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.35 kg |
