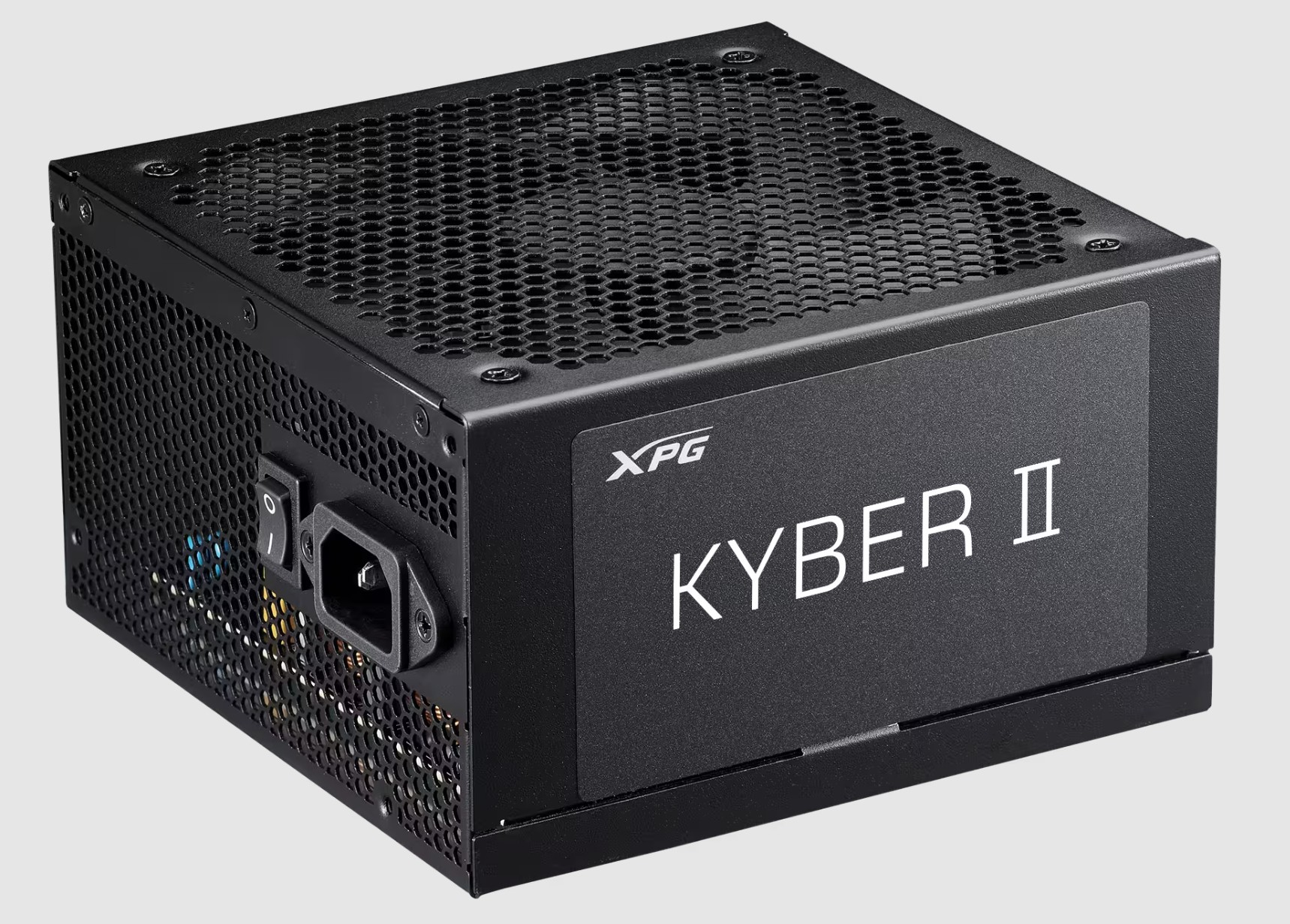

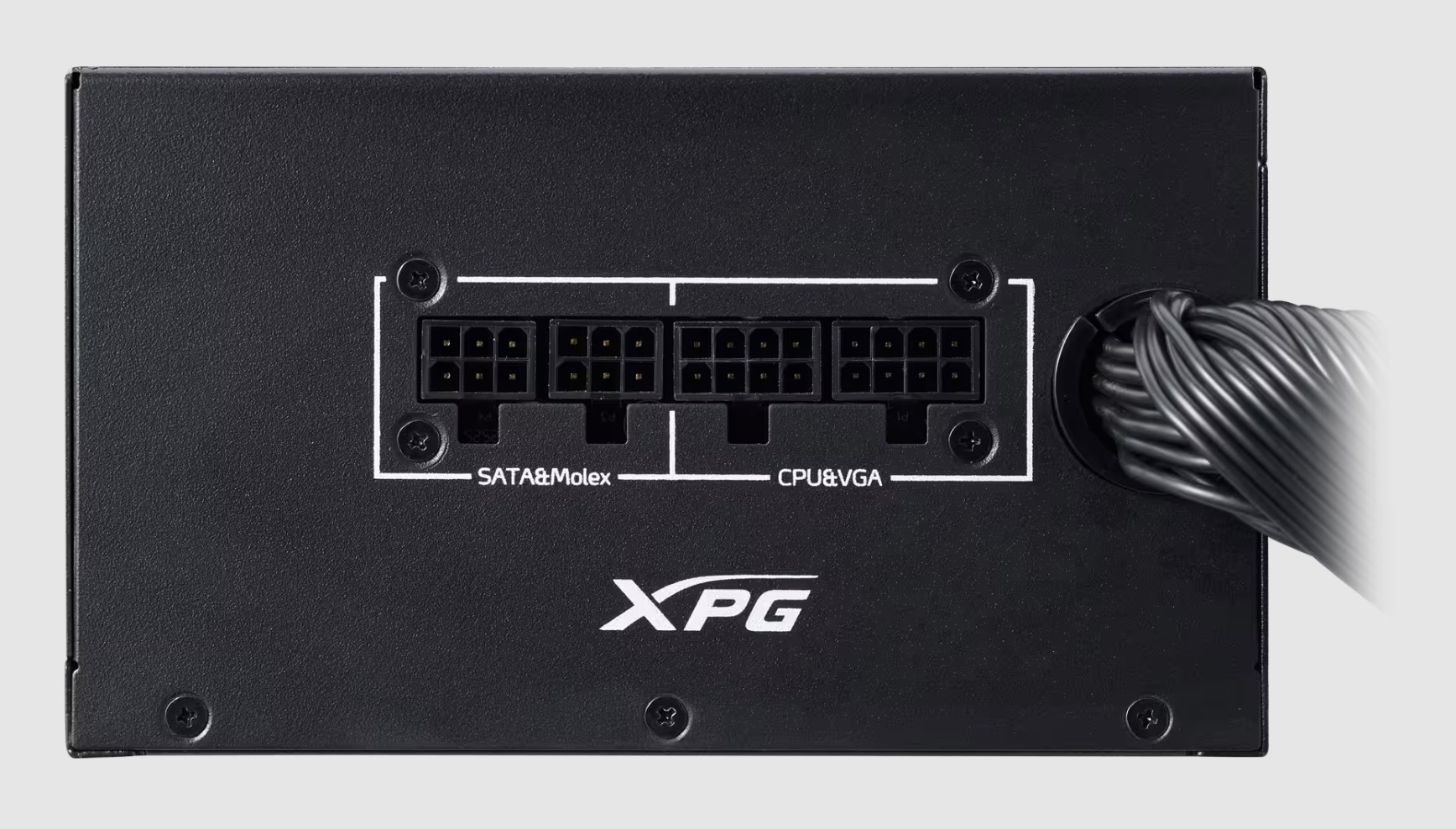

KYBERII650G-BKCUS power supply unit
650 W 20+4 pin ATX ATX Black
Model KYBERII650G-BKCUSPart no. 15260397EAN 842243036893
36 specifications
- Weight1.92 kg
- ColourBlack
- Total power650 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width86 mm
Overview
- Weight
- 1.92 kg
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 86 mm
- Brand
- XPG
- Category
- Power Supply Unit
- Model
- KYBERII650G-BKCUS
- Part number
- 15260397
- EAN / UPC
- 842243036893, 4711658153913
- Also known as
- XPG KYBERII650G-BKCUS power supply unit 650 W 20+4 pin ATX ATX Black
Specifications
36 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 A |
| Power factor | 0.99 |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over voltage, Over power, Short circuit, Over current, Under voltage, Overheating, Surge & inrush protection (SIP), No load operation |

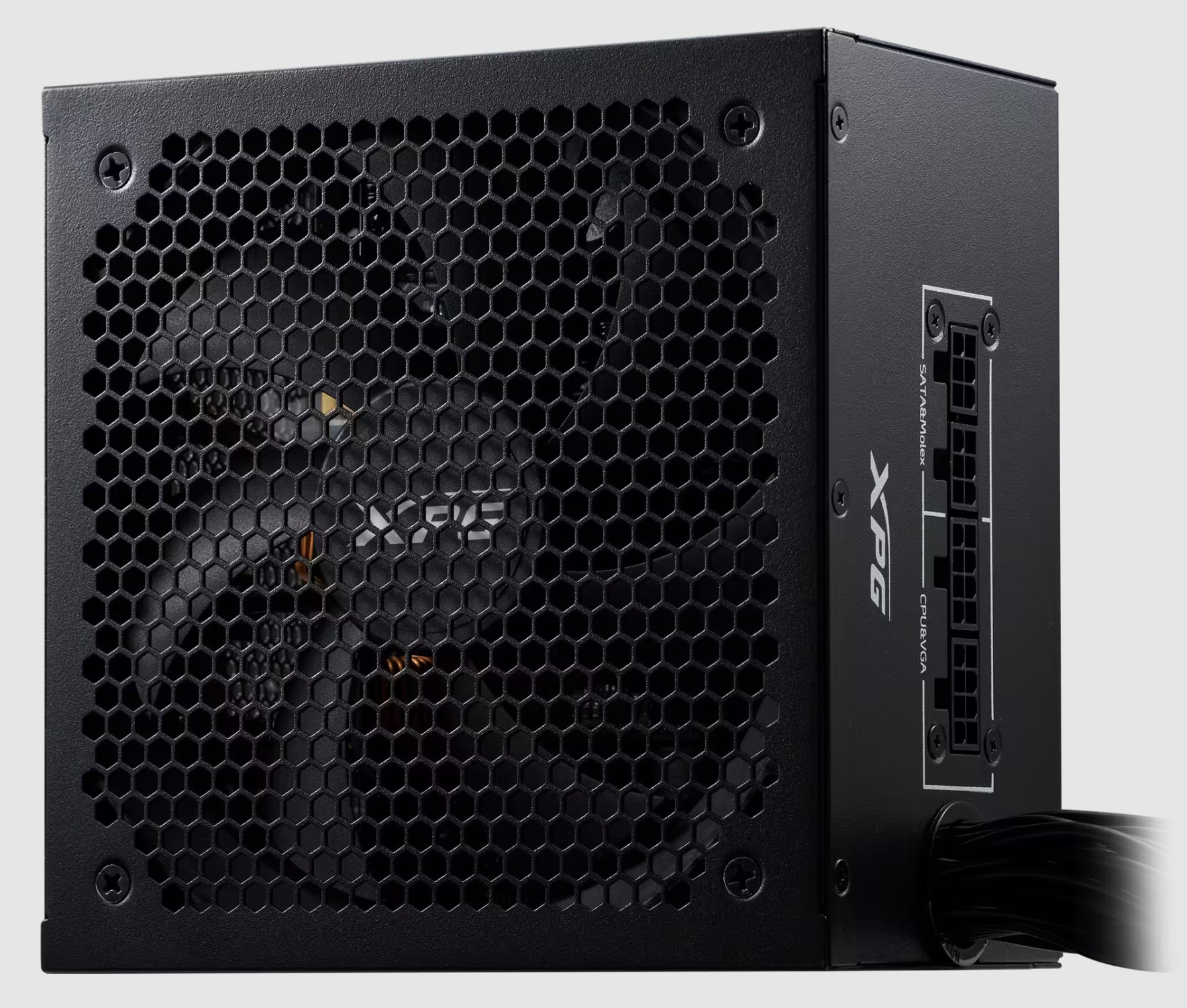

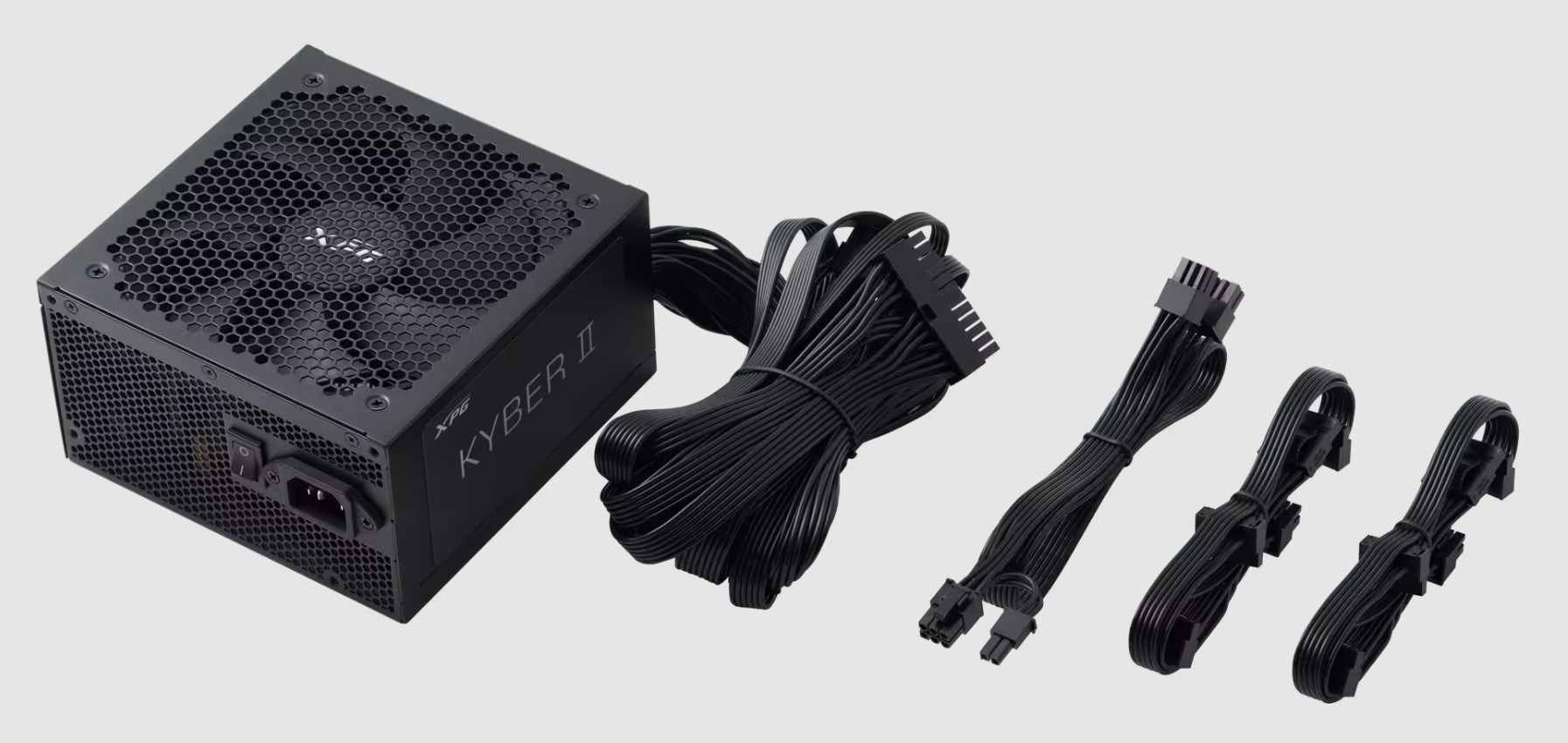

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| SATA power cable length | 450,550,650,750 mm |
| Number of SATA power cables | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (12+4 pin) | 1 |
| Number of EPS connectors | 2 |
| PCI Express connector | Yes |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

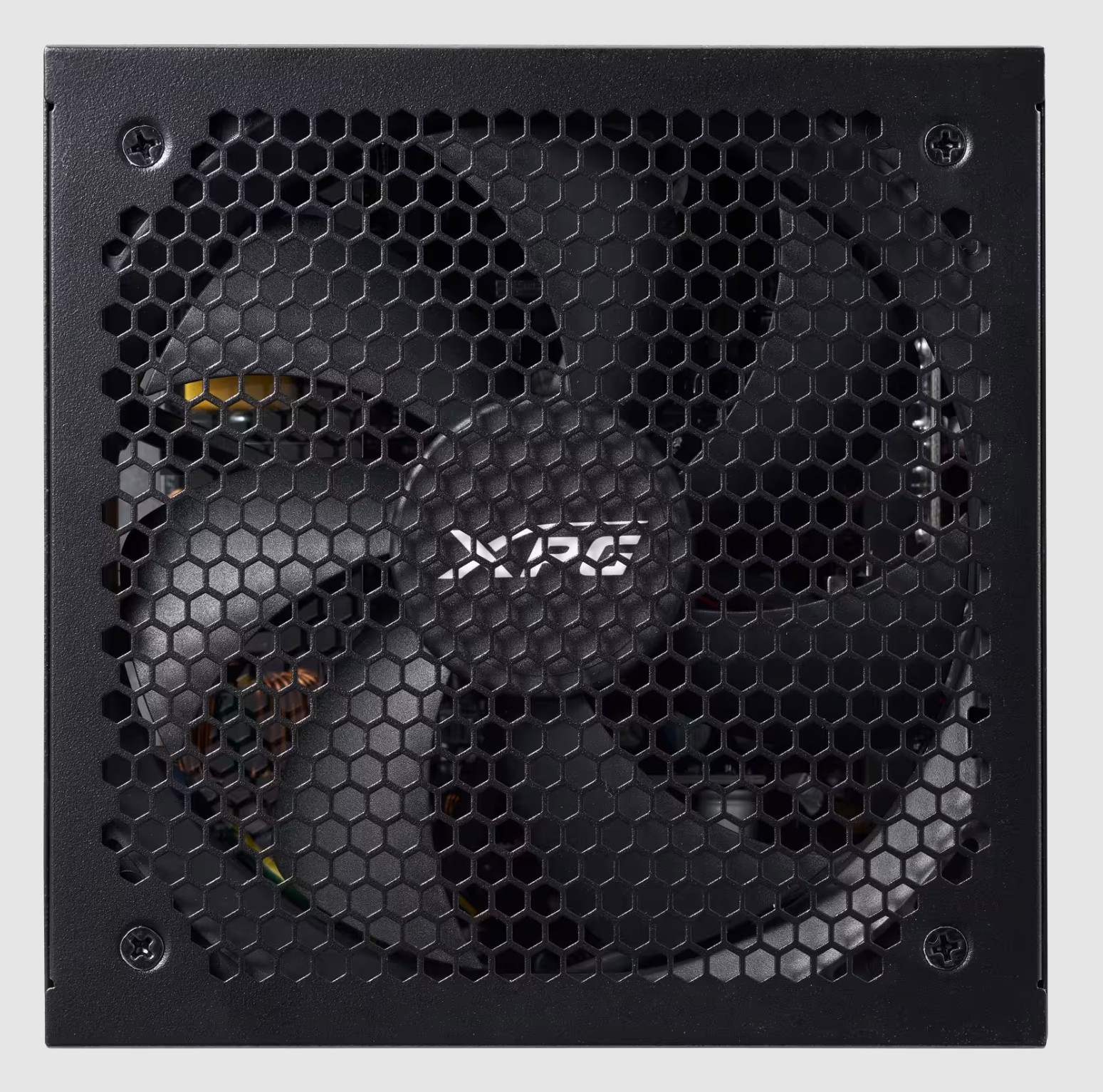

| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |

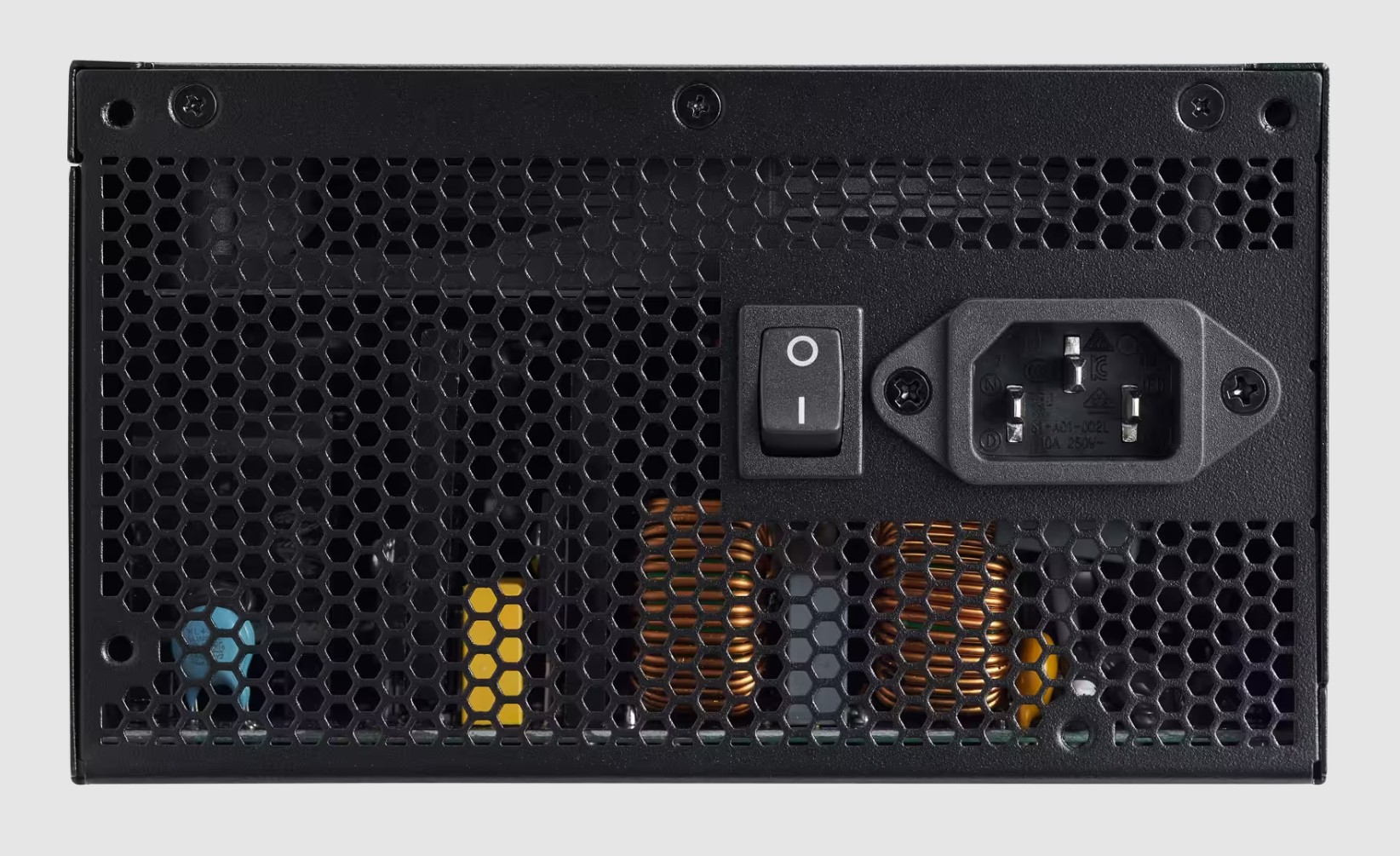

| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86 mm |
| Depth | 150 mm |
| Height | 150 mm |
| Weight | 1.92 kg |
