FUSION power supply unit
1600 W 20+4 pin ATX ATX Black
Model FUSIONPart no. FUSION1600T-BKCAU
24 specifications
- ColourBlack
- Total power1600 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 1600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- XPG
- Category
- Power Supply Unit
- Model
- FUSION
- Part number
- FUSION1600T-BKCAU
- Also known as
- XPG FUSION power supply unit 1600 W 20+4 pin ATX ATX Black
Specifications
24 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 1600 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Maximum input current (@110V) | 15 A |
| Maximum input current (@220V) | 15 A |
| Power factor | 0.99 |

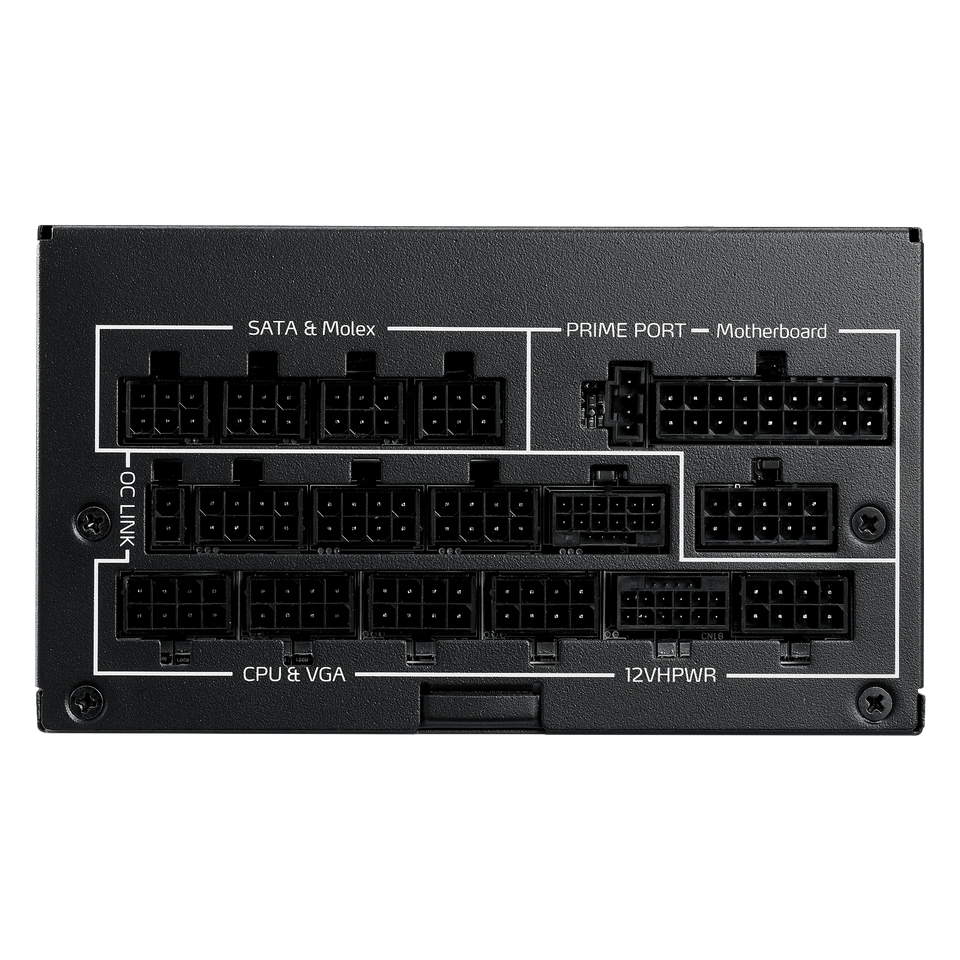

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 6 |
| Floppy drive power connector | 2 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Titanium |
| ATX version | 3.0 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 210 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
