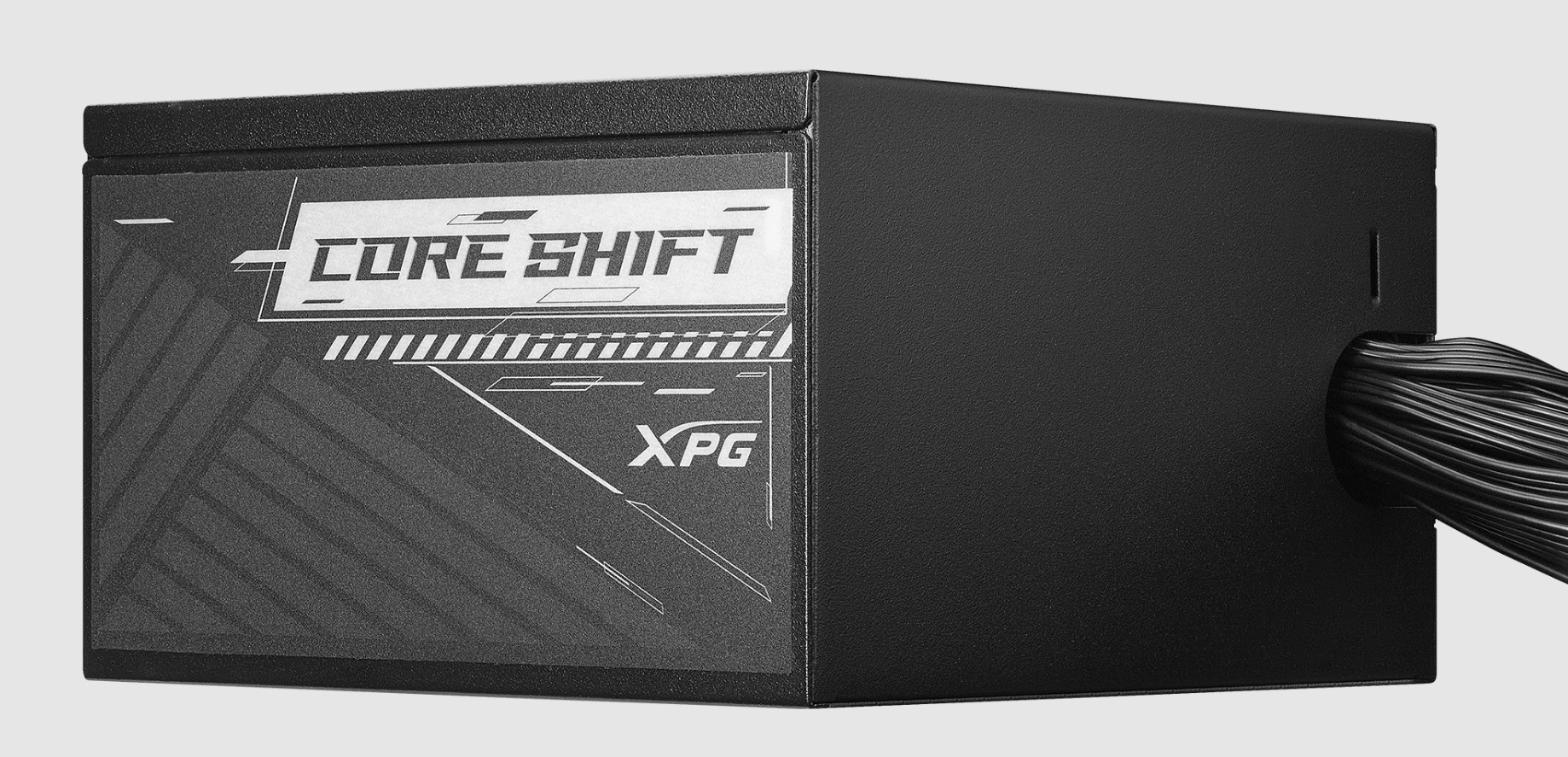

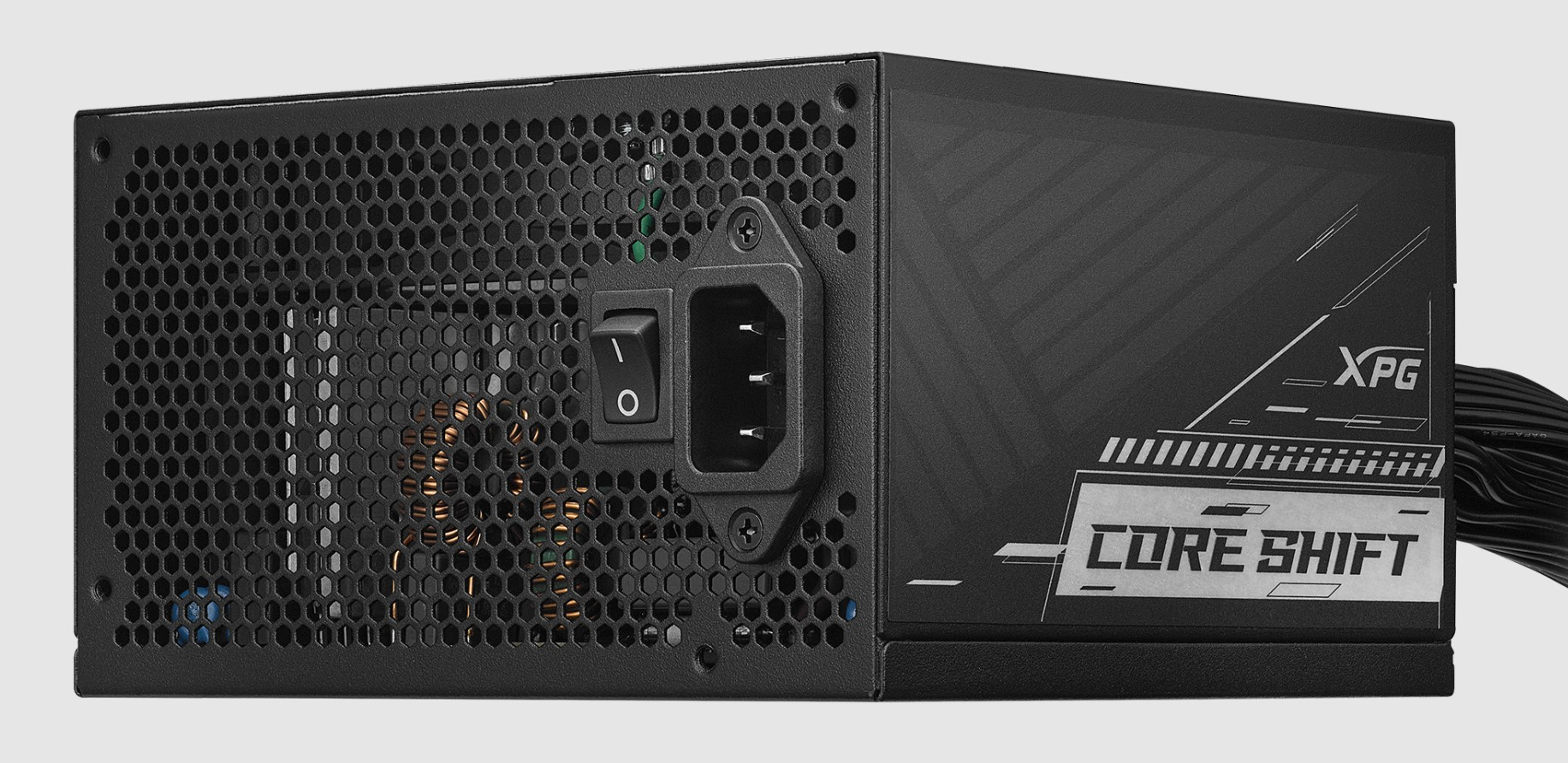

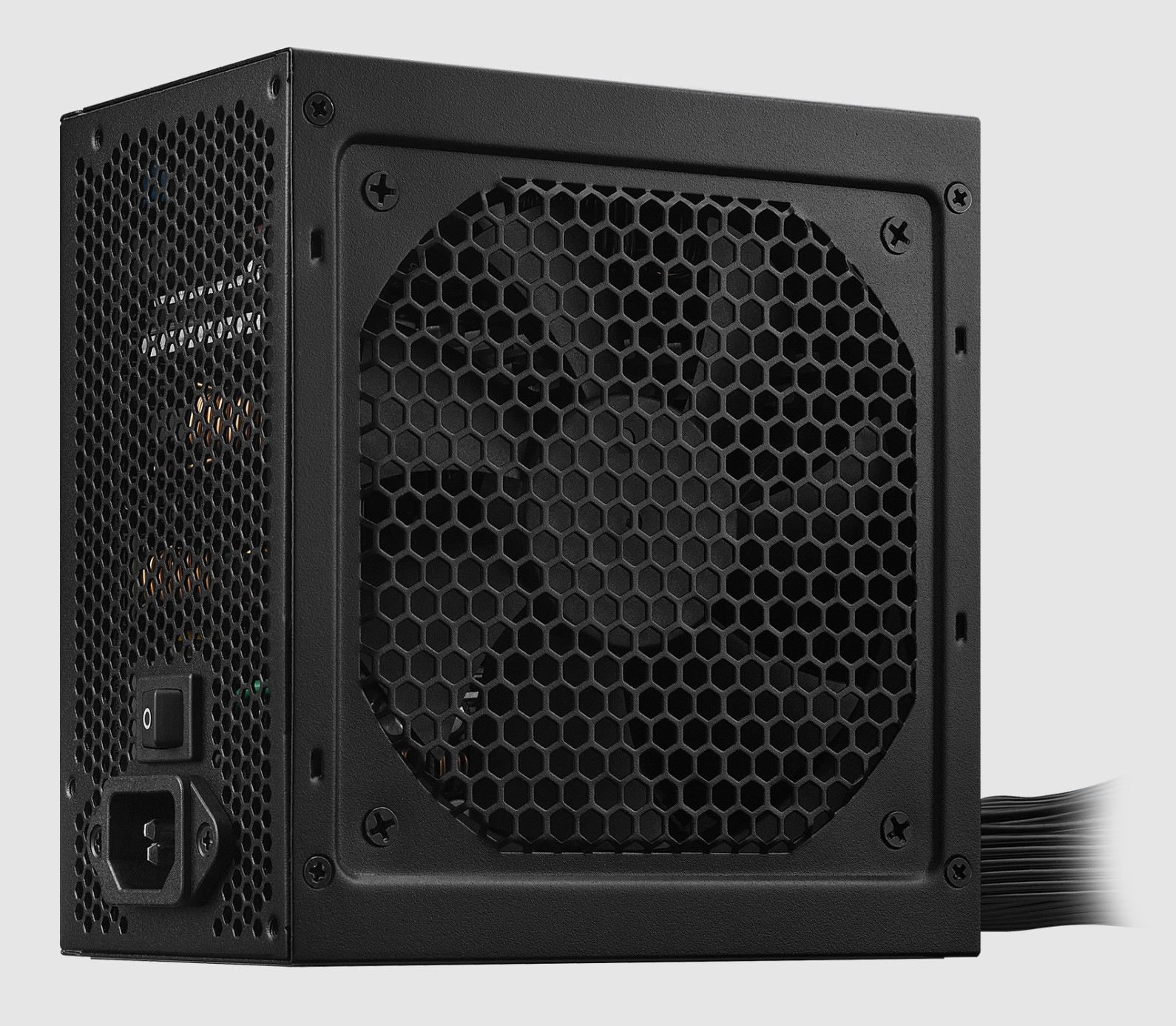

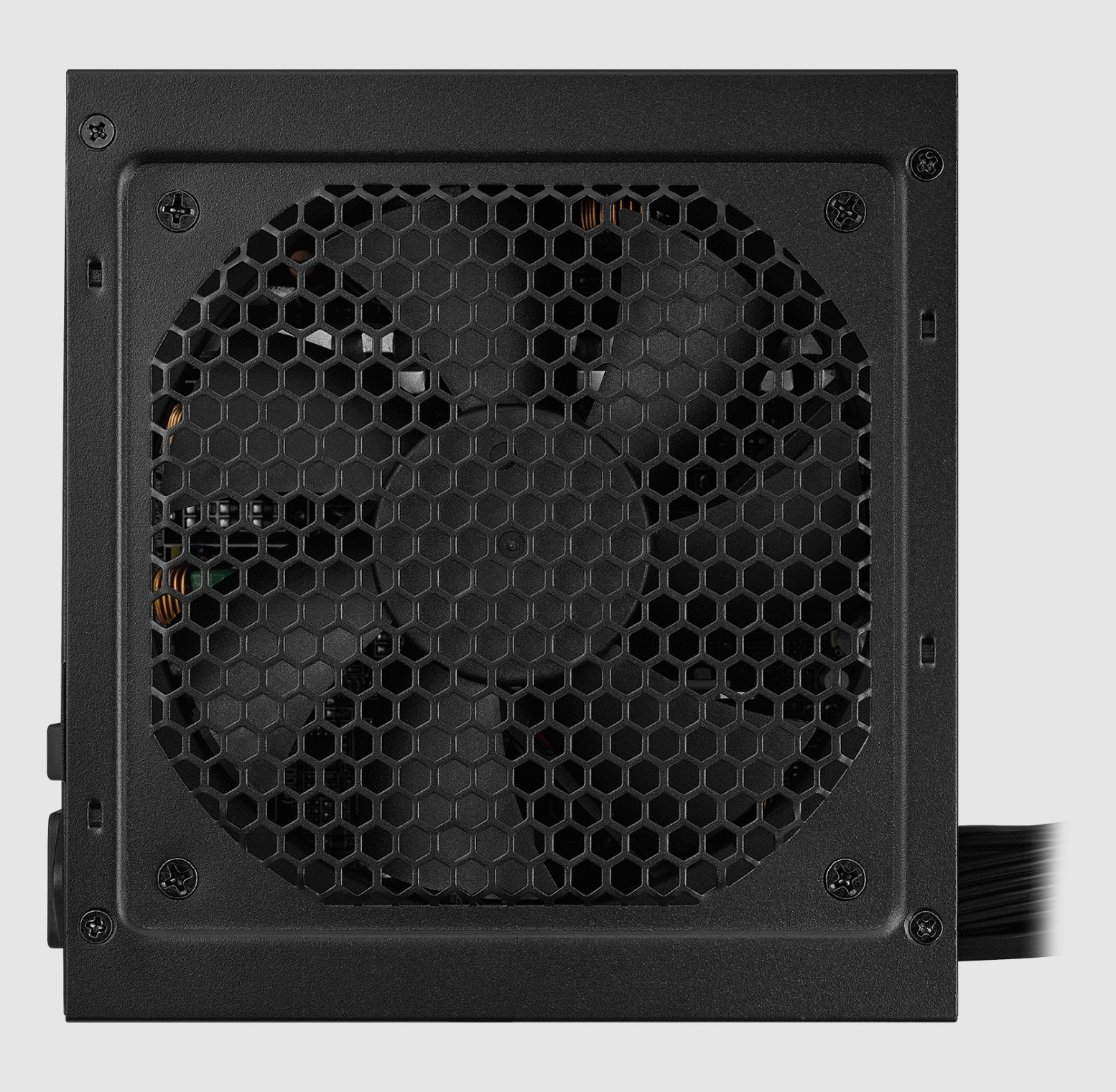

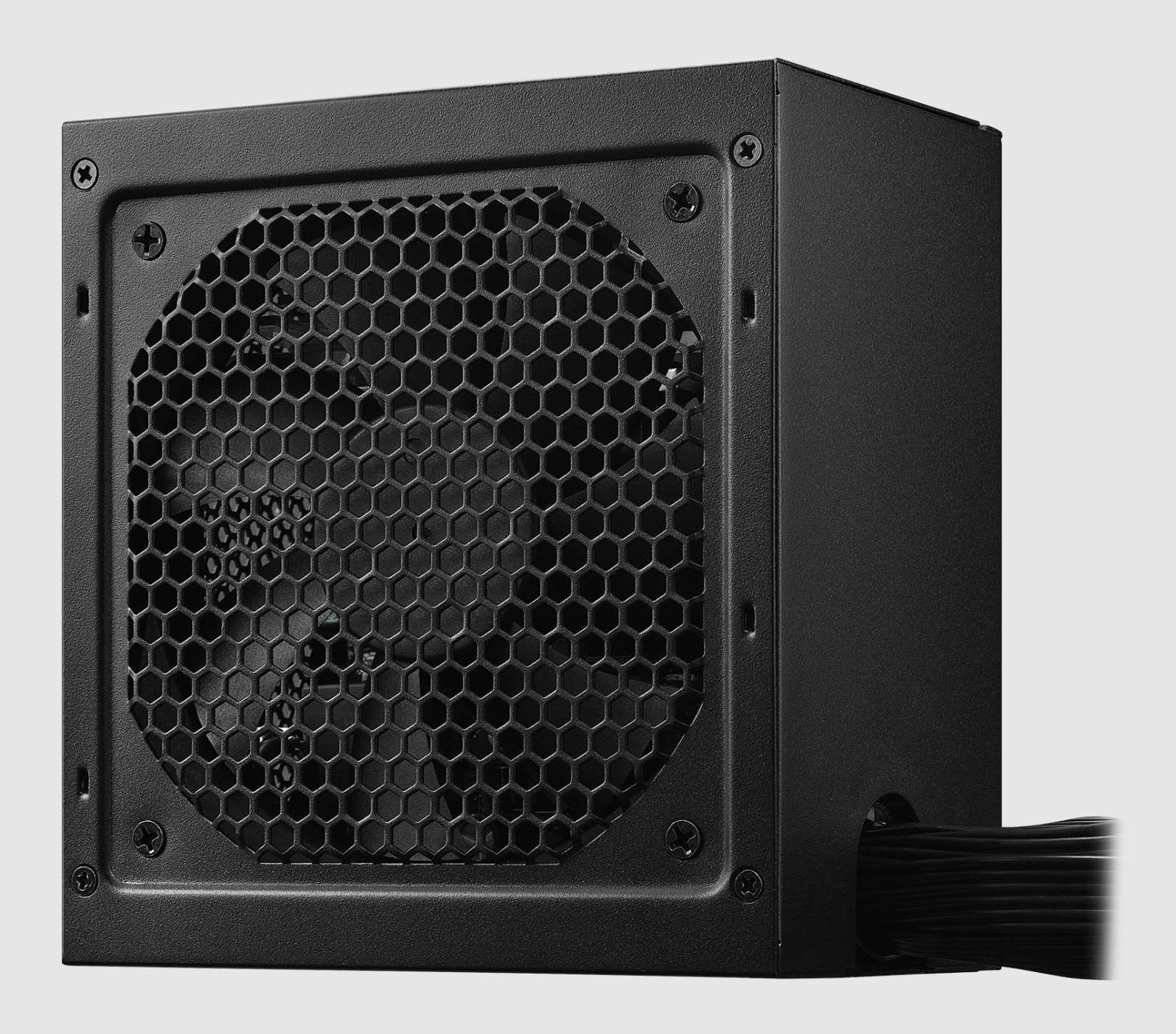

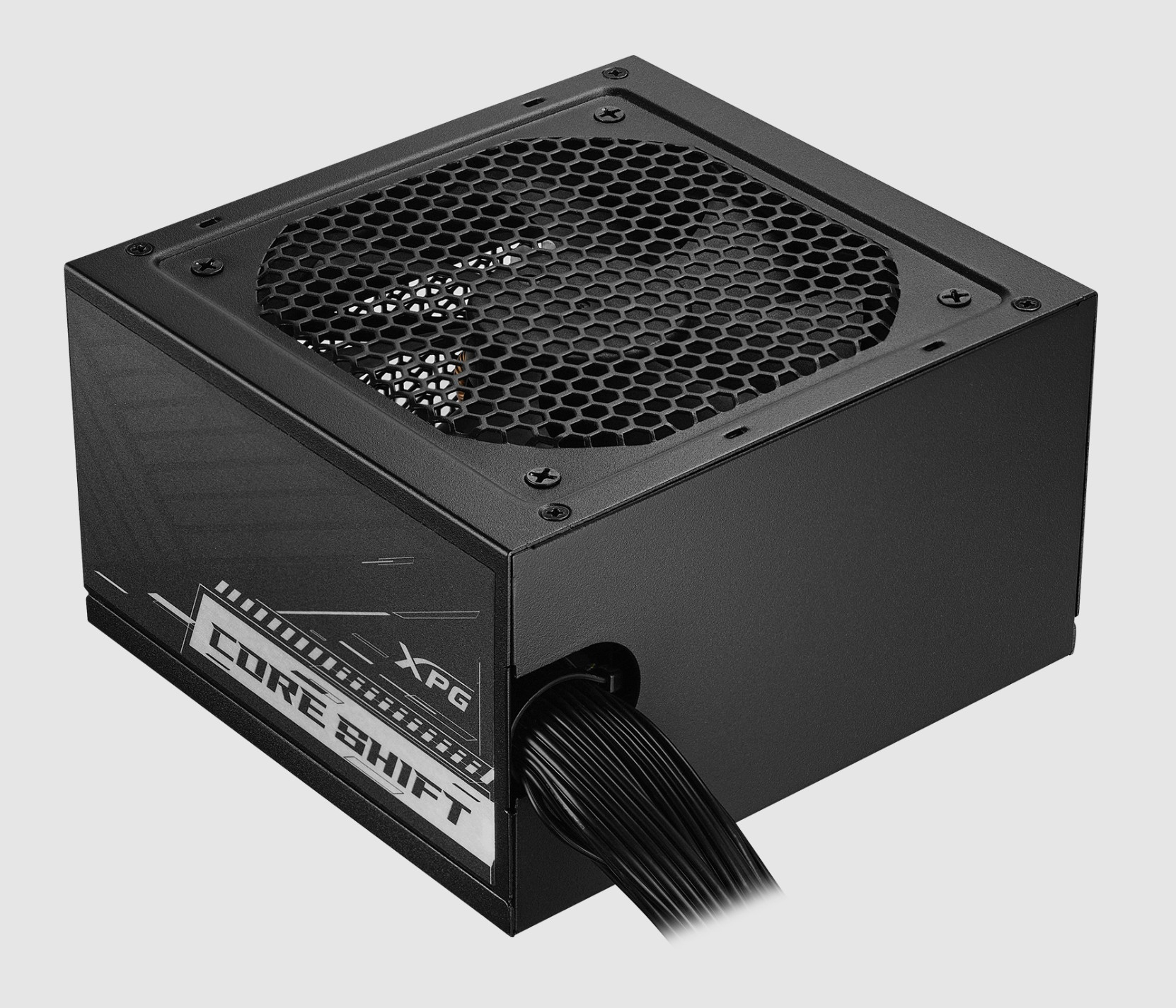

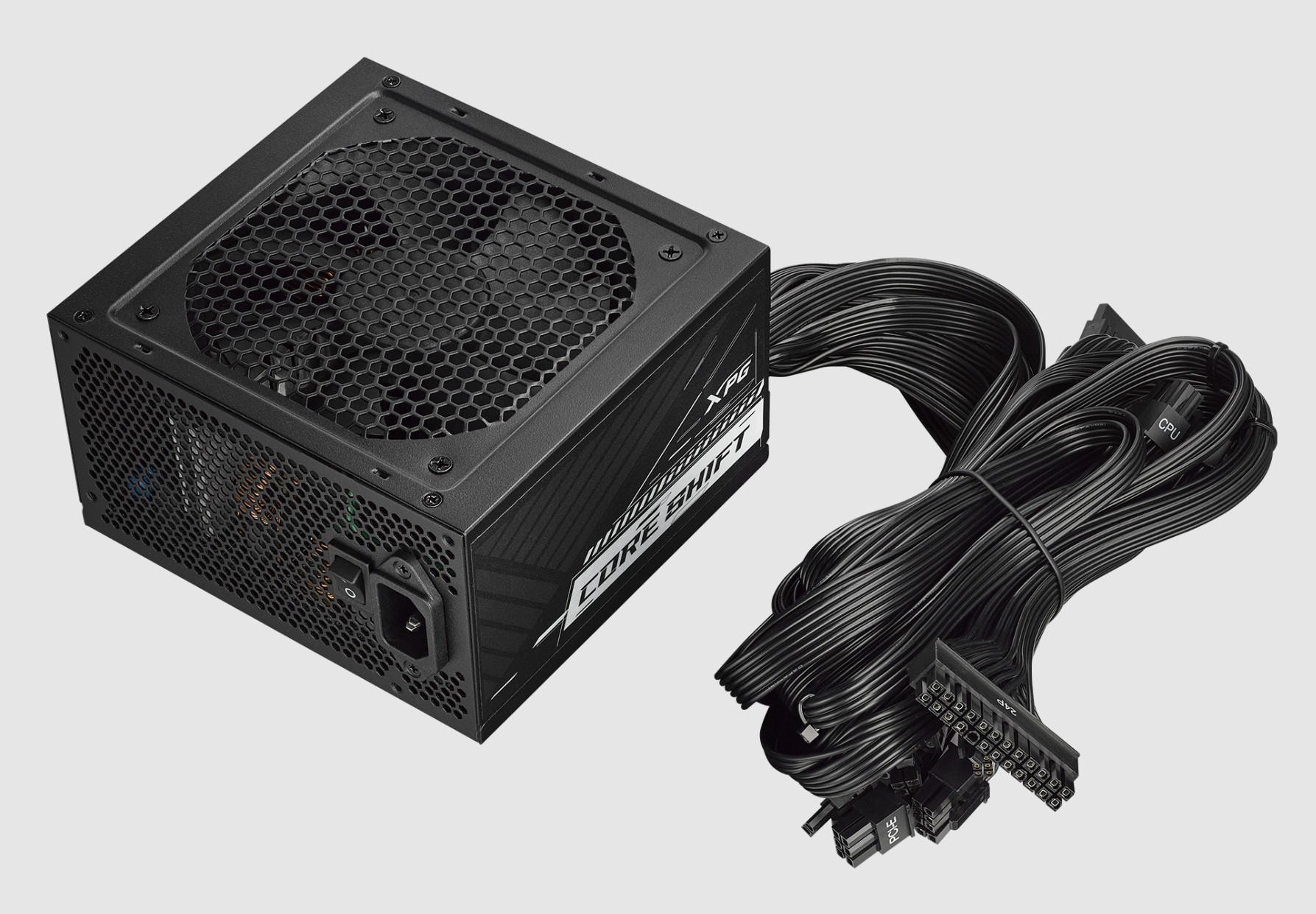

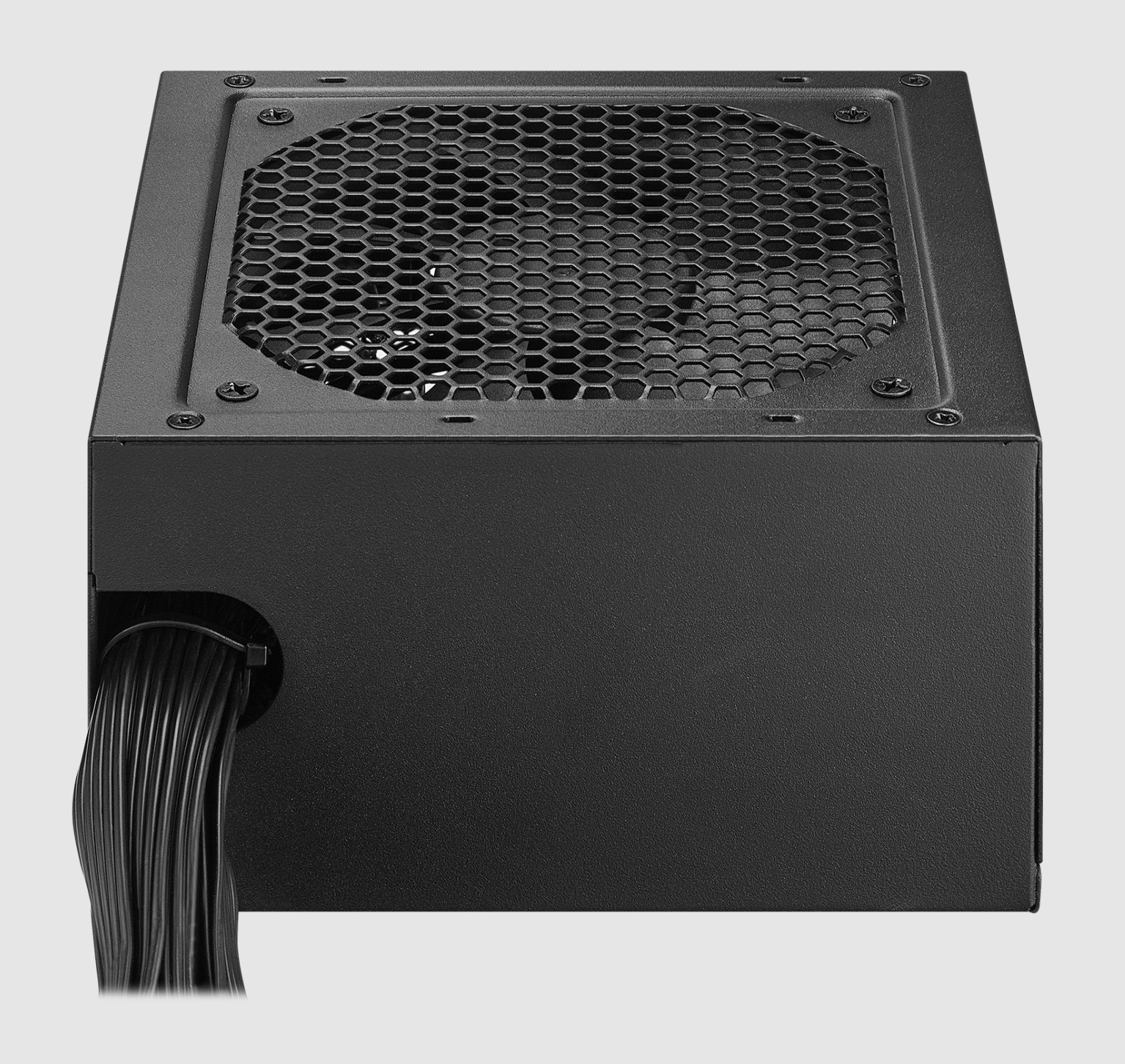

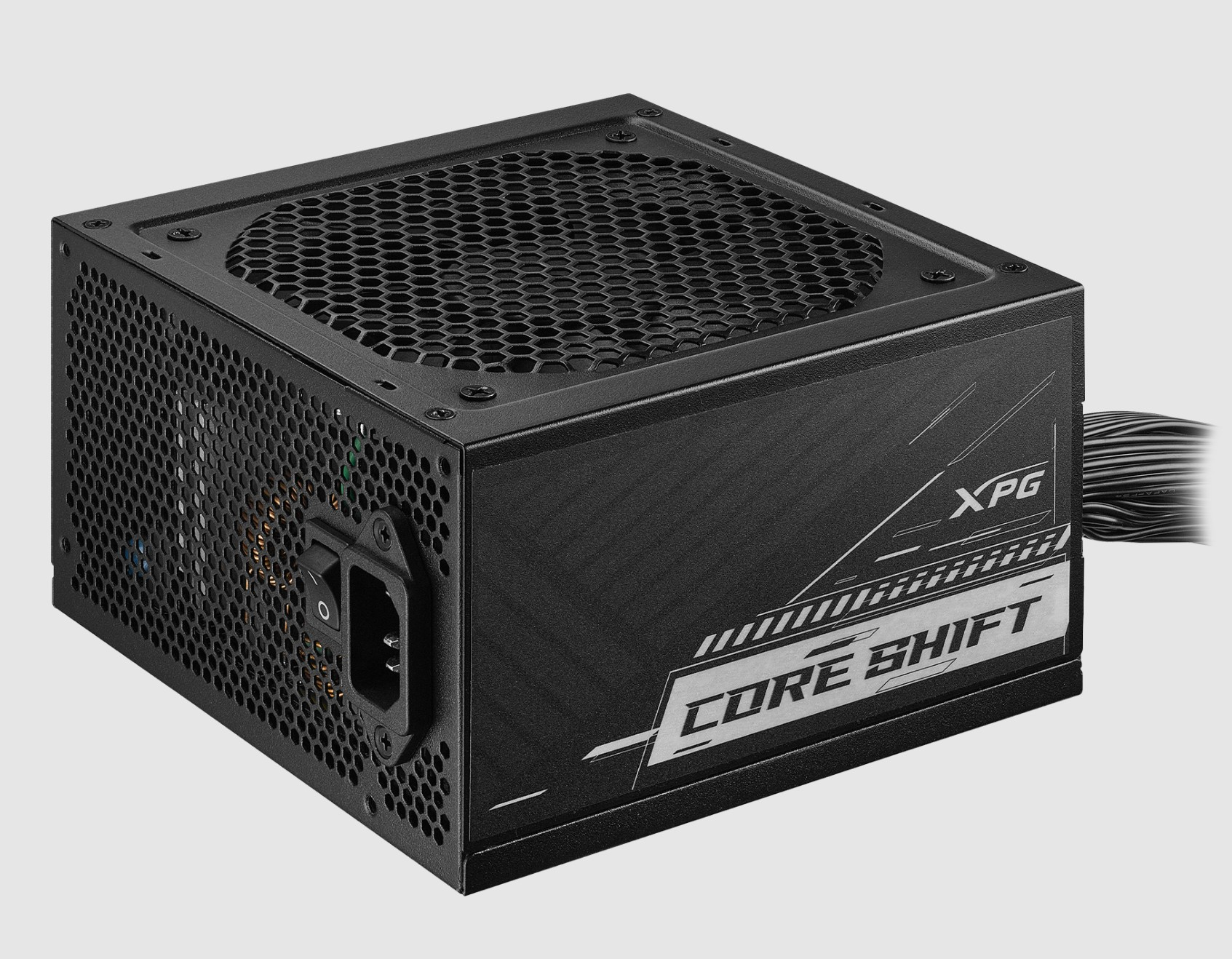

CORESHIFTIIVE750GD-BKBEU power supply unit
750 W 24-pin ATX ATX Black
Model CORESHIFTIIVE750GD-BKBEUPart no. 15260491
34 specifications
- Weight1.8 kg
- ColourBlack
- Total power750 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width140 mm
Overview
- Weight
- 1.8 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- XPG
- Category
- Power Supply Unit
- Model
- CORESHIFTIIVE750GD-BKBEU
- Part number
- 15260491
- Also known as
- XPG CORESHIFTIIVE750GD-BKBEU power supply unit 750 W 24-pin ATX ATX Black
Specifications
34 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 6 A |
| Power factor | 0.99 |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.4 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.4 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over voltage, Over power, Short circuit, Over current, Under voltage, Overheating, No load operation, Surge & inrush protection (SIP) |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (12+4 pin) | 1 |
| ATX Power connector (24-pin) | Yes |
| Number of EPS connectors | 2 |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | Sleeve |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Bulk |
