CORE REACTOR
Model CORE REACTORPart no. COREREACTOR850G-BKCUS
27 specifications
- Noise11.2 dB
- ColourBlack
- Total power650 W
- Motherboard power connector24-pin ATX
- PurposePC
Overview
- Noise
- 11.2 dB
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Brand
- XPG
- Category
- Power Supply Unit
- Model
- CORE REACTOR
- Part numbers
- COREREACTOR850G-BKCUS, COREREACTOR650G-BKCUS, COREREACTOR750G-BKCUS, COREREACTOR750G-BKCEU, CREACTOR650G-BKCGB, COREREACTOR850G-BKCEU
- Also known as
- XPG CORE REACTOR power supply unit 650 W 24-pin ATX Black
Specifications
27 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 - 5 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 16 |
| ATX Power connector (24-pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Supported motherboard form factors | ATX |
| Noise level | 11.2 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Rear |
| On/off switch | Yes |

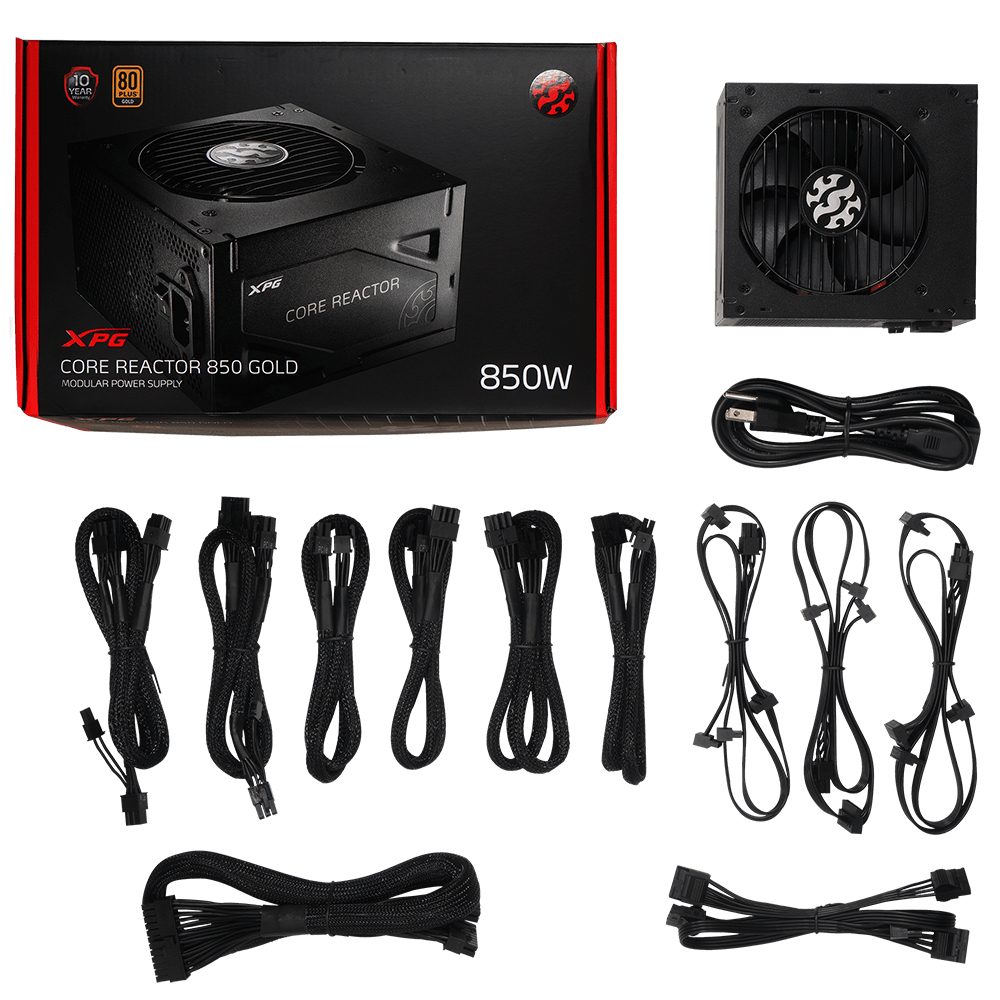

Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Certification | CB / TUV / cTUVus / CCC / CE / FCC / BSMI / RCM / EAC |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
