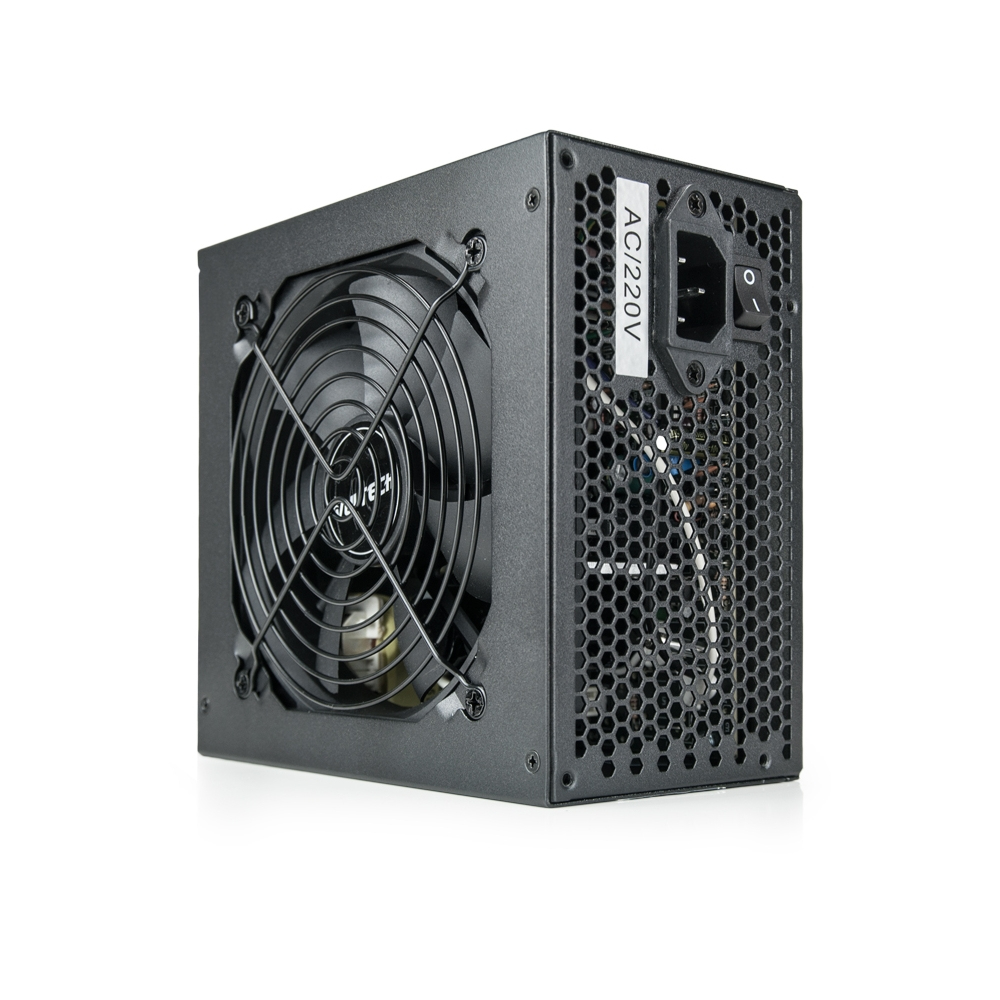

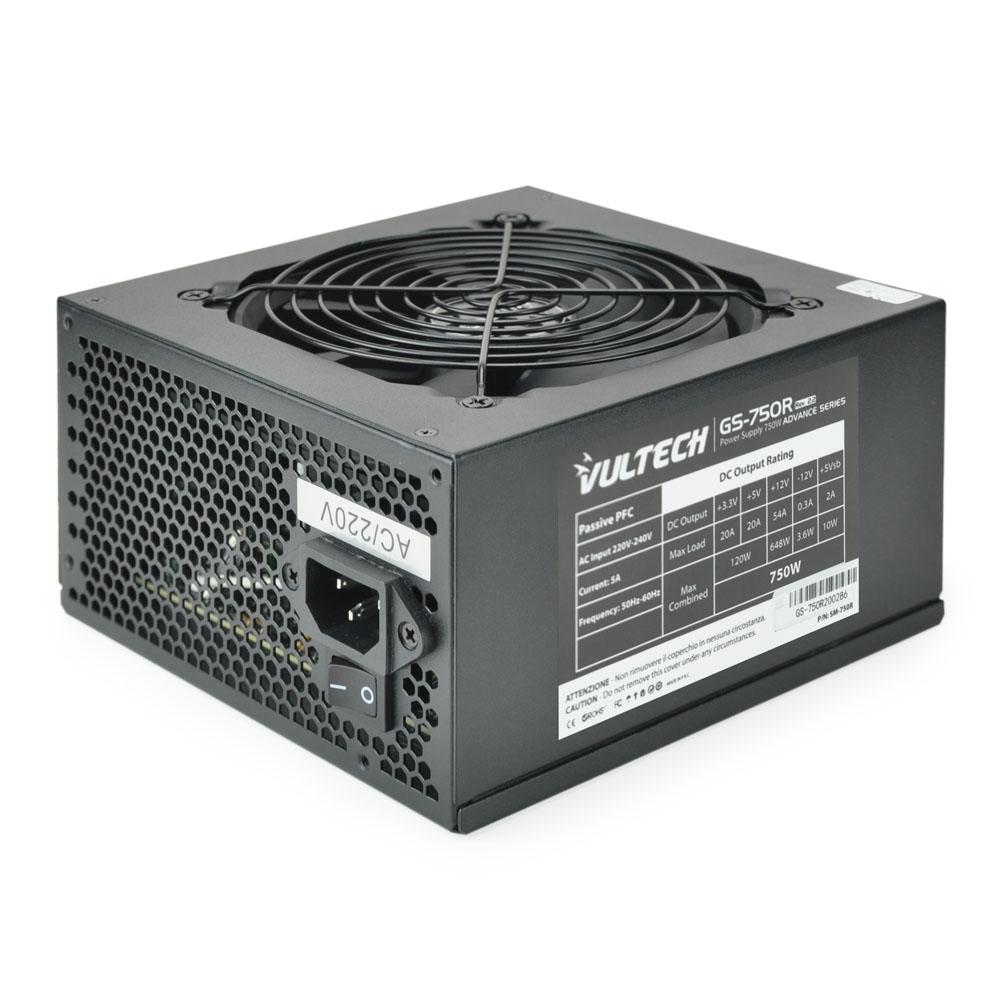

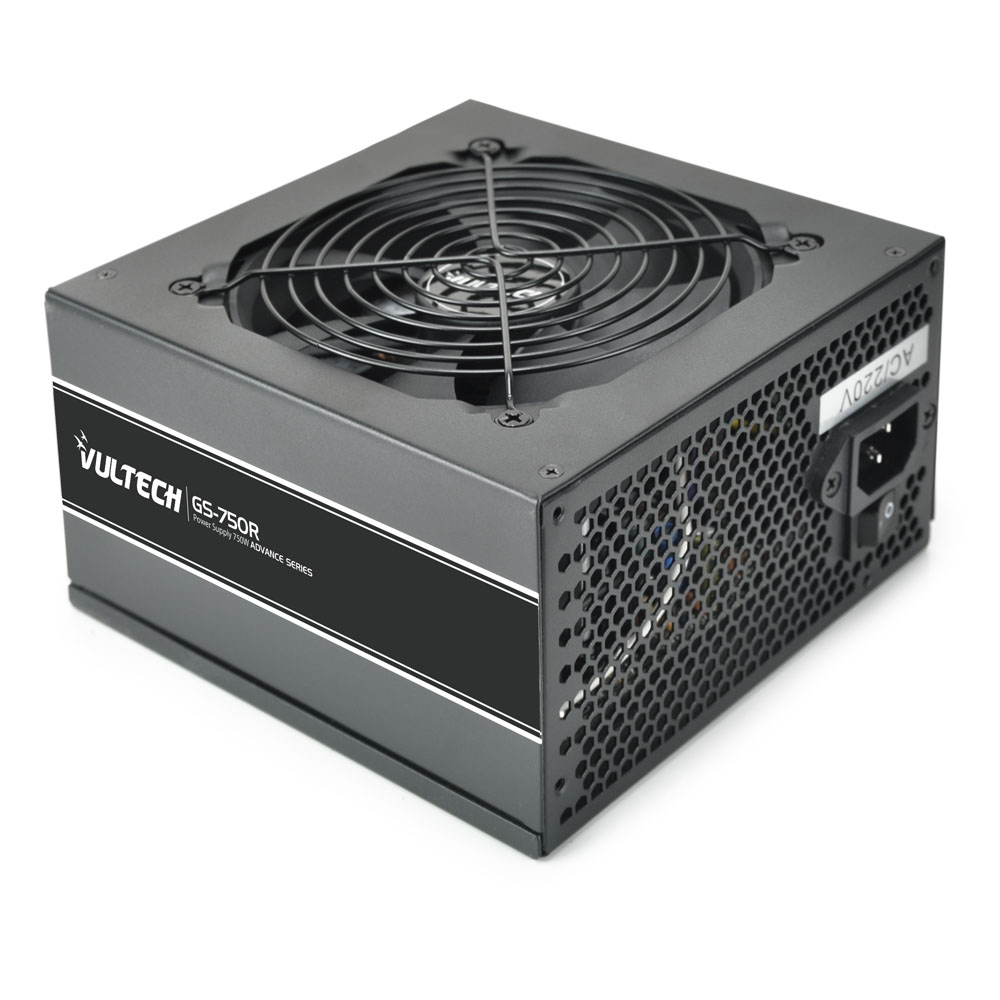

Vultech GS-750R power supply unit
750 W 20+4 pin ATX ATX Black
Model GS-750REAN 8011234500480
29 specifications
- Noise30 dB
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 30 dB
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Vultech
- Category
- Power Supply Unit
- Model
- GS-750R
- Part number
- GS-750R
- EAN / UPC
- 8011234500480, 8057284620105
- Also known as
- Vultech GS-750R power supply unit 750 W 20+4 pin ATX ATX Black
Specifications
29 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 110 - 220 V |
| AC input frequency | 50 - 60 Hz |
| Max output current (+3.3V) | 28 A |
| Max output current (+12V1) | 16 A |
| Max output current (+12V2) | 16 A |
| Max output current (+12V3) | 16 A |
| Max output current (+12V4) | 16 A |
| Max output current (+5V) | 26 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Noise level | 30 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
