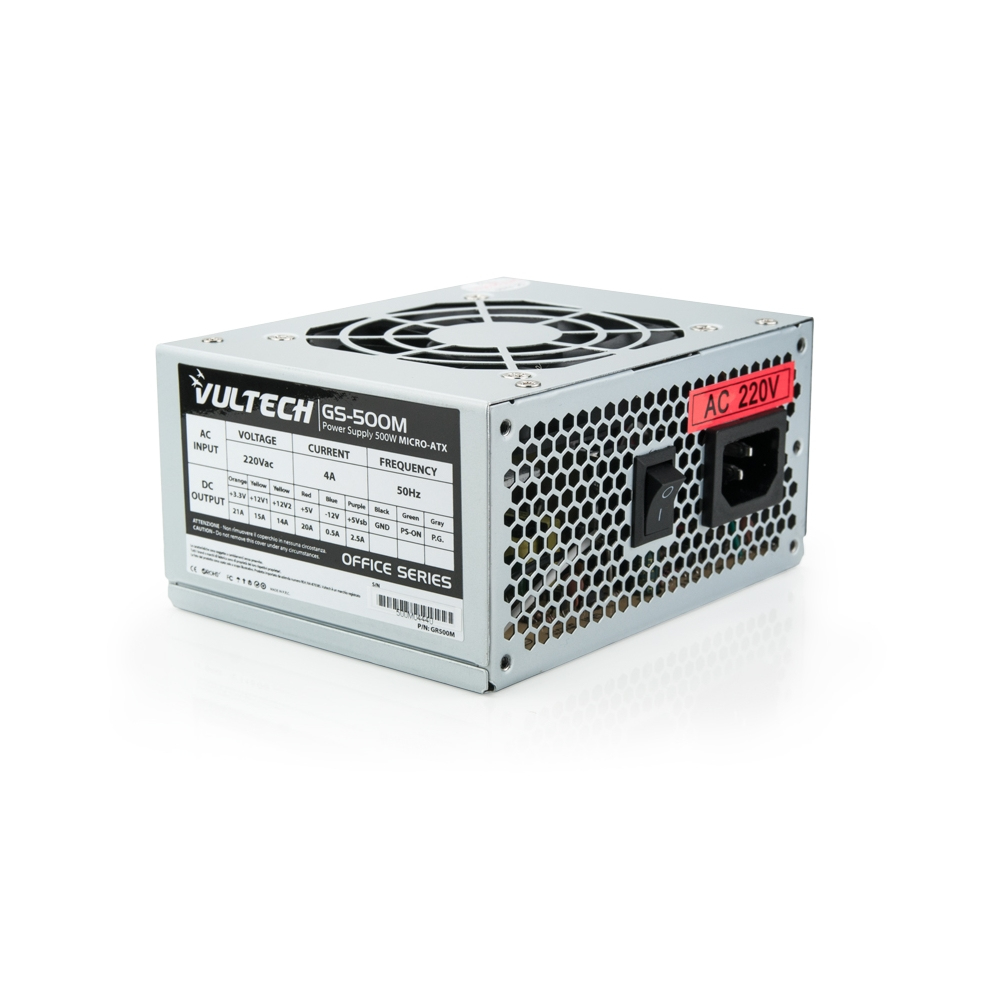

Vultech GS-500M power supply unit
500 W 20+4 pin ATX ATX Silver
Model GS-500MEAN 8057284620075
29 specifications
- Noise20 dB
- ColourSilver
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width125 mm
Overview
- Noise
- 20 dB
- Colour
- Silver
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 125 mm
- Brand
- Vultech
- Category
- Power Supply Unit
- Model
- GS-500M
- Part number
- GS-500M
- EAN / UPC
- 8057284620075
- Also known as
- Vultech GS-500M power supply unit 500 W 20+4 pin ATX ATX Silver
Specifications
29 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Max output current (+3.3V) | 21 A |
| Max output current (+12V1) | 15 A |
| Max output current (+12V2) | 14 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Noise level | 20 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 100 mm |
| Height | 63 mm |
Other features
| Specification | Value |
|---|---|
| Noise level (full-load mode, 100%) | 32 dB |
