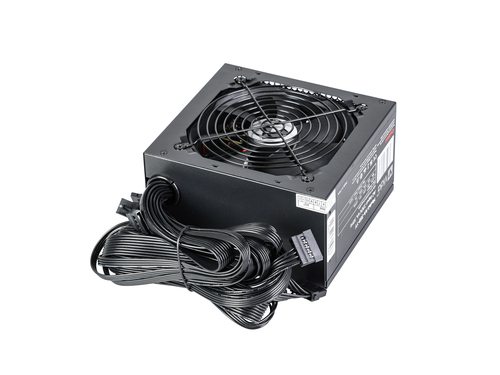

LITE 350W PSU PPFC 12CM FAN
Model LITE 350W PSU PPFC 12CM FANPart no. AA-350-YYEAN 5056733100970
49 specifications
- Weight1.27 kg
- ColourBlack
- Total power350 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 1.27 kg
- Colour
- Black
- Total power
- 350 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- VIDA
- Category
- Power Supply Unit
- Model
- LITE 350W PSU PPFC 12CM FAN
- Part number
- AA-350-YY
- EAN / UPC
- 5056733100970
- Also known as
- VIDA LITE 350W PSU PPFC 12CM FAN power supply unit 24-pin ATX ATX Black
Specifications
49 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 350 W |
| AC input voltage | 230 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Passive |
| Number of +12V rail(s) | 1 |
| Max output current (+3.3V) | 10 A |
| Max output current (+12V) | 27 A |
| Max output current (+5V) | 12 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2 A |
| Power protection features | Over power |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 55 cm |
| Number of PATA power connectors | 1 |
| Number of SATA power connectors | 6 |
| SATA power cable length | 800 mm |
| Number of SATA power cables | 2 |
| Peripheral (Molex) power cable length | 550 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power cable length | 61 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 58 cm |
| ATX Power connector (24-pin) | Yes |
| Floppy disk drive connector | Yes |
| Number of EPS connectors | 1 |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | No |
| Removable filter | No |
| ATX version | 1.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | No |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | UKCA, RoHS, CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 85 mm |
| Height | 140 mm |
| Weight | 1.27 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 195 mm |
| Package depth | 92 mm |
| Package height | 160 mm |
| Package weight | 1.5 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
