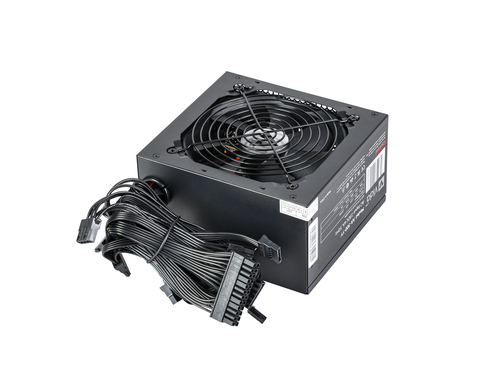

LITE 300W PSU PPFC 12CM FAN
Model LITE 300W PSU PPFC 12CM FANPart no. AA-300-YYEAN 5056733100963
37 specifications
- Weight1.17 kg
- ColourBlack
- Total power300 W
- Motherboard power connector24-pin ATX
- Power supply unit (PSU) form factorATX
- Width150 mm
Overview
- Weight
- 1.17 kg
- Colour
- Black
- Total power
- 300 W
- Motherboard power connector
- 24-pin ATX
- Power supply unit (PSU) form factor
- ATX
- Width
- 150 mm
- Brand
- VIDA
- Category
- Power Supply Unit
- Model
- LITE 300W PSU PPFC 12CM FAN
- Part number
- AA-300-YY
- EAN / UPC
- 5056733100963
- Also known as
- VIDA LITE 300W PSU PPFC 12CM FAN power supply unit 24-pin ATX ATX Black
Specifications
37 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| AC input voltage | 230 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Passive |
| Number of +12V rail(s) | 1 |
| Max output current (+3.3V) | 10 A |
| Max output current (+12V) | 20 A |
| Max output current (+5V) | 12 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of PATA power connectors | 3 |
| Number of SATA power connectors | 6 |
| Floppy disk drive connector | Yes |
| PCI Express connector | No |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | No |
| Removable filter | No |
| ATX version | 1.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Fan location | Top |
| Illumination | No |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | UKCA, CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 85 mm |
| Height | 140 mm |
| Weight | 1.17 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 195 mm |
| Package depth | 92 mm |
| Package height | 160 mm |
| Package weight | 1.4 kg |
| Package type | Box |
Technical details
| Specification | Value |
|---|---|
| Dangerous goods | No |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
