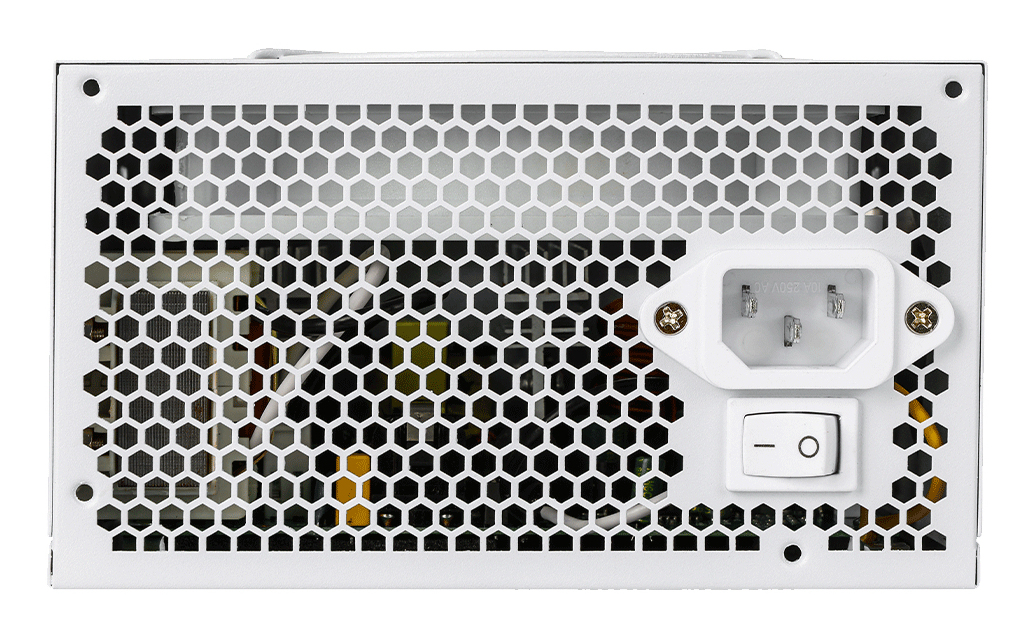

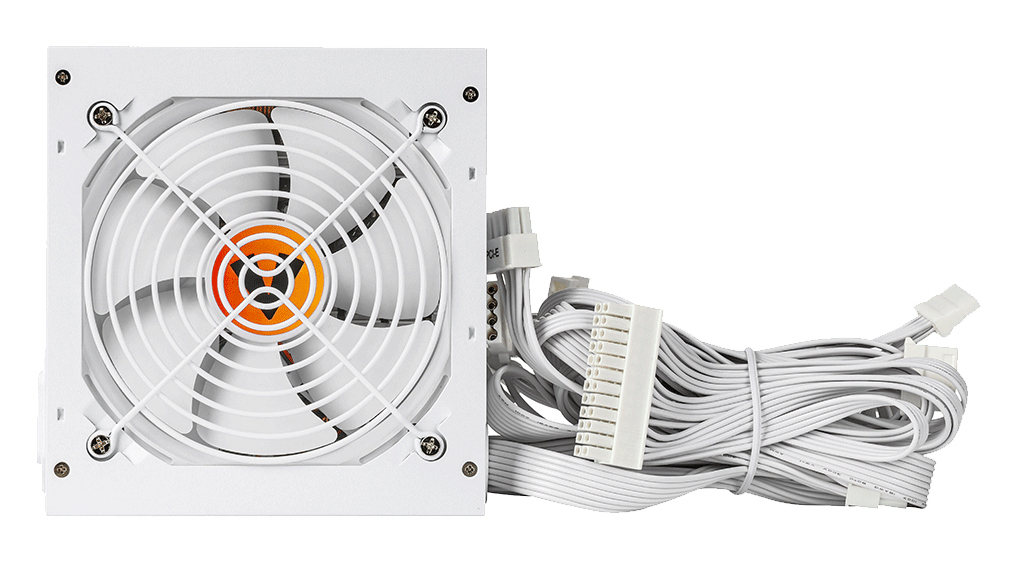

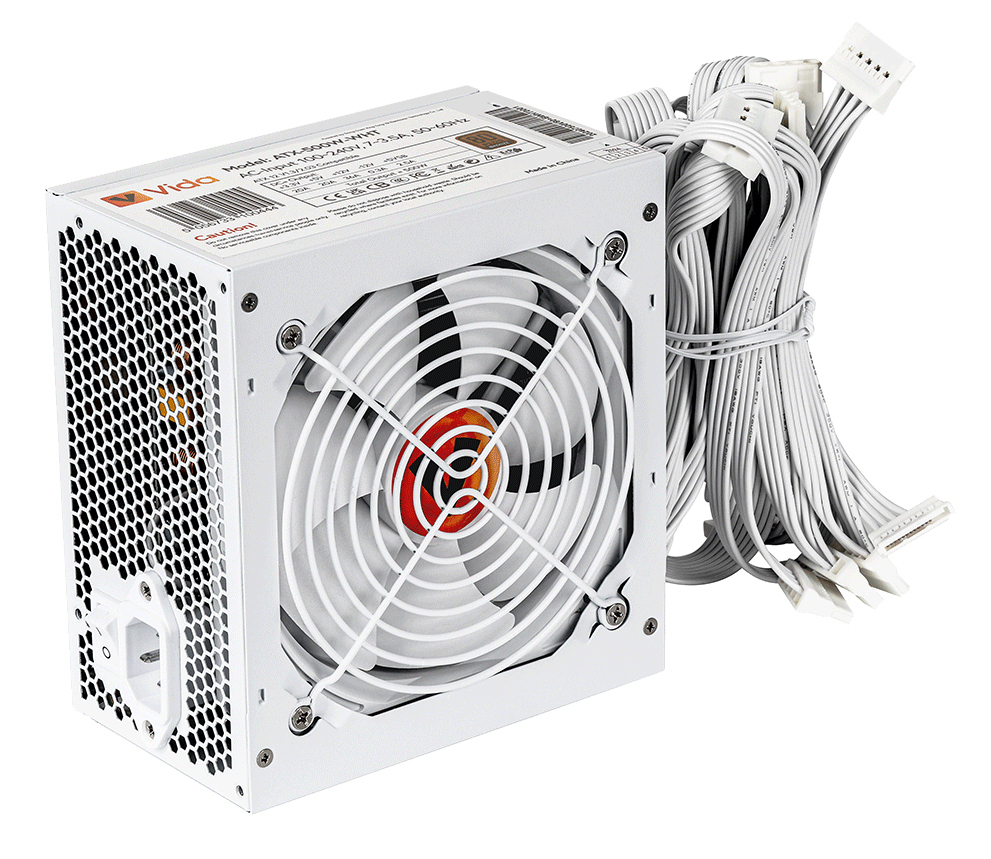

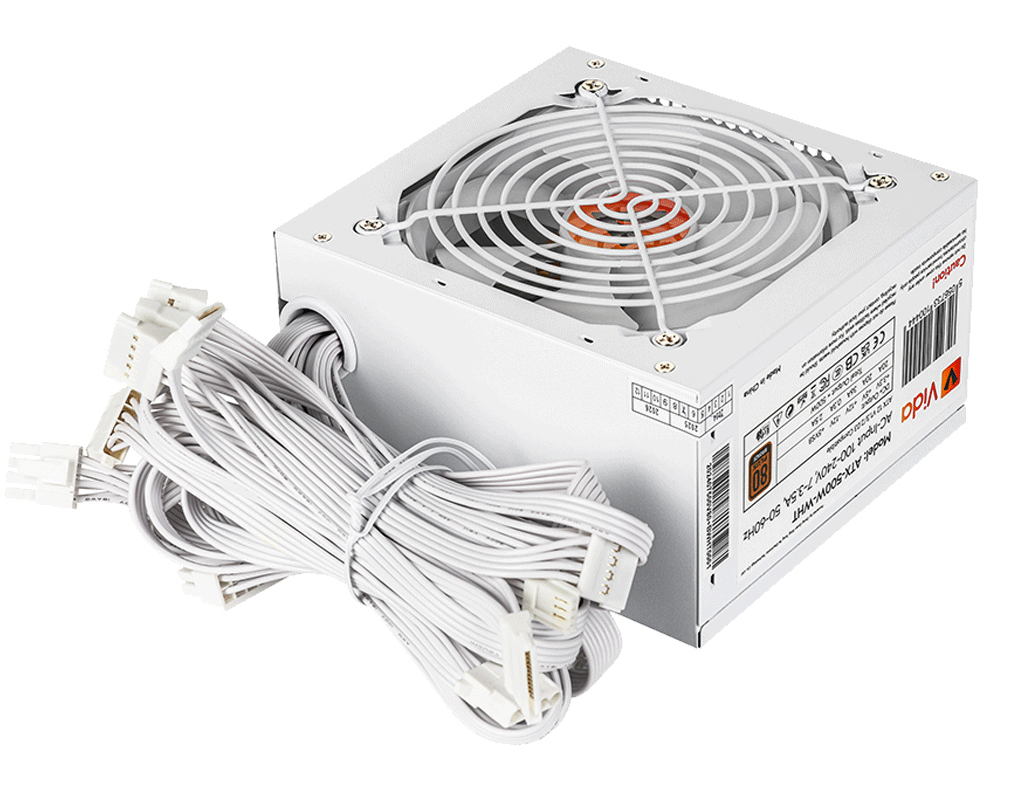

ATX-500W-WHT power supply unit 20+4 pin ATX White
Model ATX-500W-WHTEAN 5056733100444
47 specifications
- Weight1.43 kg
- ColourWhite
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 1.43 kg
- Colour
- White
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- VIDA
- Category
- Power Supply Unit
- Model
- ATX-500W-WHT
- Part number
- ATX-500W-WHT
- EAN / UPC
- 5056733100444
- Also known as
- VIDA ATX-500W-WHT power supply unit 20+4 pin ATX White
Specifications
47 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 7-3.5 A |
| Power Factor Correction (PFC) type | Active |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of PATA power connectors | 3 |
| Number of SATA power connectors | 6 |
| SATA power cable length | 800,1000 mm |
| Number of SATA power cables | 2 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 61 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 58 cm |
| ATX Power connector (24-pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.03 |
| Bearing technology | Hydro bearing |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Front |
| Illumination | No |
| On/off fan switch | No |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), UKCA, CCC, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 85 mm |
| Height | 140 mm |
| Weight | 1.43 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 195 mm |
| Package depth | 160 mm |
| Package height | 92 mm |
| Package weight | 1.5 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Warranty period | 2 year(s) |
