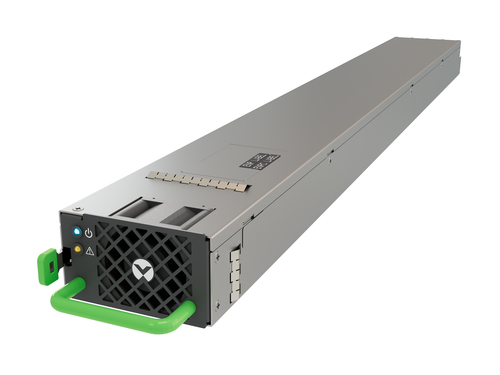

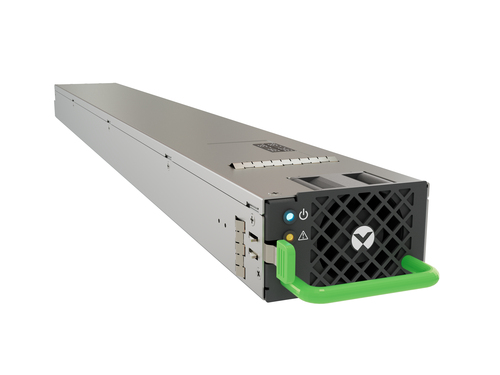

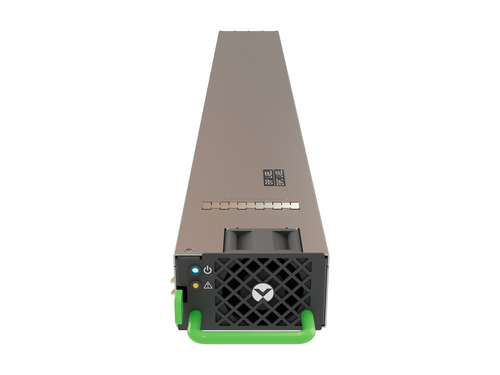

Power Supply Unit, 50VDC
5500W, OCP ORV3
Model R50-5500E4Part no. 1R505500E4
13 specifications
- Weight1.82 kg
- ColourSilver
- Total power5500 W
- PurposeServer
- Operating temperature (T-T)-20 - 75 °C
- Width640 mm
Overview
- Weight
- 1.82 kg
- Colour
- Silver
- Total power
- 5500 W
- Purpose
- Server
- Operating temperature (T-T)
- -20 - 75 °C
- Width
- 640 mm
- Brand
- Vertiv
- Category
- Power Supply Unit
- Model
- R50-5500E4
- Part number
- 1R505500E4
- Also known as
- Vertiv Power Supply Unit, 50VDC, 5500W, OCP ORV3
Specifications
13 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 5500 W |
| Efficiency | 97.5% |
| Power protection features | Over current, Over voltage |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| LED indicators | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 640 mm |
| Depth | 73.5 mm |
| Height | 40 mm |
| Weight | 1.82 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
