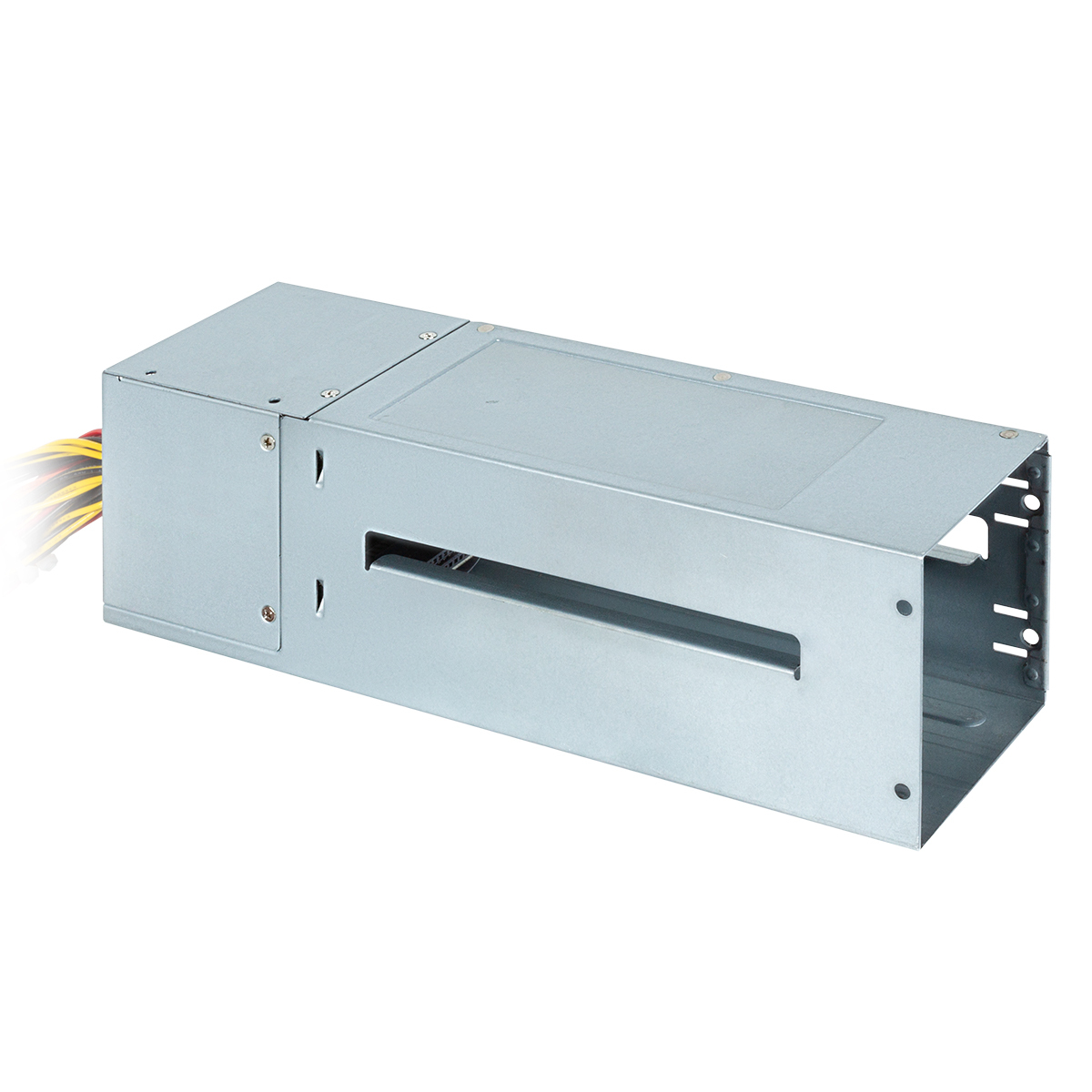

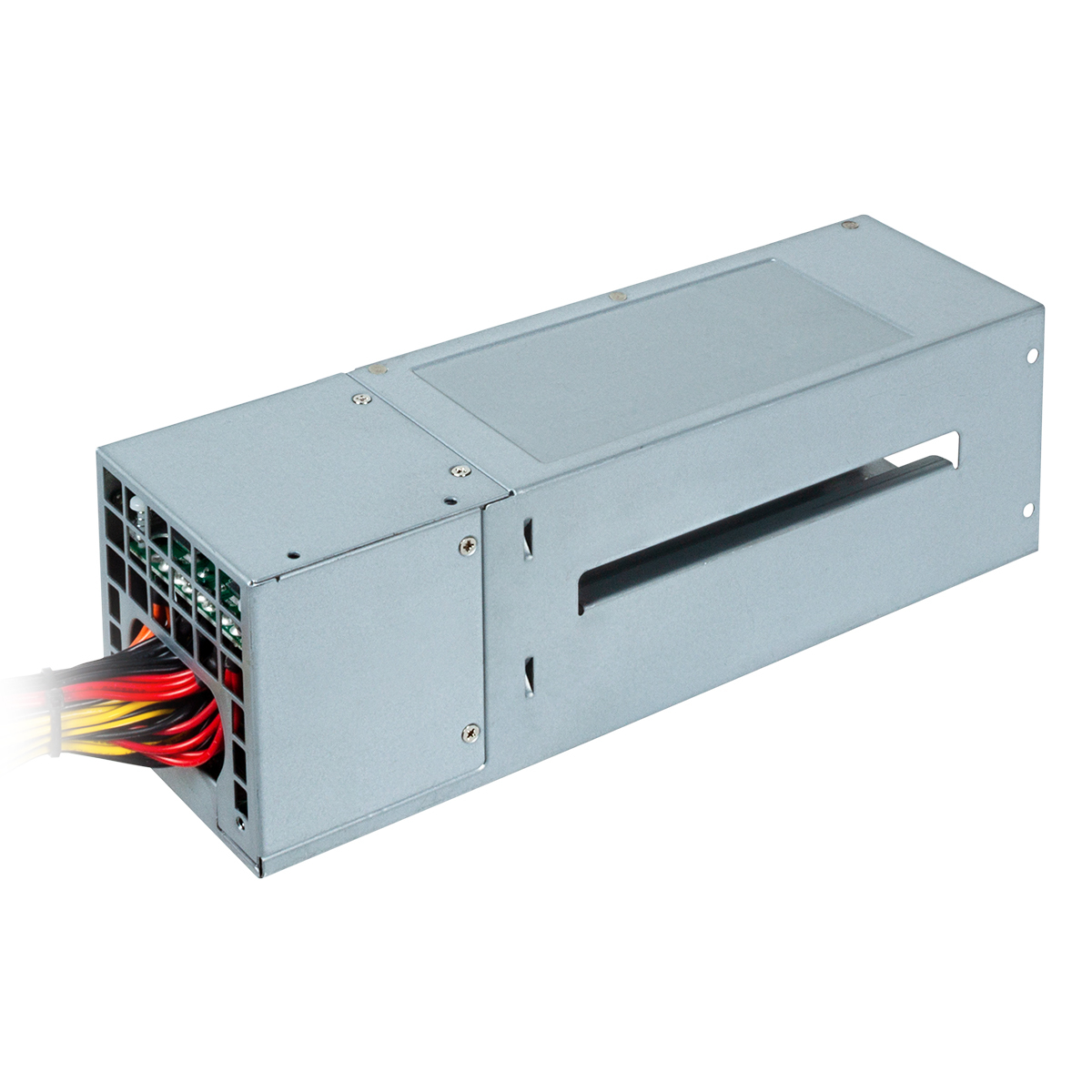

CRPS Support
550W / 800W Power Supply Redundant
Model UKSOPCRPSEAN 6940533544319
21 specifications
- Weight1.15 kg
- ColourSilver
- Efficiency92%
- Motherboard power connector24-pin ATX
- PurposeServer
- Width75 mm
Overview
- Weight
- 1.15 kg
- Colour
- Silver
- Efficiency
- 92%
- Motherboard power connector
- 24-pin ATX
- Purpose
- Server
- Width
- 75 mm
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- UKSOPCRPS
- Part number
- UKSOPCRPS
- EAN / UPC
- 6940533544319
- Also known as
- UNYKAch CRPS Support 550W / 800W Power Supply Redundant
Specifications
21 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Efficiency | 92% |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 45 cm |
| Number of SATA power connectors | 2 |
| SATA power cable length | 500,600 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 480 mm |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75 mm |
| Depth | 265 mm |
| Height | 84 mm |
| Weight | 1.15 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 75 mm |
| Package depth | 265 mm |
| Package height | 84 mm |
| Package weight | 1.15 kg |
Other features
| Specification | Value |
|---|---|
| EPS cable length | 47 cm |
| Redundant power supply (RPS) support | Yes |
