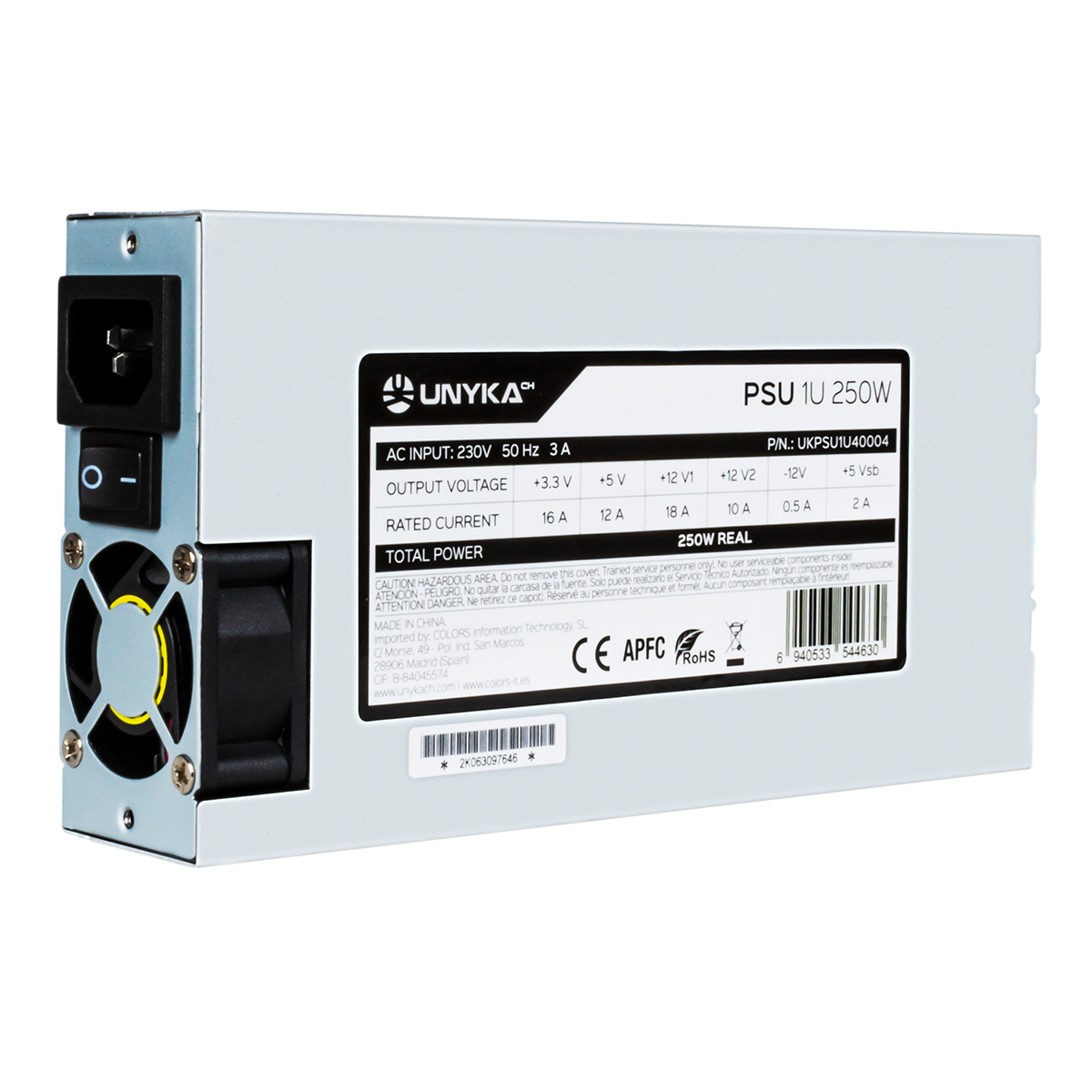

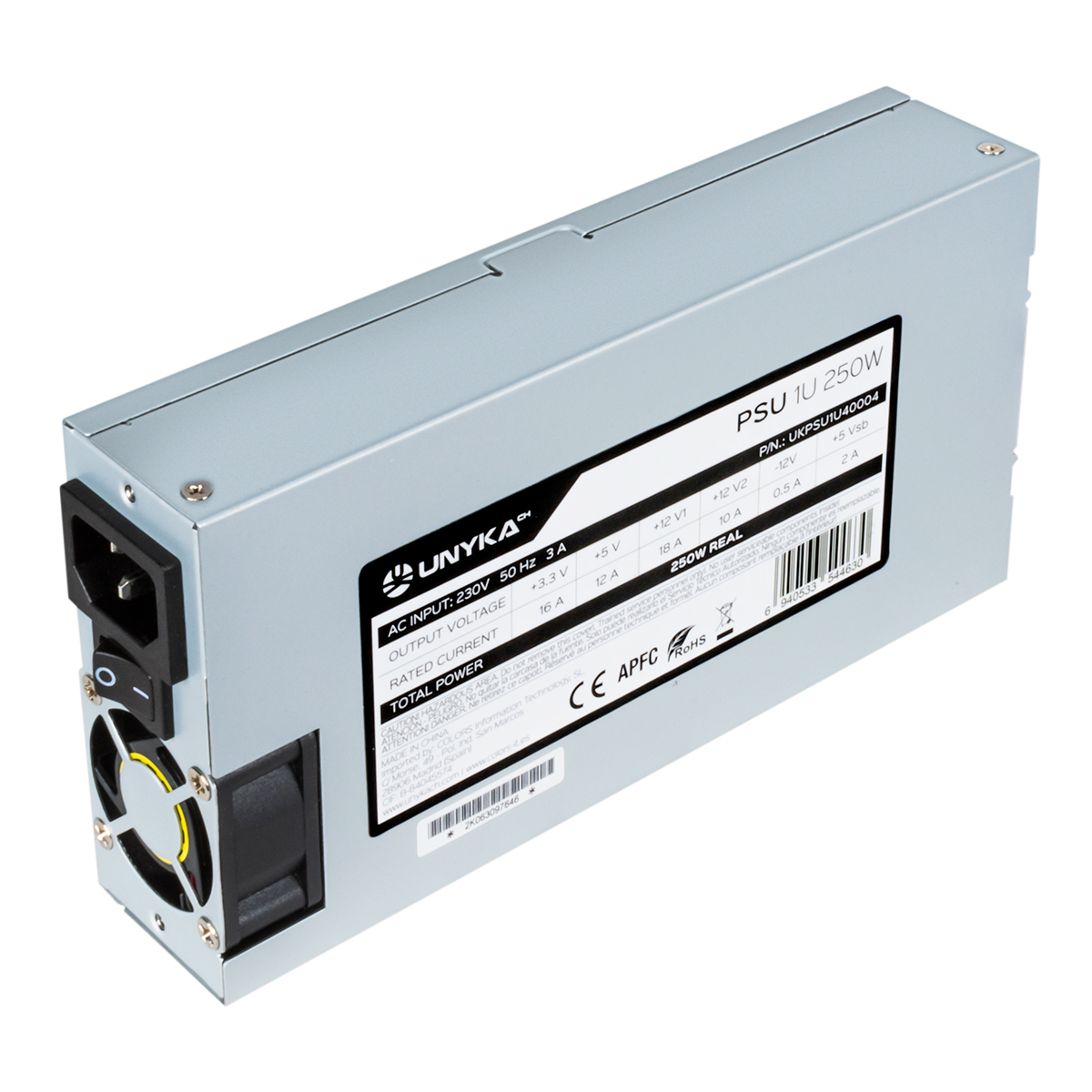

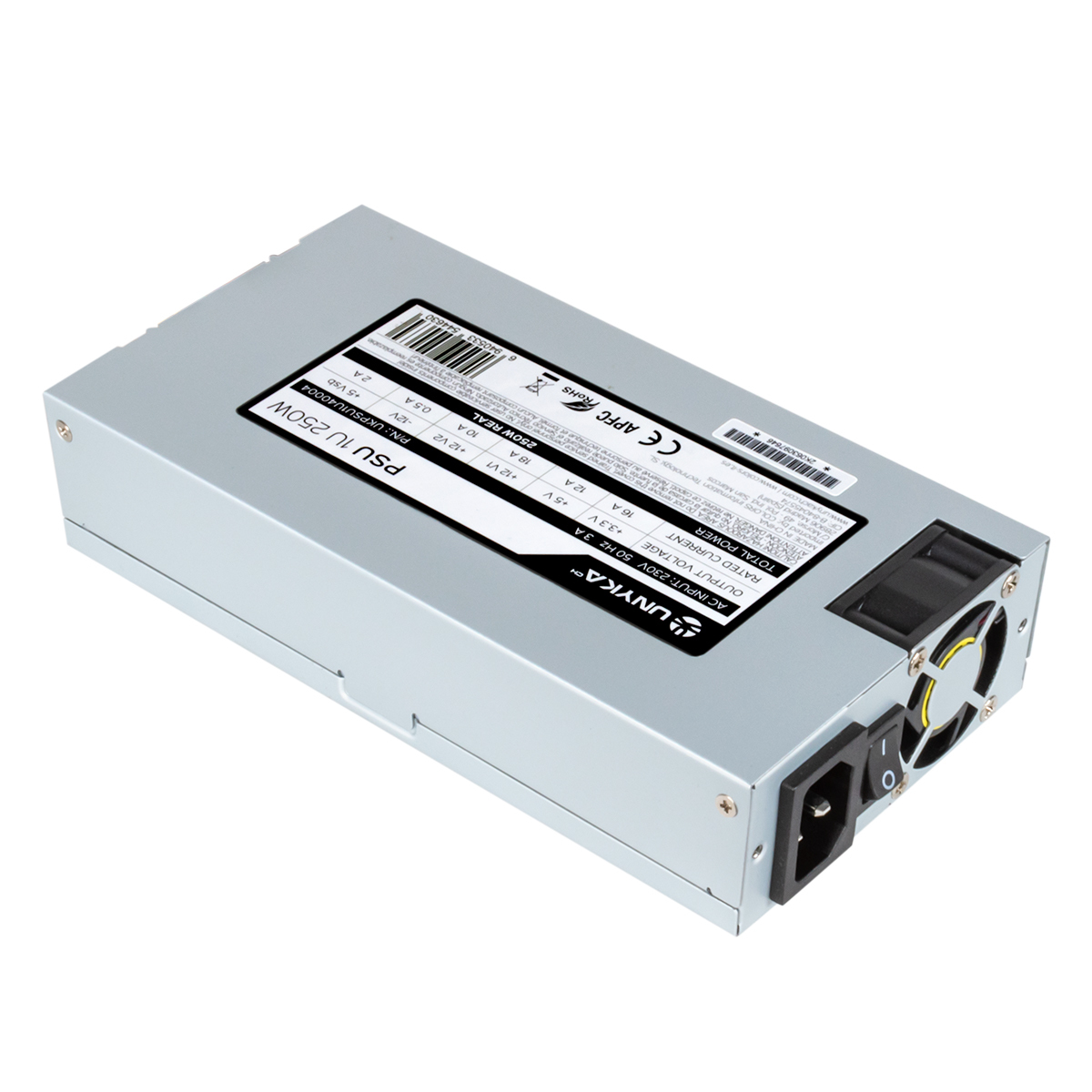

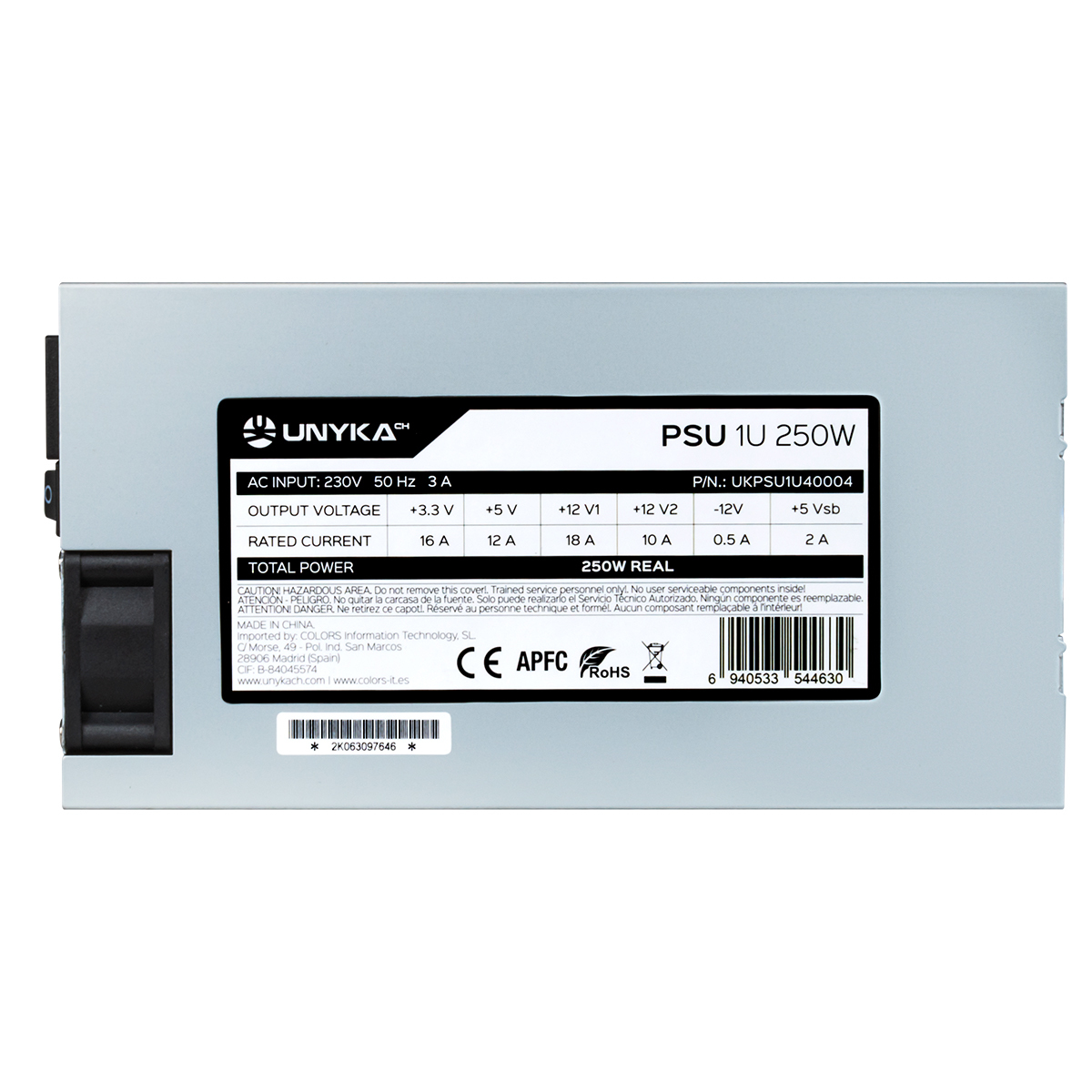

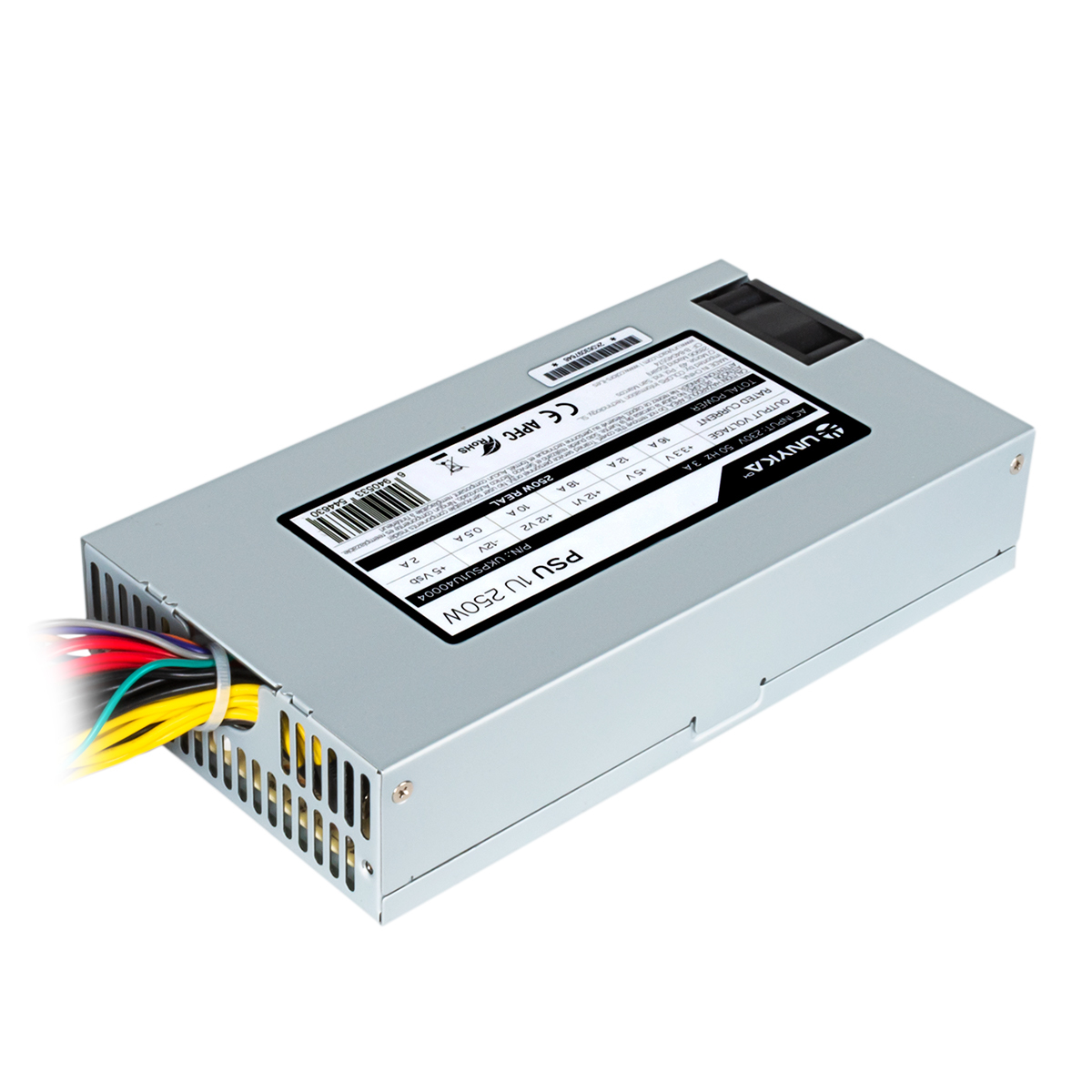

FLEX 1U standard UK PSU 1U
250W
Model UKPSU1U40004EAN 6940533544630
36 specifications
- Weight990 g
- ColourSilver
- Total power250 W
- Motherboard power connector20+4 pin ATX
- PurposeServer
- Width100 mm
Overview
- Weight
- 990 g
- Colour
- Silver
- Total power
- 250 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- Server
- Width
- 100 mm
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- UKPSU1U40004
- Part number
- UKPSU1U40004
- EAN / UPC
- 6940533544630
- Also known as
- UNYKAch FLEX 1U standard UK PSU 1U 250W
Specifications
36 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 250 W |
| AC input voltage | 100 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V1) | 18 A |
| Max output current (+12V2) | 10 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2 A |
| Power protection features | Over current, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 40 cm |
| SATA power cable length | 400,560,700 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 710,560 mm |
| EPS power connector (4+4 pin) | Yes |
| Floppy disk drive cable length | 89 cm |
| Floppy disk drive connector | Yes |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| Power supply unit (PSU) form factor | Flex ATX |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 1000 RPM |
| Fan location | Rear |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 195 mm |
| Height | 40 mm |
| Weight | 990 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 195 mm |
| Package height | 40 mm |
| Package weight | 990 g |
