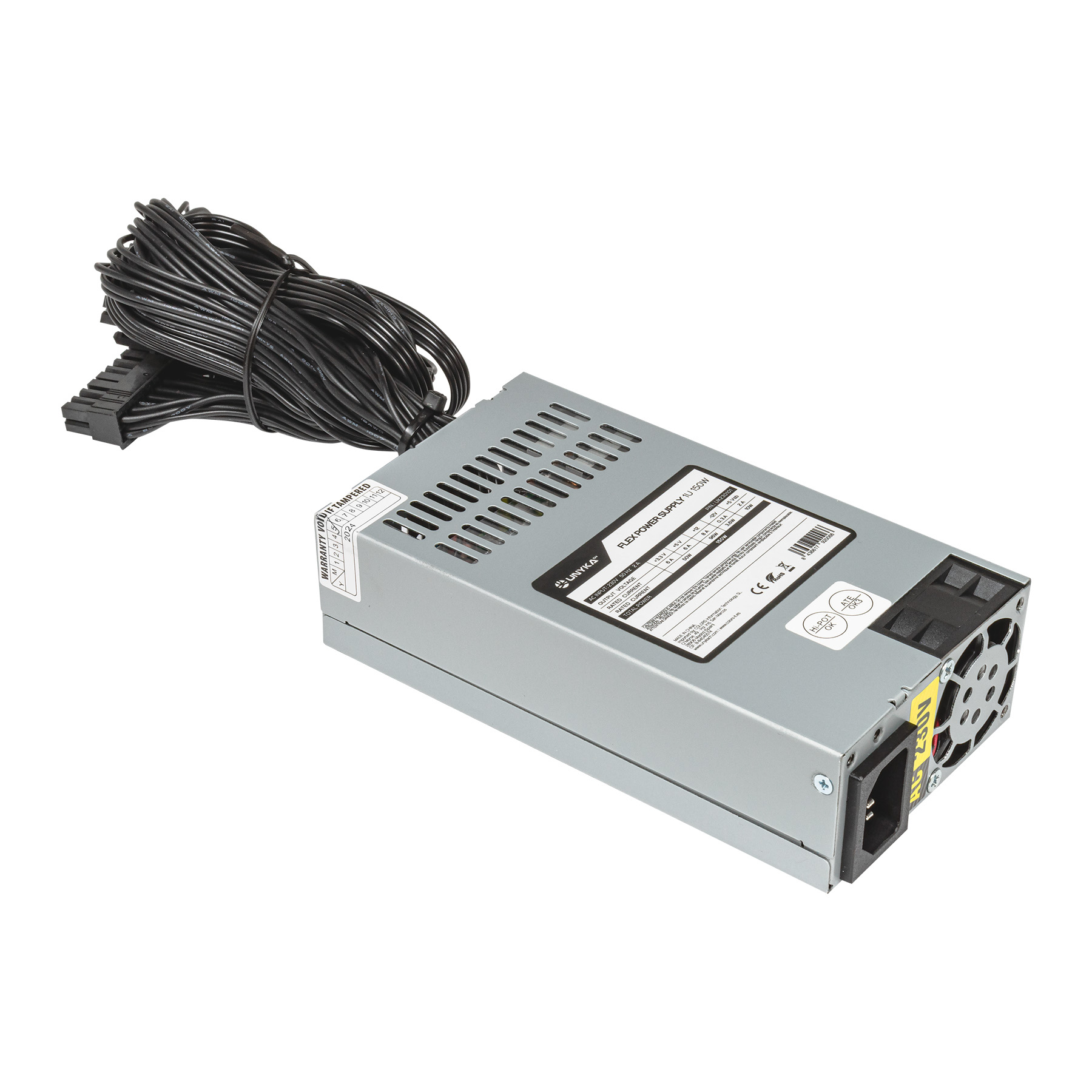

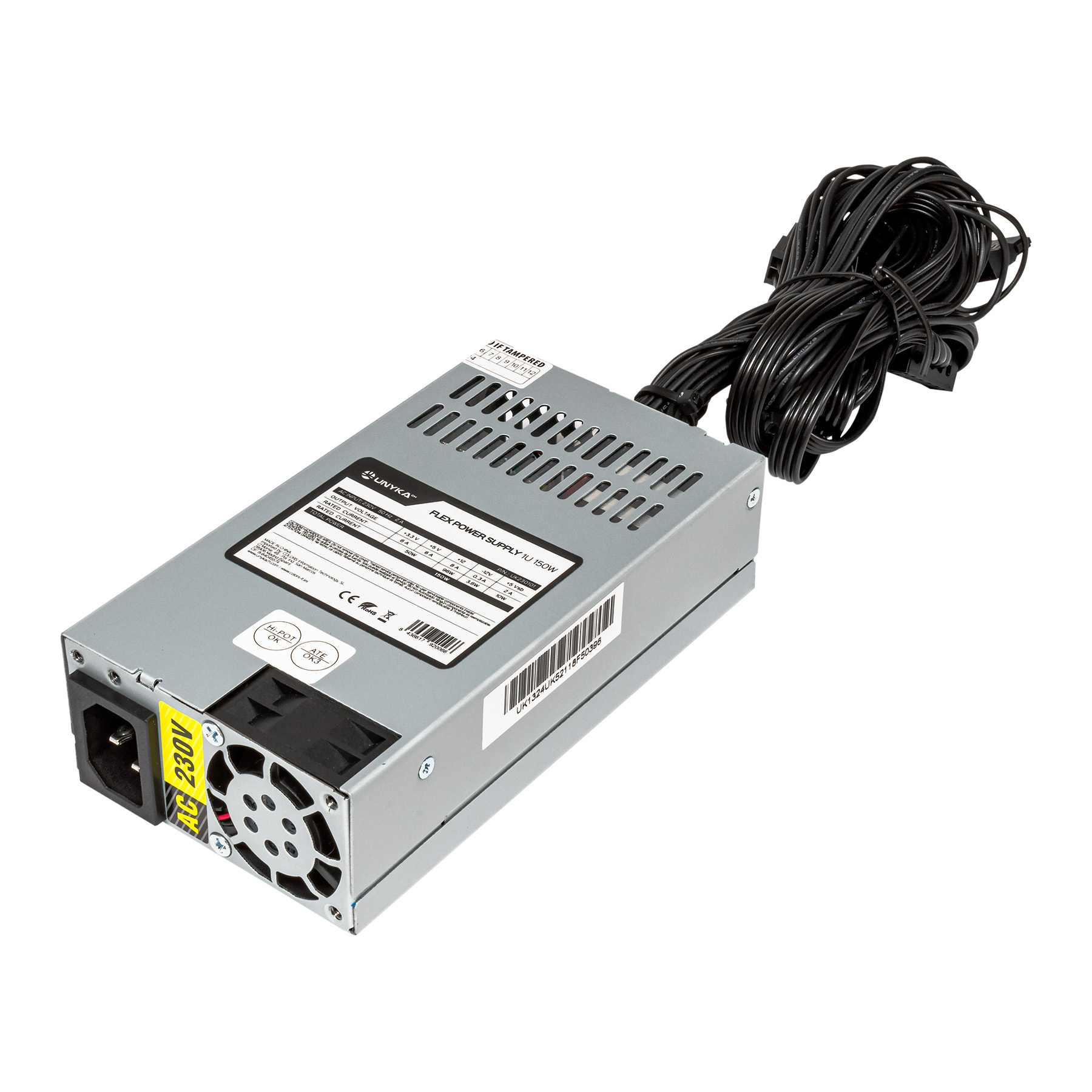

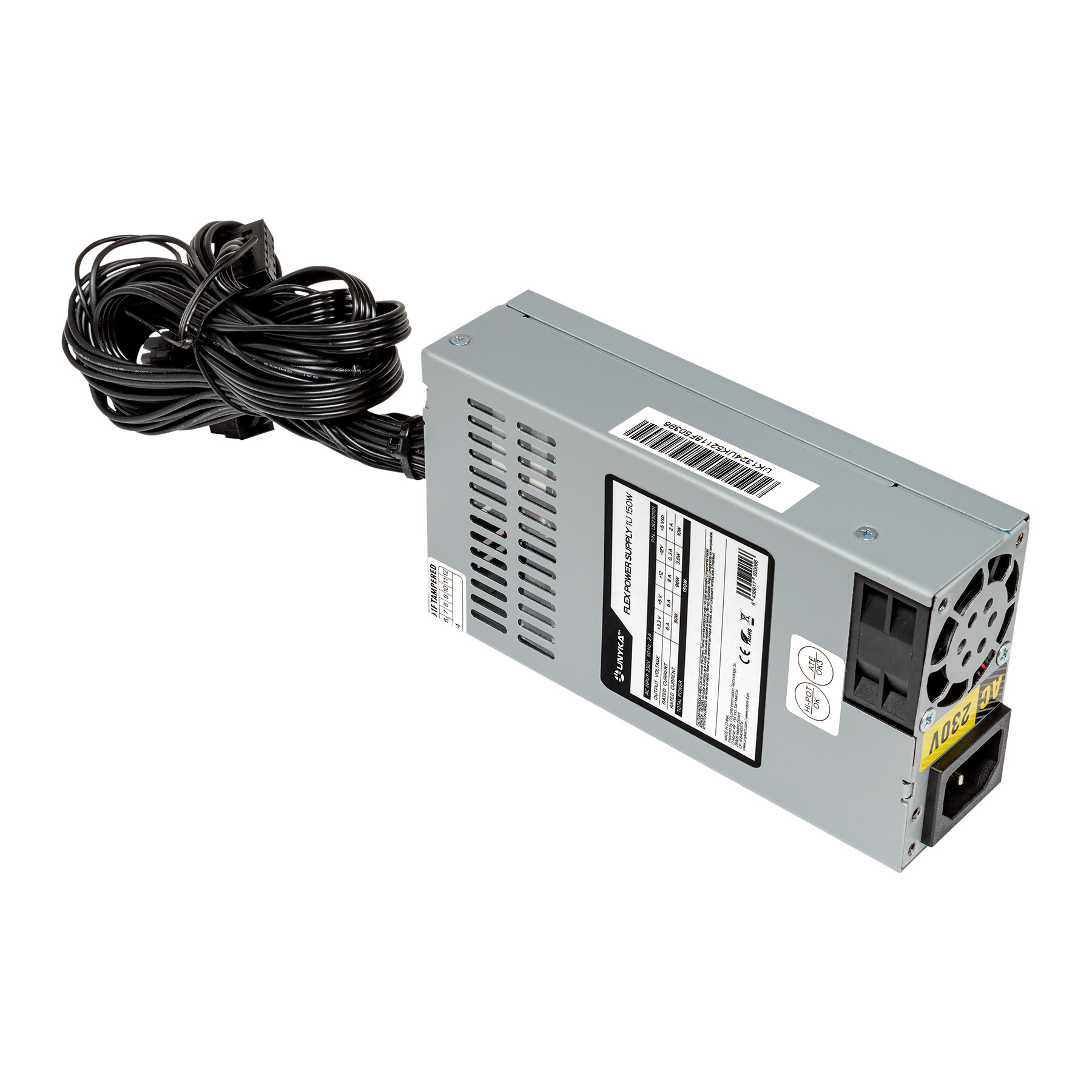

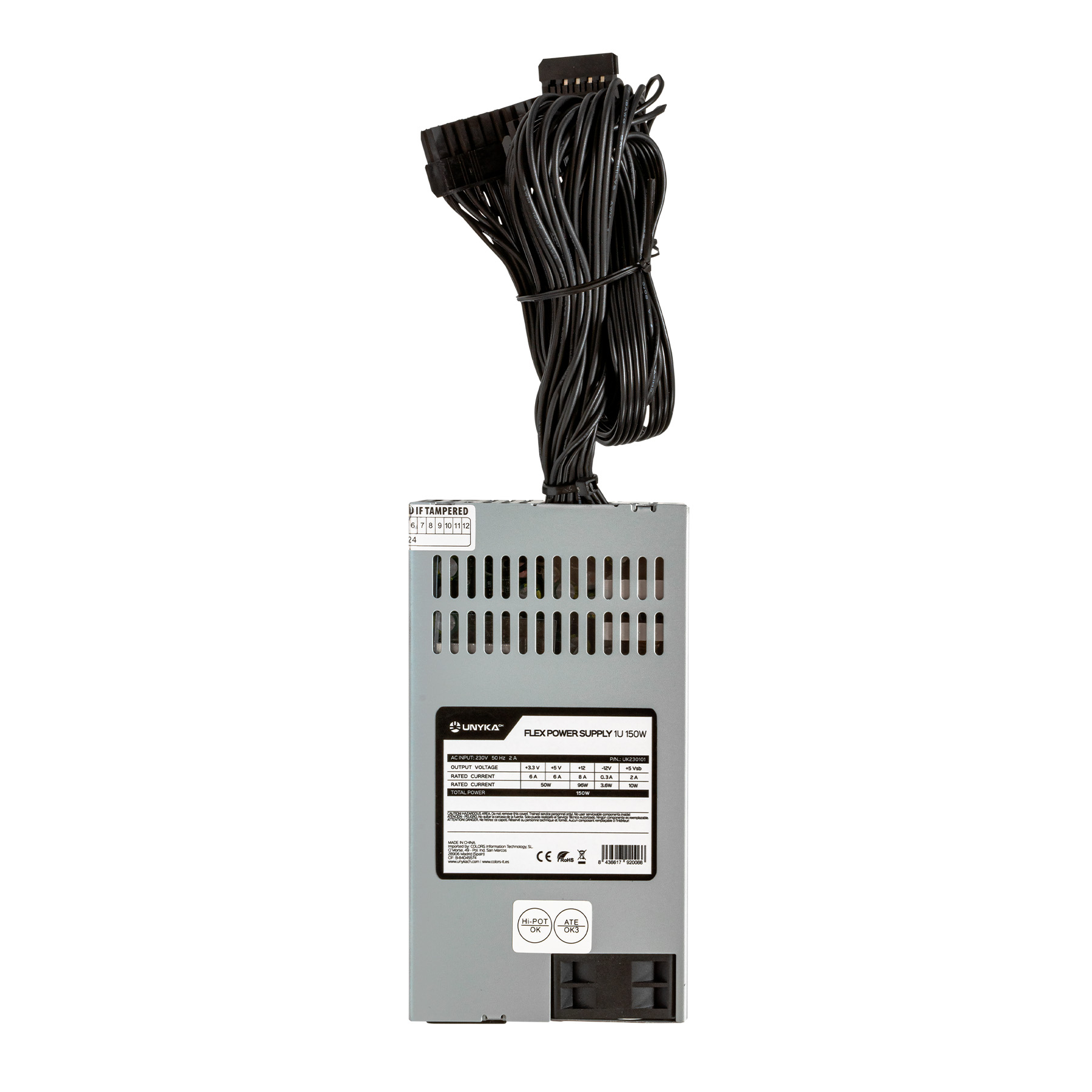

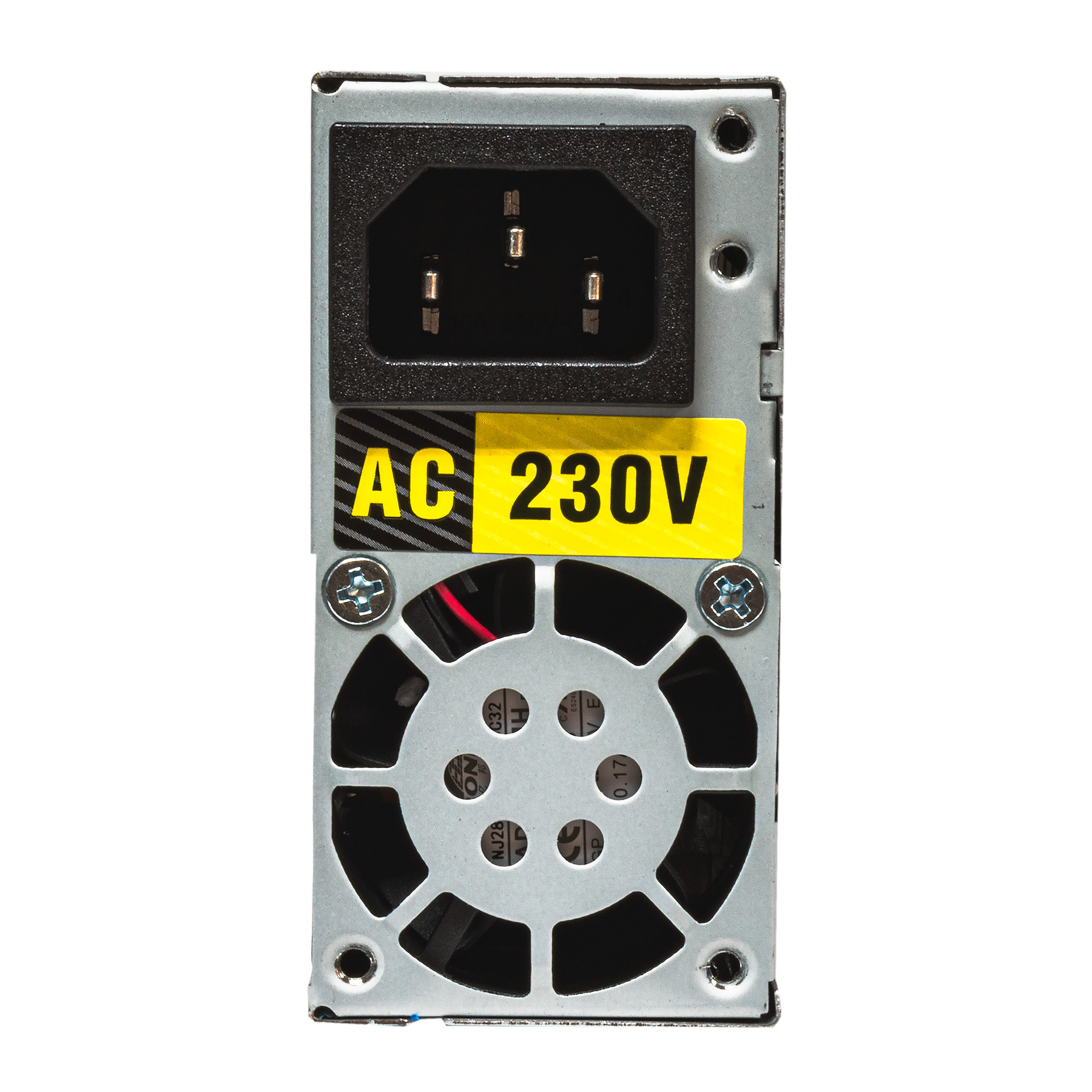

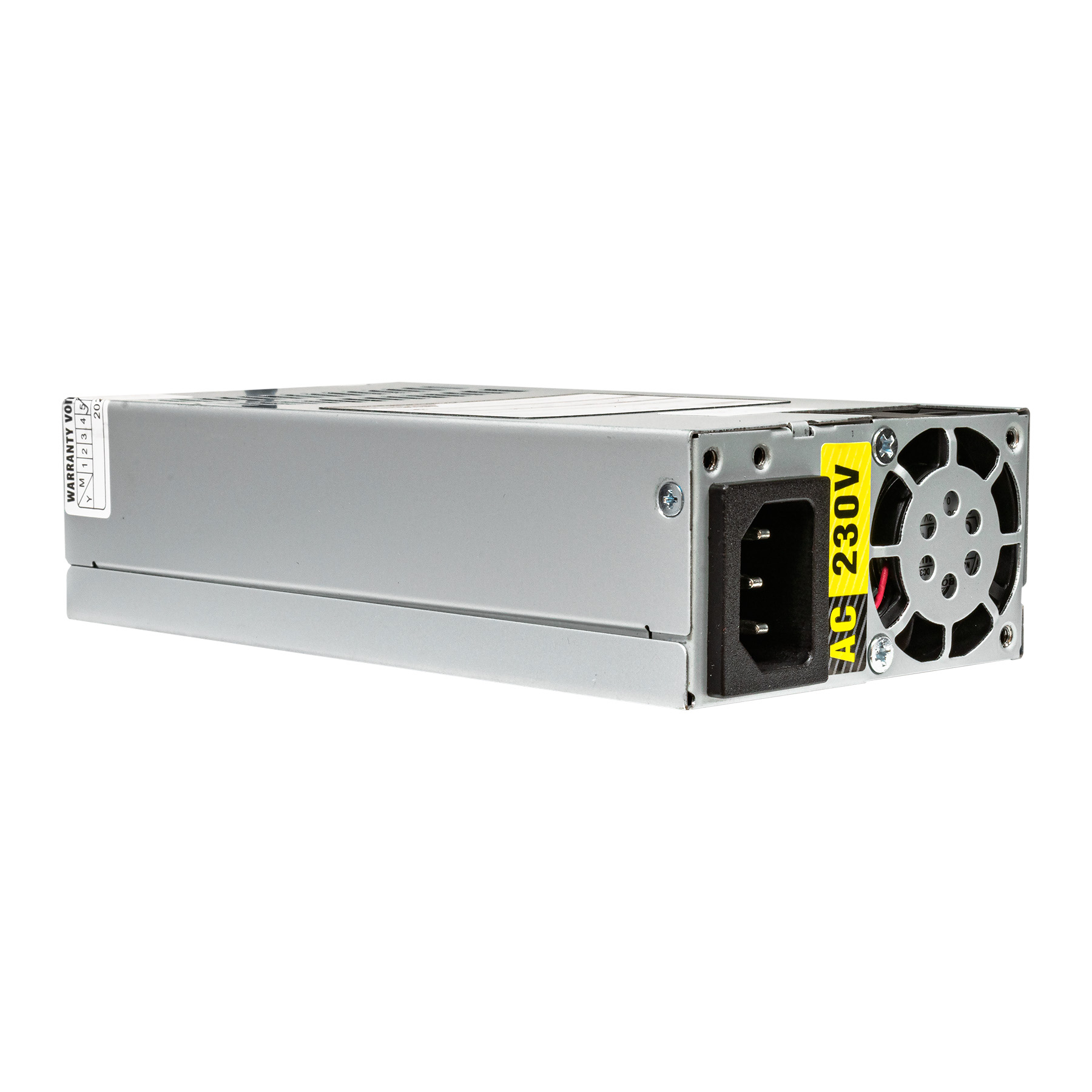

Power Supply FLEX 1U
150W
Model UK230101EAN 8436617920066
36 specifications
- Weight500 g
- ColourSilver
- Total power150 W
- Motherboard power connector20+4 pin ATX
- PurposeServer
- Width80 mm
Overview
- Weight
- 500 g
- Colour
- Silver
- Total power
- 150 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- Server
- Width
- 80 mm
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- UK230101
- Part number
- UK230101
- EAN / UPC
- 8436617920066
- Also known as
- UNYKAch Power Supply FLEX 1U 150W
Specifications
36 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 150 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 2 A |
| Max output current (+3.3V) | 6 A |
| Max output current (+12V) | 8 A |
| Max output current (+5V) | 6 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2 A |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 35 cm |
| Number of SATA power connectors | 2 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 35 cm |
| I/O ports | 1x Mini SATA |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| Power supply unit (PSU) form factor | Flex ATX |
| ATX version | 2.3 |
| Bearing technology | FDB |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 5000 RPM |
| Fan location | Rear |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 150 mm |
| Height | 40 mm |
| Weight | 500 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 81 mm |
| Package depth | 150 mm |
| Package height | 40 mm |
| Package weight | 500 g |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
