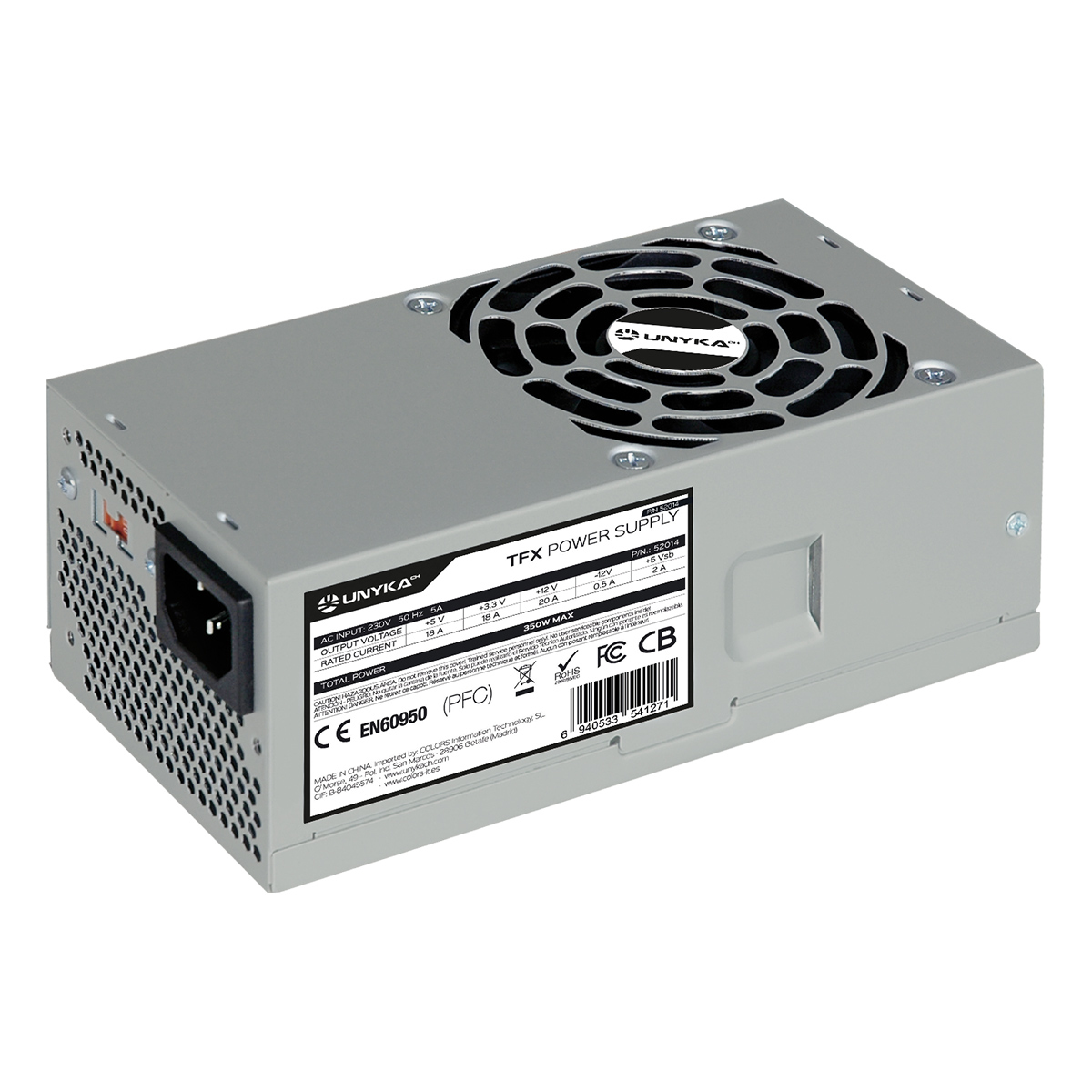

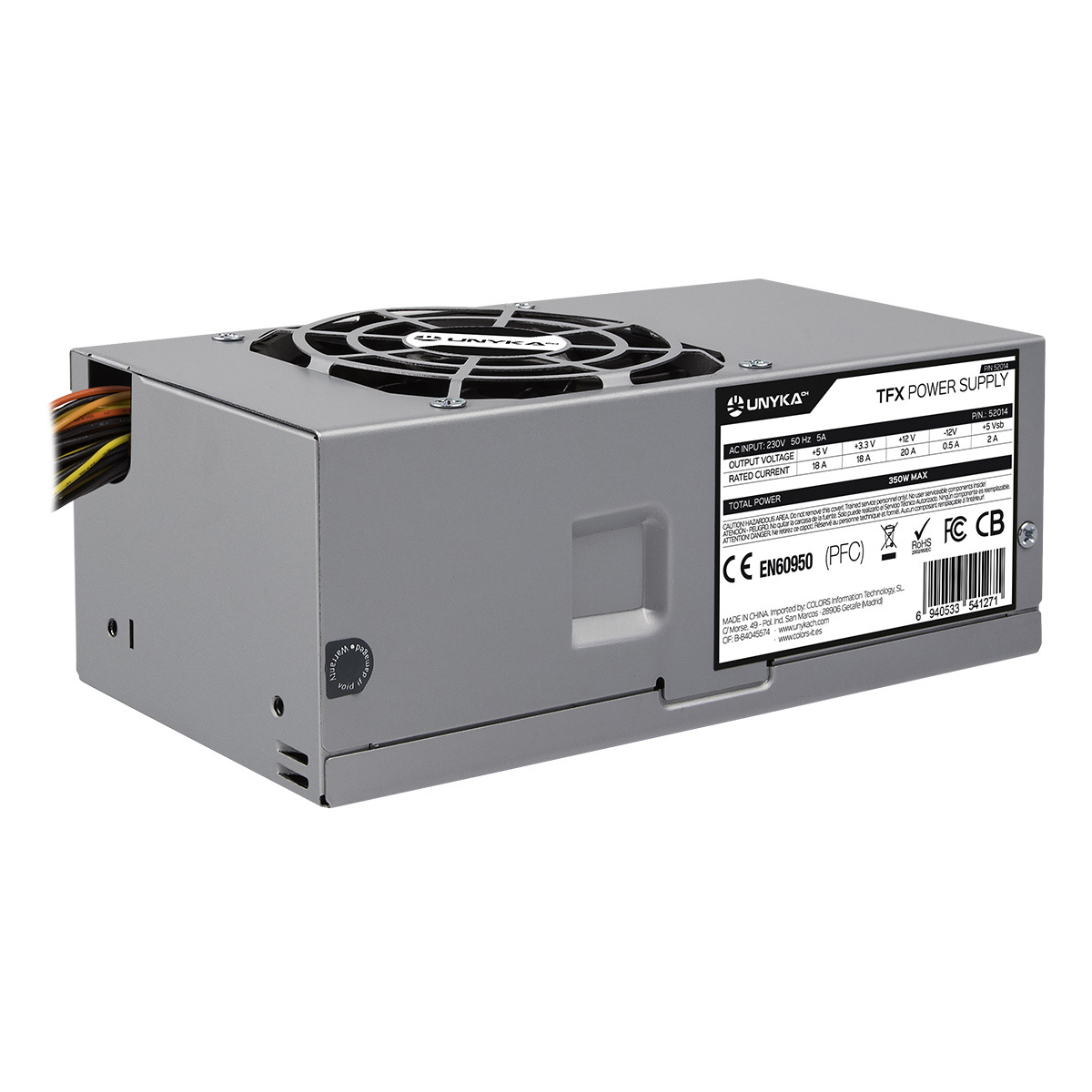

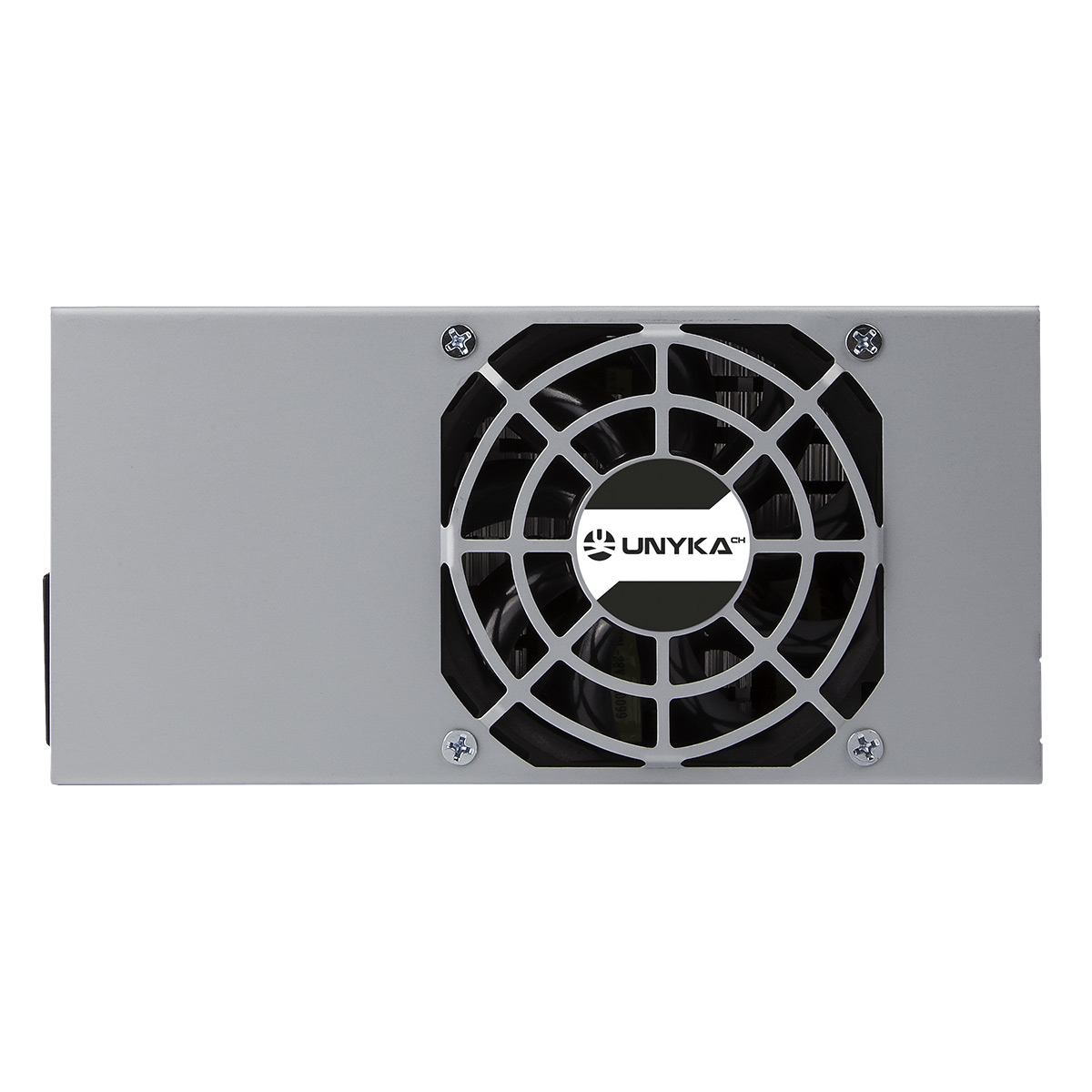

UNYKAch TFX 350W
Model TFX 350WPart no. 52014EAN 6940533541271
39 specifications
- Noise28 dB
- Weight844 g
- ColourSilver
- Total power350 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
Overview
- Noise
- 28 dB
- Weight
- 844 g
- Colour
- Silver
- Total power
- 350 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- TFX 350W
- Part numbers
- 52014, 52004
- EAN / UPC
- 6940533541271, 6940533541851
- Also known as
- UNYKAch TFX 350W power supply unit 20+4 pin ATX Silver
Specifications
39 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 350 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V1) | 20 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 18 A |
| Efficiency | 80% |
| Power protection features | Over power, Over voltage, Overcharge, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 38 cm |
| Number of SATA power connectors | 3 |
| SATA power cable length | 380,500 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 660,380 mm |
| CPU P4 connector (4-pin) | 1 |
| CPU power cable length | 38 cm |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | TFX |
| Noise level | 28 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | EUP 2013 / EN60950 / TÜV / CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 85 mm |
| Depth | 175 mm |
| Height | 65 mm |
| Weight | 844 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 105 mm |
| Package depth | 200 mm |
| Package height | 90 mm |
| Package weight | 1.04 kg |
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Package volume | 0.0019 cm³ |
