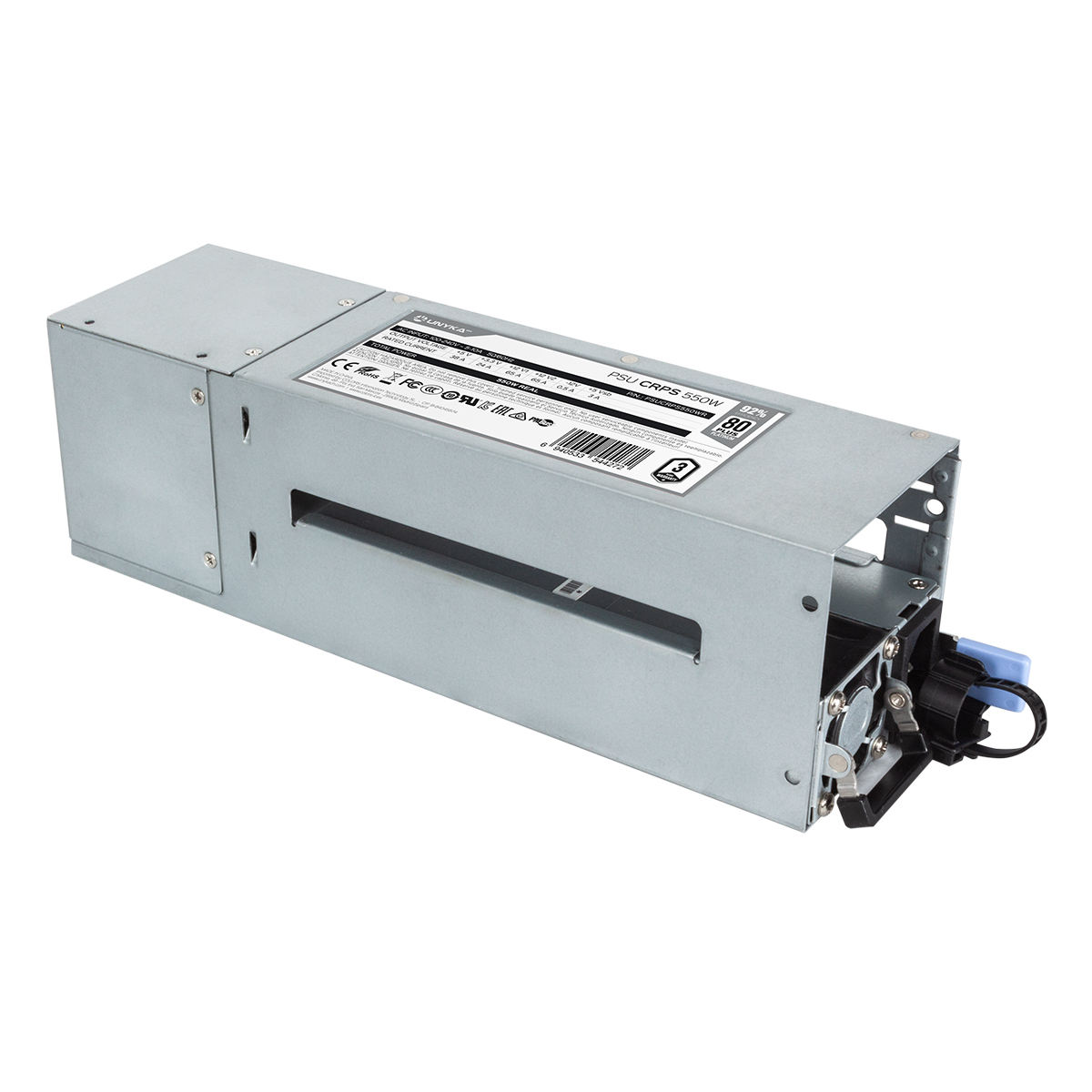

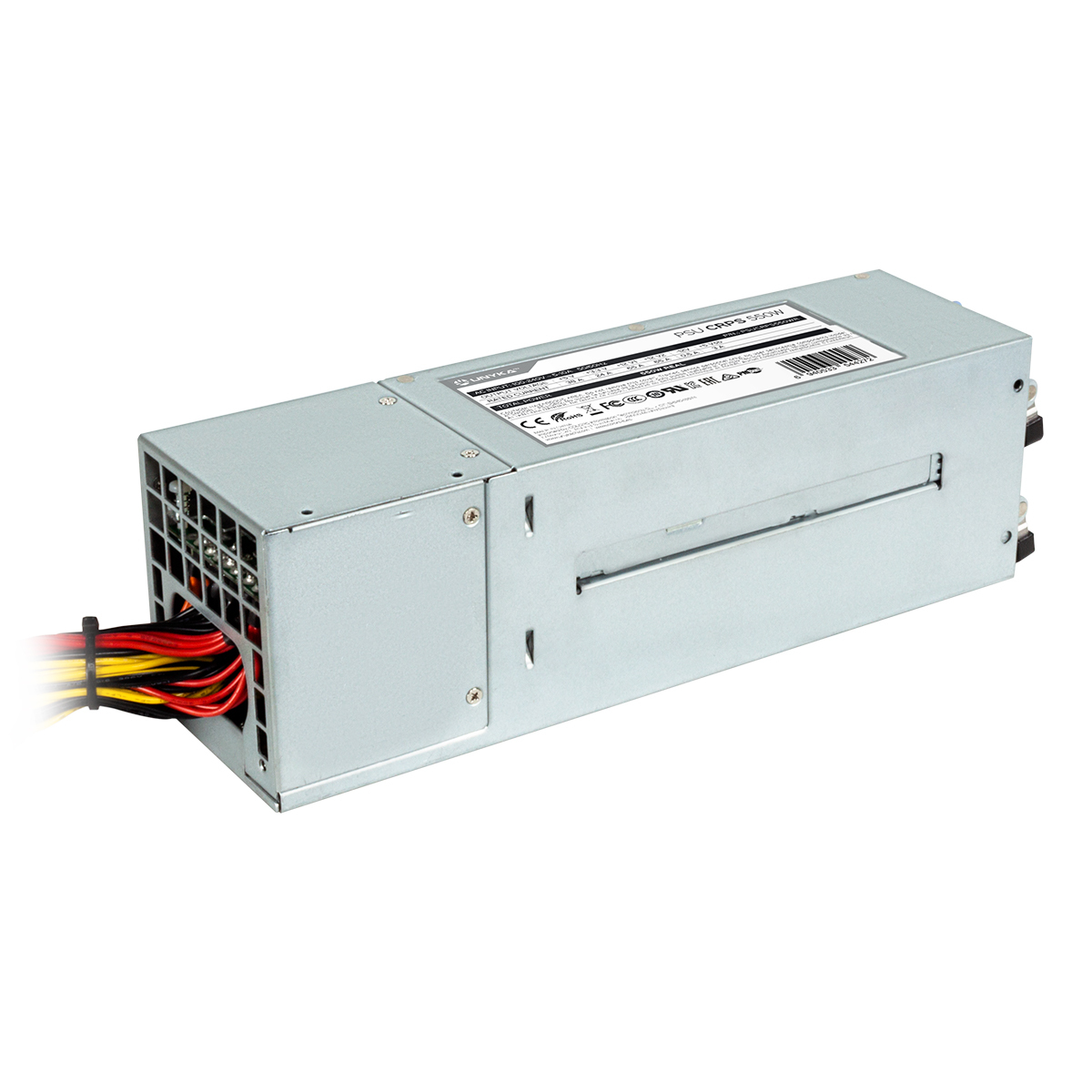

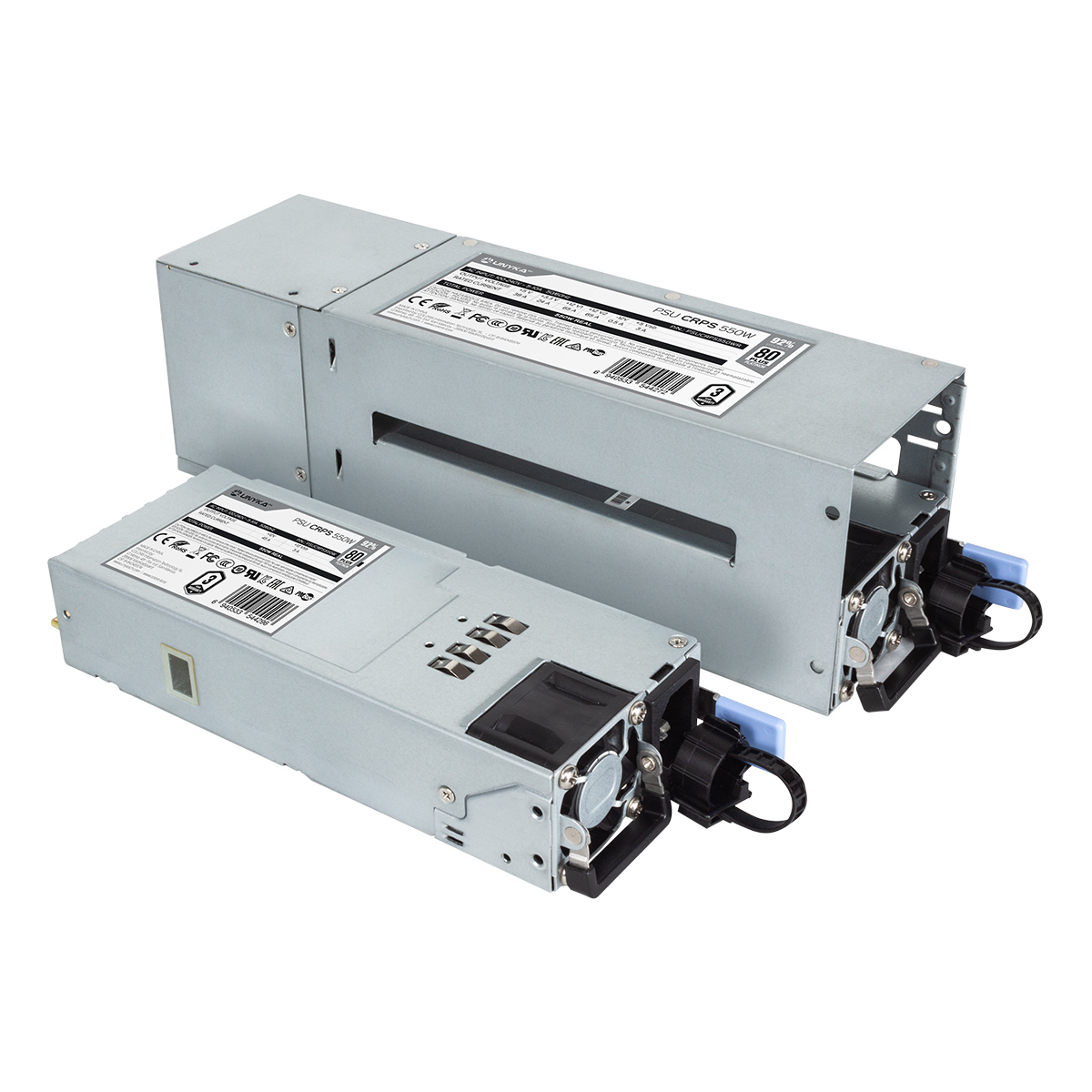

CRPS 550WR 92% Efficiency Redundant Power Supply
Model PSUCRPS550WREAN 6940533544272
41 specifications
- Weight2.81 kg
- ColourSilver
- Total power550 W
- Motherboard power connector24-pin ATX
- PurposeServer
- Width75 mm
Overview
- Weight
- 2.81 kg
- Colour
- Silver
- Total power
- 550 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- Server
- Width
- 75 mm
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- PSUCRPS550WR
- Part number
- PSUCRPS550WR
- EAN / UPC
- 6940533544272
- Also known as
- UNYKAch CRPS 550WR 92% Efficiency Redundant Power Supply
Specifications
41 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 45 A |
| Max output current (+12V2) | 45 A |
| Max output current (+5V) | 38 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 45 cm |
| Number of SATA power connectors | 2 |
| SATA power cable length | 500,600 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 400 mm |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2300 RPM |
| Fan location | Front |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75 mm |
| Depth | 265 mm |
| Height | 84 mm |
| Weight | 2.81 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 75 mm |
| Package depth | 265 mm |
| Package height | 84 mm |
| Package weight | 2.81 kg |
Other features
| Specification | Value |
|---|---|
| EPS cable length | 47 cm |
| Mounting type | Rack mounting |
| Screws included | Yes |
| Redundant power supply (RPS) support | Yes |
