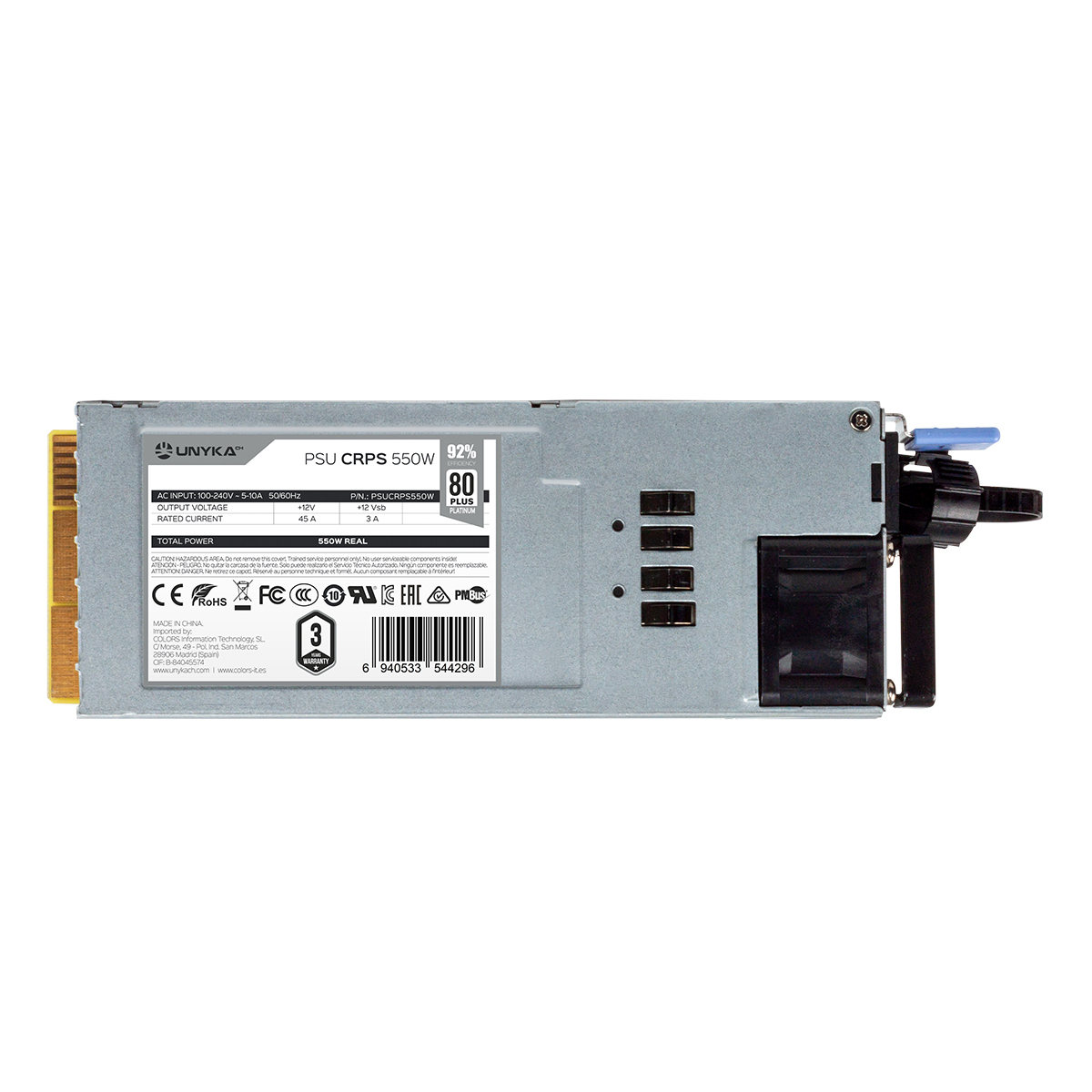

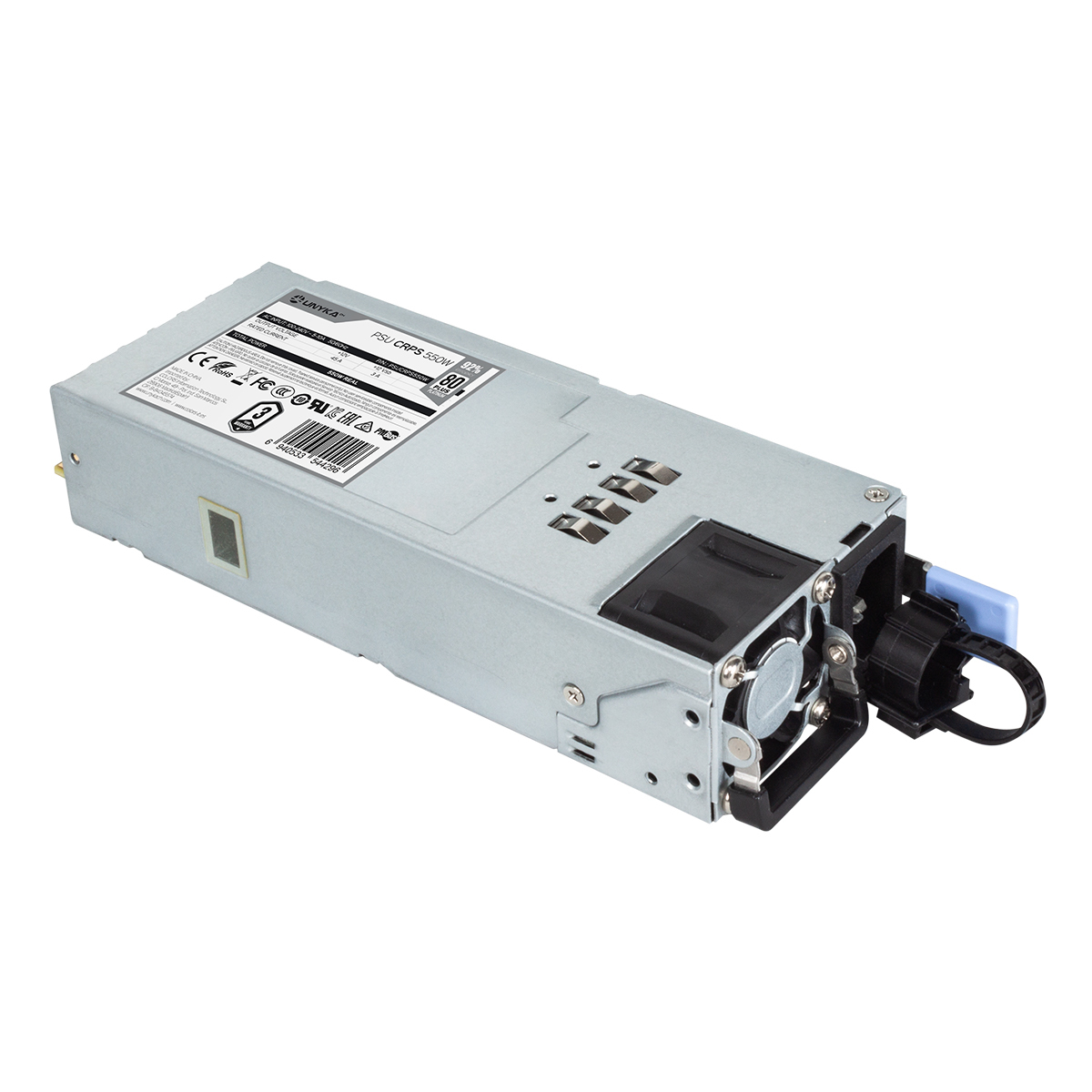

CRPS 550W 92% Efficiency Power Supply
Model PSUCRPS550WEAN 6940533544296
28 specifications
- Weight829 g
- ColourSilver
- Total power550 W
- PurposeServer
- Width73 mm
Overview
- Weight
- 829 g
- Colour
- Silver
- Total power
- 550 W
- Purpose
- Server
- Width
- 73 mm
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- PSUCRPS550W
- Part number
- PSUCRPS550W
- EAN / UPC
- 6940533544296
- Also known as
- UNYKAch CRPS 550W 92% Efficiency Power Supply
Specifications
28 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+12V) | 45 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| 80 PLUS certification | 80 PLUS Titanium |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2300 RPM |
| Fan location | Front |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 73 mm |
| Depth | 185 mm |
| Height | 40 mm |
| Weight | 829 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 73 mm |
| Package depth | 185 mm |
| Package height | 40 mm |
| Package weight | 829 g |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
| Redundant power supply (RPS) support | Yes |
