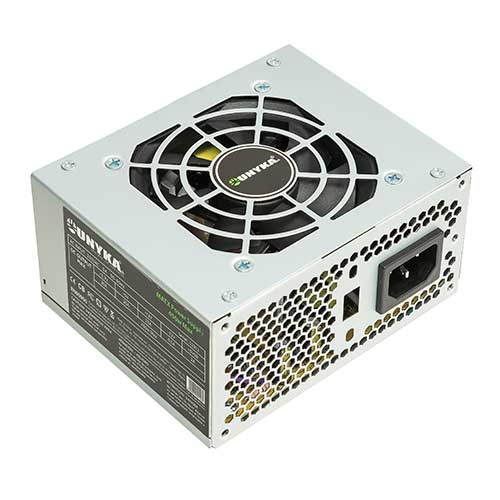

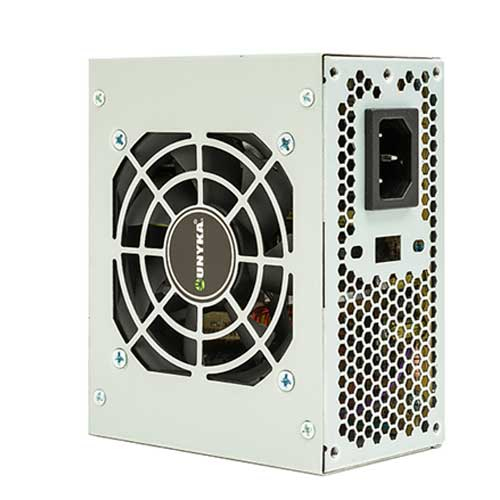

UNYKAch MATX SFX
Model MATX SFXPart no. 52001EAN 6940533541127
34 specifications
- ColourAluminium
- Total power300 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width100 mm
Overview
- Colour
- Aluminium
- Total power
- 300 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 100 mm
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- MATX SFX
- Part number
- 52001
- EAN / UPC
- 6940533541127
- Also known as
- UNYKAch MATX SFX power supply unit 300 W 20+4 pin ATX Aluminium
Specifications
34 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| AC input voltage | 110 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 49.8 W |
| Combined power (+12V) | 240 W |
| Combined power (+5V) | 49.8 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 10 W |
| Max output current (+3.3V) | 6 A |
| Max output current (+12V) | 20 A |
| Max output current (+5V) | 6 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2 A |
| Efficiency | 85% |
| Power protection features | Over current, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Aluminium |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE EN60950 TÜV ErP OVP/UVP/OTP/OCP/OLP/OPP/SCP/ETC APFC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 125 mm |
| Height | 63 mm |
