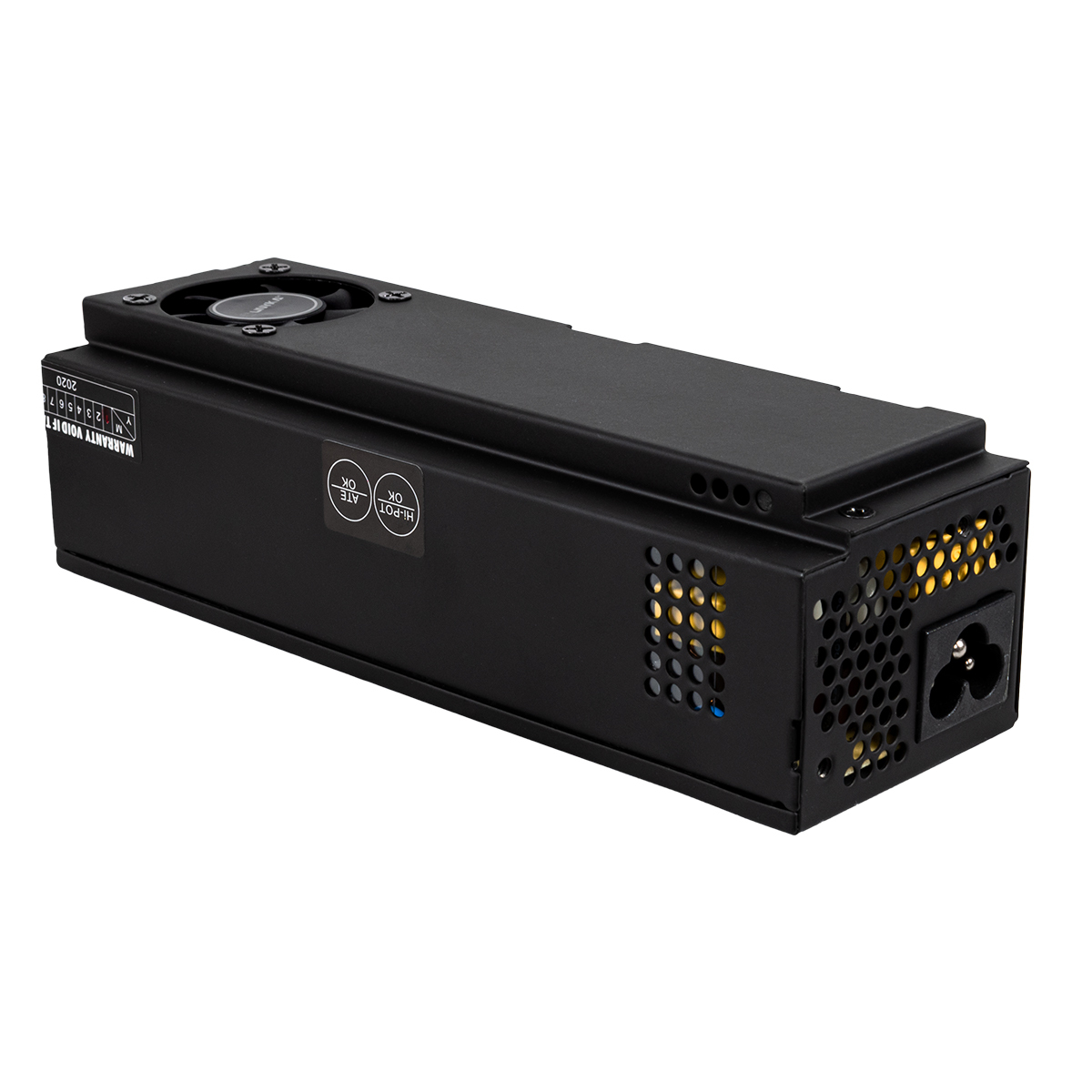

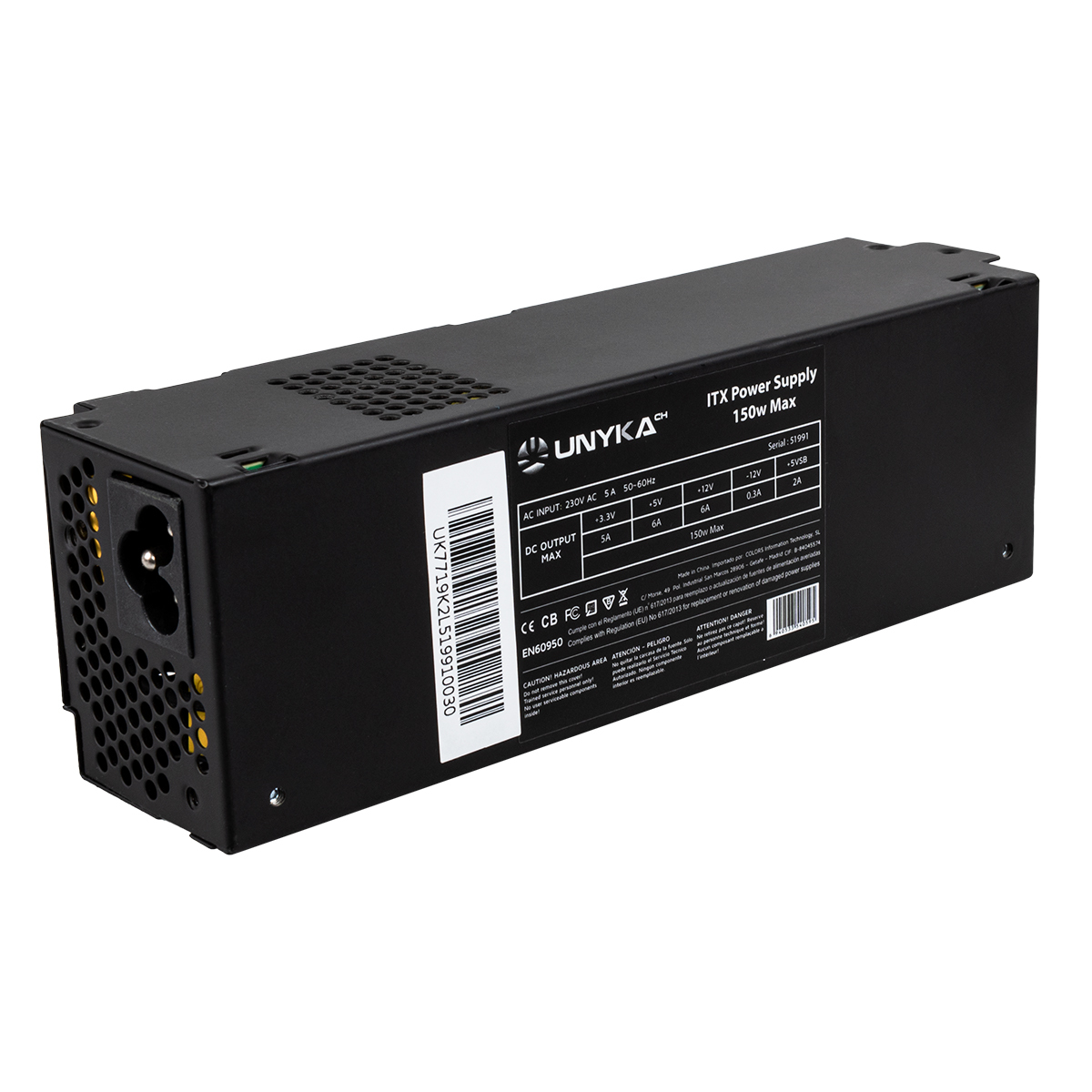

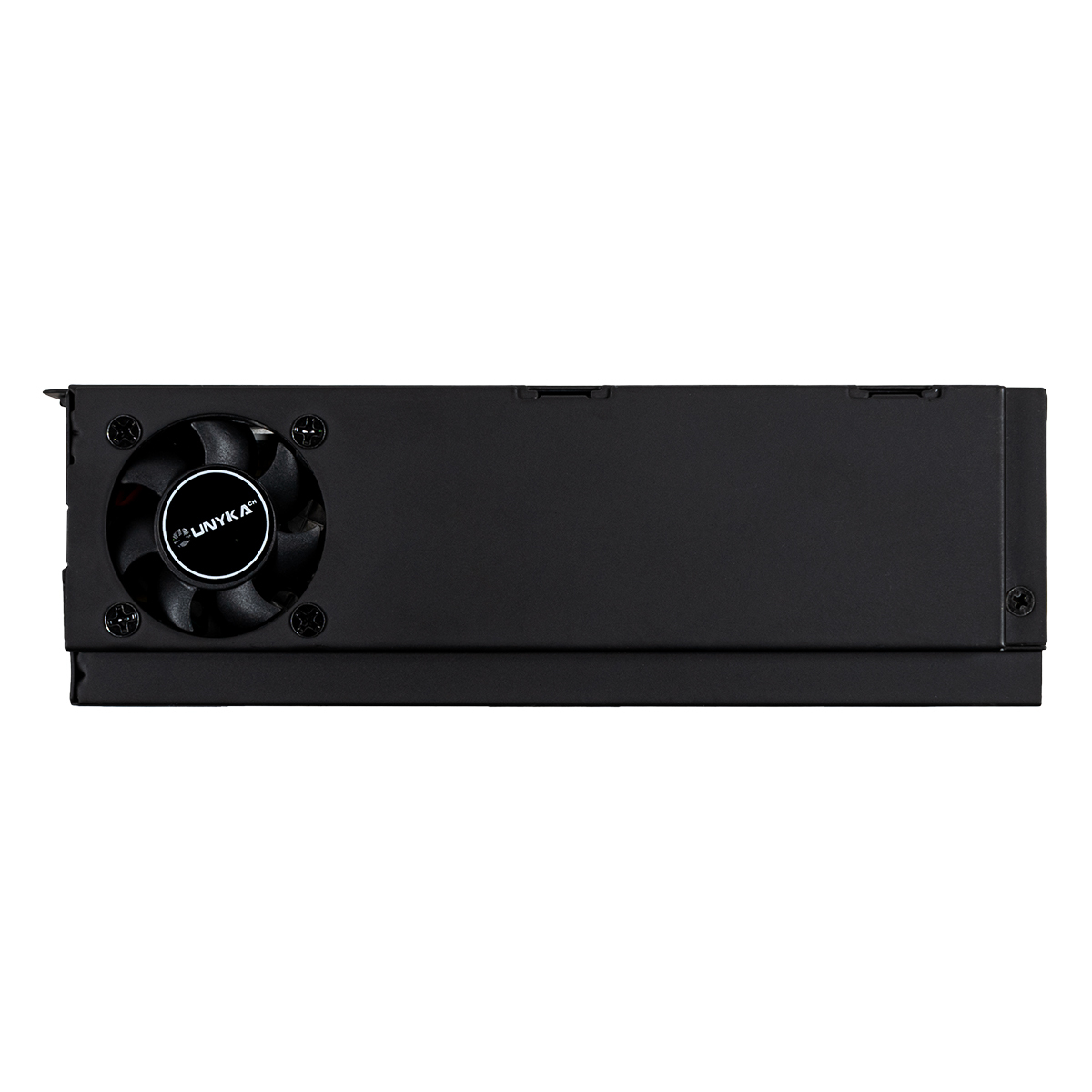

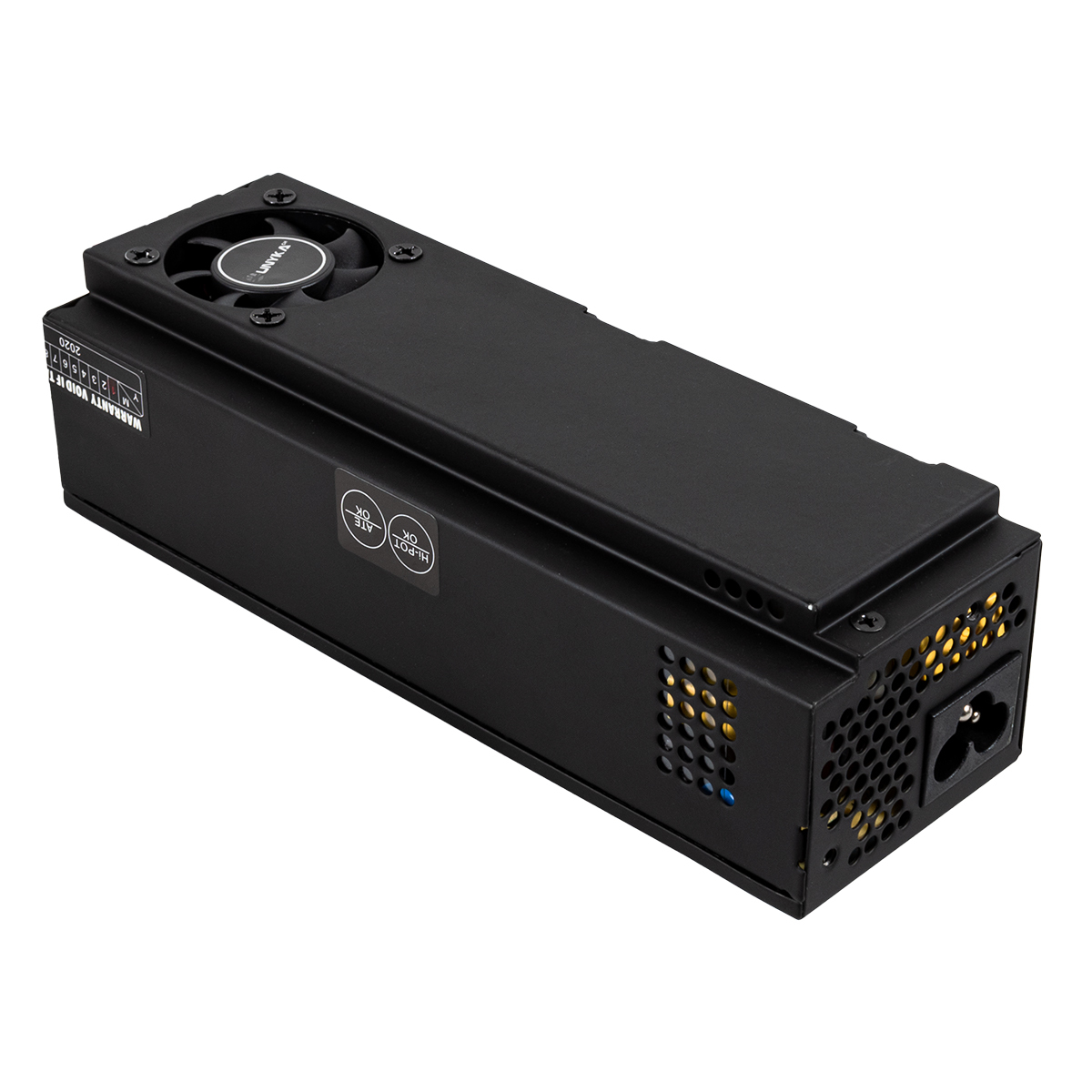

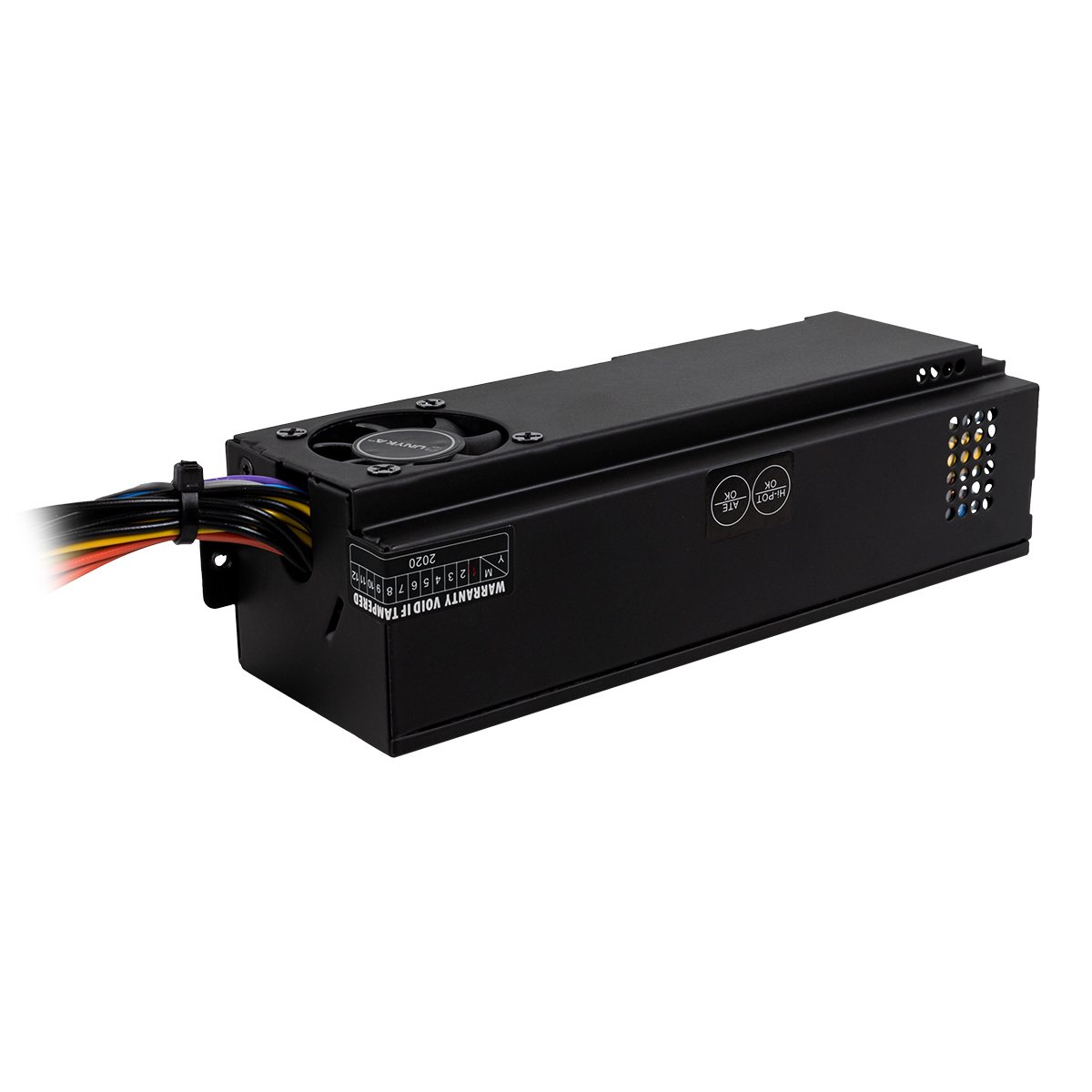

UNYKAch ITX 150
Model ITX 150Part no. 51991EAN 6940533540595
42 specifications
- Weight530 g
- ColourBlack
- Total power150 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width85 mm
Overview
- Weight
- 530 g
- Colour
- Black
- Total power
- 150 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 85 mm
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- ITX 150
- Part number
- 51991
- EAN / UPC
- 6940533540595
- Also known as
- UNYKAch ITX 150 power supply unit 150 W 20+4 pin ATX Flex ATX Black
Specifications
42 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 150 W |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Combined power (+3.3V) | 16.5 W |
| Combined power (+12V) | 72 W |
| Combined power (+5V) | 30 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 10 W |
| Max output current (+3.3V) | 5 A |
| Max output current (+12V1) | 6 A |
| Max output current (+5V) | 6 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2 A |
| Power protection features | Over current, Over power, Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 28 cm |
| Number of SATA power connectors | 1 |
| SATA power cable length | 480 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Peripheral (Molex) power cable length | 570 mm |
| CPU P4 connector (4-pin) | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | Flex ATX |
| Supported motherboard form factors | Mini-ITX |
| ATX version | 2.31 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | EN60950, CE, TÜV |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 85 mm |
| Depth | 170 mm |
| Height | 40 mm |
| Weight | 530 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 55 mm |
| Package depth | 170 mm |
| Package height | 50 mm |
| Package weight | 533 g |
| Package type | Box |
