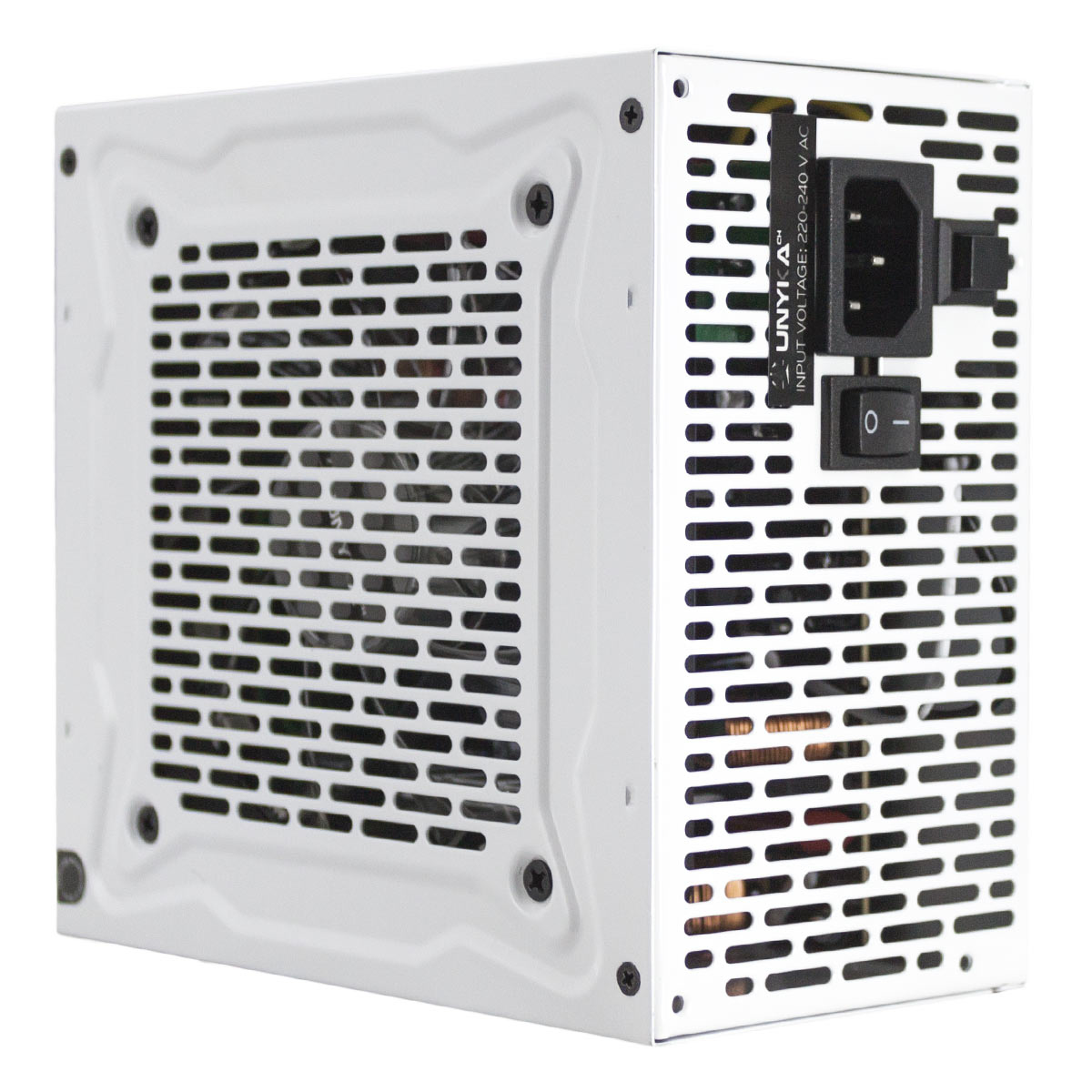

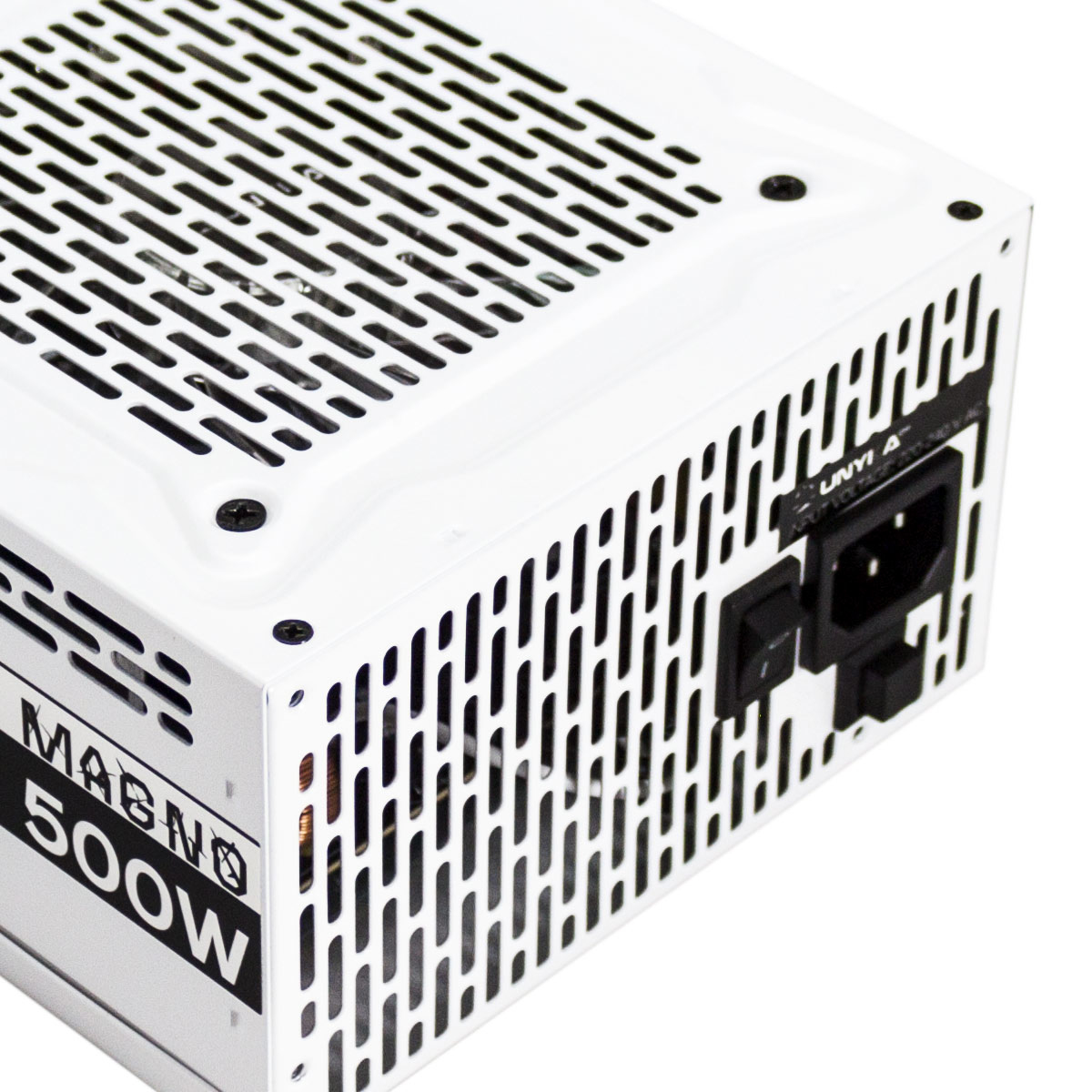

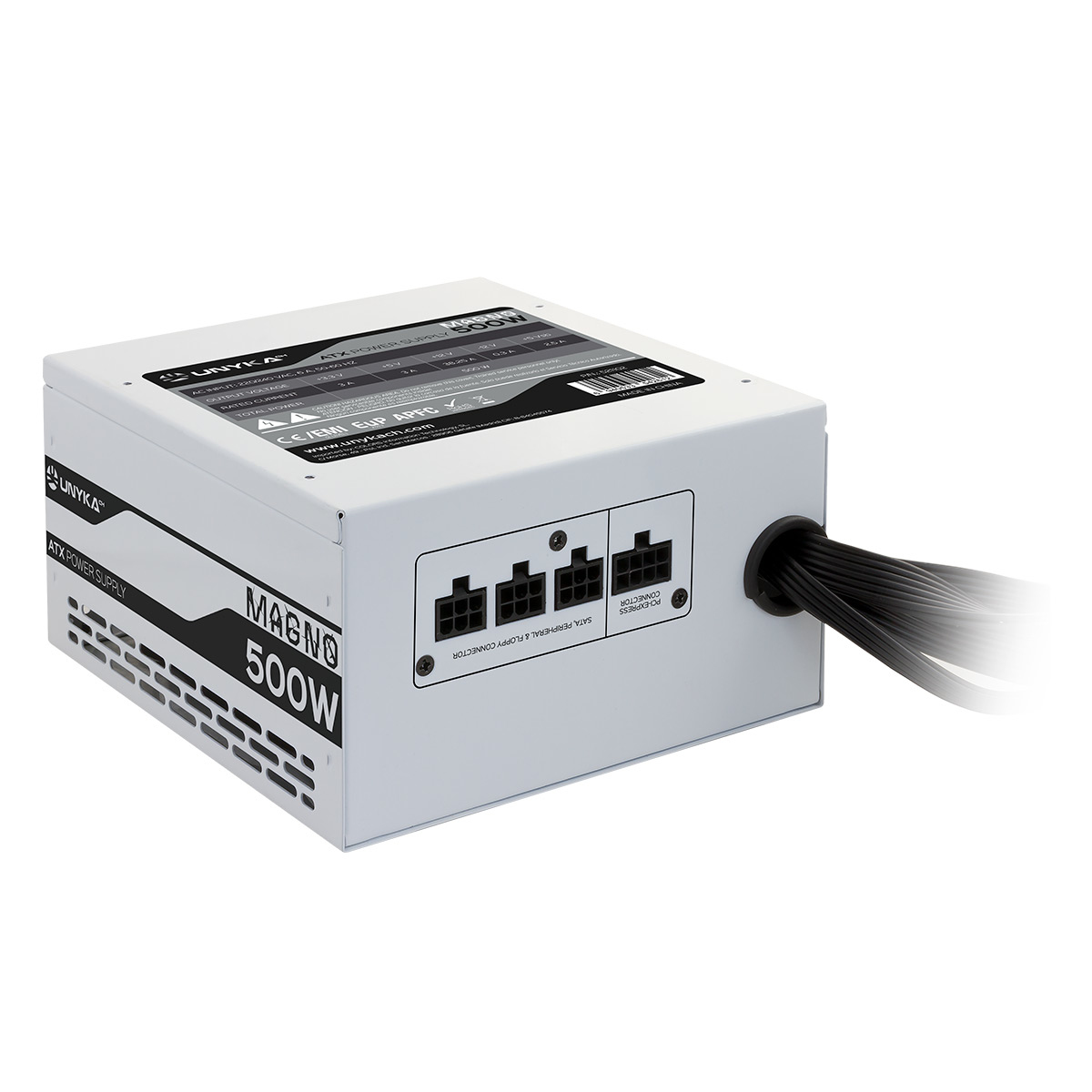

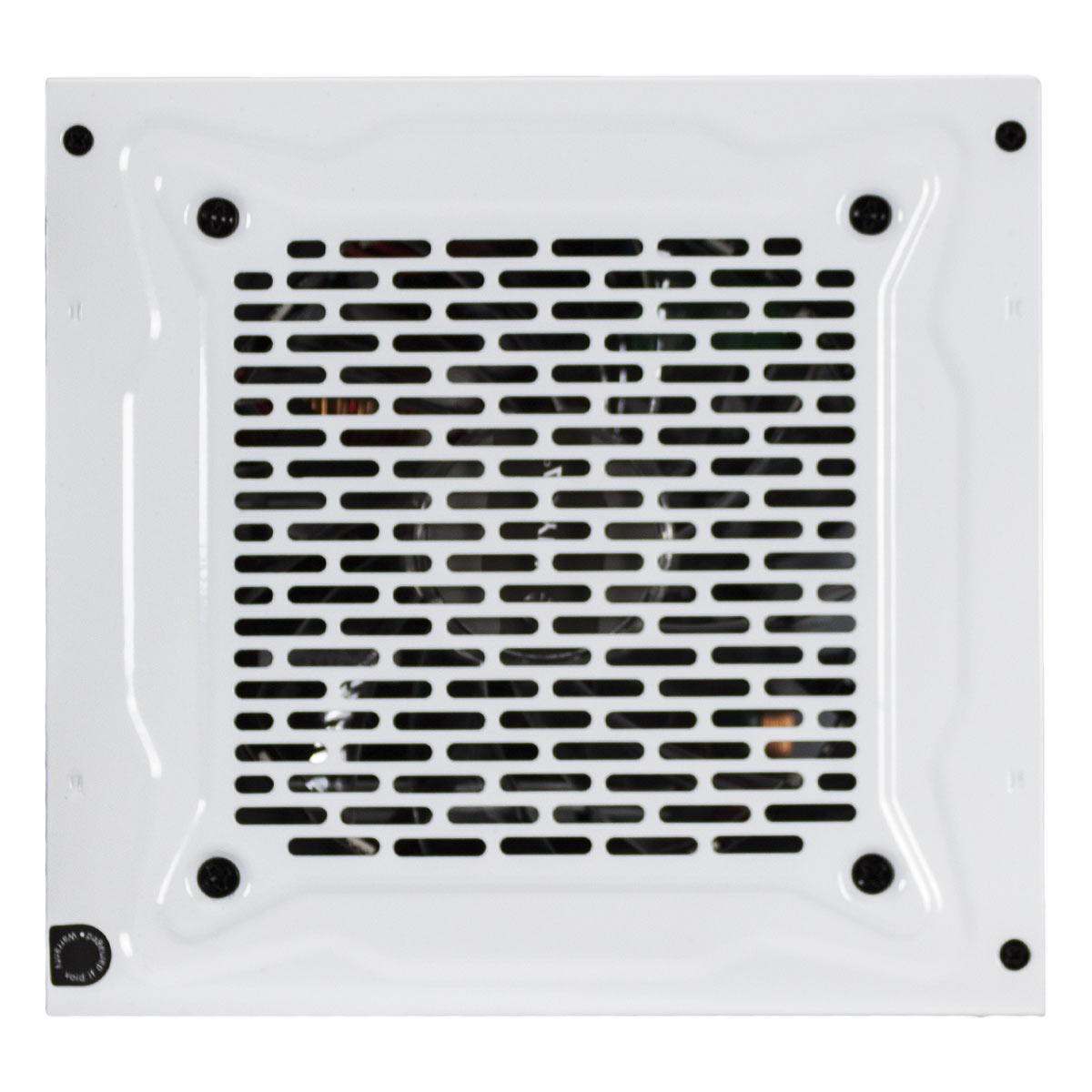

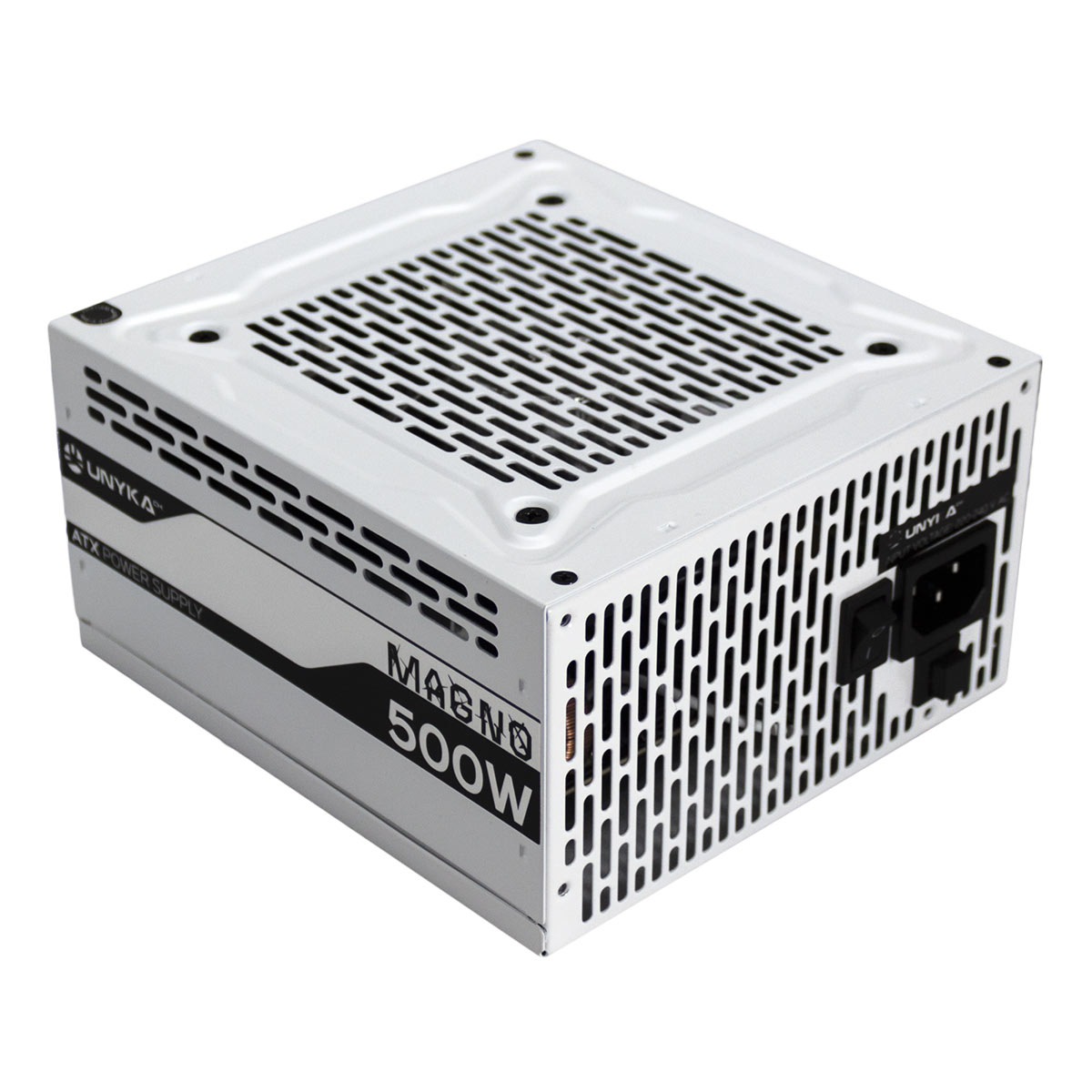

UNYKAch ATX Magno 500W
Model ATX Magno 500WPart no. 521102EAN 6940533542612
52 specifications
- Noise28 dB
- Weight1.38 kg
- ColourWhite
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
Overview
- Noise
- 28 dB
- Weight
- 1.38 kg
- Colour
- White
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- ATX Magno 500W
- Part numbers
- 521102, 521101
- EAN / UPC
- 6940533542612, 6940533542582
- Also known as
- UNYKAch ATX Magno 500W power supply unit 20+4 pin ATX White
Specifications
52 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 3 A |
| Max output current (+12V1) | 38.25 A |
| Max output current (+5V) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 7 |
| SATA power cable length | 500,650,800 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 500,800 mm |
| PCI Express power connectors (8-pin) | 2 |
| PCI Express power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive cable length | 98 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| Supported motherboard form factors | ATX |
| ATX version | 2.31 |
| Noise level | 28 dB |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| LED indicators | Yes |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 85 mm |
| Weight | 1.38 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 200 mm |
| Package depth | 290 mm |
| Package height | 105 mm |
| Package weight | 1.97 kg |
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
| Package volume | 0.0061 cm³ |
