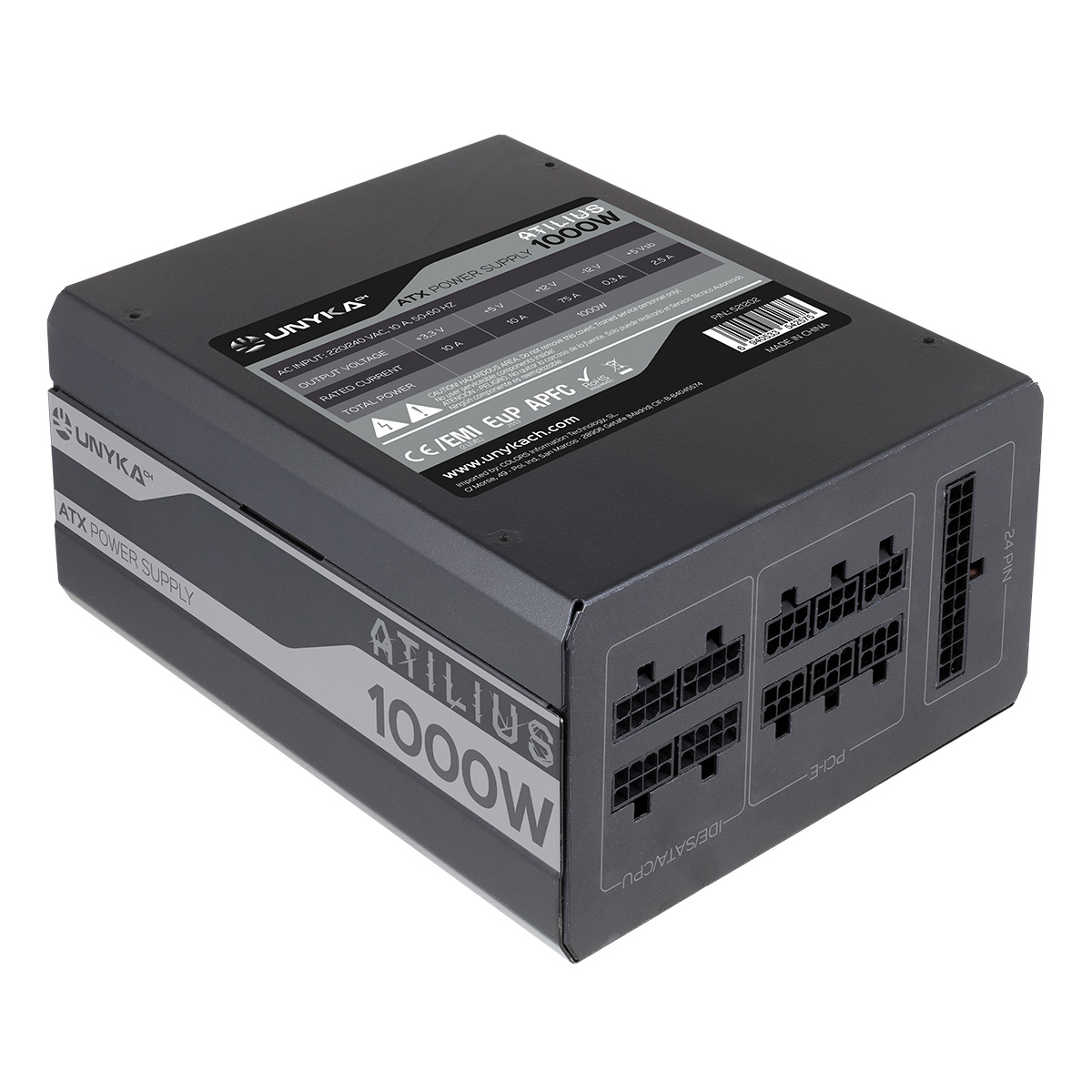

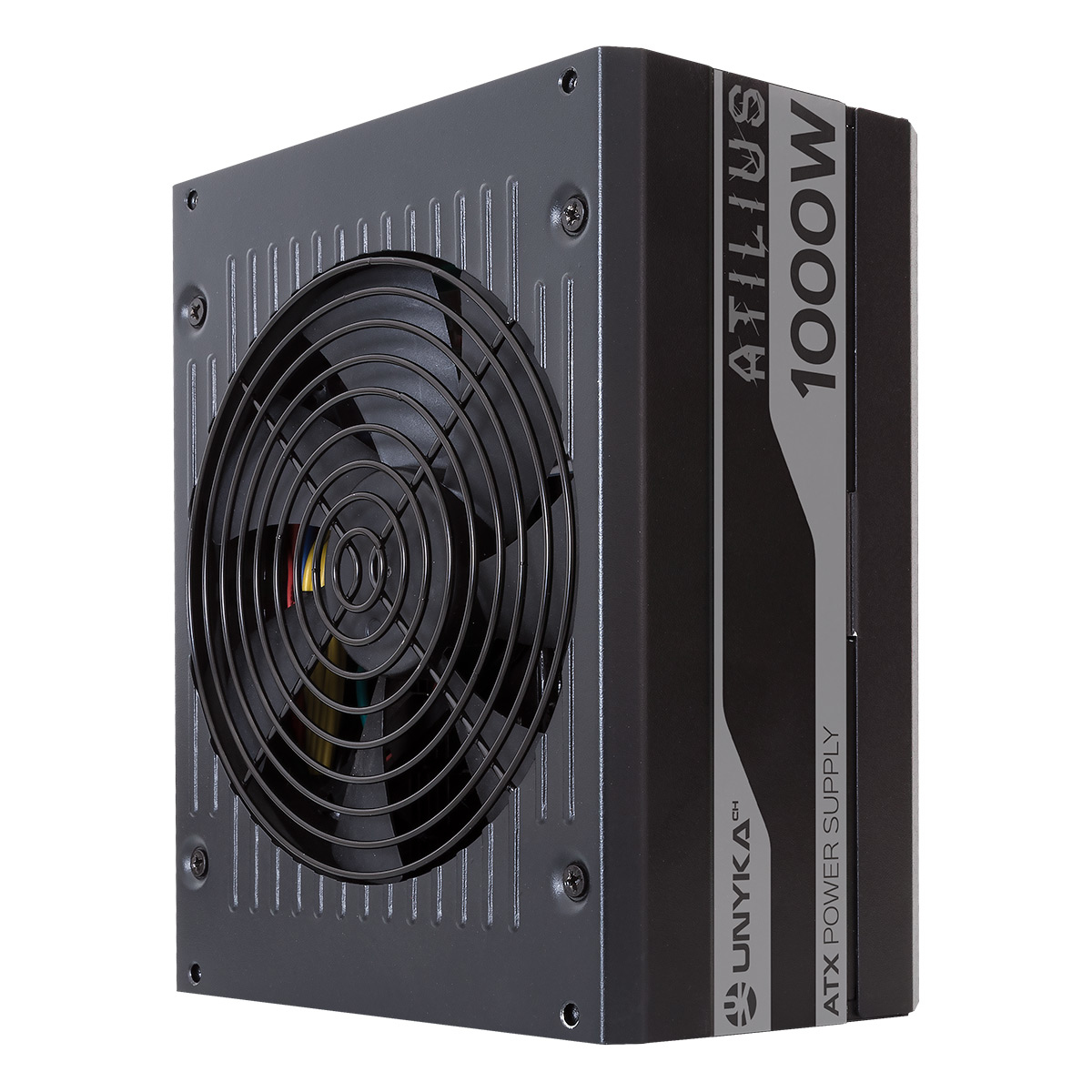

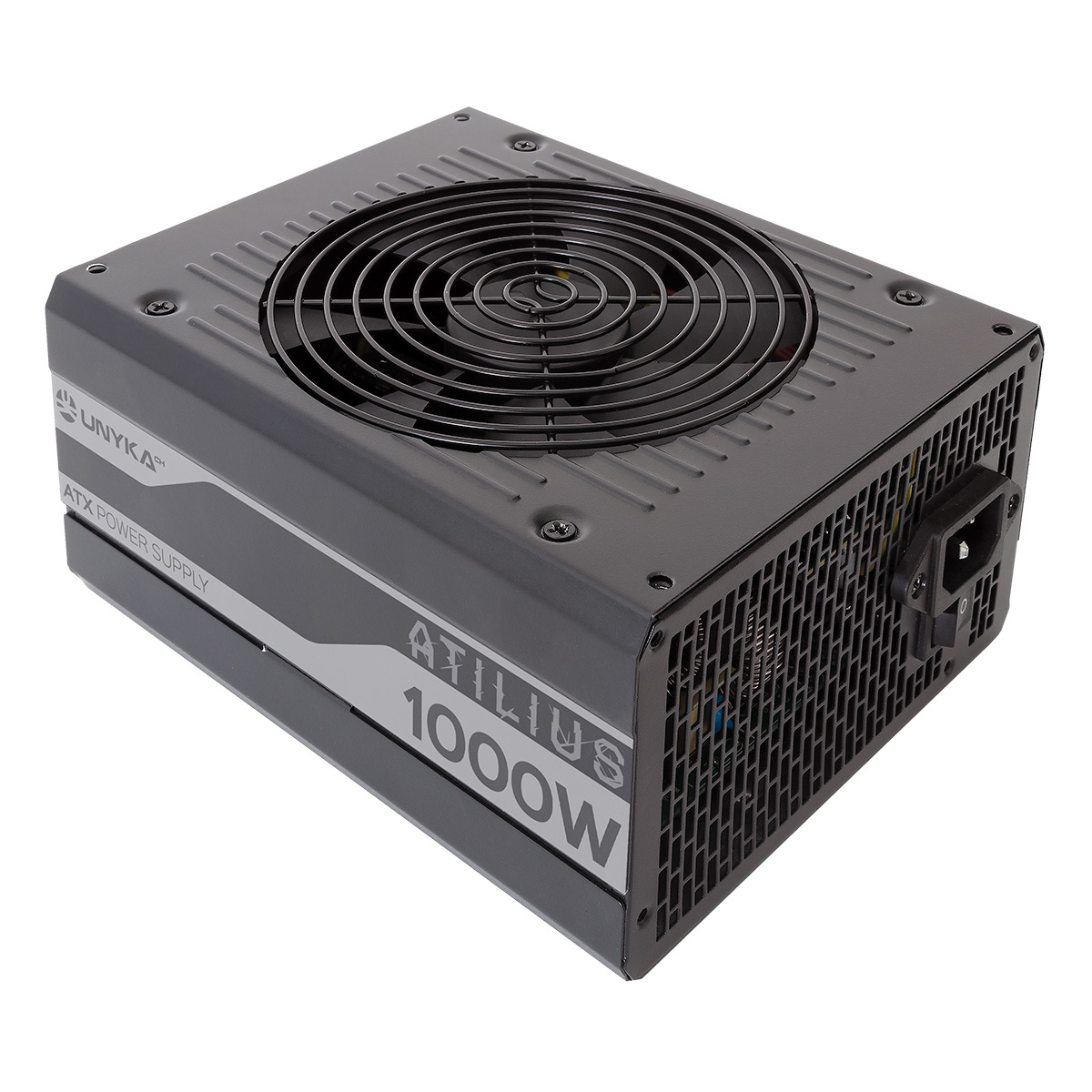

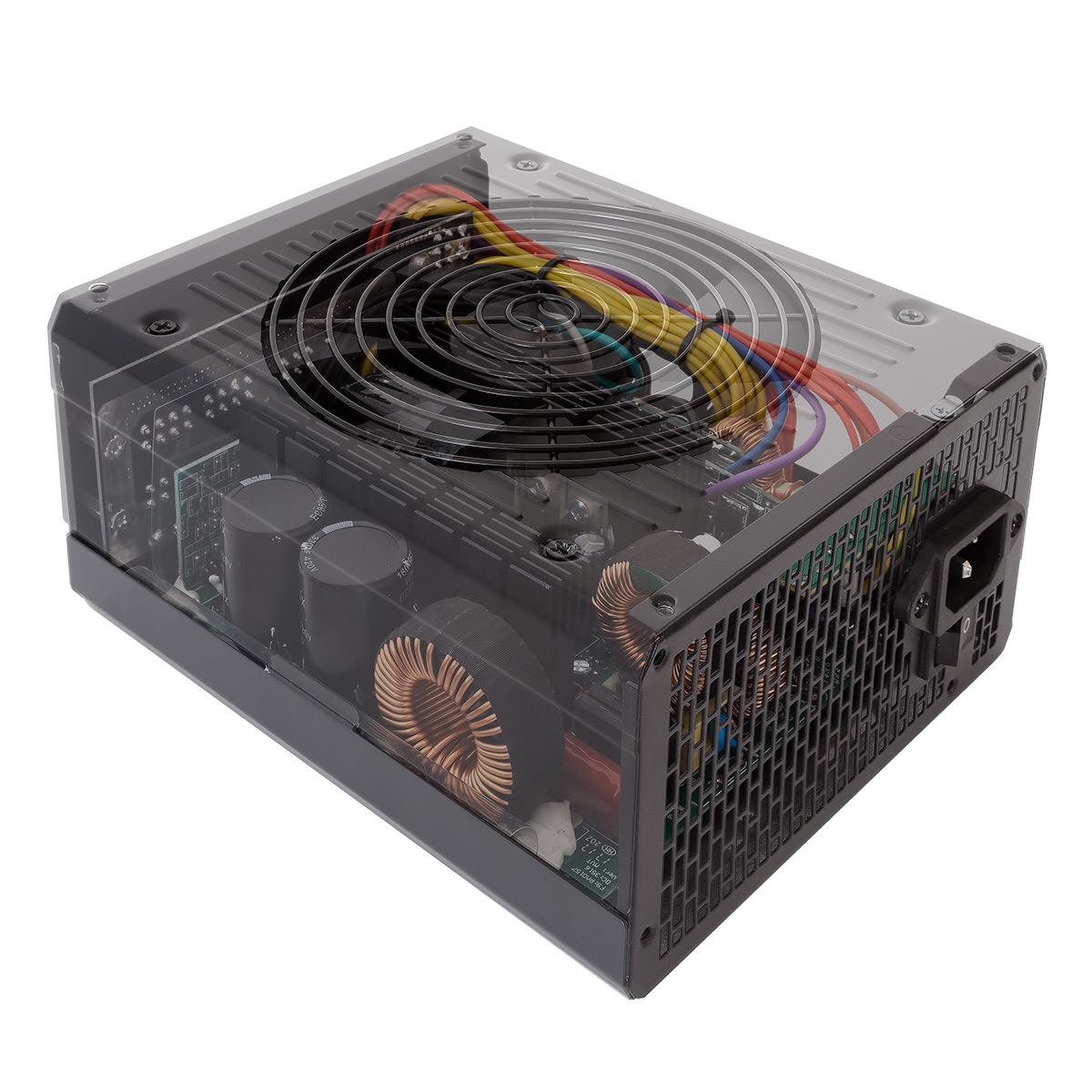

UNYKAch ATX Atilius 1000W

UNYKAch ATX Atilius 1000W

Model ATX Atilius 1000WPart no. 521202EAN 6940533542575

51 specifications
  • Noise28 dB
  • Weight1.97 kg
  • ColourBlack
  • Total power1000 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC/Server
See all specifications

Overview

Noise
28 dB
Weight
1.97 kg
Colour
Black
Total power
1000 W
Motherboard power connector
20+4 pin ATX
Purpose
PC/Server
Brand
UNYKAch
Model
ATX Atilius 1000W
Part number
521202
EAN / UPC
6940533542575
Also known as
UNYKAch ATX Atilius 1000W power supply unit 20+4 pin ATX Black

Specifications

51 specifications in 9 groups

Power

Total power1000 W
AC input voltage220 - 240 V
AC input frequency50 - 60 Hz
Power Factor Correction (PFC) typeActive
Max output current (+3.3V)10 A
Max output current (+12V1)75 A
Max output current (+5V)10 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)2.5 A
Efficiency85%
Power protection featuresOver power, Over voltage, Overheating, Overload, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Motherboard power cable length55 cm
Number of SATA power connectors7
SATA power cable length500,650,800 mm
Peripheral (Molex) power connectors (4-pin)2
Peripheral (Molex) power cable length500,800 mm
PCI Express power connectors (8-pin)4
PCI Express power cable length55 cm
CPU power connector (4+4 pin)Yes
CPU power cable length55 cm
ATX power connector (20+4 pin)Yes
Floppy disk drive cable length10 cm
Floppy disk drive connectorYes
Floppy drive power connector1
Cabling typeFully-Modular

Performance

PurposePC/Server
Power supply unit (PSU) form factorATX
Supported motherboard form factorsATX
ATX version2.31
Noise level28 dB

Design

Product colourBlack
Cooling typeActive
Fan diameter14 cm
Number of fans1 fan(s)
On/off switchYes

Packaging content

Cables includedAC

Certificates

Compliance certificatesRoHS
CertificationCE

Weight & dimensions

Width150 mm
Depth190 mm
Height90 mm
Weight1.97 kg

Packaging data

ManualYes
Package width210 mm
Package depth360 mm
Package height140 mm
Package weight3.31 kg
Package typeBox

Other features

Screws includedYes
Package volume0.0061 cm³
