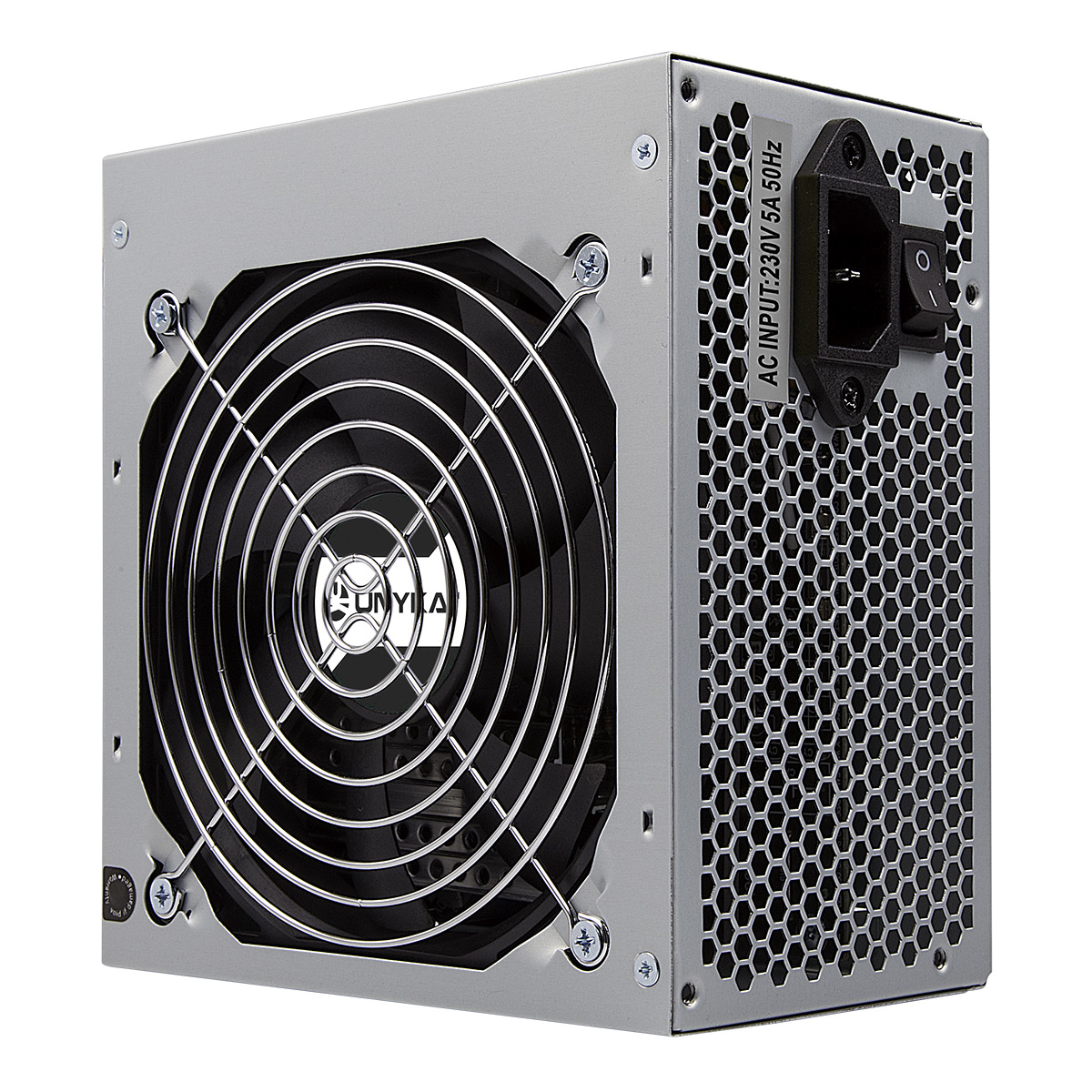

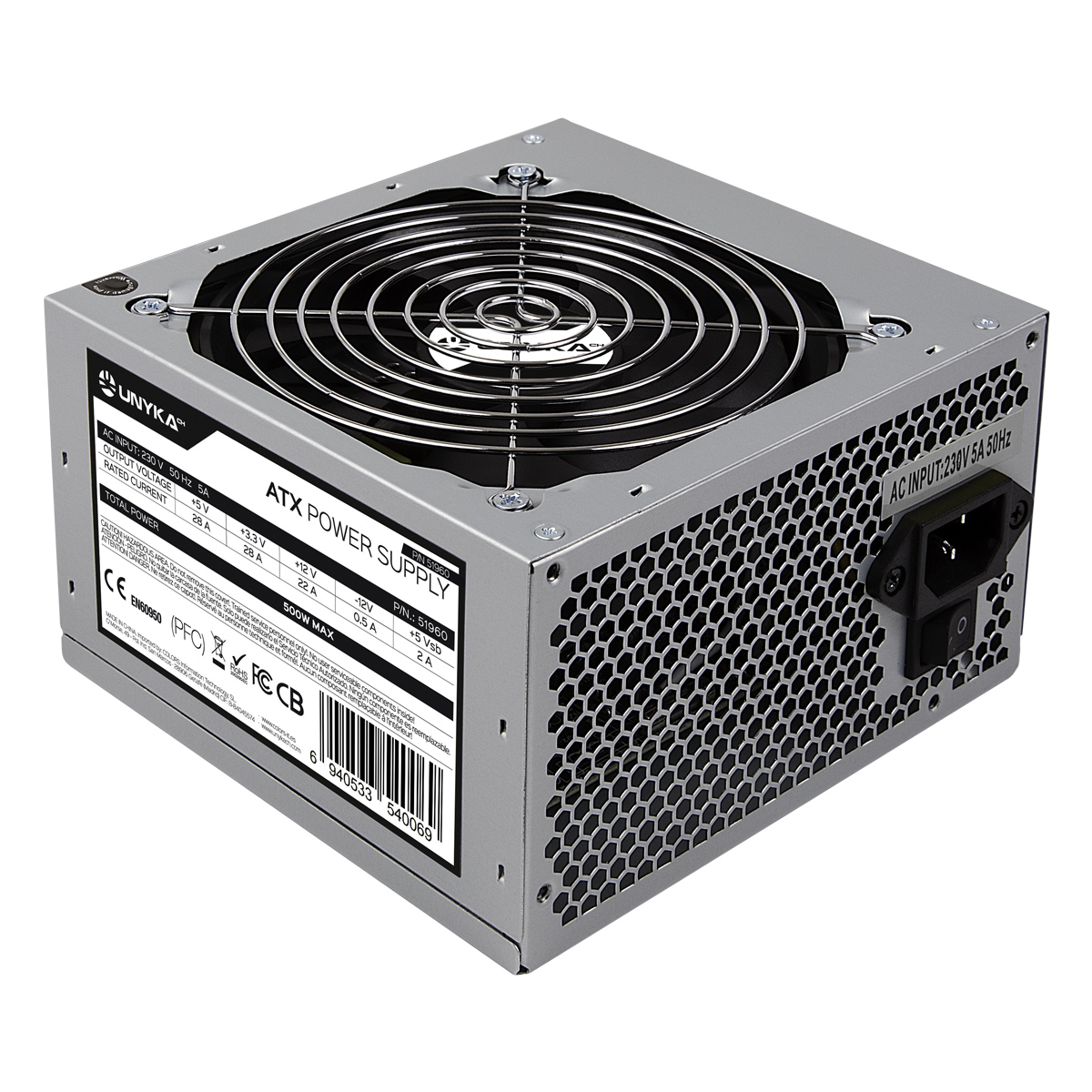

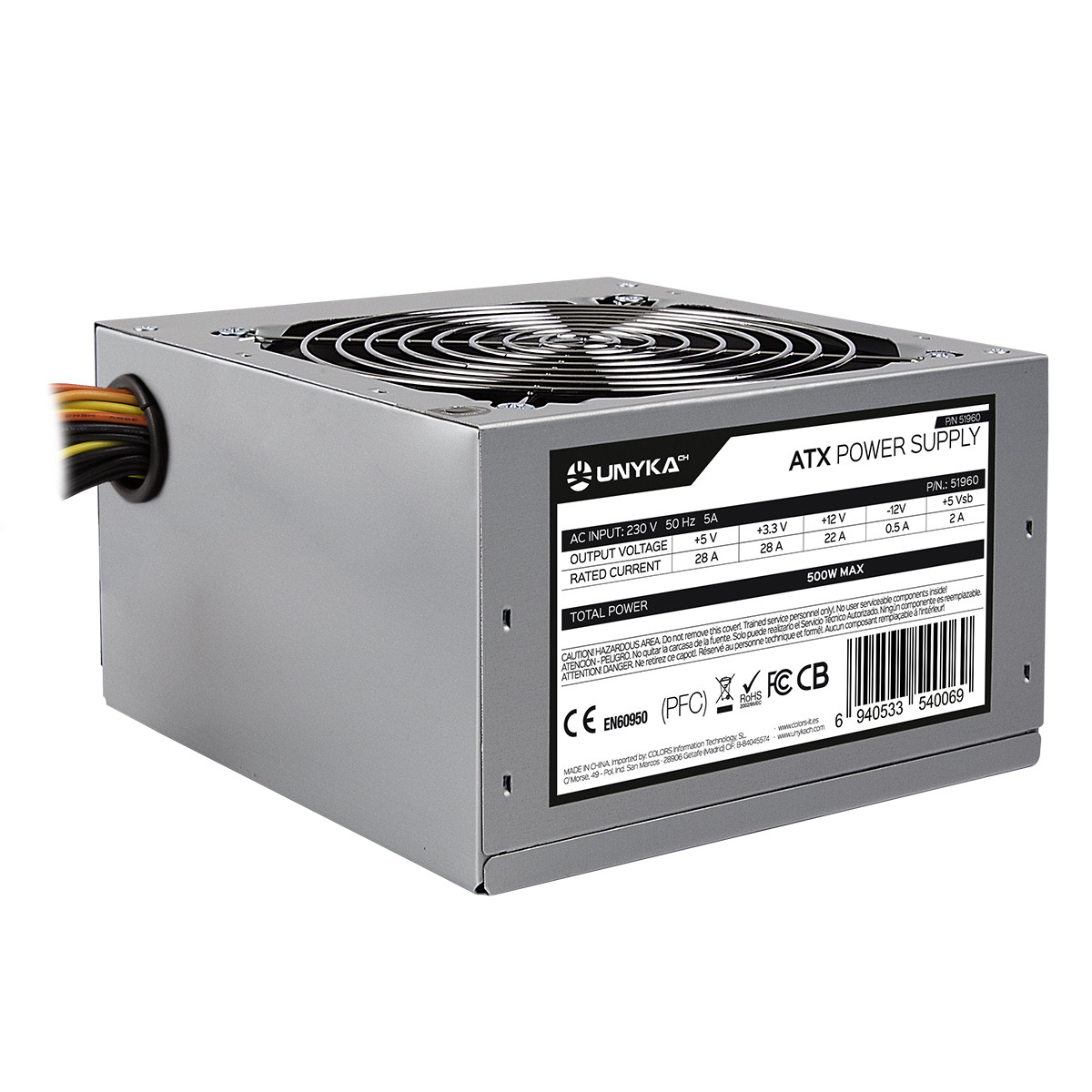

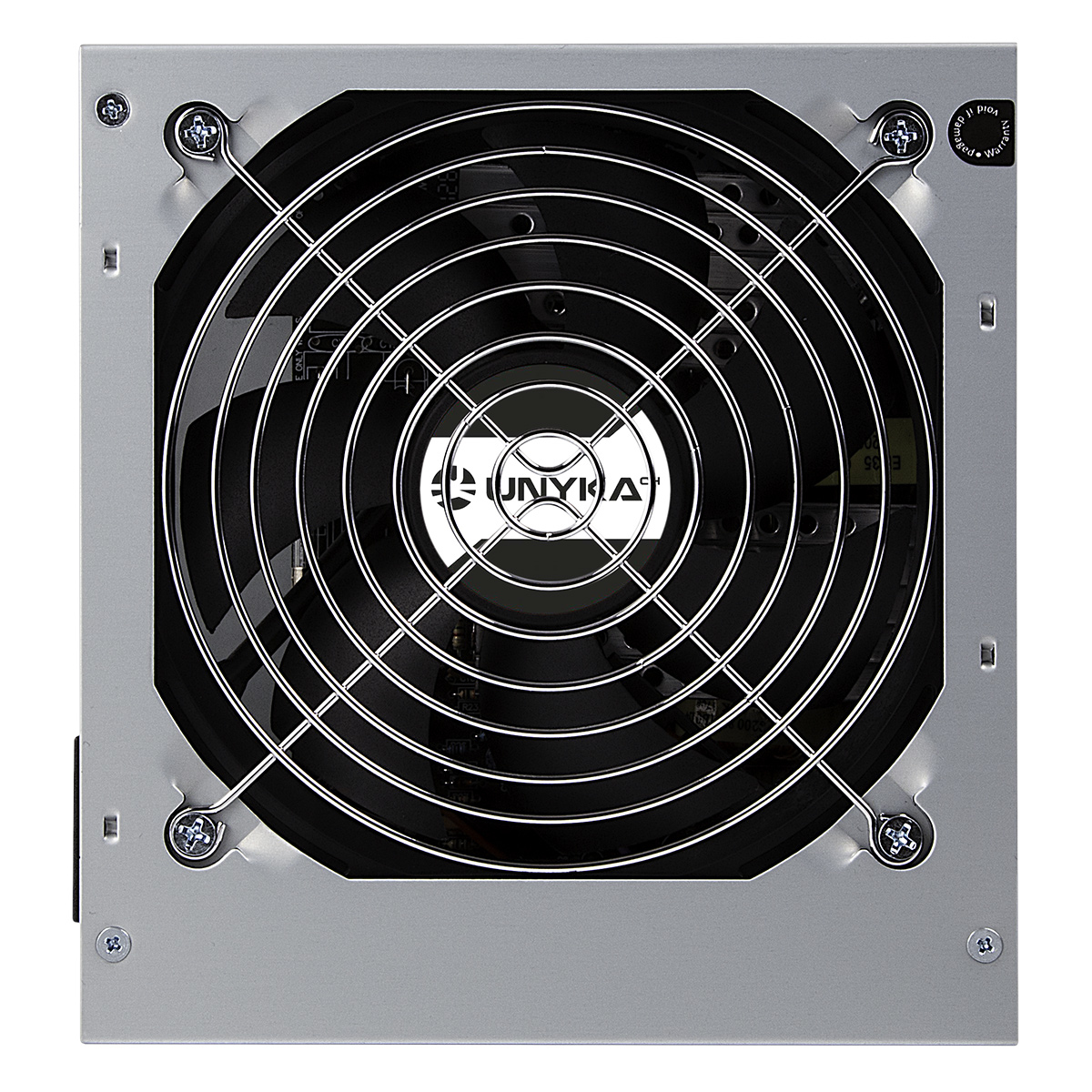

UNYKAch ATX 500W

UNYKAch ATX 500W

Model ATX 500WPart no. 51960EAN 6940533539414

41 specifications
  • Noise28 dB
  • Weight747 g
  • ColourSilver
  • Total power500 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC/Server
See all specifications

Overview

Noise
28 dB
Weight
747 g
Colour
Silver
Total power
500 W
Motherboard power connector
20+4 pin ATX
Purpose
PC/Server
Brand
UNYKAch
Model
ATX 500W
Part numbers
51960, 52099
EAN / UPC
6940533539414, 6940533540069, 6940533542759
Also known as
UNYKAch ATX 500W power supply unit 20+4 pin ATX Silver

Specifications

41 specifications in 8 groups

Power

Total power500 W
AC input voltage230 V
AC input frequency50 - 60 Hz
Max output current (+3.3V)28 A
Max output current (+12V1)22 A
Max output current (+5V)28 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)2 A
Efficiency78%
Power protection featuresOver current, Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Motherboard power cable length30 cm
Number of SATA power connectors3
SATA power cable length300,480 mm
Peripheral (Molex) power connectors (4-pin)2
Peripheral (Molex) power cable length480,620 mm
CPU P4 connector (4-pin)1
CPU power cable length30 cm
Floppy disk drive cable length62 cm
Floppy disk drive connectorYes
Floppy drive power connector620
Cabling typeNon-Modular

Performance

PurposePC/Server
Power supply unit (PSU) form factorATX
Supported motherboard form factorsATX
ATX version2.03
Noise level28 dB

Design

Product colourSilver
Fan diameter12 cm
Number of fans1 fan(s)

Certificates

Compliance certificatesRoHS
CertificationEN60950, TÜV

Weight & dimensions

Width150 mm
Depth140 mm
Height85 mm
Weight747 g

Packaging data

Package width165 mm
Package depth215 mm
Package height90 mm
Package weight879 g

Logistics data

Products per pallet10 pc(s)
