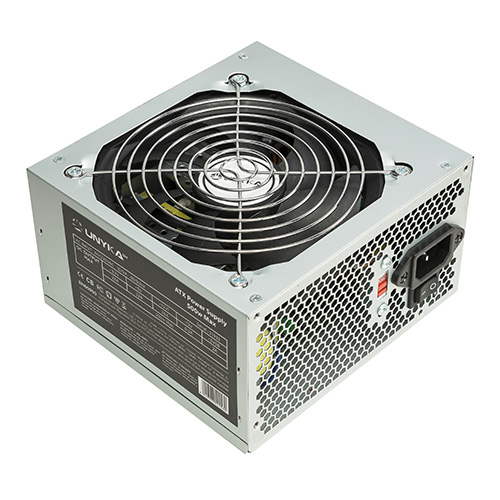

UNYKAch ATX 500
Model ATX 500Part no. 51933EAN 6940533539797
37 specifications
- Weight1.3 kg
- ColourSilver
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width230 mm
Overview
- Weight
- 1.3 kg
- Colour
- Silver
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 230 mm
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- ATX 500
- Part numbers
- 51933, 52012
- EAN / UPC
- 6940533539797, 6940533541530, 6940533541257
- Also known as
- UNYKAch ATX 500 power supply unit 500 W 20+4 pin ATX Silver
Specifications
37 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 110 - 220 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 23 A |
| Max output current (+12V) | 26 A |
| Max output current (+5V) | 23 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2 A |
| Power protection features | Over current, Over power, Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 40 cm |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| ATX version | 2.03 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | EN60950, CE, TÜV |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 230 mm |
| Depth | 165 mm |
| Height | 95 mm |
| Weight | 1.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.5 kg |
| Package type | Box |
