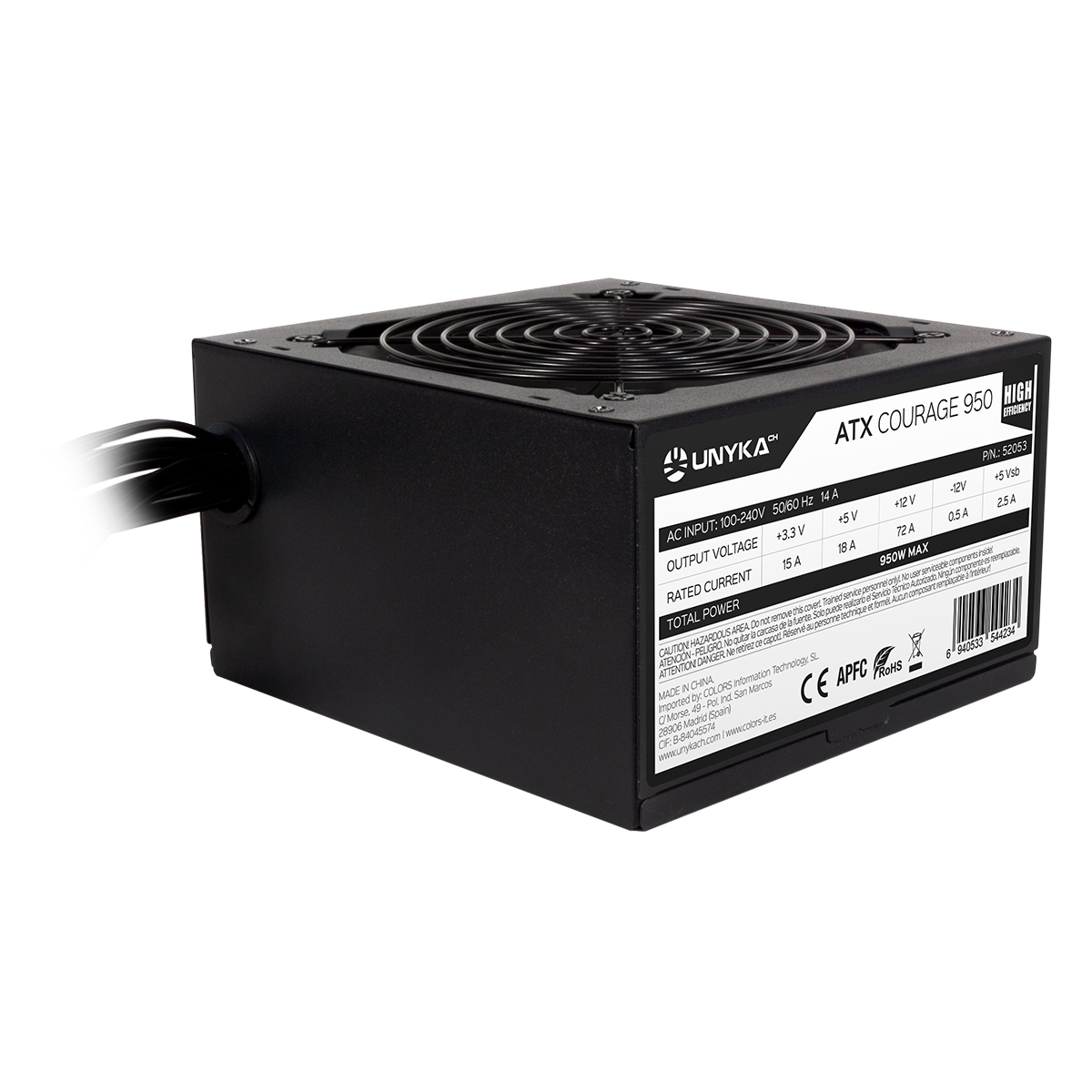

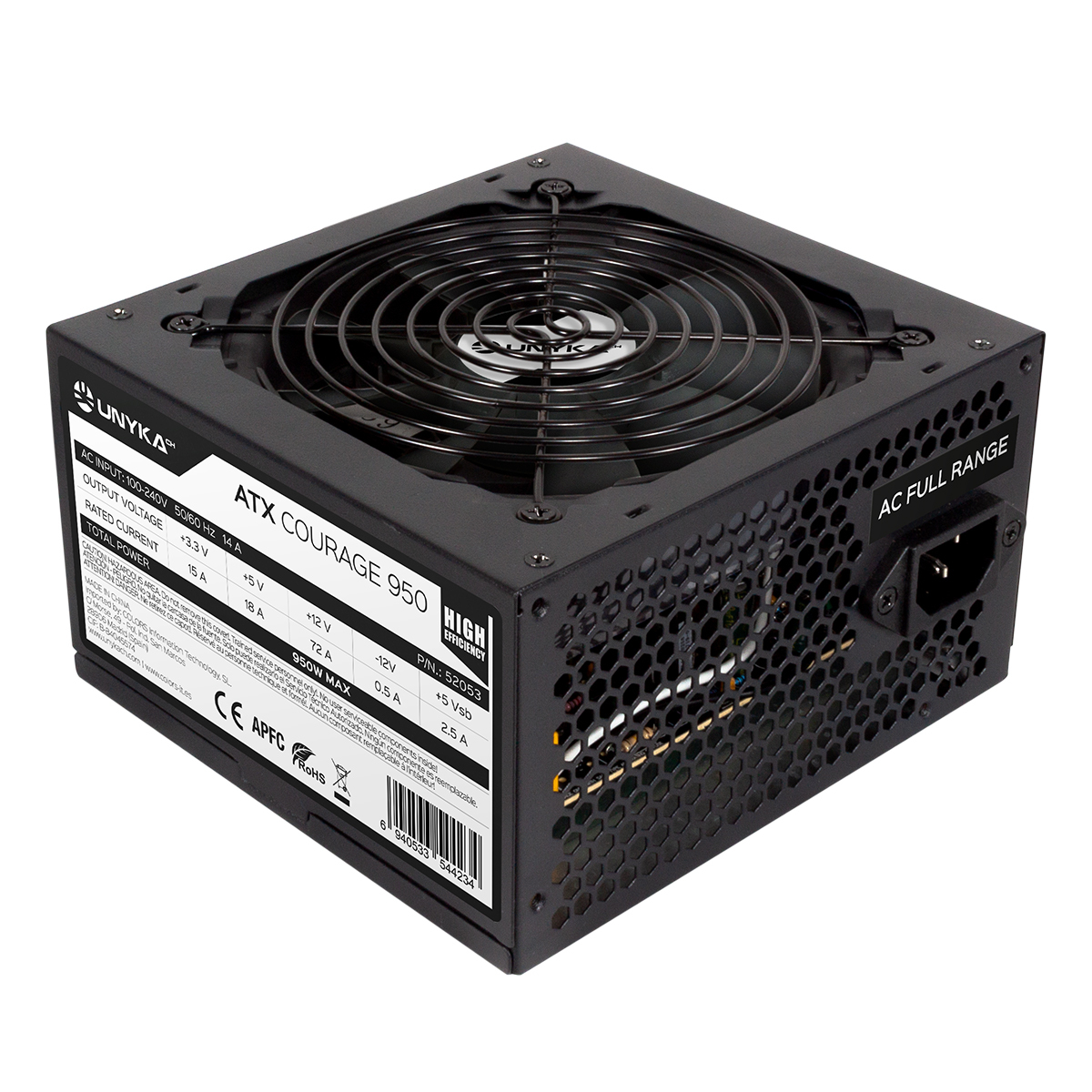

ATX Courage 950W Hight Efficiency Power Supply
Model 52053EAN 6940533544234
45 specifications
- Weight1.48 kg
- ColourBlack
- Total power950 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 1.48 kg
- Colour
- Black
- Total power
- 950 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- 52053
- Part number
- 52053
- EAN / UPC
- 6940533544234
- Also known as
- UNYKAch ATX Courage 950W Hight Efficiency Power Supply
Specifications
45 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 950 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V) | 72 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 89% |
| Power protection features | Over voltage, Short circuit, Under power |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 650,800 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 500 mm |
| PCI Express power connectors (8-pin) | 1 |
| PCI Express power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2000 RPM |
| Fan location | Top |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, EN60950, TÜV |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |
| Weight | 1.48 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 185 mm |
| Package depth | 240 mm |
| Package height | 98 mm |
| Package weight | 1.94 kg |
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
