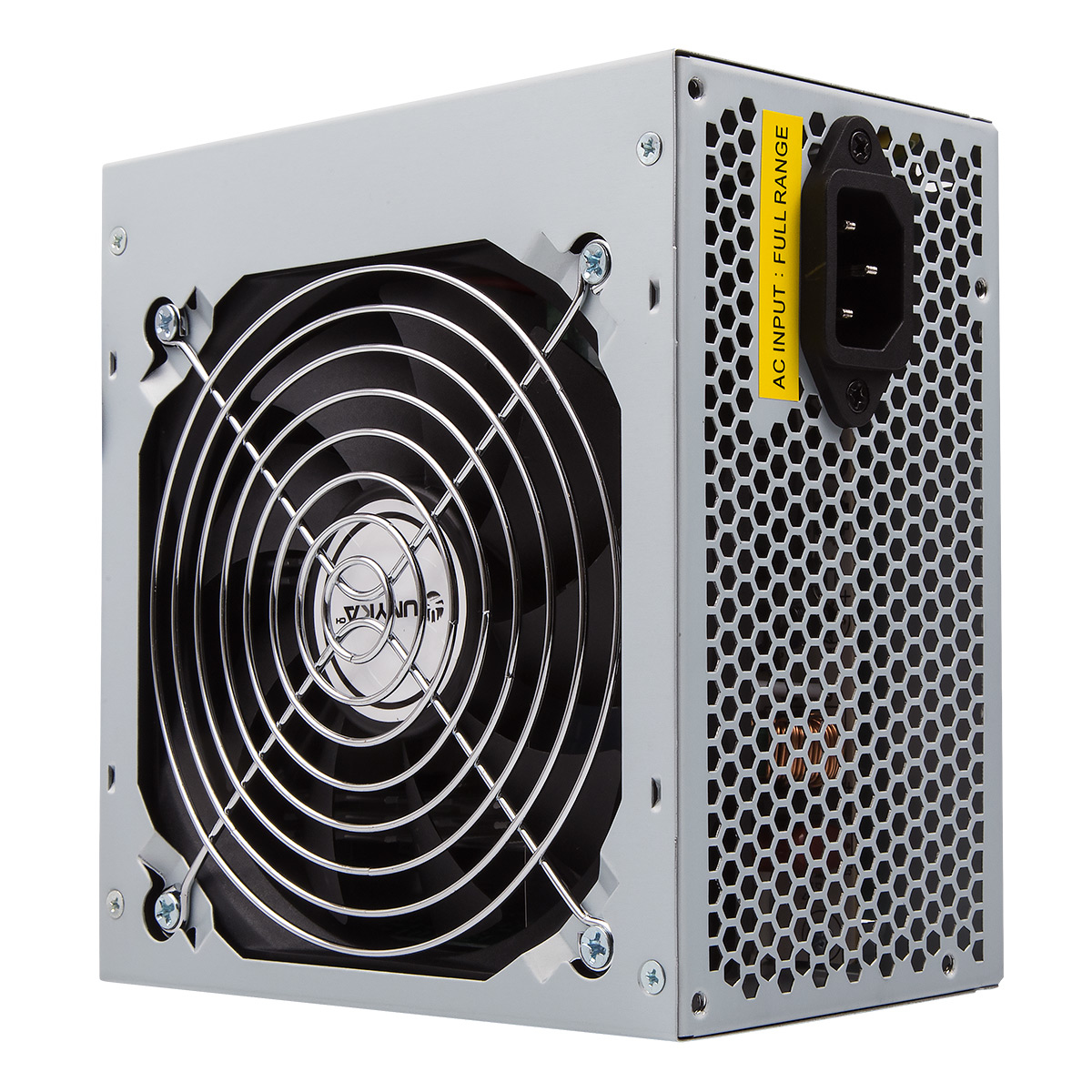

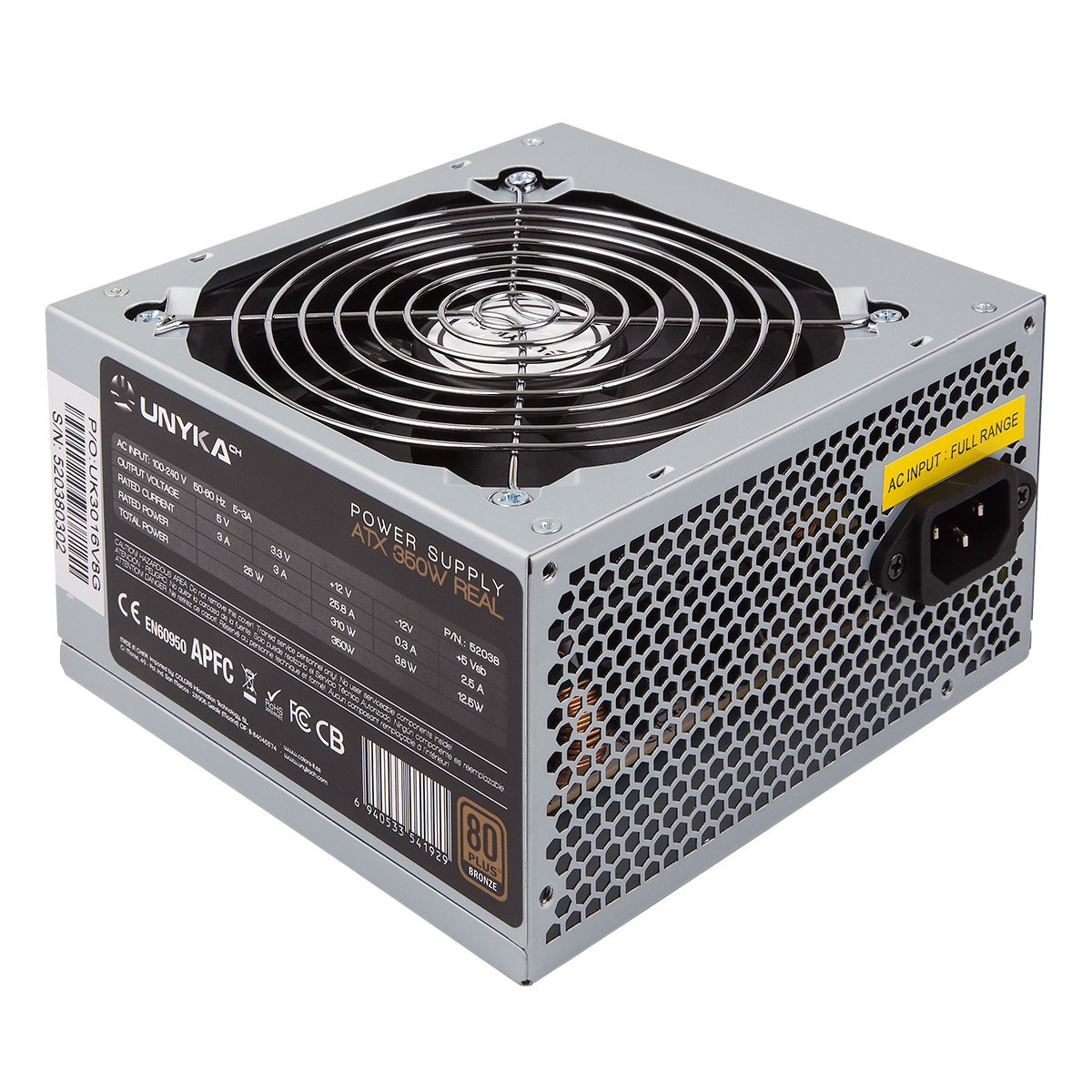

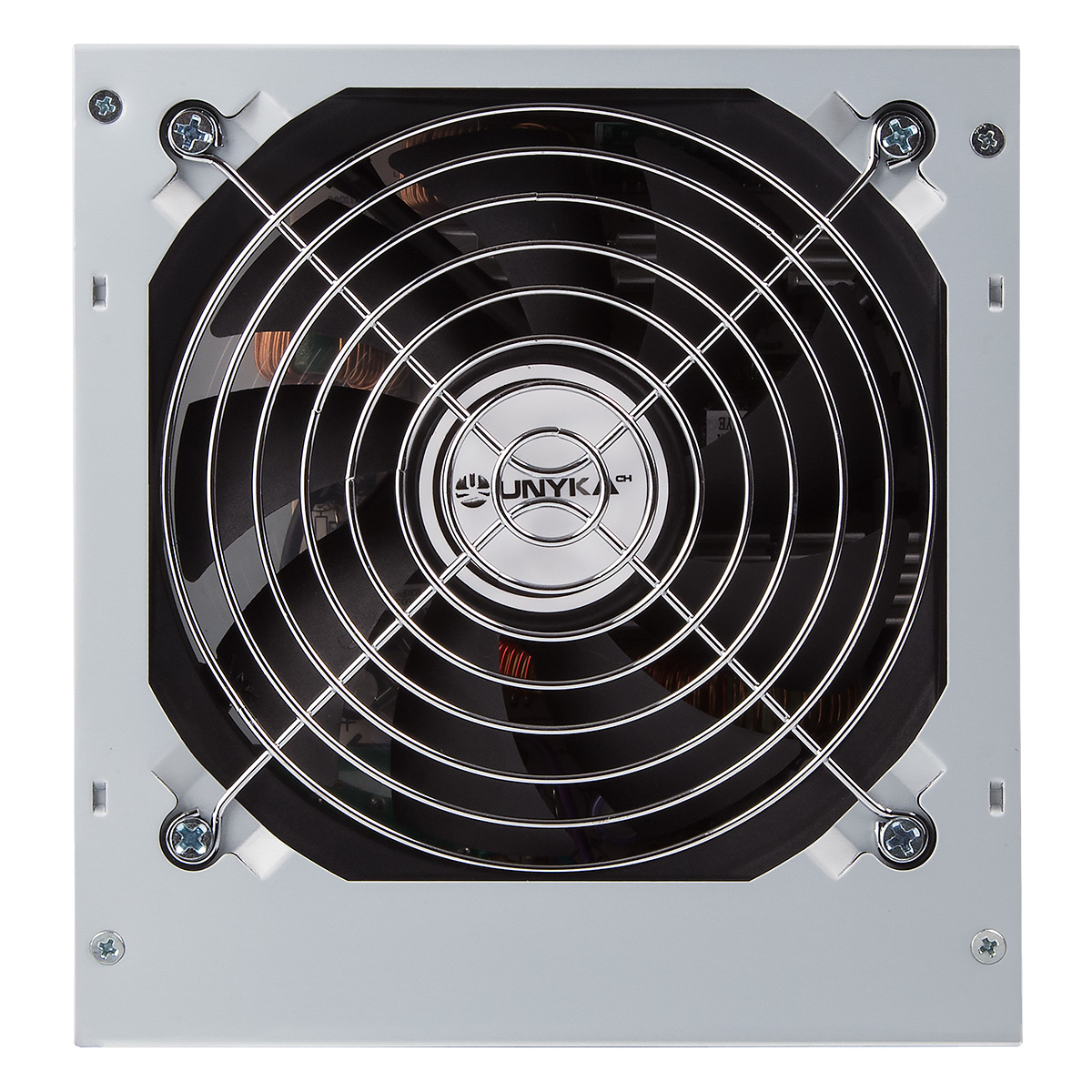

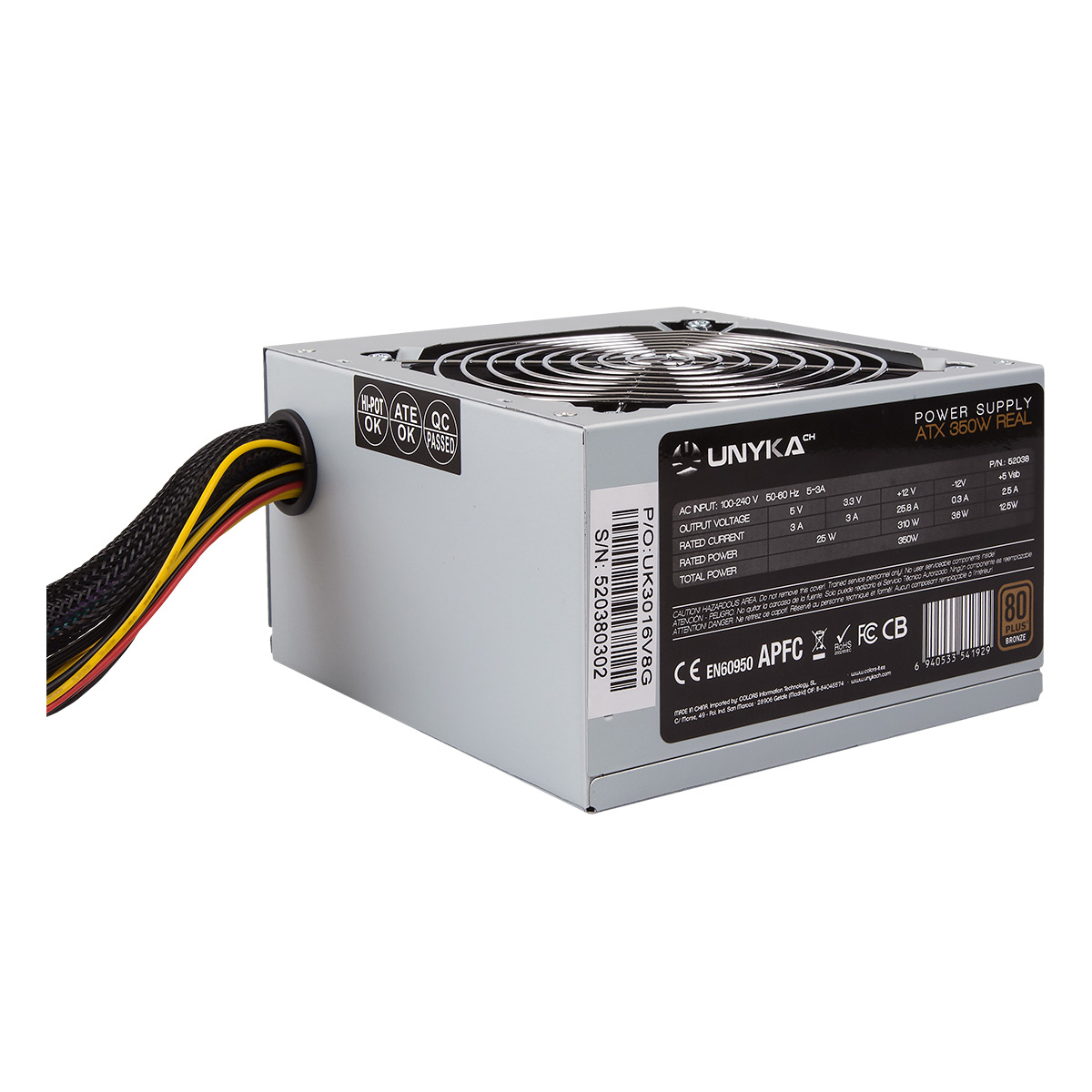

UNYKAch 52038 power supply unit
350 W ATX Silver
Model 52038EAN 6940533541929
37 specifications
- Noise28 dB
- Weight1.14 kg
- ColourSilver
- Total power350 W
- Number of SATA power connectors3
- PurposePC/Server
Overview
- Noise
- 28 dB
- Weight
- 1.14 kg
- Colour
- Silver
- Total power
- 350 W
- Number of SATA power connectors
- 3
- Purpose
- PC/Server
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- 52038
- Part number
- 52038
- EAN / UPC
- 6940533541929
- Also known as
- UNYKAch 52038 power supply unit 350 W ATX Silver
Specifications
37 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 350 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 3 A |
| Max output current (+12V1) | 25.8 A |
| Max output current (+5V) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 3 |
| SATA power cable length | 380,520 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 380,660 mm |
| PCI Express power connectors (8-pin) | 1 |
| PCI Express power cable length | 42 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 45 cm |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Supported motherboard form factors | ATX |
| ATX version | 2.3 |
| Noise level | 28 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |
| Weight | 1.14 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 150 mm |
| Package depth | 140 mm |
| Package height | 85 mm |
| Package weight | 1.14 kg |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 10 pc(s) |
