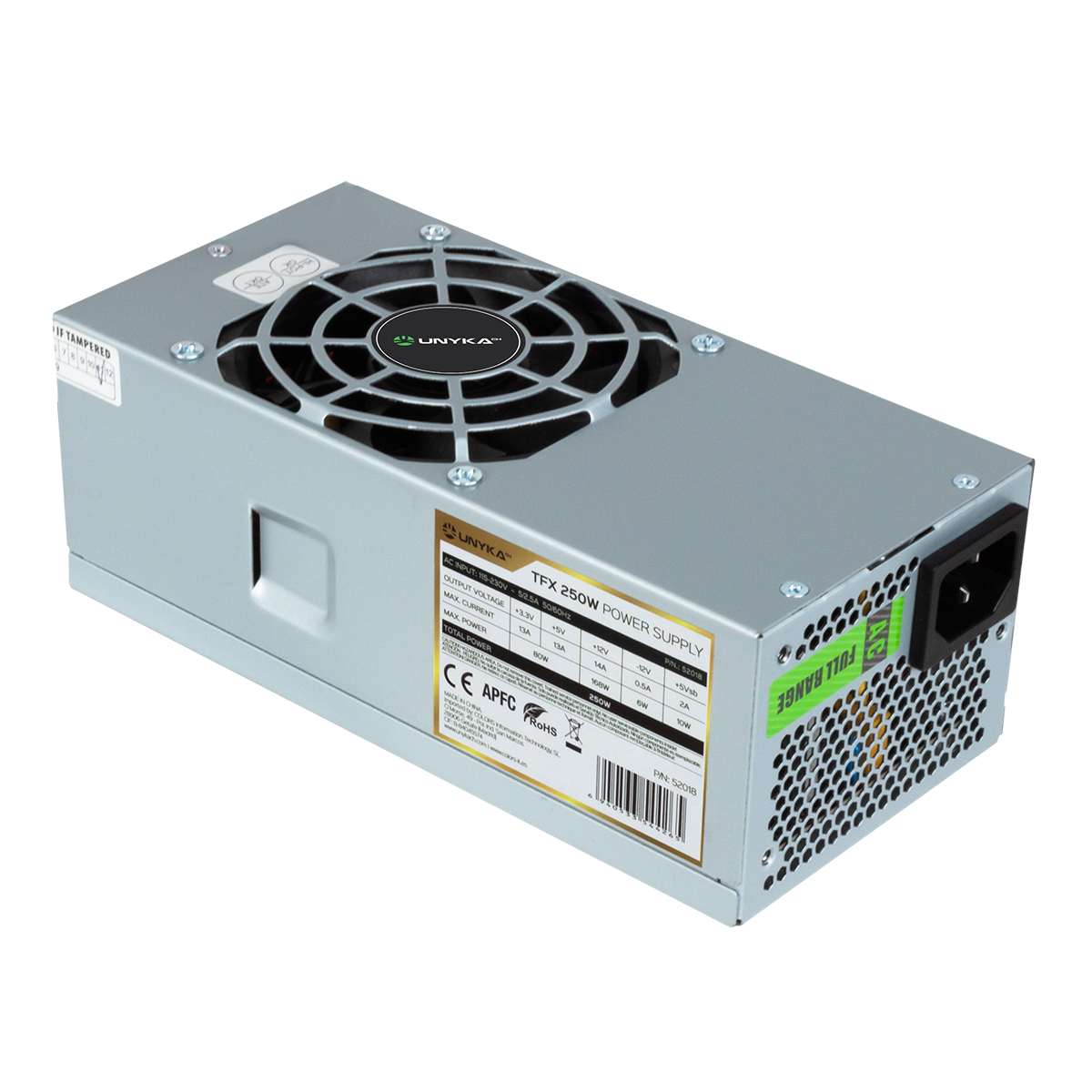

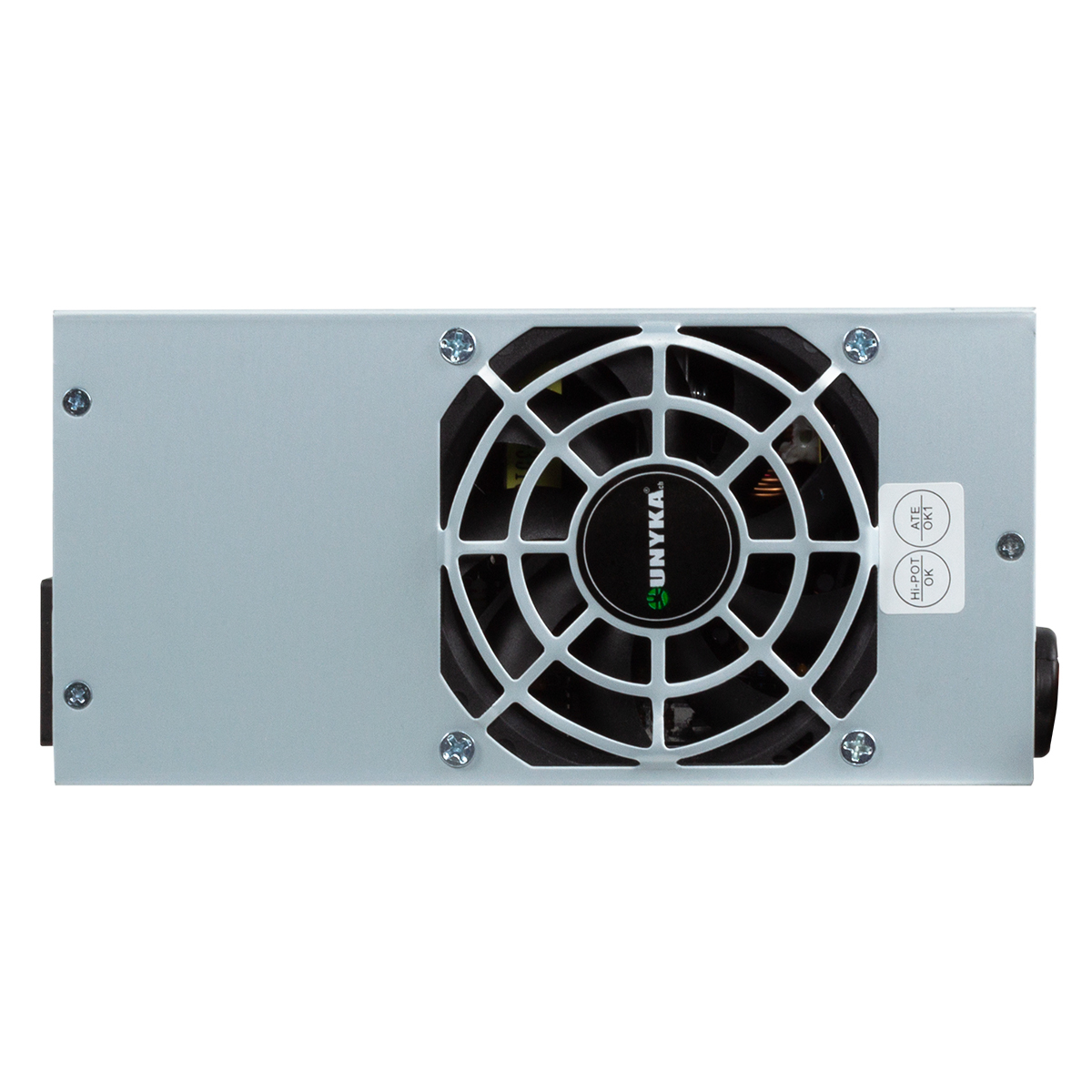

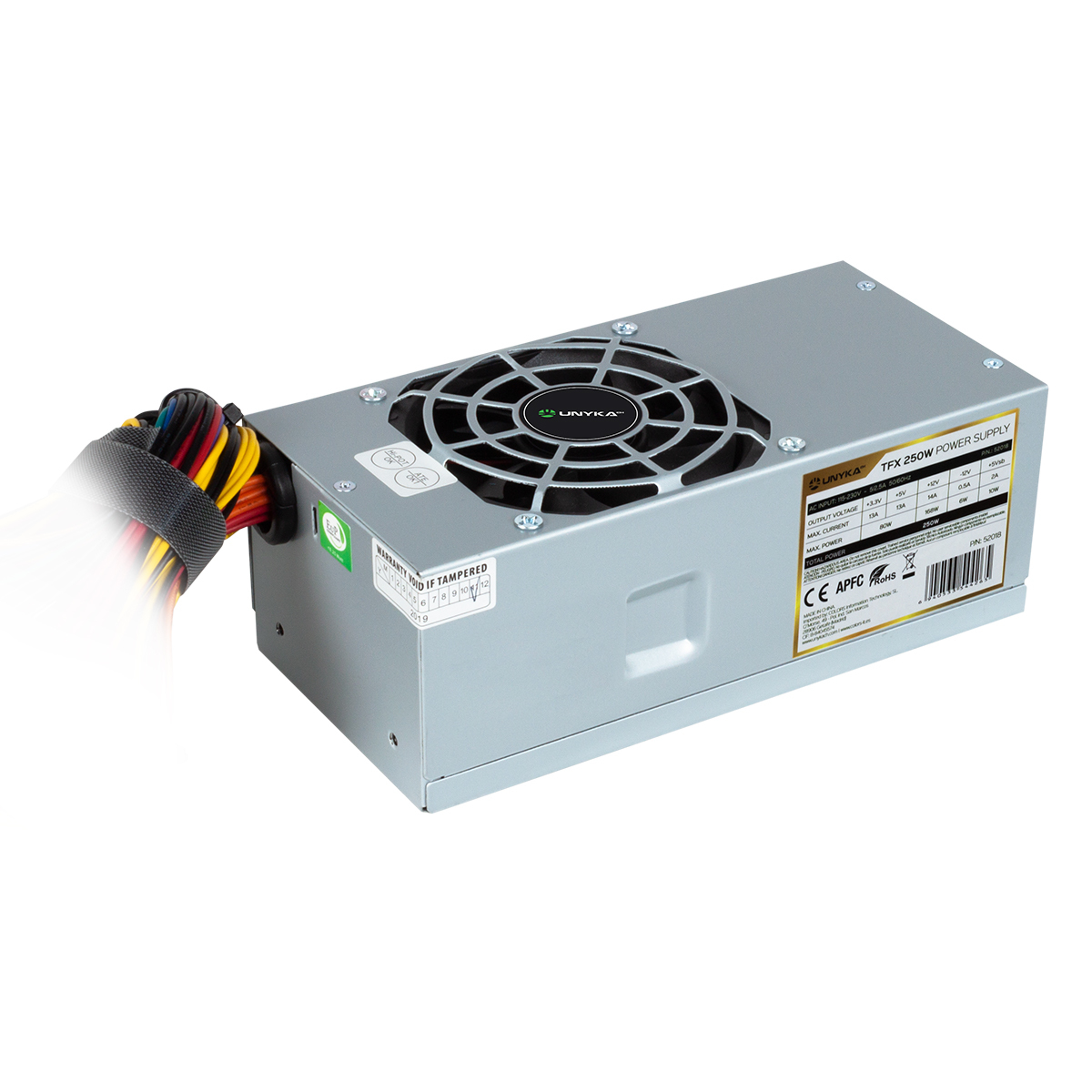

TFX 250W 92% Efficiency Power Supply
Model 52018EAN 6940533544265
41 specifications
- Weight877 g
- ColourSilver
- Total power250 W
- Motherboard power connector20+4 pin ATX
- PurposeServer
- Width85 mm
Overview
- Weight
- 877 g
- Colour
- Silver
- Total power
- 250 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- Server
- Width
- 85 mm
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- 52018
- Part number
- 52018
- EAN / UPC
- 6940533544265
- Also known as
- UNYKAch TFX 250W 92% Efficiency Power Supply
Specifications
41 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 250 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 13 A |
| Max output current (+12V1) | 14 A |
| Max output current (+5V) | 13 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 32 cm |
| Number of SATA power connectors | 3 |
| SATA power cable length | 320,450 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Peripheral (Molex) power cable length | 450 mm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 32 cm |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| Power supply unit (PSU) form factor | TFX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 85 mm |
| Depth | 175 mm |
| Height | 65 mm |
| Weight | 877 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 85 mm |
| Package depth | 175 mm |
| Package height | 65 mm |
| Package weight | 877 g |
Other features
| Specification | Value |
|---|---|
| Mounting type | Rack mounting |
| Redundant power supply (RPS) support | Yes |
