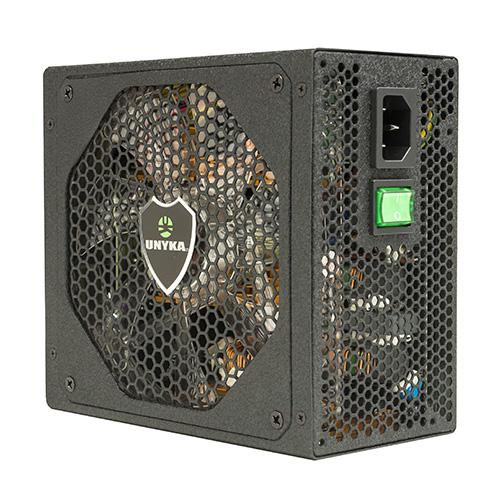

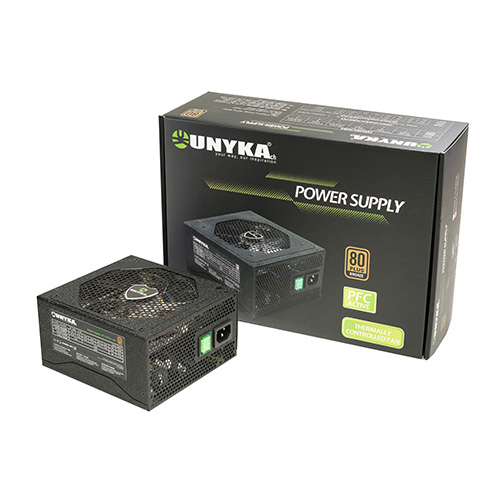

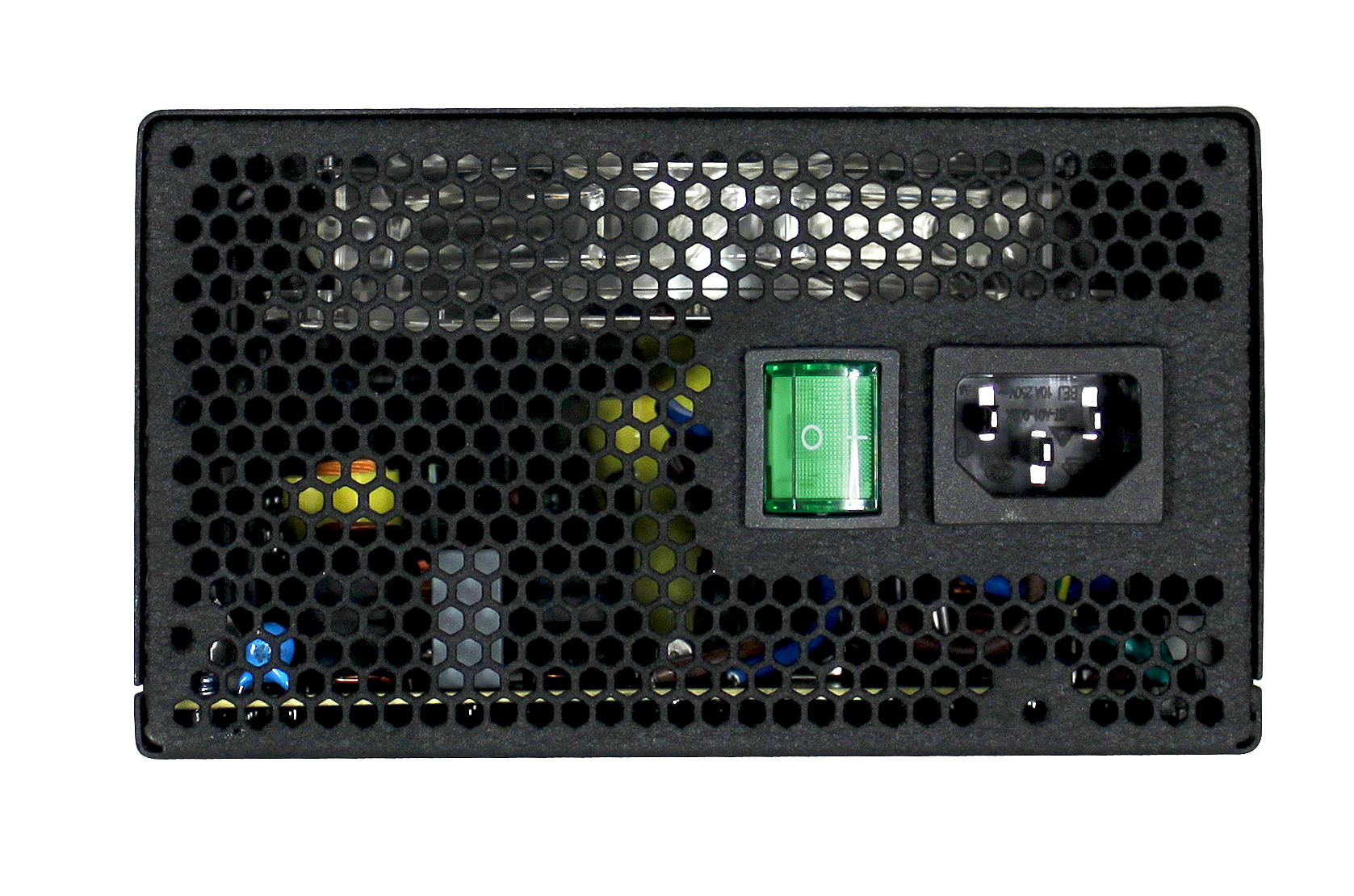

UNYKAch 52007 power supply unit
800 W 20+4 pin ATX ATX Black
Model 52007EAN 6940533541073
40 specifications
- ColourBlack
- Total power800 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 800 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- 52007
- Part number
- 52007
- EAN / UPC
- 6940533541073
- Also known as
- UNYKAch 52007 power supply unit 800 W 20+4 pin ATX ATX Black
Specifications
40 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 800 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4 - 8 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 132 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 132 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V) | 16 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over voltage, Overload, Short circuit |

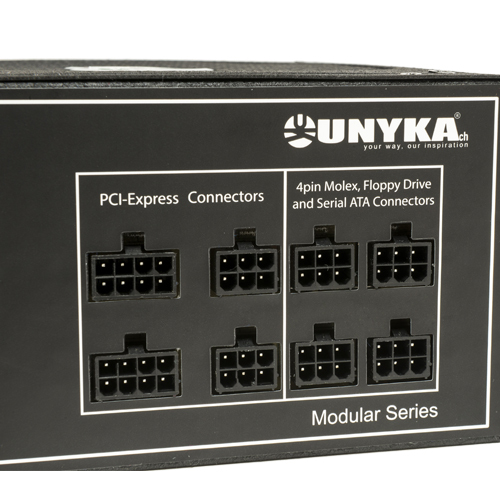

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 4 |
| Number of SATA power connectors | 7 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |

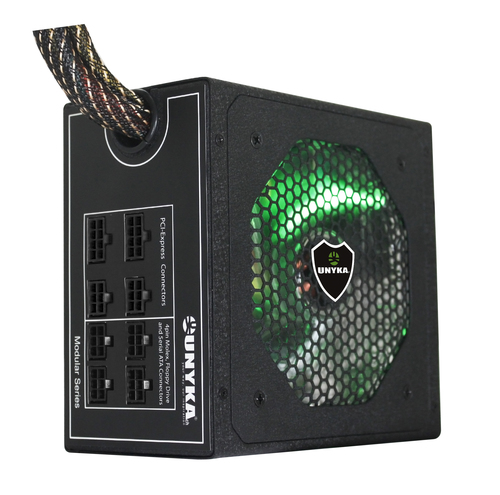

| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| LED indicators | Yes |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE EN60950 TÜV ErP OVP/UVP/OTP/OCP/OLP/OPP/SCP/ETC APFC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 85 mm |
