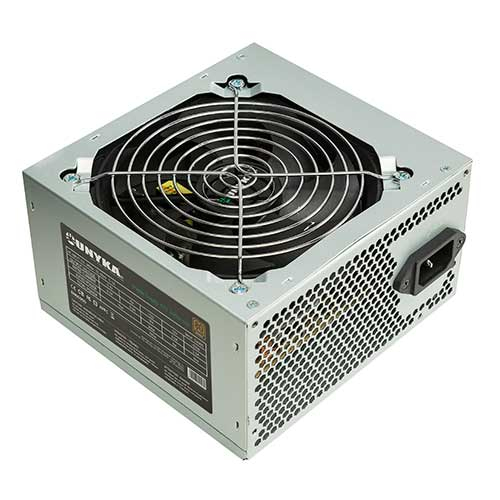

UNYKAch 52005 power supply unit
300 W 20+4 pin ATX ATX Grey
Model 52005EAN 6940533541080
39 specifications
- ColourGrey
- Total power300 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width140 mm
Overview
- Colour
- Grey
- Total power
- 300 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- 52005
- Part number
- 52005
- EAN / UPC
- 6940533541080
- Also known as
- UNYKAch 52005 power supply unit 300 W 20+4 pin ATX ATX Grey
Specifications
39 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 75 W |
| Combined power (+12V) | 216 W |
| Combined power (+5V) | 75 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 10 W |
| Max output current (+3.3V) | 9 A |
| Max output current (+12V) | 18 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6-pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | ErP 617/2013, CE, EN60950, TÜV |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 85 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
