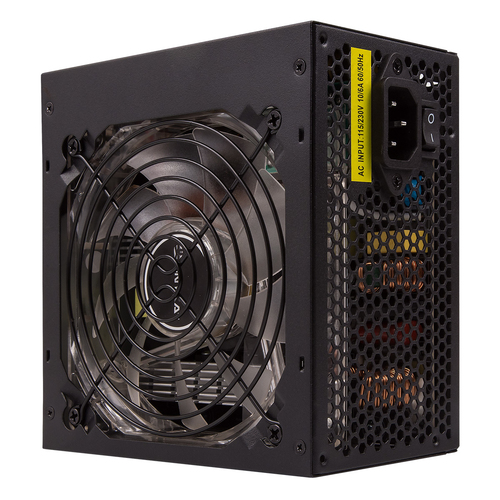

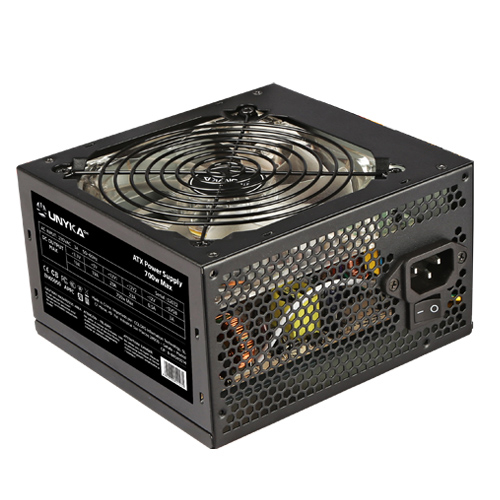

UNYKAch 51980 power supply unit
550 W 20+4 pin ATX ATX Black
Model 51980EAN 6940533540786
38 specifications
- ColourBlack
- Total power550 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)10 - 50 °C
- Width140 mm
Overview
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 10 - 50 °C
- Width
- 140 mm
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- 51980
- Part number
- 51980
- EAN / UPC
- 6940533540786
- Also known as
- UNYKAch 51980 power supply unit 550 W 20+4 pin ATX ATX Black
Specifications
38 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 230 V |
| Power Factor Correction (PFC) type | Passive |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V1) | 24 A |
| Max output current (+5V) | 32 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2 A |
| Efficiency | 75% |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 30 cm |
| Number of SATA power connectors | 2 |
| SATA power cable length | 330,480 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 330,480 mm |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power cable length | 32 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 32 cm |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive cable length | 65 cm |
| Floppy disk drive connector | Yes |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 50 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | EN60950, CE, TÜV |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 85 mm |
