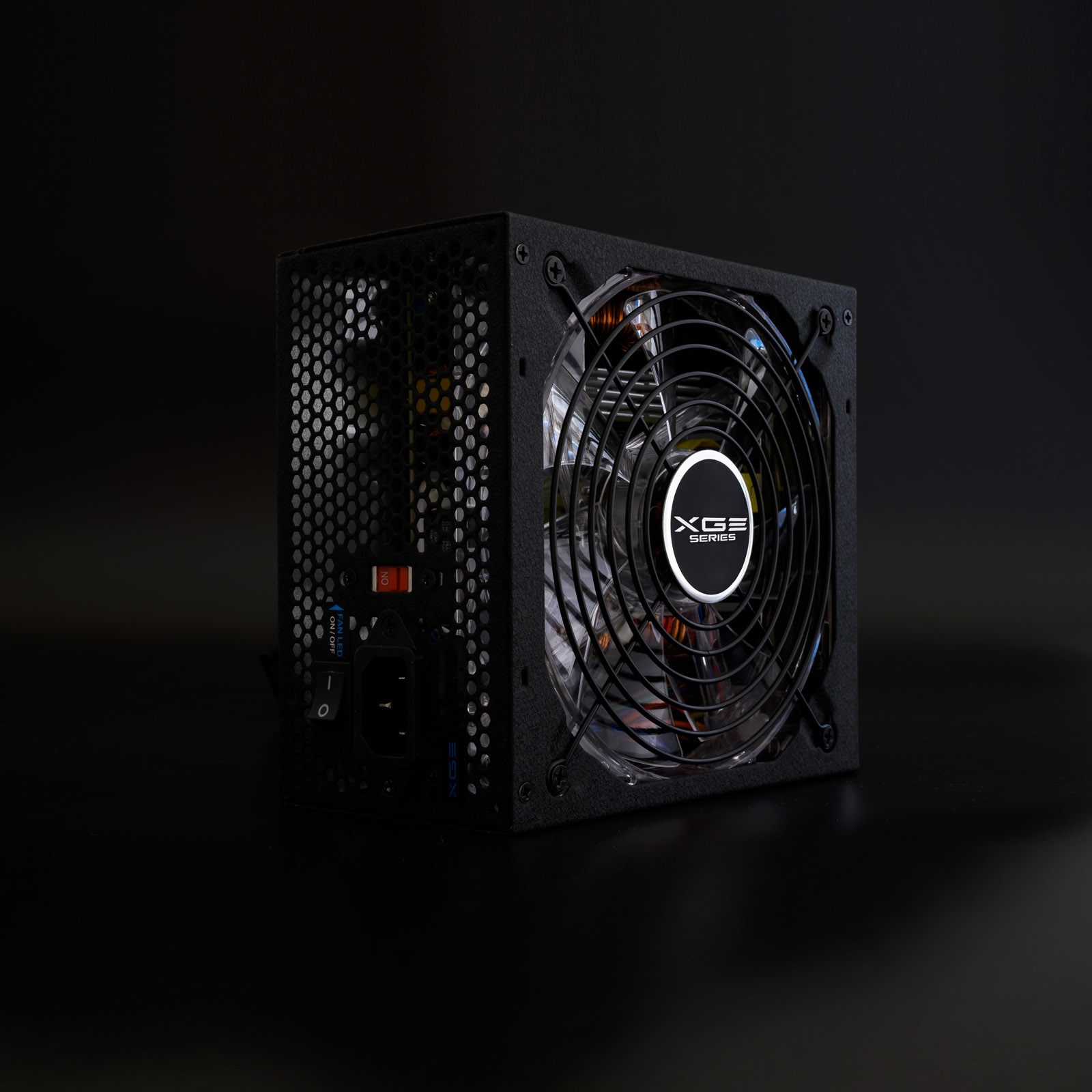

TooQ TQXGEII-800SAP power supply unit

TooQ TQXGEII-800SAP power supply unit

800 W 20+4 pin ATX ATX Black

Model TQXGEII-800SAPEAN 8433281007604

58 specifications
  • Noise17 dB
  • ColourBlack
  • Total power800 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
  • Width150 mm
See all specifications

Overview

Noise
17 dB
Colour
Black
Total power
800 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Width
150 mm
Brand
TooQ
Model
TQXGEII-800SAP
Part number
TQXGEII-800SAP
EAN / UPC
8433281007604
Also known as
TooQ TQXGEII-800SAP power supply unit 800 W 20+4 pin ATX ATX Black

Specifications

58 specifications in 10 groups

Power

Total power800 W
AC input voltage110 - 230 V
AC input frequency50 - 60 Hz
Power Factor Correction (PFC) typeActive
Max output current (+3.3V)22 A
Max output current (+12V1)30 A
Max output current (+12V2)30 A
Max output current (+5V)22 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)2 A
Efficiency82%
Power protection featuresOver current, Over voltage, Overload, Short circuit, Under voltage, Overheating

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
SATA power cable length450,600,750 mm
Peripheral (Molex) power connectors (4-pin)3
Peripheral (Molex) power cable length450,600,750 mm
EPS power connector (8-pin)Yes
PCI Express power connectors (6+2 pin)2
PCI Express power cable length65 cm
ATX power connector (20+4 pin)Yes
Floppy disk drive cable length85 cm
Floppy disk drive connectorYes
Floppy drive power connector1
Cabling typeNon-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Bronze
ATX version2.31
EPS version2.92
Noise level17 dB
Bearing technologyBall bearing
Mean time between failures (MTBF)80000 h

Design

Product colourBlack
Cooling typeActive
Fan diameter14 cm
Number of fans1 fan(s)
IlluminationYes
LED indicatorsYes
On/off switchYes

Packaging content

Cables includedAC

Certificates

Compliance certificatesRoHS
CertificationUL, BSMI, GOST, KCC

Weight & dimensions

Width150 mm
Depth160 mm
Height86 mm

Packaging data

ManualYes
Package width235 mm
Package depth280 mm
Package height105 mm
Package weight2.5 kg
Package typeBox

Logistics data

Products per pallet150 pc(s)
Master (outer) case gross weight12.5 kg
Products per master (outer) case5 pc(s)

Other features

EPS cable length60 cm
Illumination colourBlue
Case colourBlack
