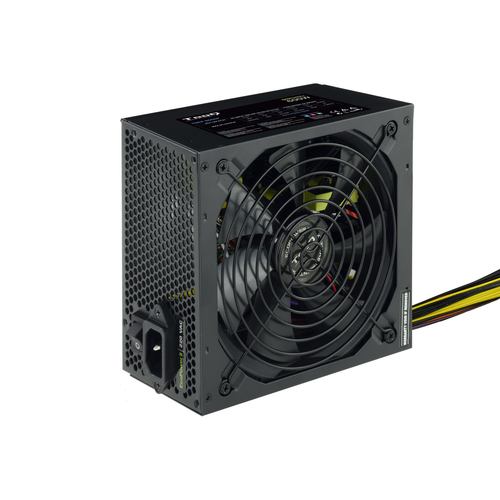

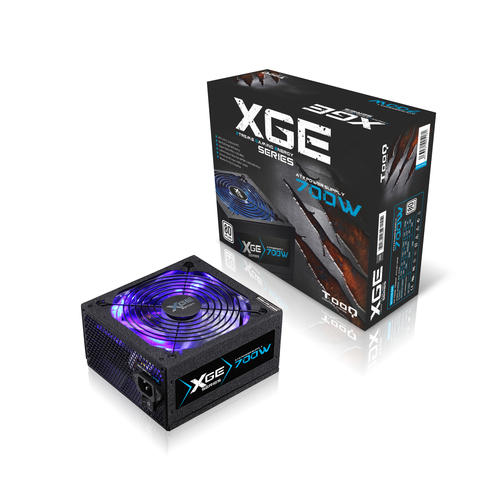

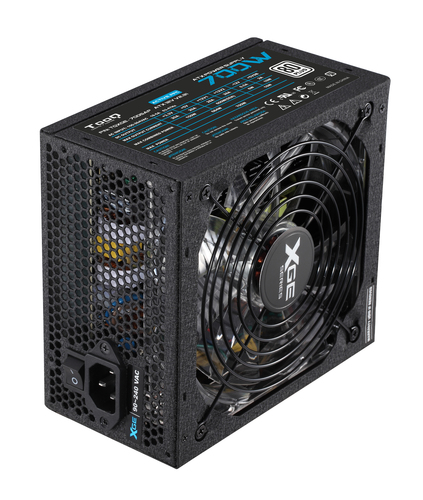

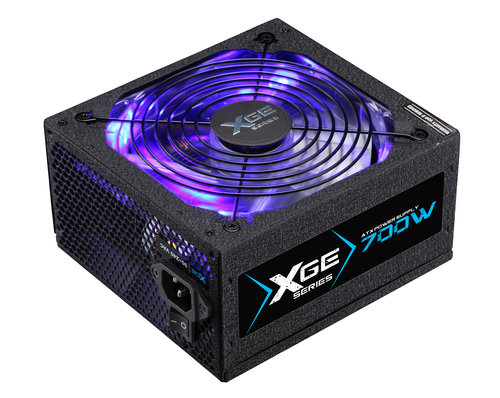

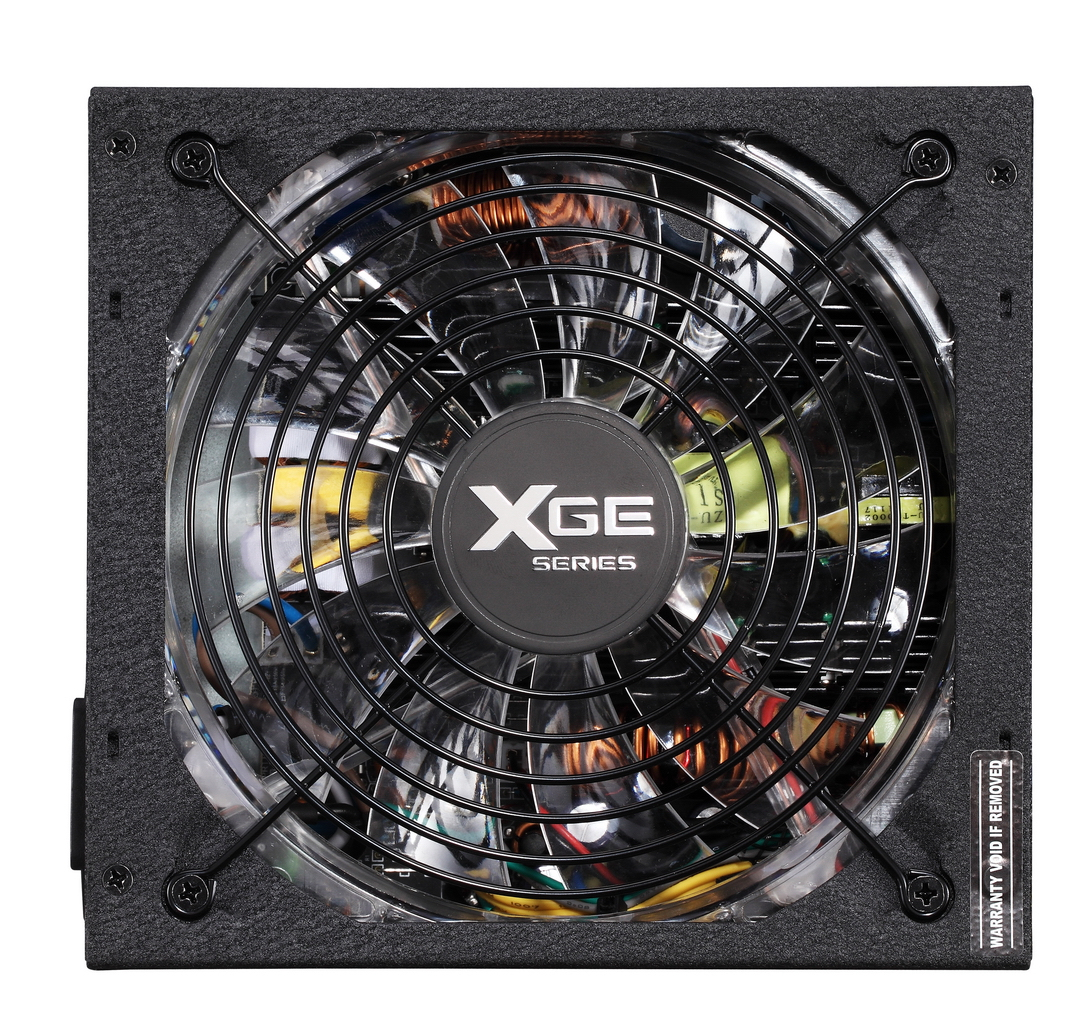

TooQ TQXGE-700SAP power supply unit
700 W 20+4 pin ATX ATX Black
Model TQXGE-700SAPEAN 8433281005181
47 specifications
- Noise17 dB
- ColourBlack
- Total power700 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width160 mm
Overview
- Noise
- 17 dB
- Colour
- Black
- Total power
- 700 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 160 mm
- Brand
- TooQ
- Category
- Power Supply Unit
- Model
- TQXGE-700SAP
- Part number
- TQXGE-700SAP
- EAN / UPC
- 8433281005181
- Also known as
- TooQ TQXGE-700SAP power supply unit 700 W 20+4 pin ATX ATX Black
Specifications
47 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 100 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 600 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 10 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 28 A |
| Max output current (+12V2) | 28 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2 A |
| Efficiency | 80% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.31 |
| EPS version | 2.92 |
| Noise level | 17 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Illumination | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE / UL / FCC / BSMI / GOST / CCC / KCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 105 mm |
| Package depth | 280 mm |
| Package height | 235 mm |
| Package weight | 2.93 kg |
Other features
| Specification | Value |
|---|---|
| Illumination colour | Blue |
