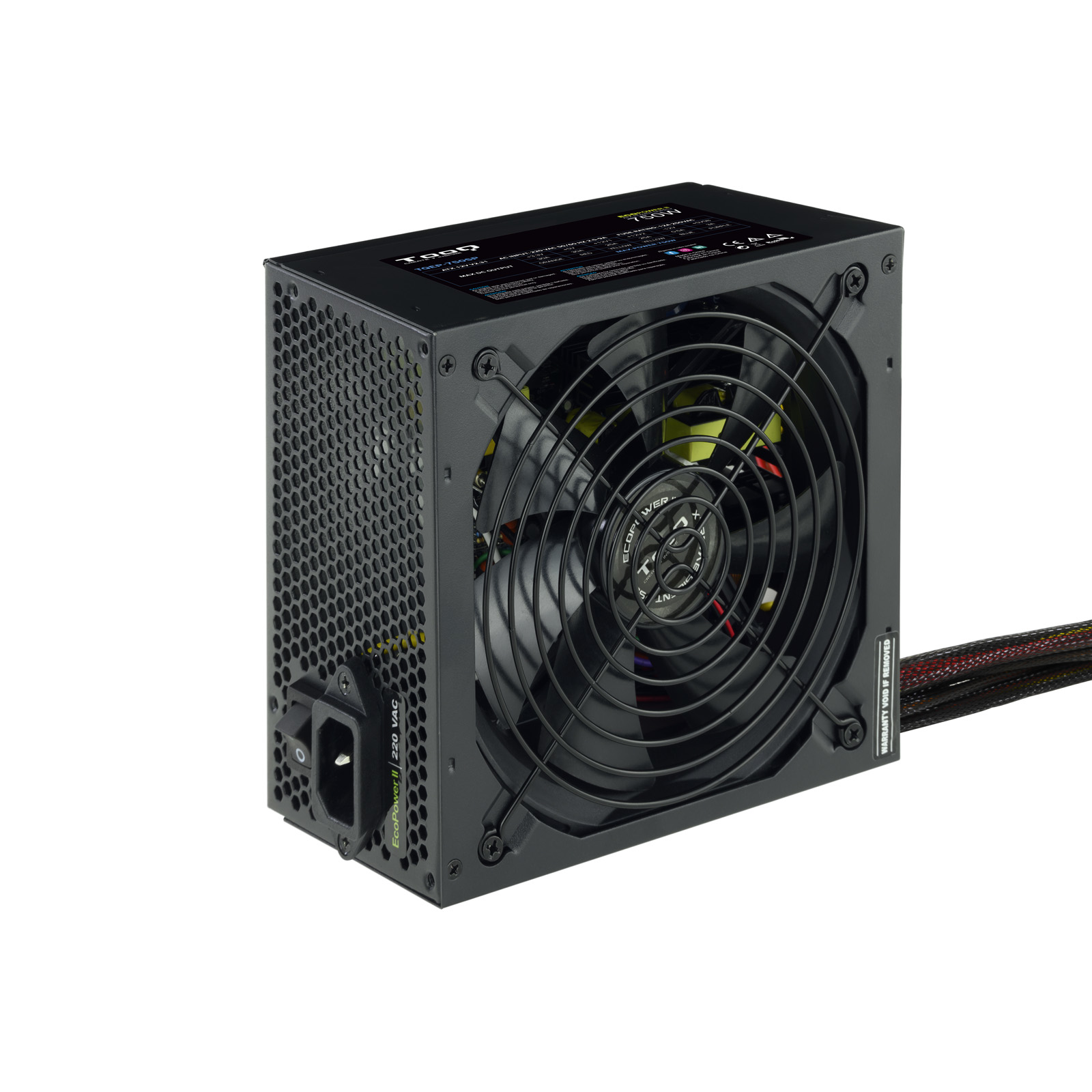

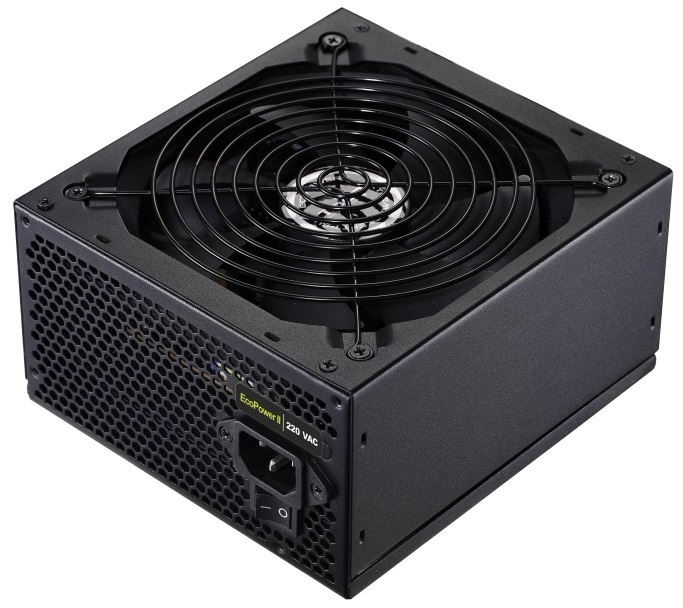

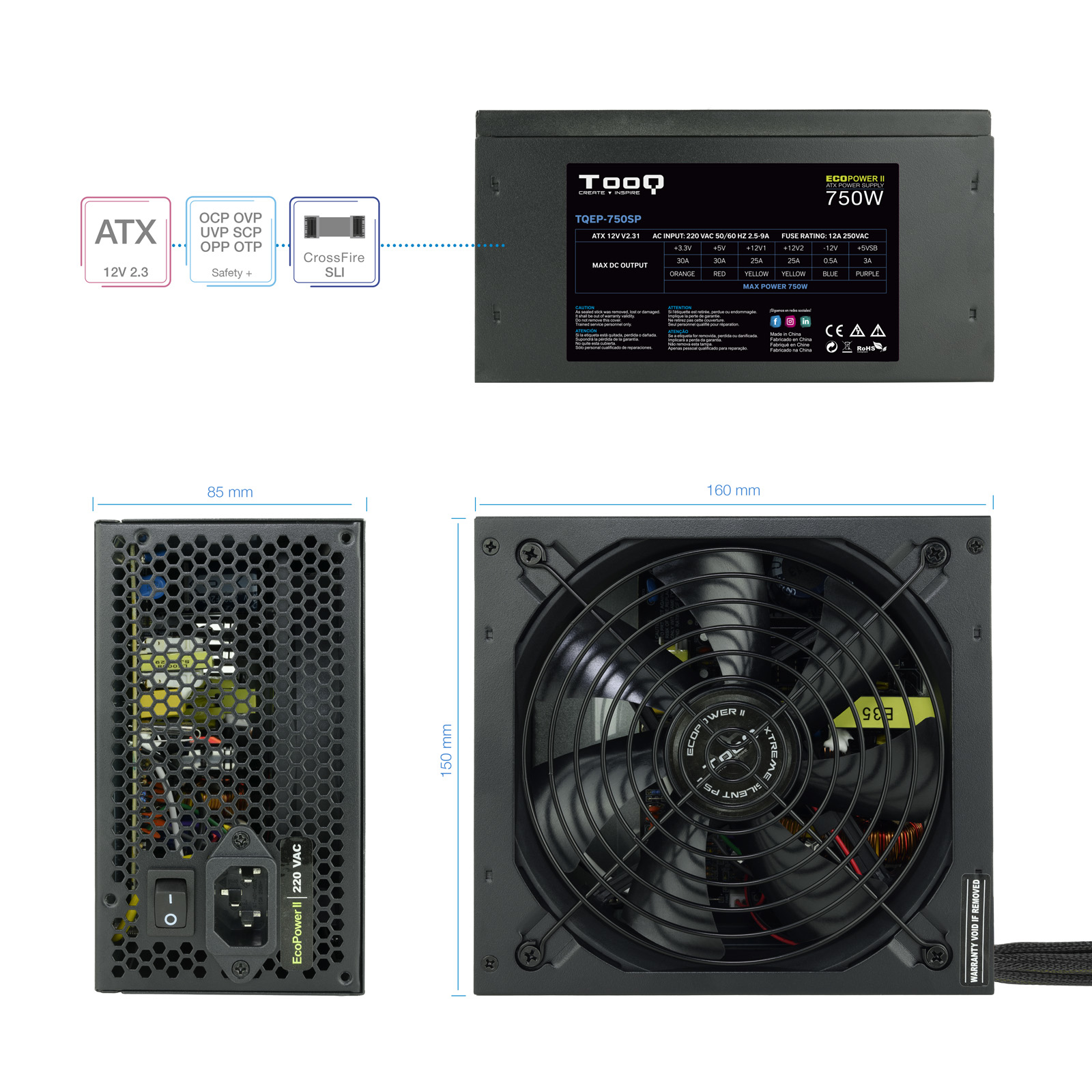

TooQ TQEP-750SP power supply unit
750 W 20+4 pin ATX ATX Black
Model TQEP-750SP
35 specifications
- Noise15 dB
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Noise
- 15 dB
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- TooQ
- Category
- Power Supply Unit
- Model
- TQEP-750SP
- Part number
- TQEP-750SP
- Also known as
- TooQ TQEP-750SP power supply unit 750 W 20+4 pin ATX ATX Black
Specifications
35 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 220 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Efficiency | 78% |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |

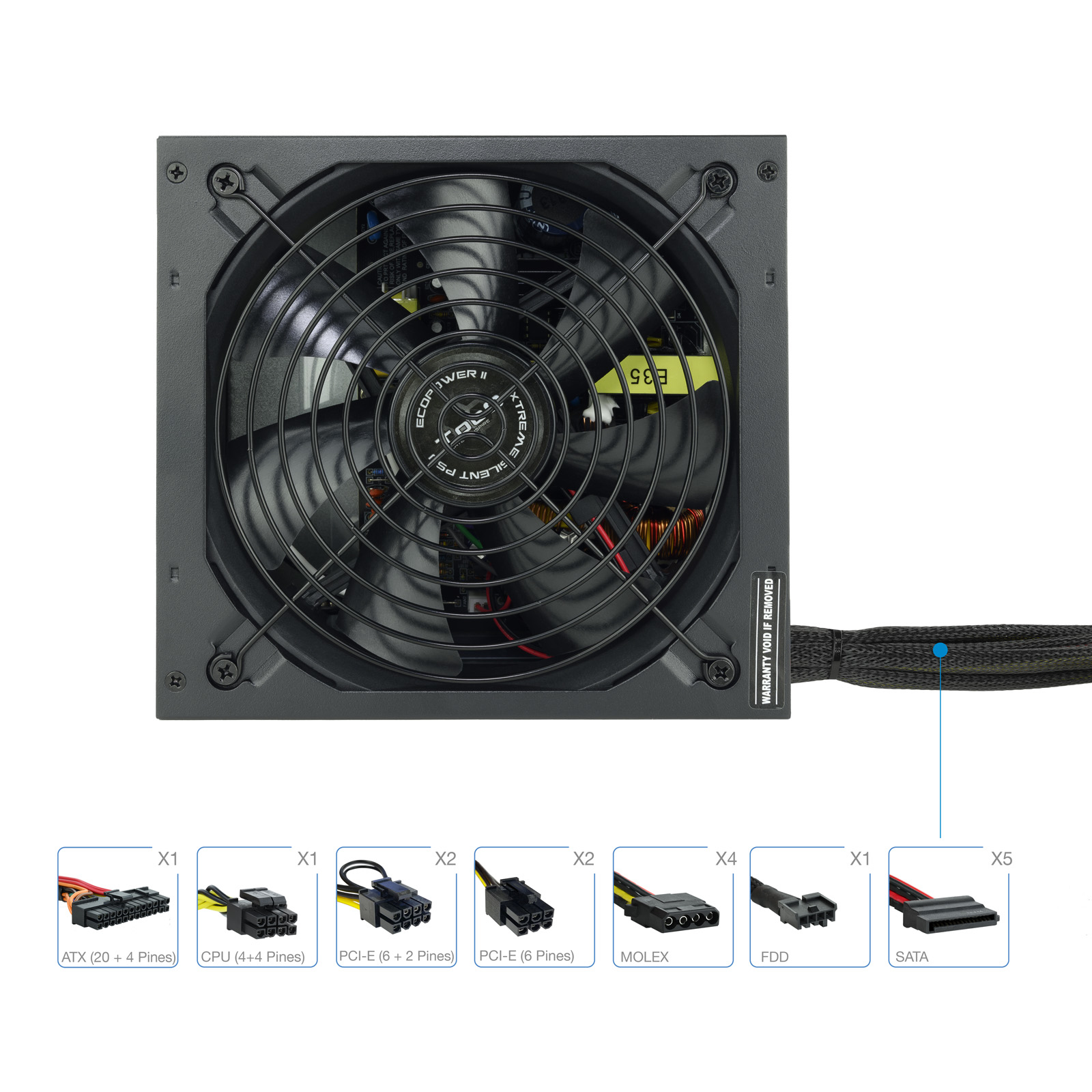

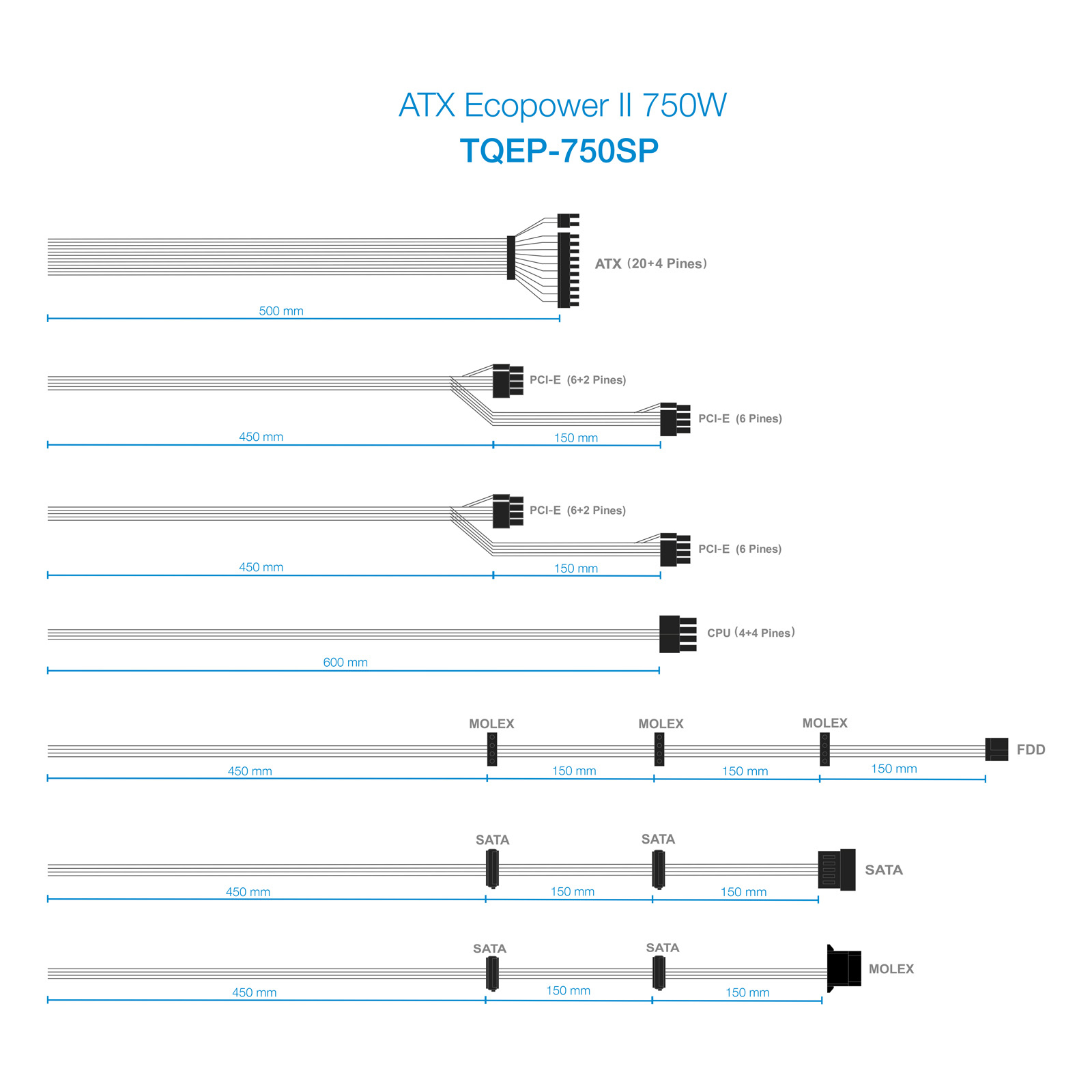

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |

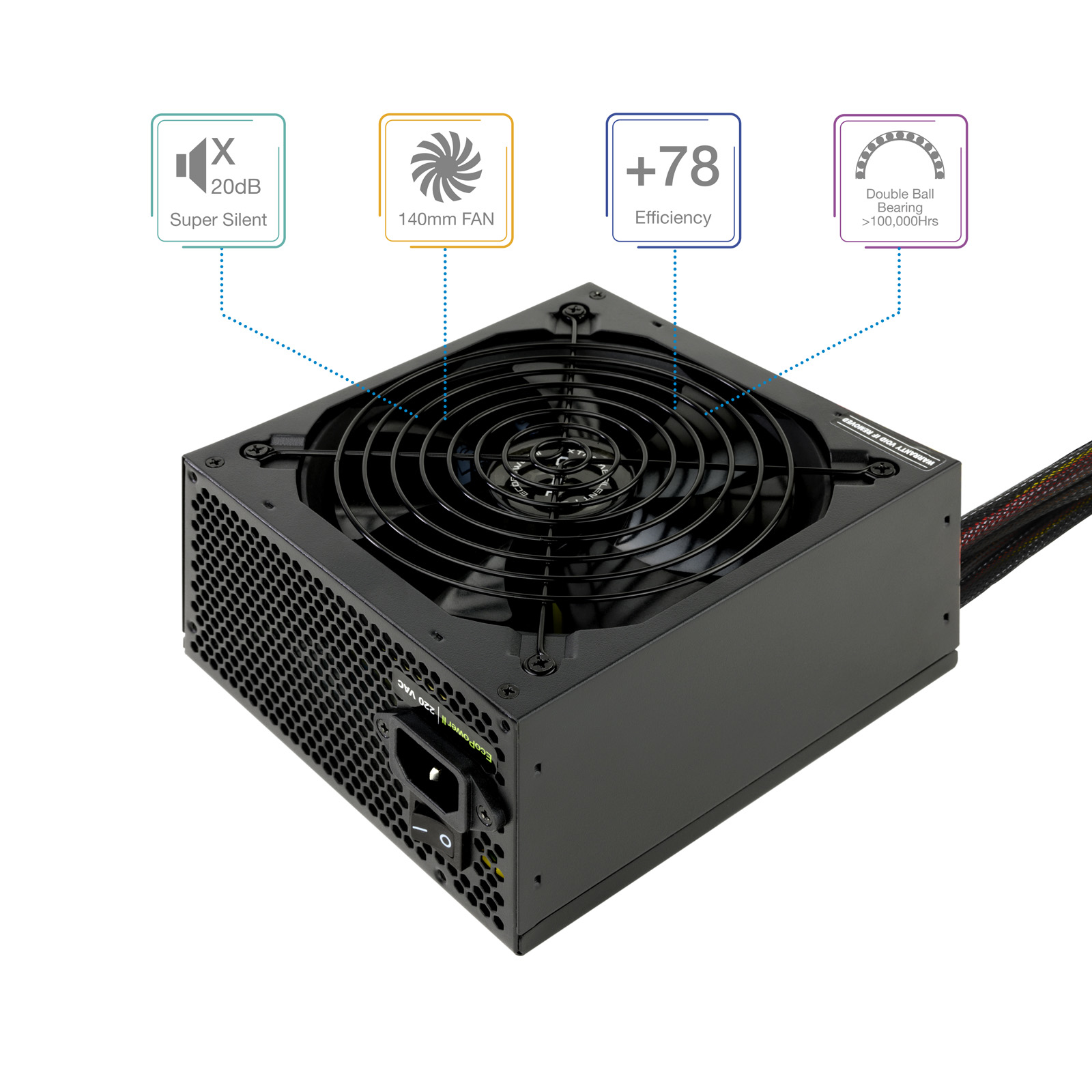

| Noise level | 15 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

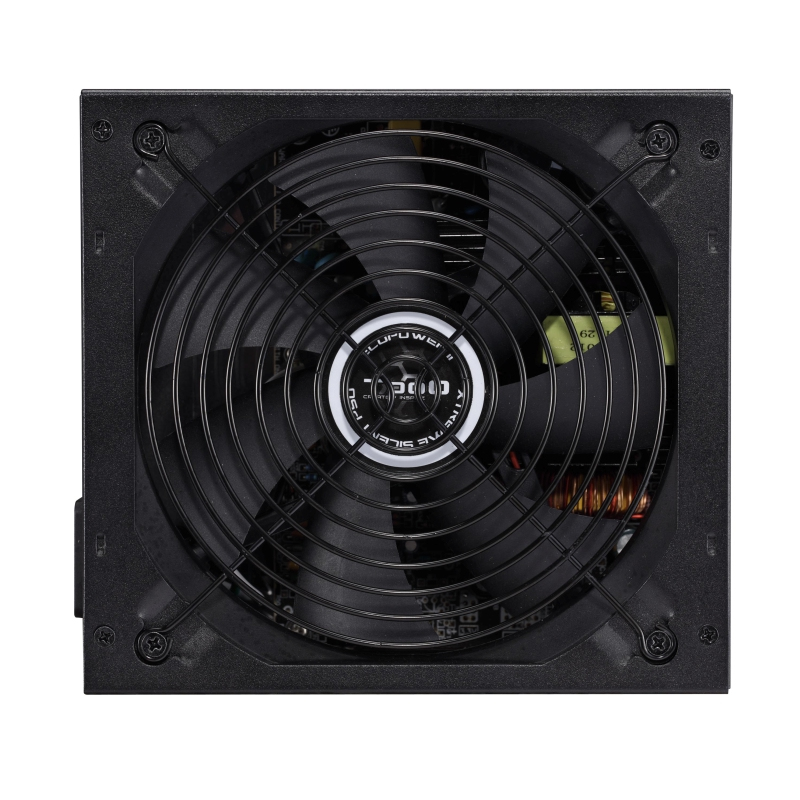

| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | No |

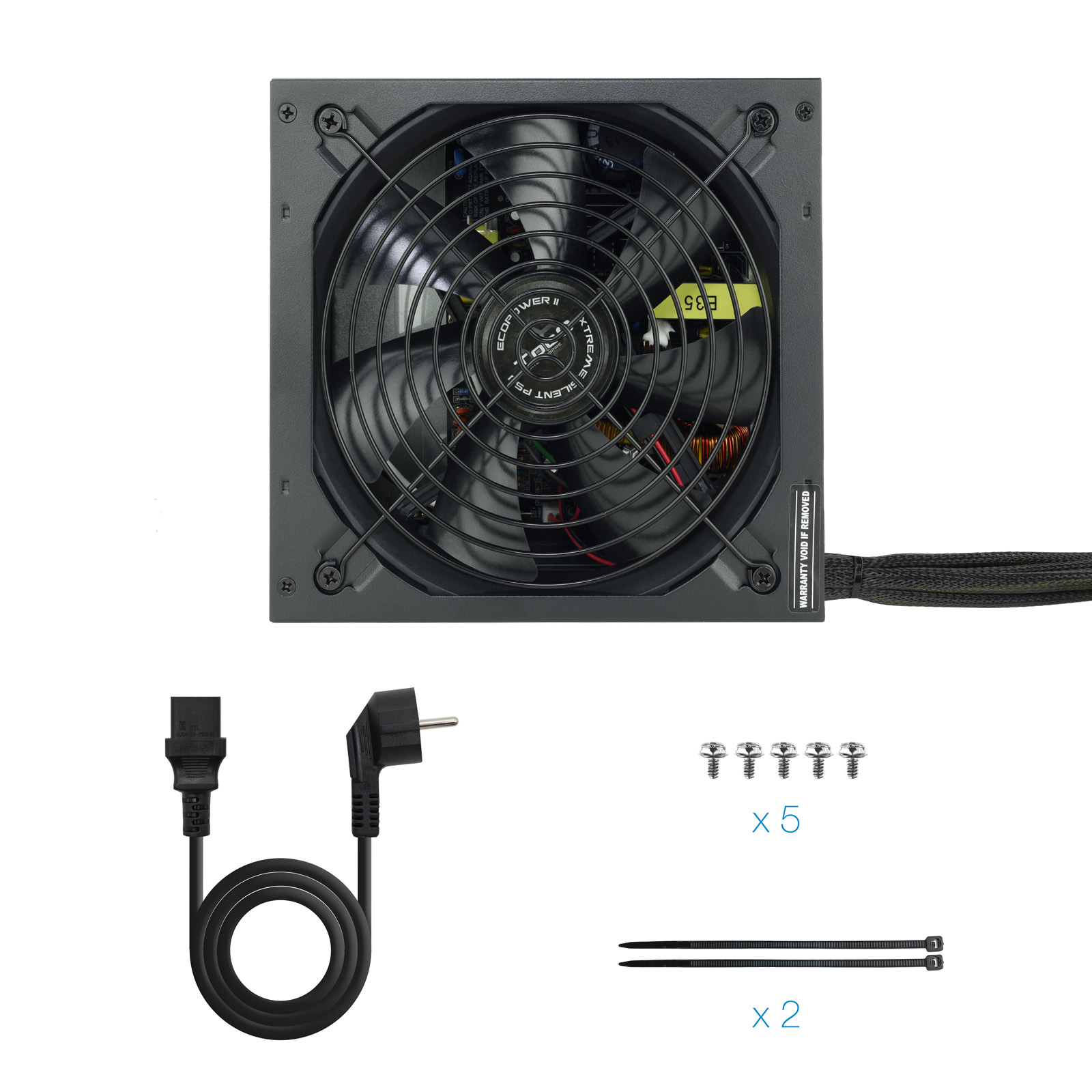

Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |

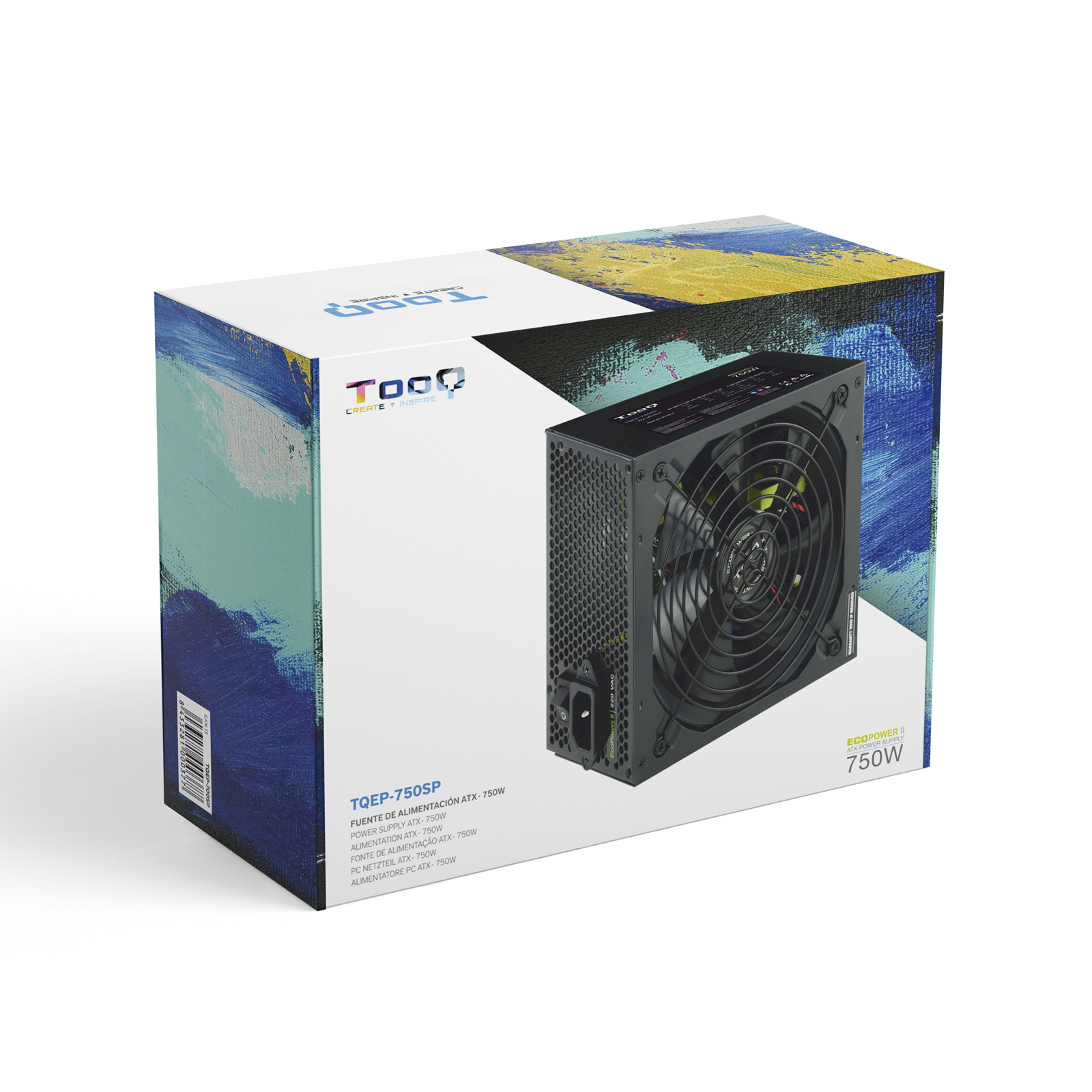

Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 100 mm |
| Package depth | 270 mm |
| Package height | 170 mm |
| Package weight | 2.25 kg |
