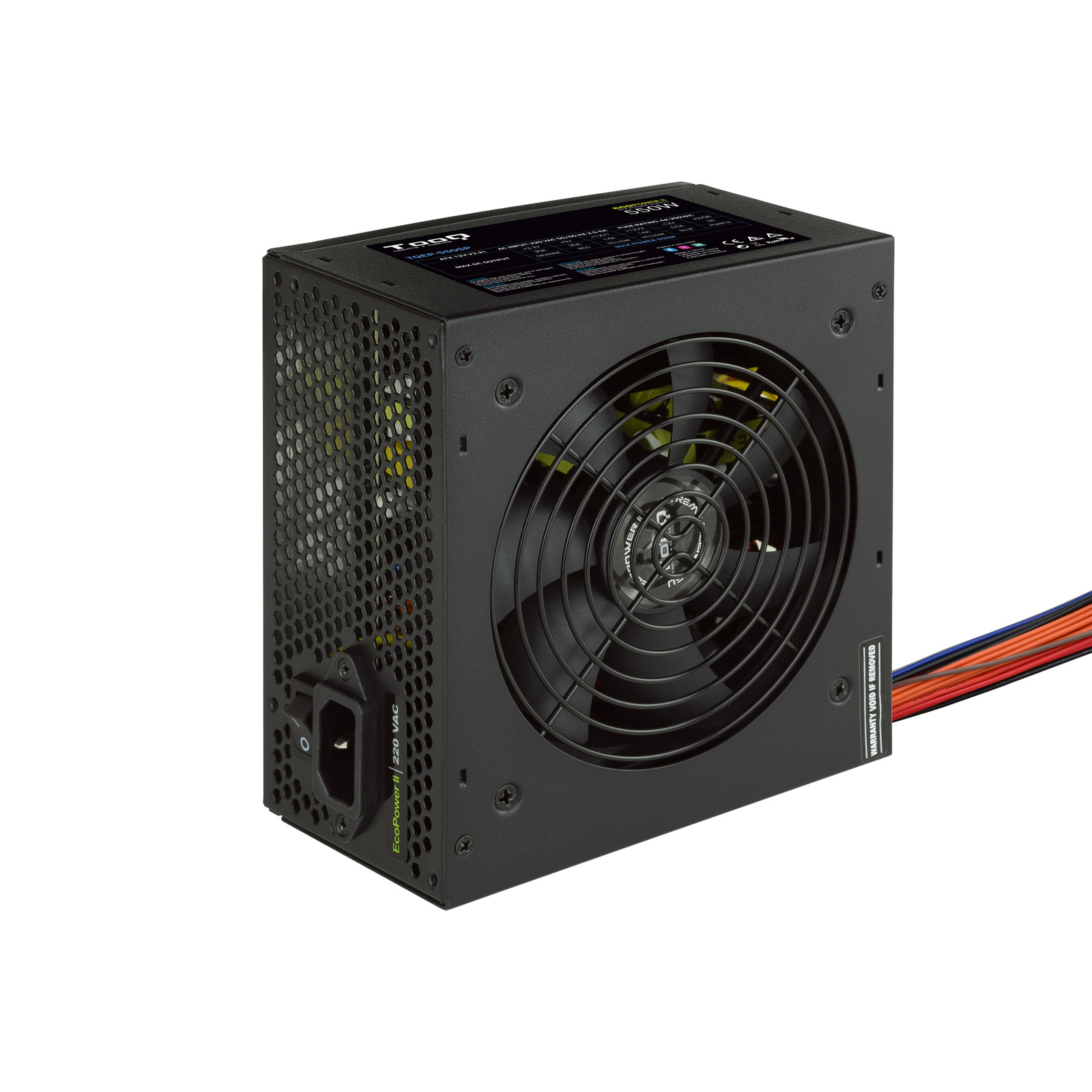

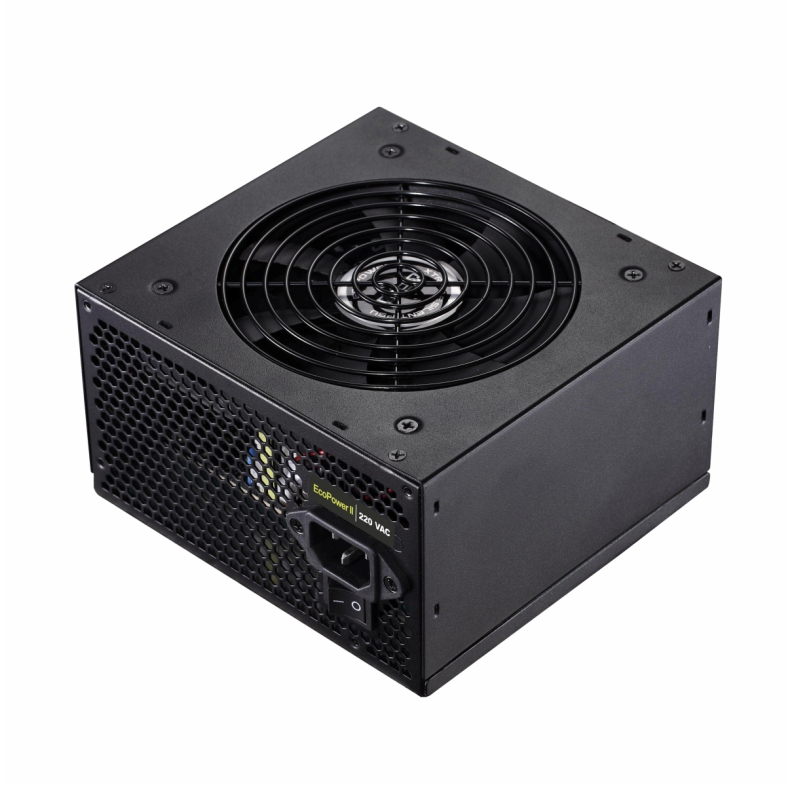

TooQ TQEP-550SP power supply unit
550 W 20+4 pin ATX ATX Black
Model TQEP-550SPEAN 8433281000353
32 specifications
- Noise15 dB
- ColourBlack
- Total power550 W
- Motherboard power connector20+4 pin ATX
- Power supply unit (PSU) form factorATX
- Operating temperature (T-T)0 - 40 °C
Overview
- Noise
- 15 dB
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 20+4 pin ATX
- Power supply unit (PSU) form factor
- ATX
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TooQ
- Category
- Power Supply Unit
- Model
- TQEP-550SP
- Part number
- TQEP-550SP
- EAN / UPC
- 8433281000353
- Also known as
- TooQ TQEP-550SP power supply unit 550 W 20+4 pin ATX ATX Black
Specifications
32 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 220 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Efficiency | 78% |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage, Overheating |
Ports & interfaces

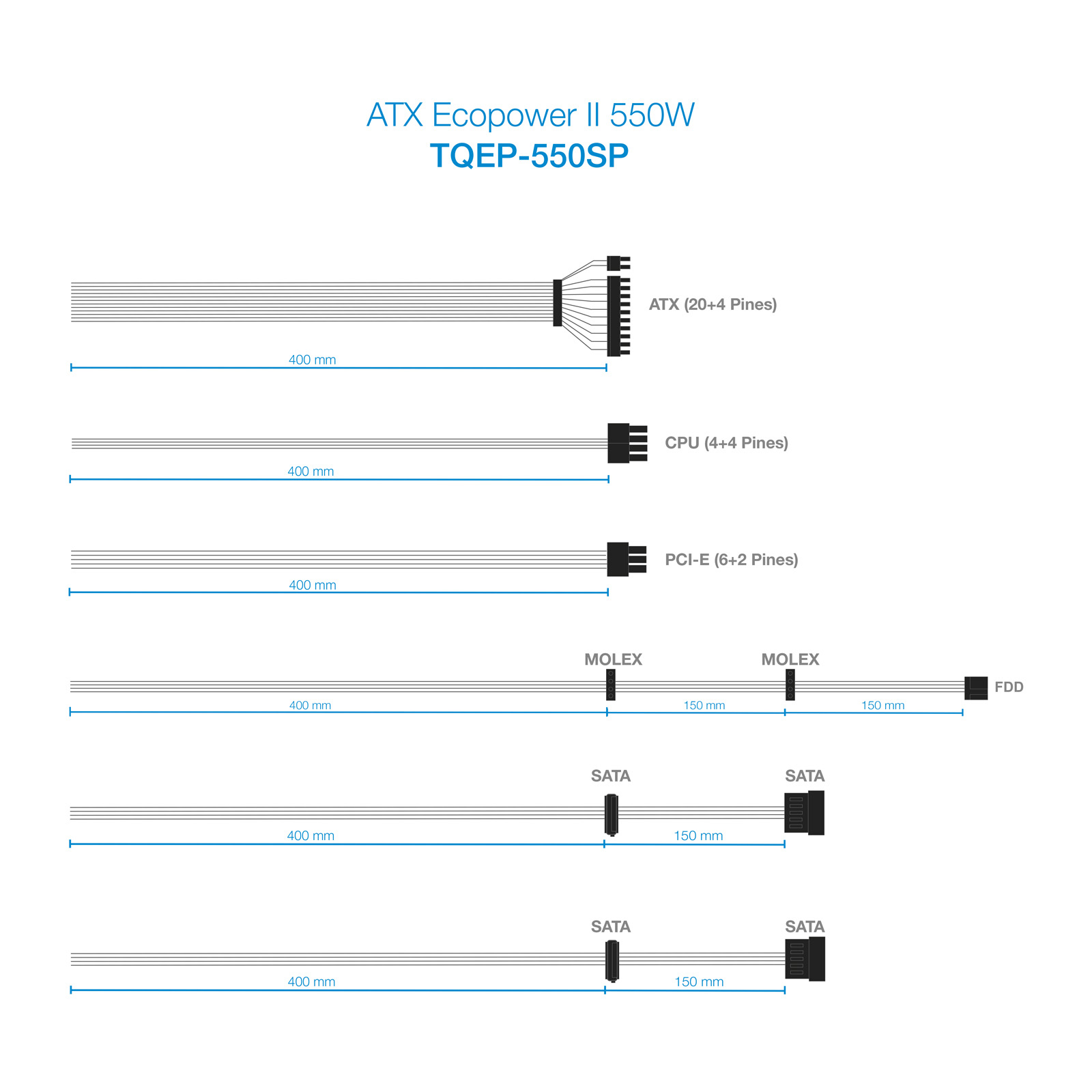

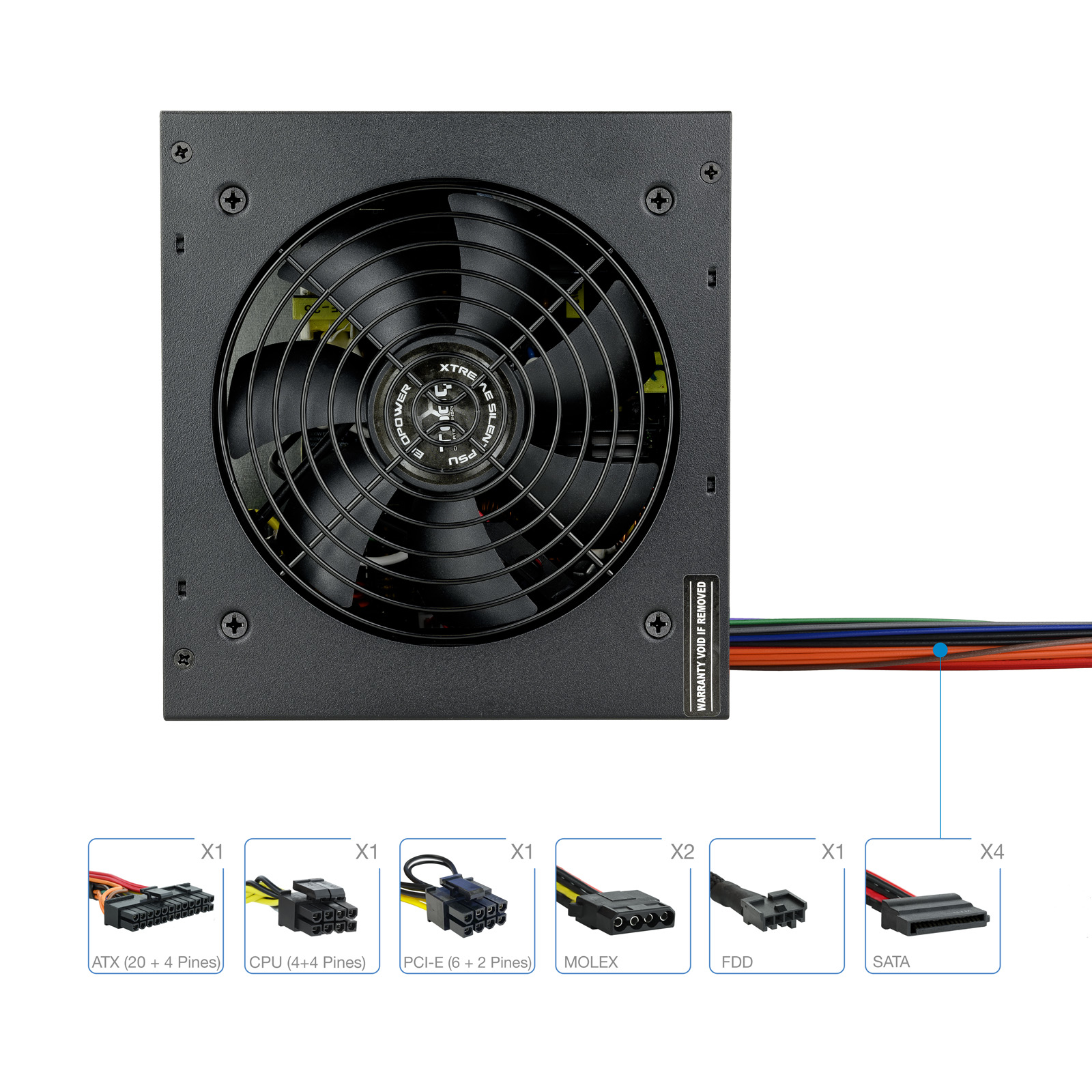

| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |

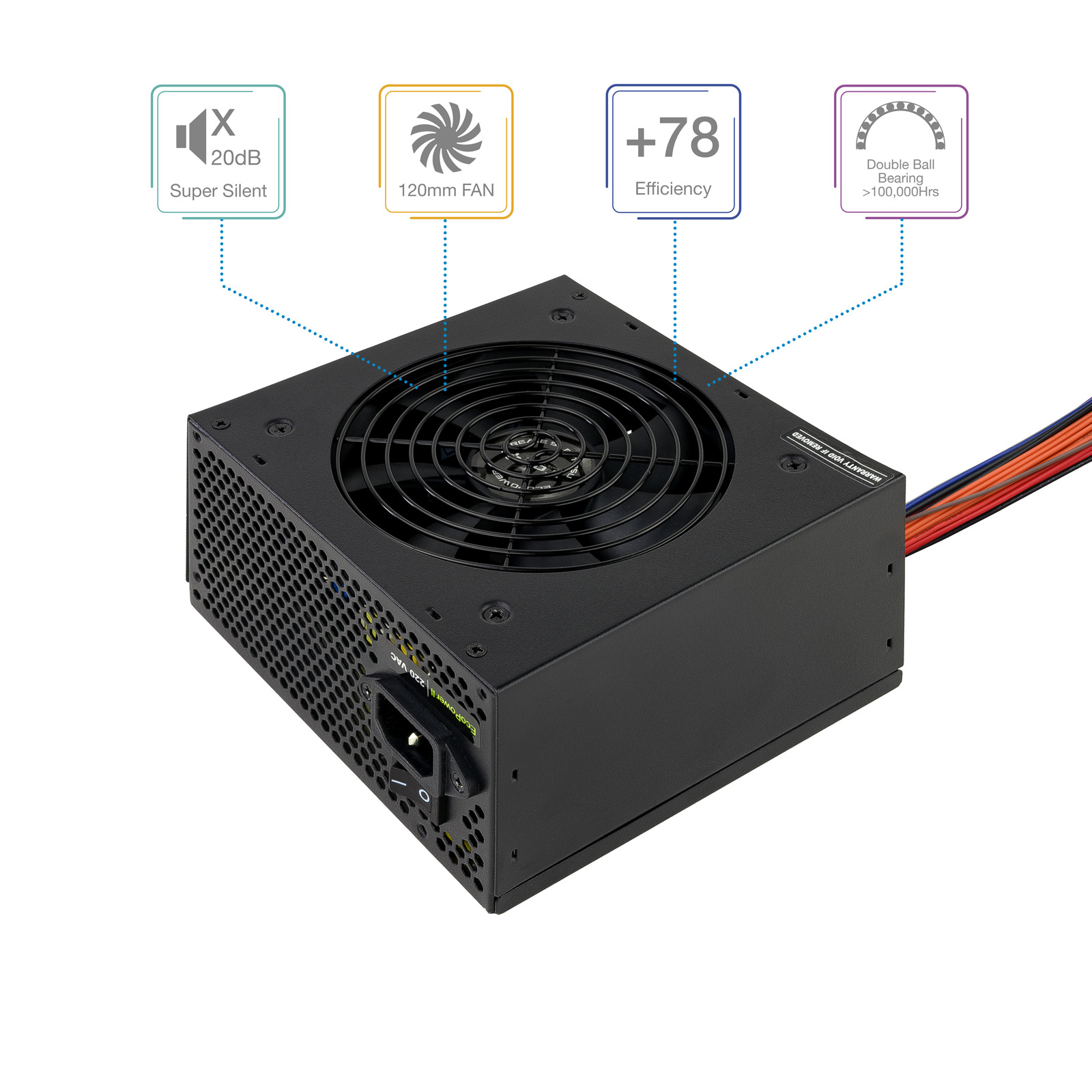

| Noise level | 15 dB |
| Mean time between failures (MTBF) | 10000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

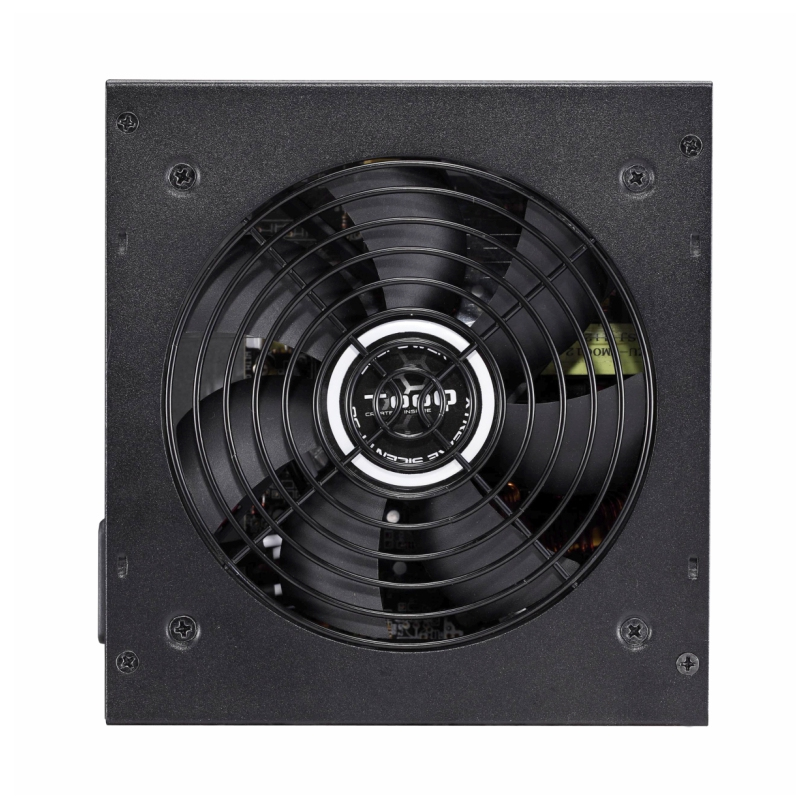

| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |

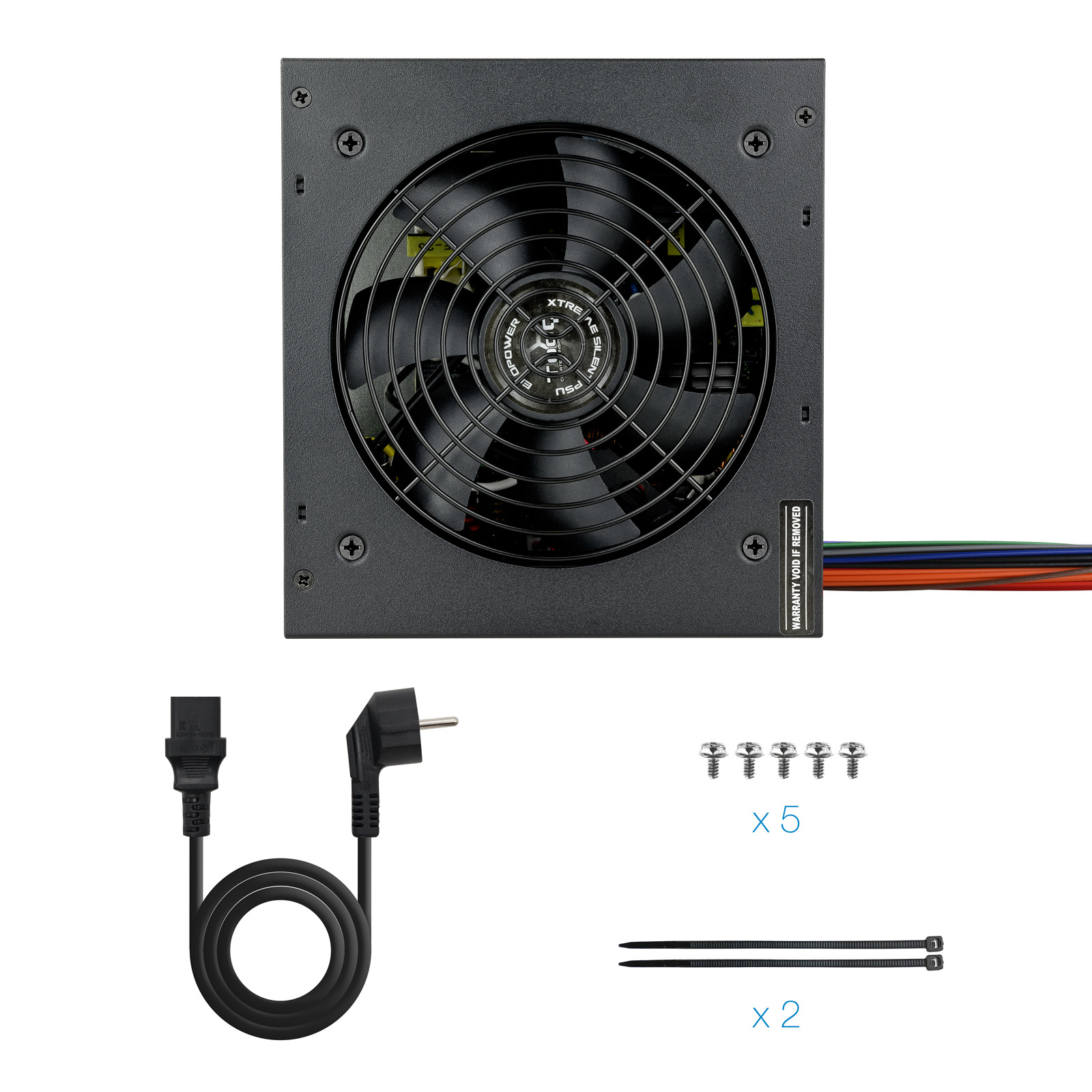

Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |

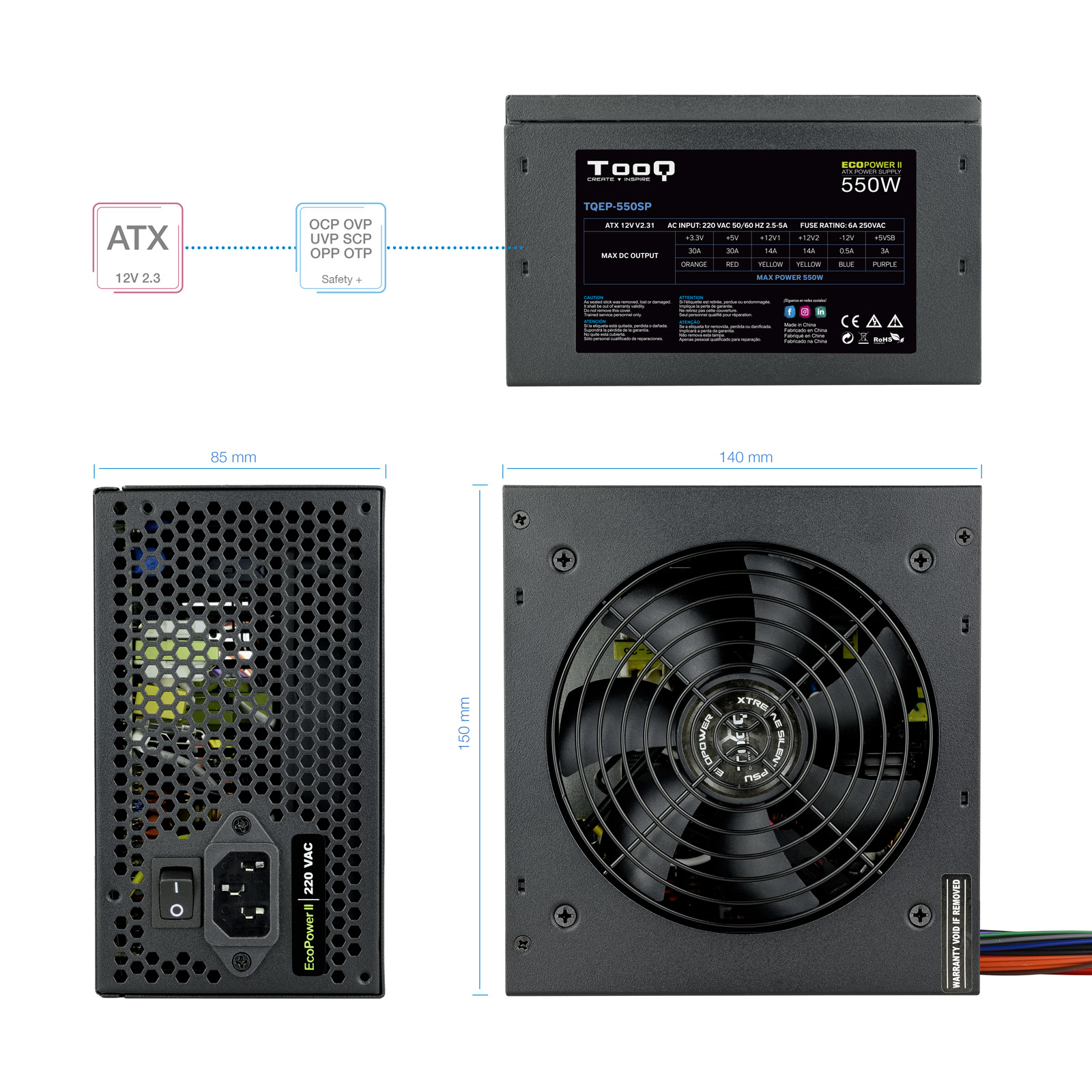

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 100 mm |
| Package depth | 240 mm |
| Package height | 160 mm |
| Package weight | 1.55 kg |
