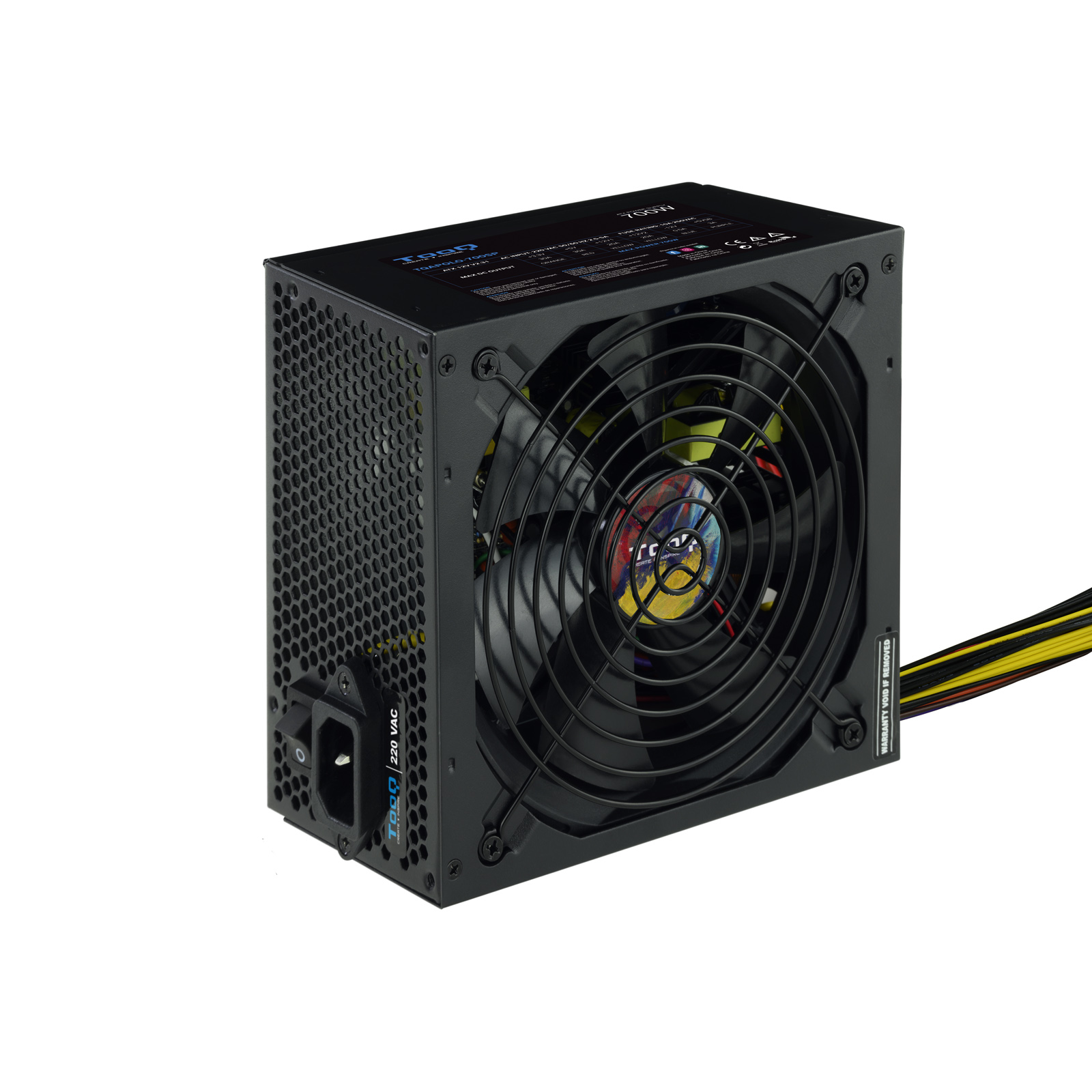

TQAPOLO-700SP power supply unit
700 W 20+4 pin ATX ATX Black
Model TQAPOLO-700SPEAN 8433281010307
55 specifications
- ColourBlack
- Total power700 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 40 °C
- Width150 mm
Overview
- Colour
- Black
- Total power
- 700 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 150 mm
- Brand
- TooQ
- Category
- Power Supply Unit
- Model
- TQAPOLO-700SP
- Part number
- TQAPOLO-700SP
- EAN / UPC
- 8433281010307
- Also known as
- TooQ TQAPOLO-700SP power supply unit 700 W 20+4 pin ATX ATX Black
Specifications
55 specifications in 10 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 220 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.5 - 5 A |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V1) | 20 A |
| Max output current (+12V2) | 20 A |
| Max output current (+5V) | 30 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |

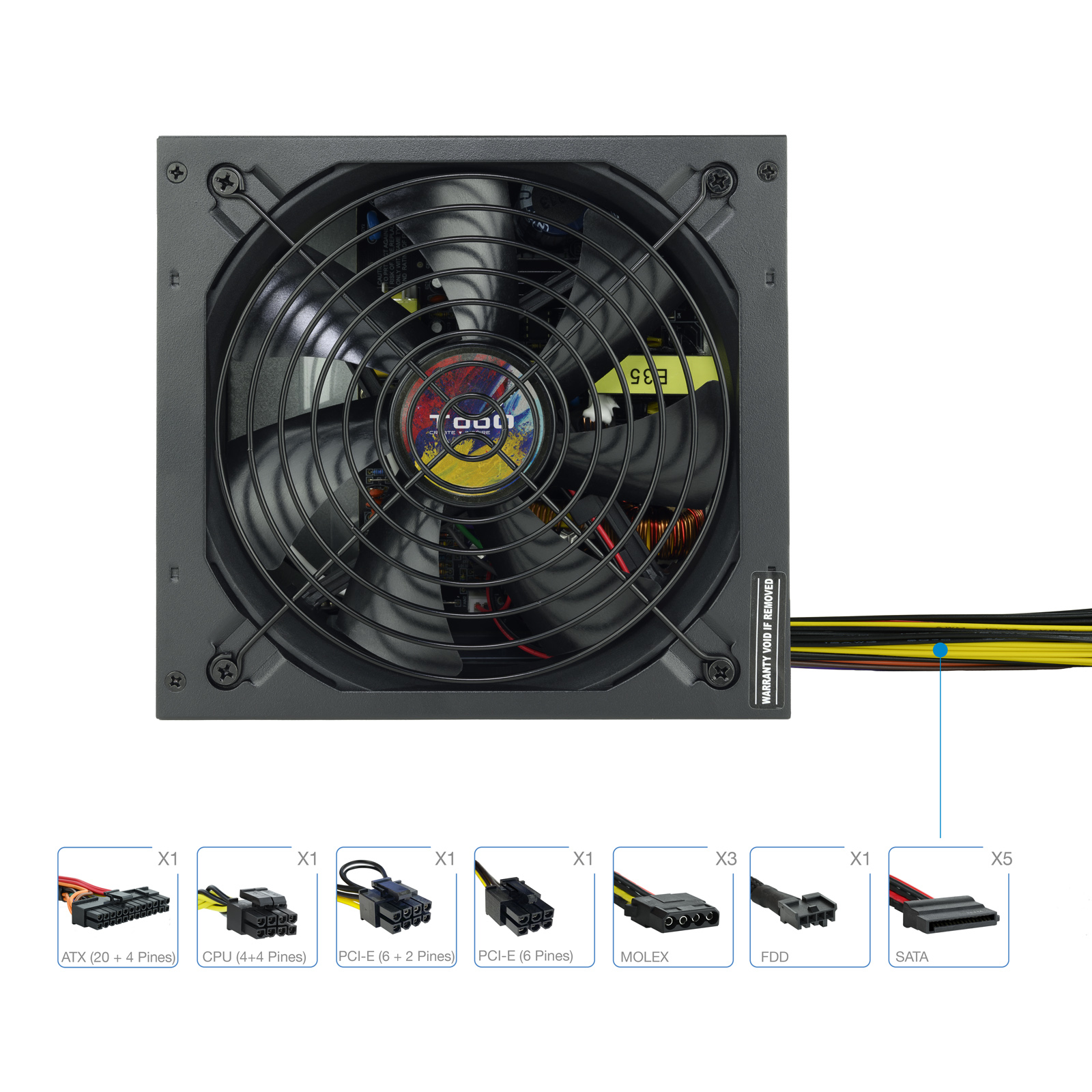

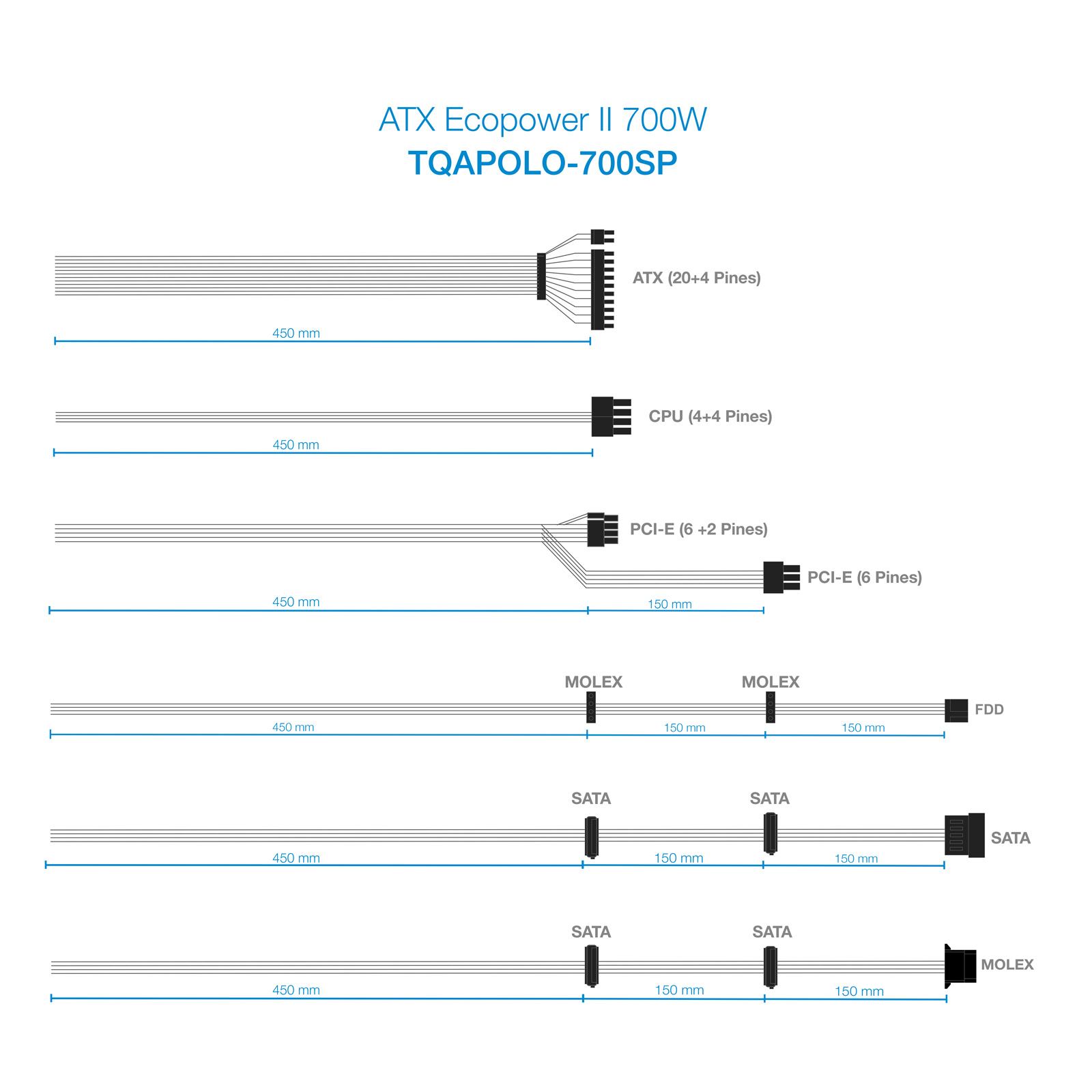

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 45 cm |
| Number of SATA power connectors | 5 |
| SATA power cable length | 700 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 750 mm |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power cable length | 60 cm |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 45 cm |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive cable length | 75 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | No |
| Supported motherboard form factors | ATX |
| ATX version | 2.3 |
| Mean time between failures (MTBF) | 10000 h |

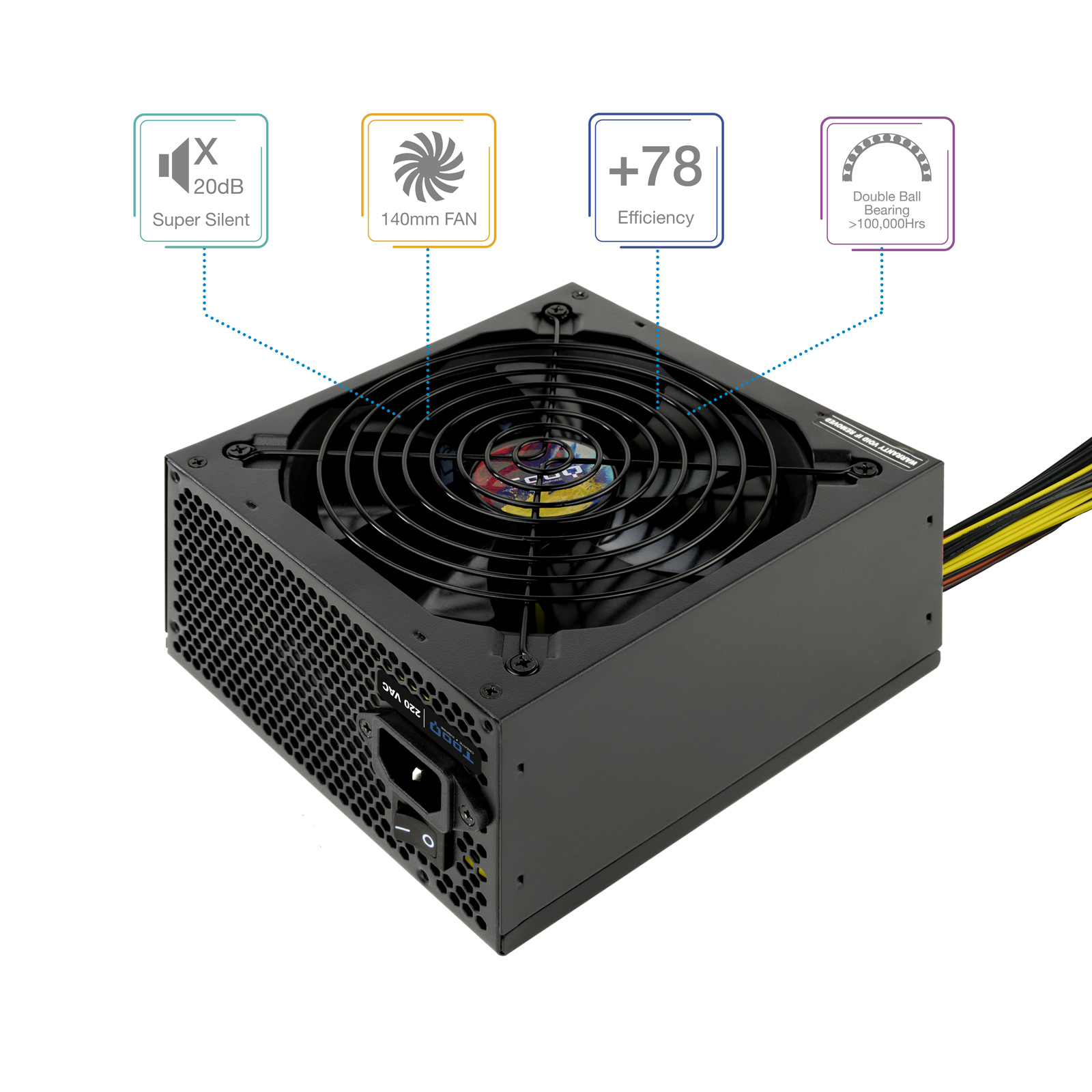

Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |

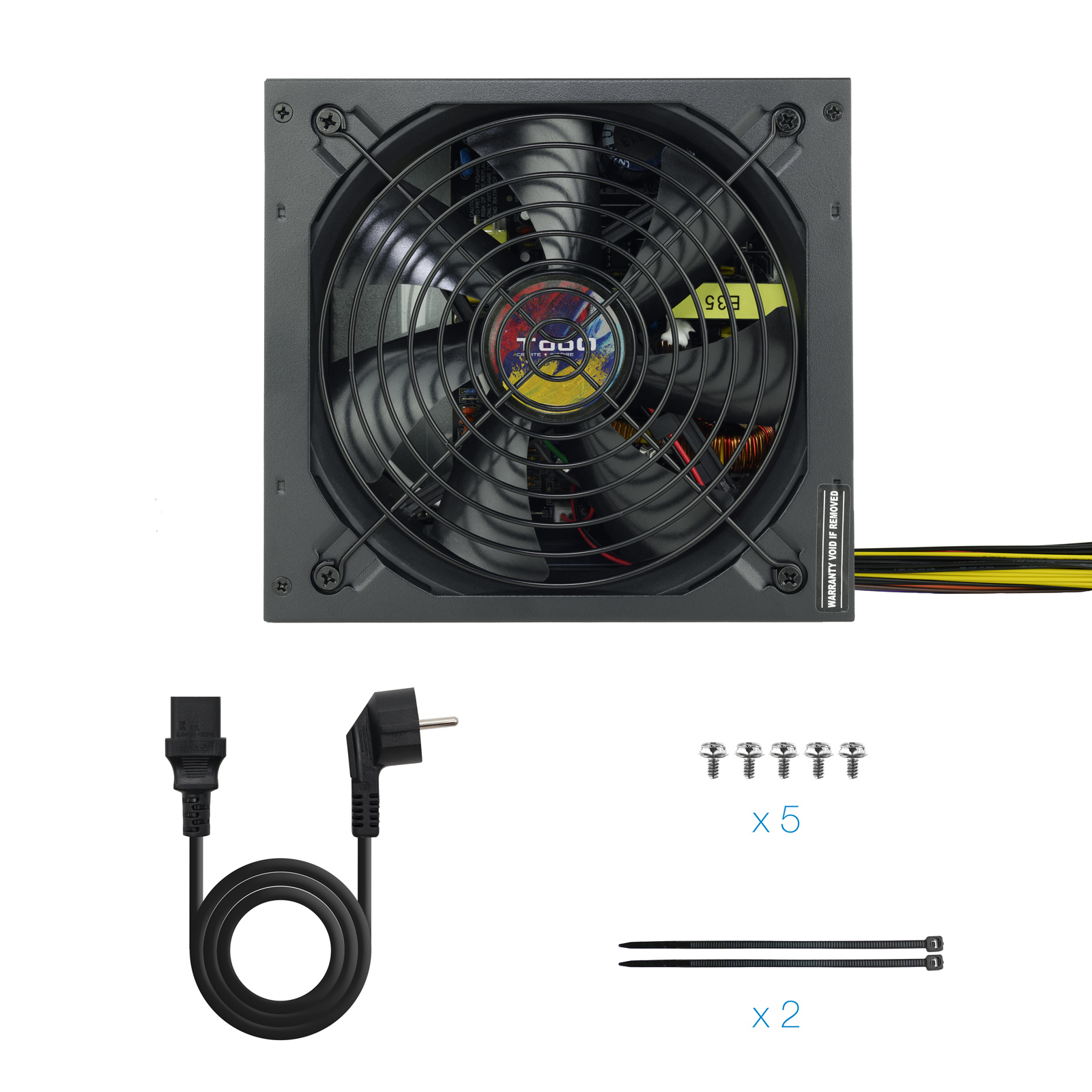

Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |

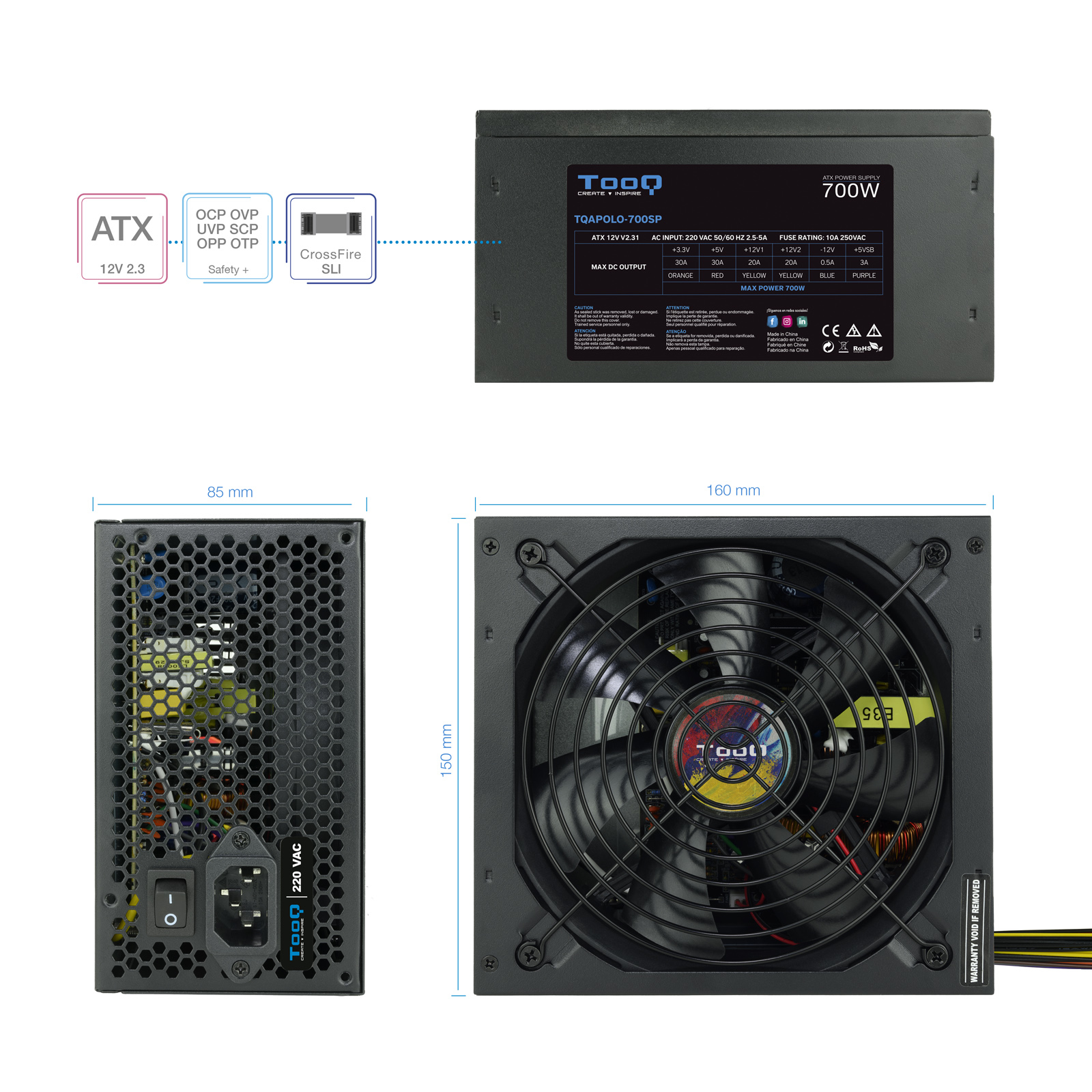

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 85 mm |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 256 mm |
| Package depth | 172 mm |
| Package height | 102 mm |
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
| Number of screws | 5 |
