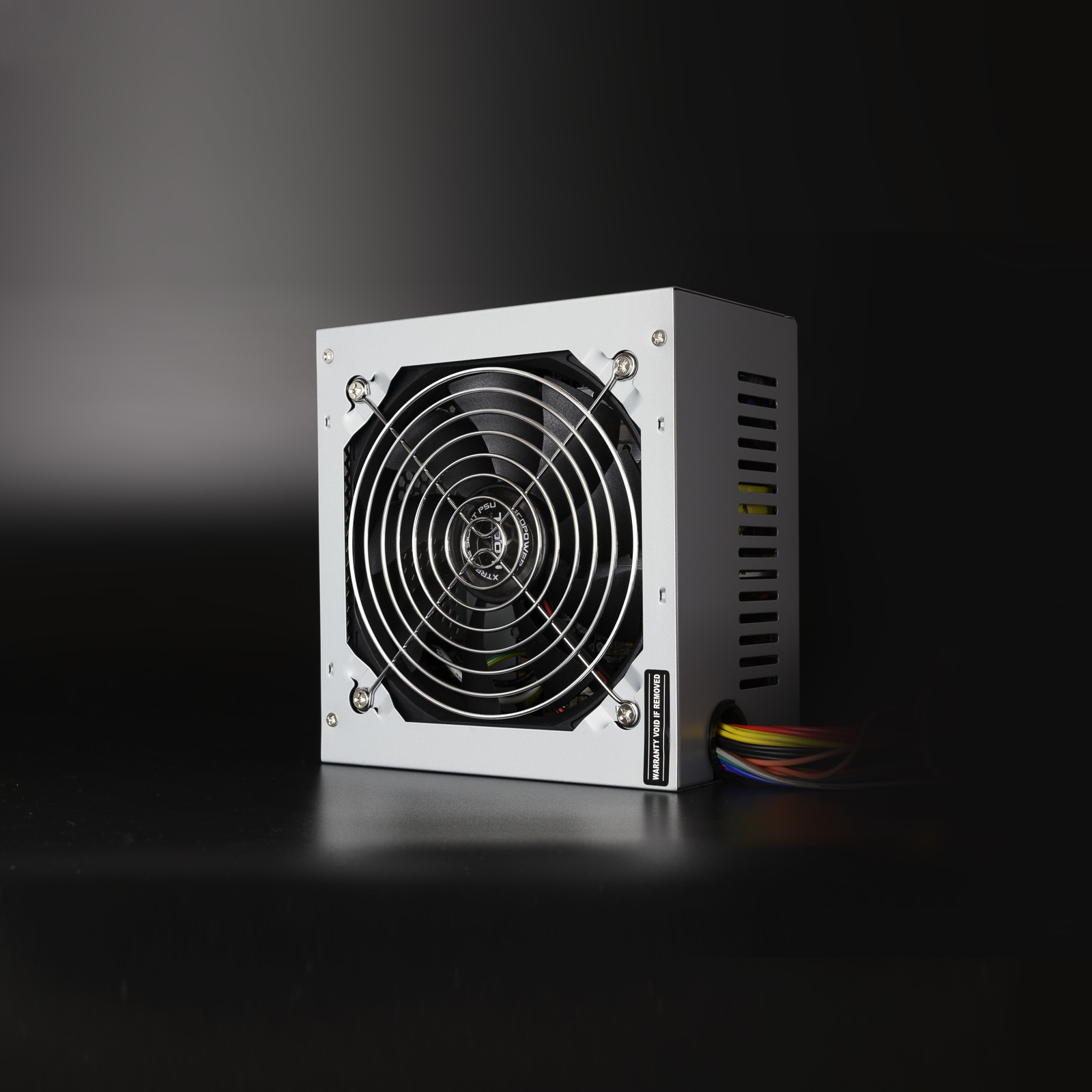

TooQ Fonte Ecopower II
Model Fonte Ecopower IIPart no. TQEP-500SSE-OEAN 8433281007192
39 specifications
- Noise15 dB
- ColourSilver
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 40 °C
Overview
- Noise
- 15 dB
- Colour
- Silver
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TooQ
- Category
- Power Supply Unit
- Model
- Fonte Ecopower II
- Part numbers
- TQEP-500SSE-O, TQEP-500S-SFX
- EAN / UPC
- 8433281007192, 8433281007376
- Also known as
- TooQ Fonte Ecopower II power supply unit 500 W 20+4 pin ATX ATX Silver
Specifications
39 specifications in 10 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input frequency | 50 - 60 Hz |
| Power Good signal delay range | 100 - 500 ms |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 35 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 500 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 500 mm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 35 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Supported motherboard form factors | ATX |
| ATX version | 1.3 |
| Noise level | 15 dB |
| Mean time between failures (MTBF) | 10000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86 mm |
| Depth | 150 mm |
| Height | 140 mm |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 100 mm |
| Package depth | 240 mm |
| Package height | 160 mm |
| Package weight | 1.33 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet | 420 pc(s) |
| Master (outer) case volume | 43943.63 cm³ |
| Products per master (outer) case | 10 pc(s) |
Other features
| Specification | Value |
|---|---|
| Package volume | 4394.36 cm³ |
