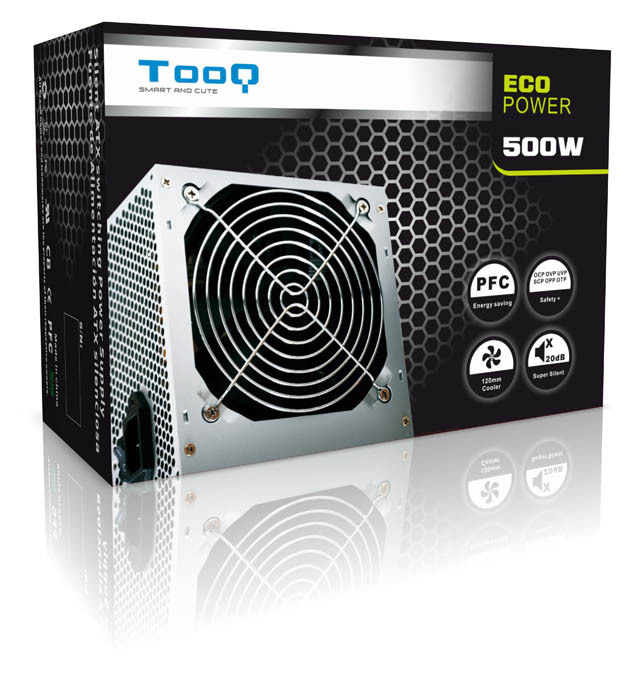

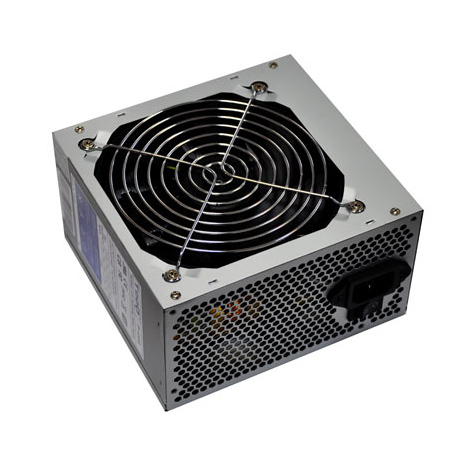

TooQ EP-500SP power supply unit
500 W 20+4 pin ATX ATX Silver
Model EP-500SP
25 specifications
- Noise20 dB
- ColourSilver
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width140 mm
Overview
- Noise
- 20 dB
- Colour
- Silver
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- TooQ
- Category
- Power Supply Unit
- Model
- EP-500SP
- Part number
- EP-500SP
- Also known as
- TooQ EP-500SP power supply unit 500 W 20+4 pin ATX ATX Silver
Specifications
25 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | +12V |
| Power Factor Correction (PFC) type | Passive |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6-pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 1.3 |
| Noise level | 20 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 1500 |
| Fan location | Top |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 85 mm |
