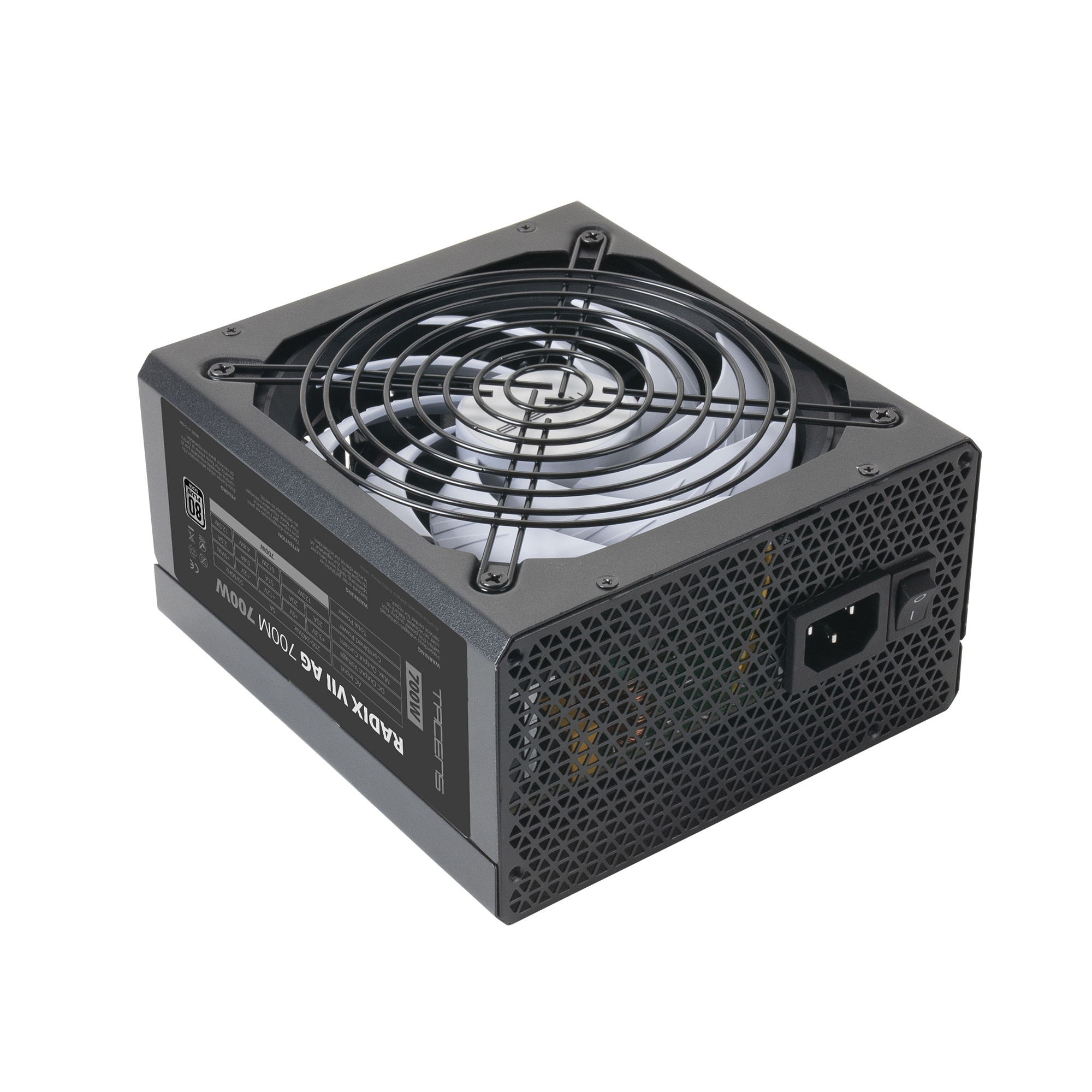

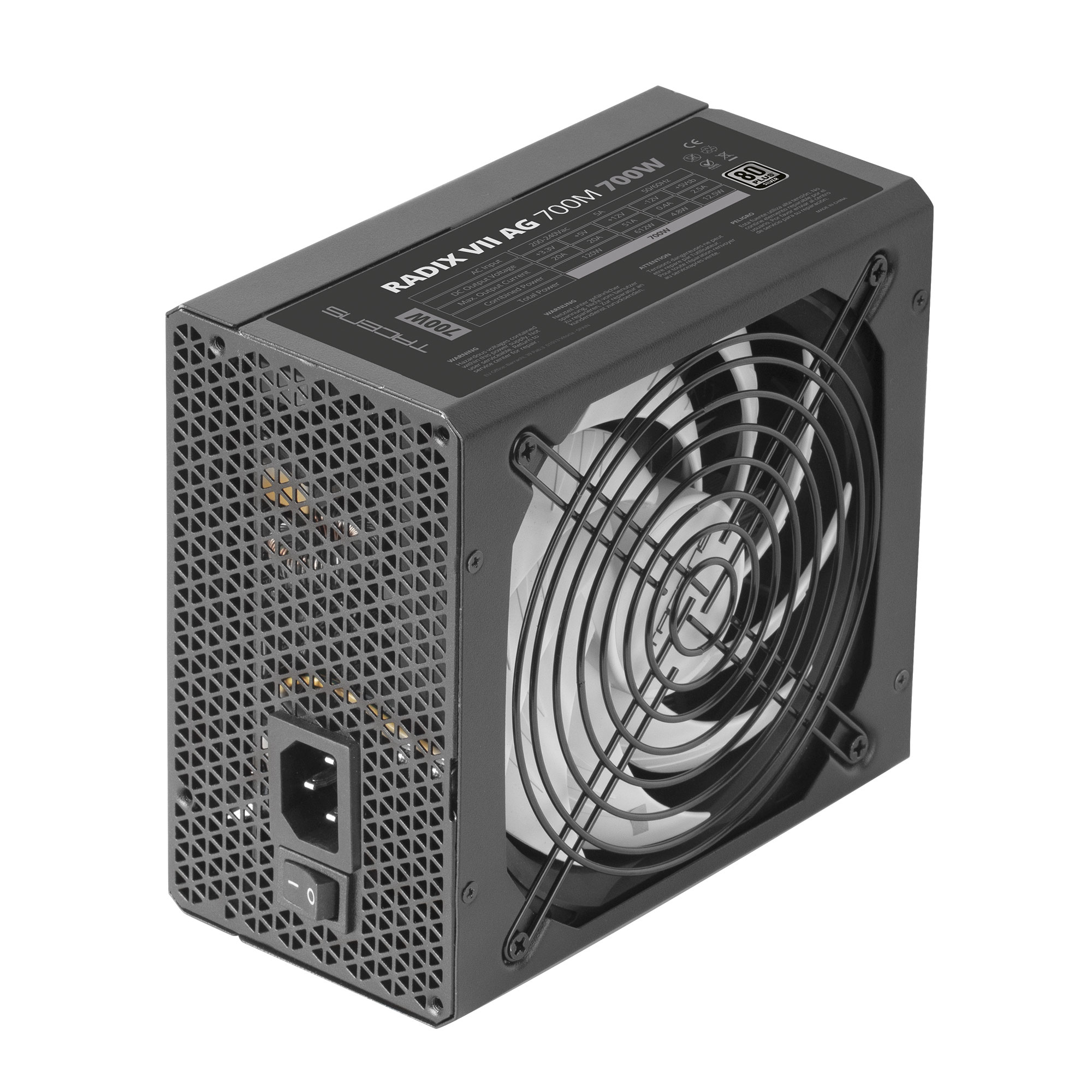

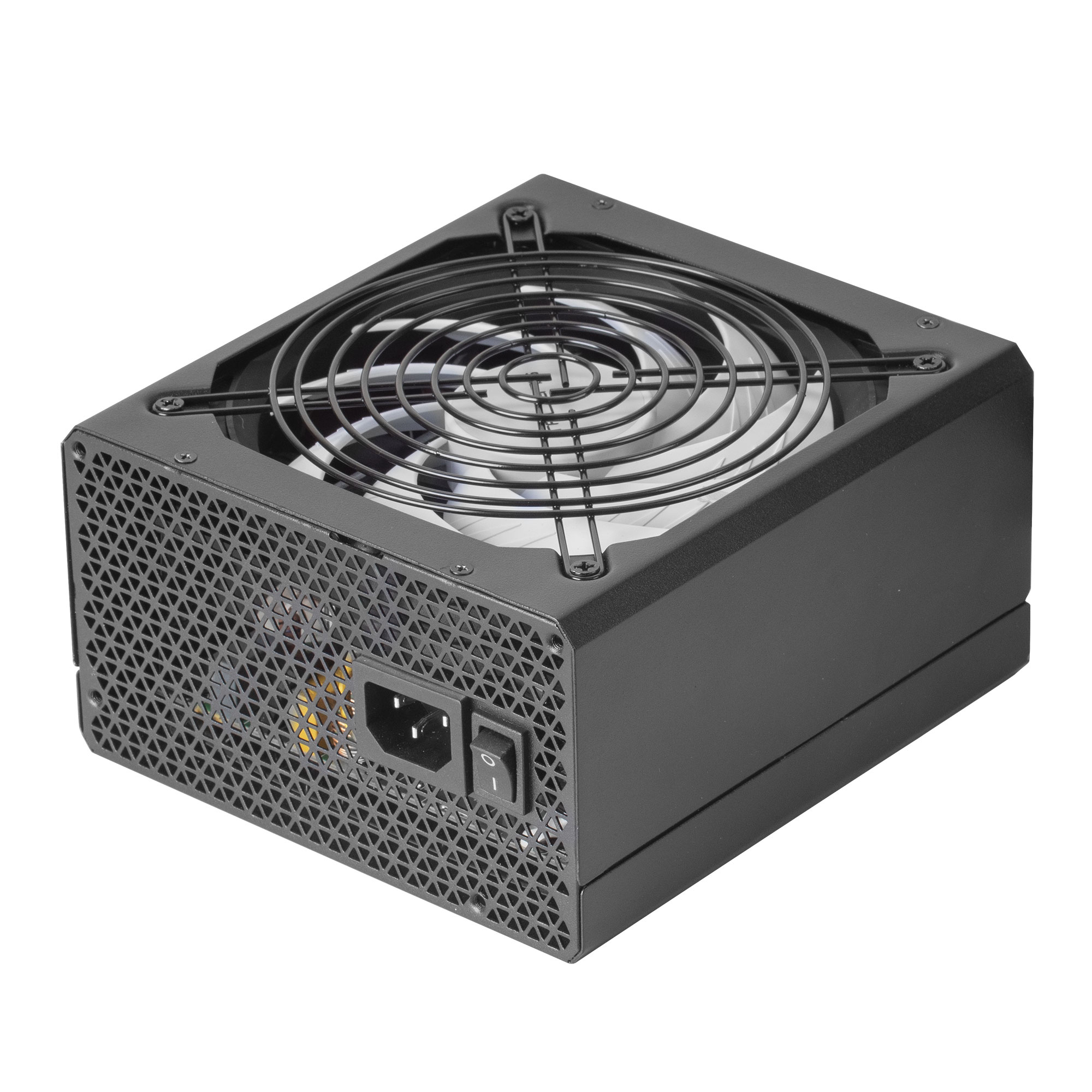

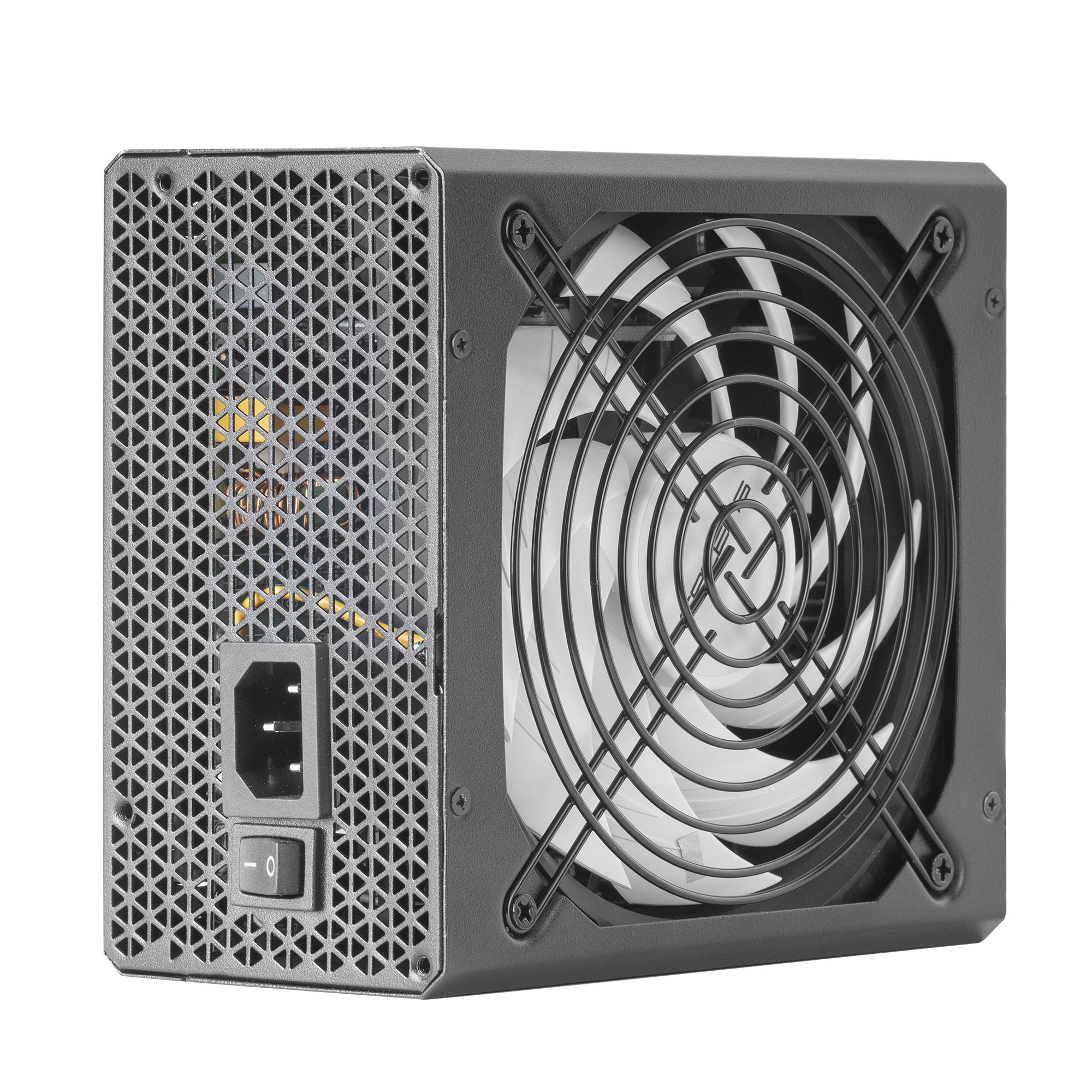

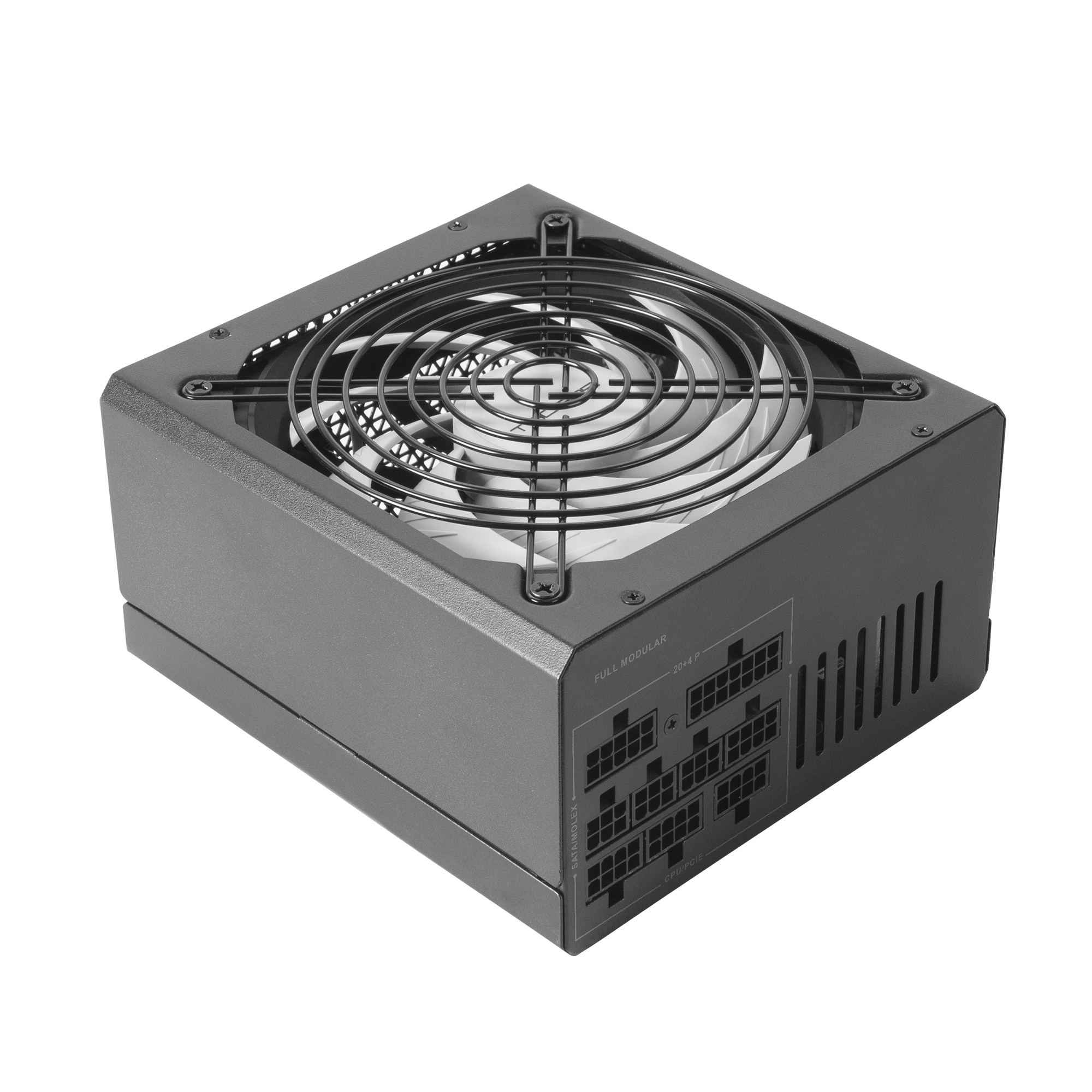

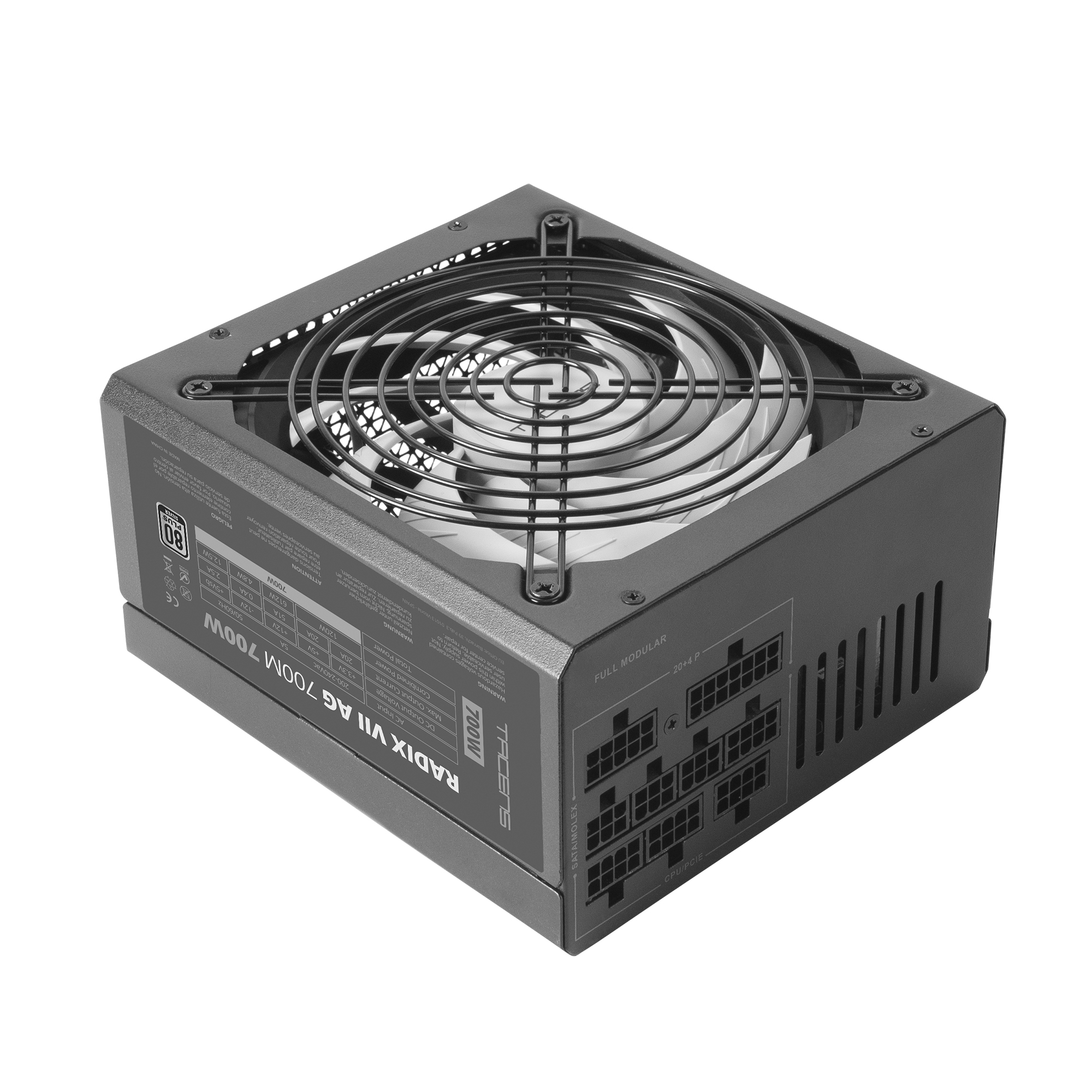

RADIX VII AG 700M
Model RADIX VII AG 700MPart no. 1RVIIAG700MEAN 8435693102700
26 specifications
- Noise12 dB
- Weight1.6 kg
- Total power700 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Fan diameter14 cm
Overview
- Noise
- 12 dB
- Weight
- 1.6 kg
- Total power
- 700 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Fan diameter
- 14 cm
- Brand
- Tacens
- Category
- Power Supply Unit
- Model
- RADIX VII AG 700M
- Part number
- 1RVIIAG700M
- EAN / UPC
- 8435693102700
- Also known as
- Tacens RADIX VII AG 700M power supply unit 700 W 20+4 pin ATX ATX
Specifications
26 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Number of +12V rail(s) | 1 |
| Efficiency | 87% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Silver |
| Noise level | 12 dB |
Design
| Specification | Value |
|---|---|
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | ATX12V, CE, ROHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 85 mm |
| Weight | 1.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 135 mm |
| Package depth | 207 mm |
| Package height | 257 mm |
| Package weight | 1.8 kg |
