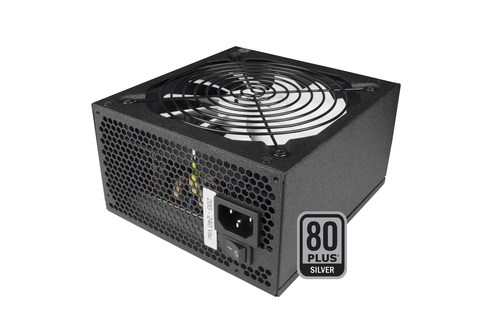

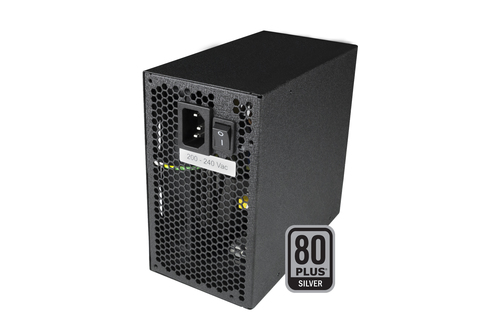

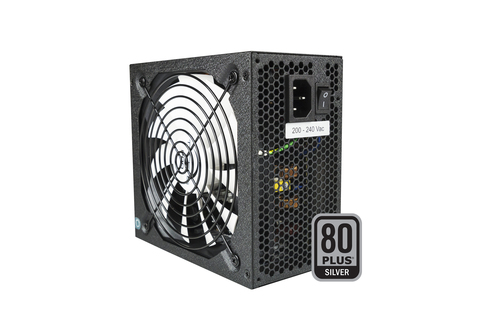

Tacens Radix VII AG
Model Radix VII AGPart no. 1RVIIAG700EAN 4713105960174
43 specifications
- Noise12 dB
- Weight1.5 kg
- ColourBlack
- Total power700 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 12 dB
- Weight
- 1.5 kg
- Colour
- Black
- Total power
- 700 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Tacens
- Category
- Power Supply Unit
- Model
- Radix VII AG
- Part numbers
- 1RVIIAG700, 1RVIIAG600, 1RVIIAG800
- EAN / UPC
- 4713105960174, 4713105960167, 4713105960150
- Also known as
- Tacens Radix VII AG power supply unit 700 W 20+4 pin ATX ATX Black
Specifications
43 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5 A |
| Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 612 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 4.8 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 51 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.4 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 87% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Silver |
| Noise level | 12 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 157 mm |
| Height | 85 mm |
| Weight | 1.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Warranty card | Yes |
