APIII750 power supply unit
750 W 24-pin ATX ATX Black
Model APIII750EAN 8435693103257
34 specifications
- Weight1.2 kg
- ColourBlack
- Total power750 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 1.2 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Tacens
- Category
- Power Supply Unit
- Model
- APIII750
- Part number
- APIII750
- EAN / UPC
- 8435693103257
- Also known as
- Tacens APIII750 power supply unit 750 W 24-pin ATX ATX Black
Specifications
34 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 6 A |
| Combined power (+3.3V) | 200 W |
| Combined power (+12V) | 528 W |
| Combined power (+5V) | 200 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 44 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |

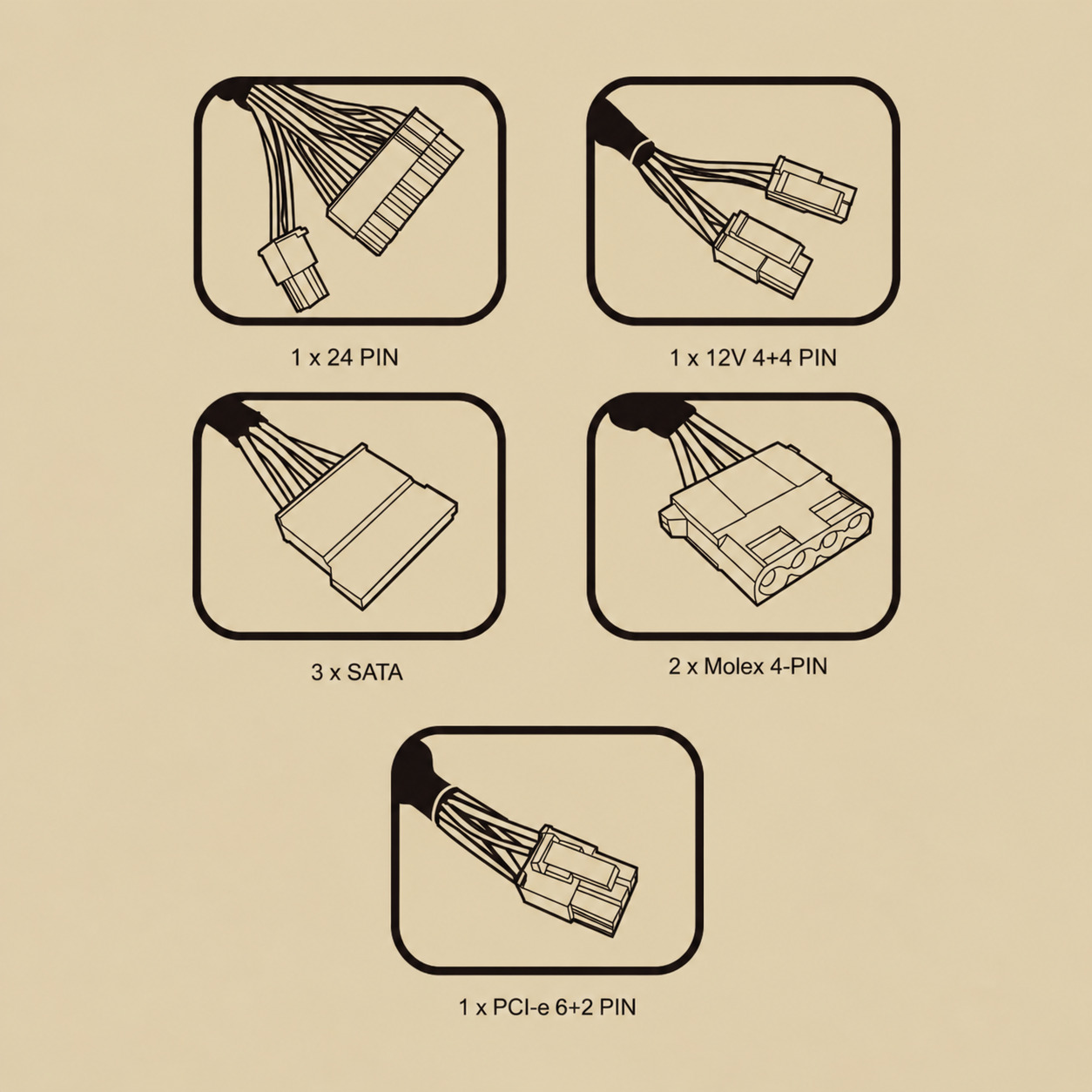

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 145 mm |
| Height | 85 mm |
| Weight | 1.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 118 mm |
| Package depth | 185 mm |
| Package height | 235 mm |
| Package weight | 1.3 kg |
| Package type | Box |
