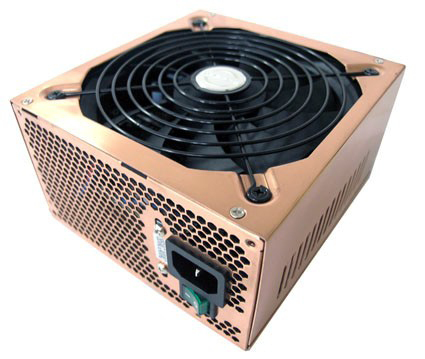

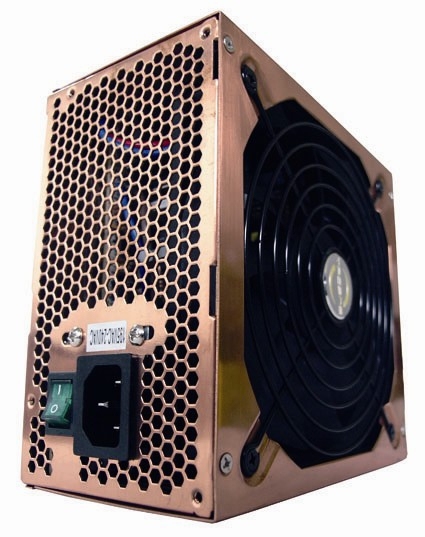

Tacens AERIS 680
Model AERIS 680Part no. 1A680
16 specifications
- Noise16 dB
- ColourOrange, Stainless steel
- Total power680 W
- Number of SATA power connectors4
Overview
- Noise
- 16 dB
- Colour
- Orange, Stainless steel
- Total power
- 680 W
- Number of SATA power connectors
- 4
- Brand
- Tacens
- Category
- Power Supply Unit
- Model
- AERIS 680
- Part number
- 1A680
- Also known as
- Tacens AERIS 680 power supply unit 680 W Orange, Stainless steel
Specifications
16 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 680 W |
| Input current | 6 - 10 A |
| Power protection features | Overload |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 4 |
| PCI Express power connectors (6-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |

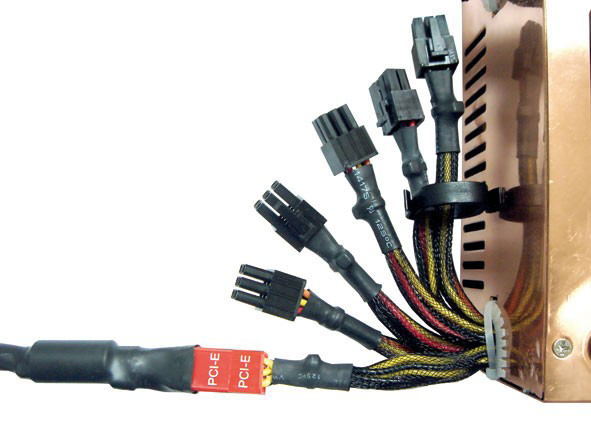

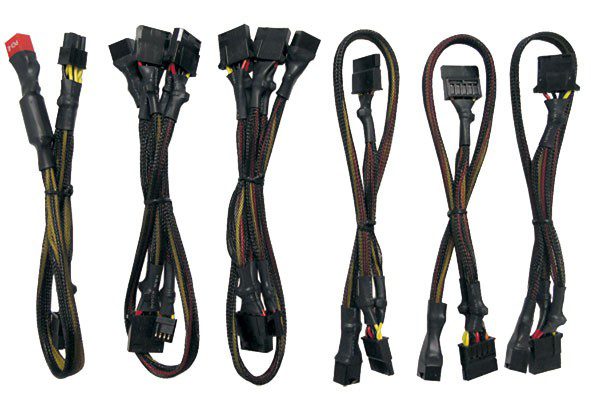

| Connector(s) | 4xSATA, 20-24pin, ATX 2.01 4PIN/EPS 12V 8PIN, 8xHDD 4PIN, 2xFDD 4PIN, 2xPCI EXPRESS |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Noise level | 16 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Orange, Stainless steel |
| LED indicators | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | IP, OVP, OPP, SCP |
Other features
| Specification | Value |
|---|---|
| Maximum current | 32/38/22/20/0.8/2.5 |
| Output voltage note | +3.3V/+5V/+12V1/+12V2/-12V/+5VSB |
| Ports quantity | 17 |
