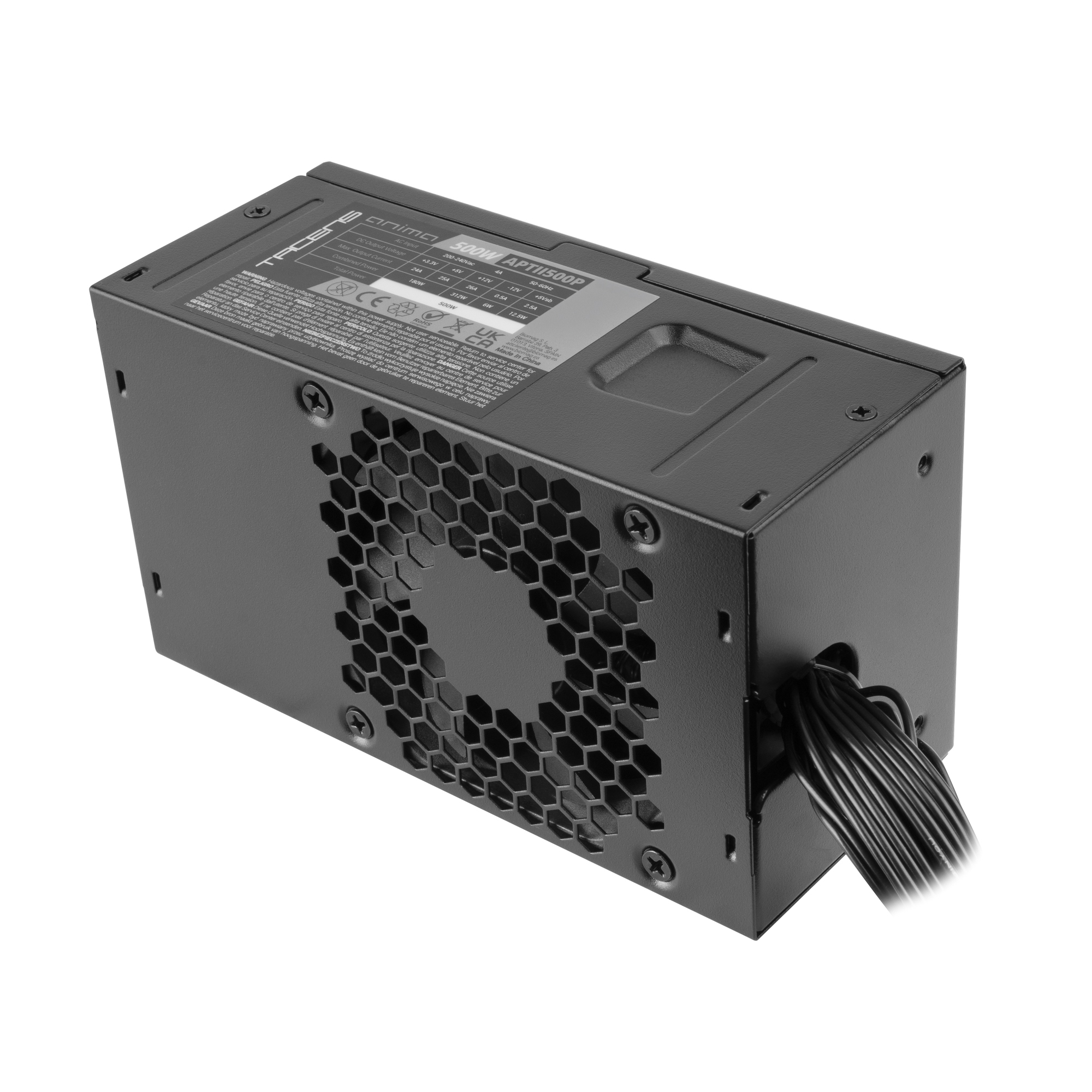

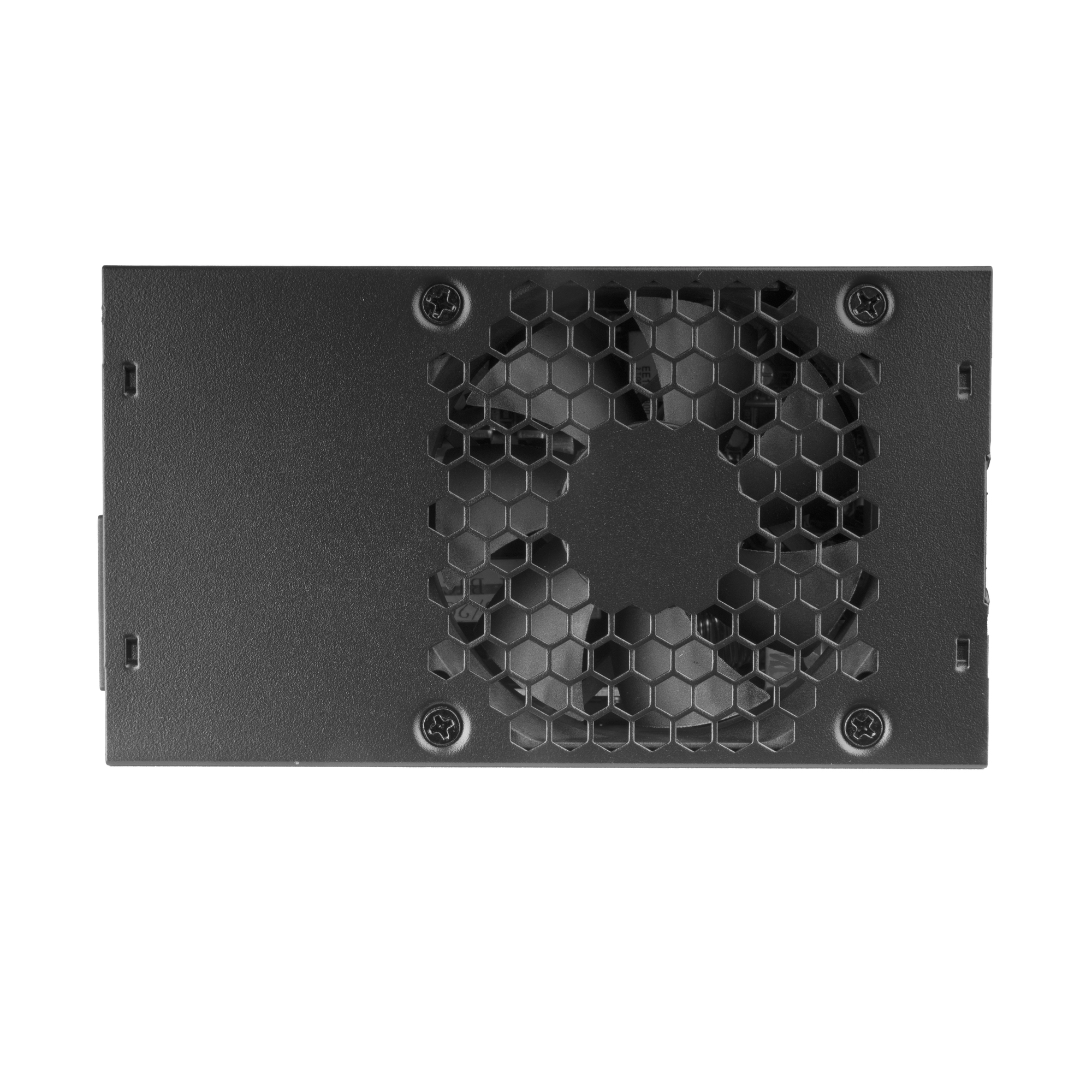

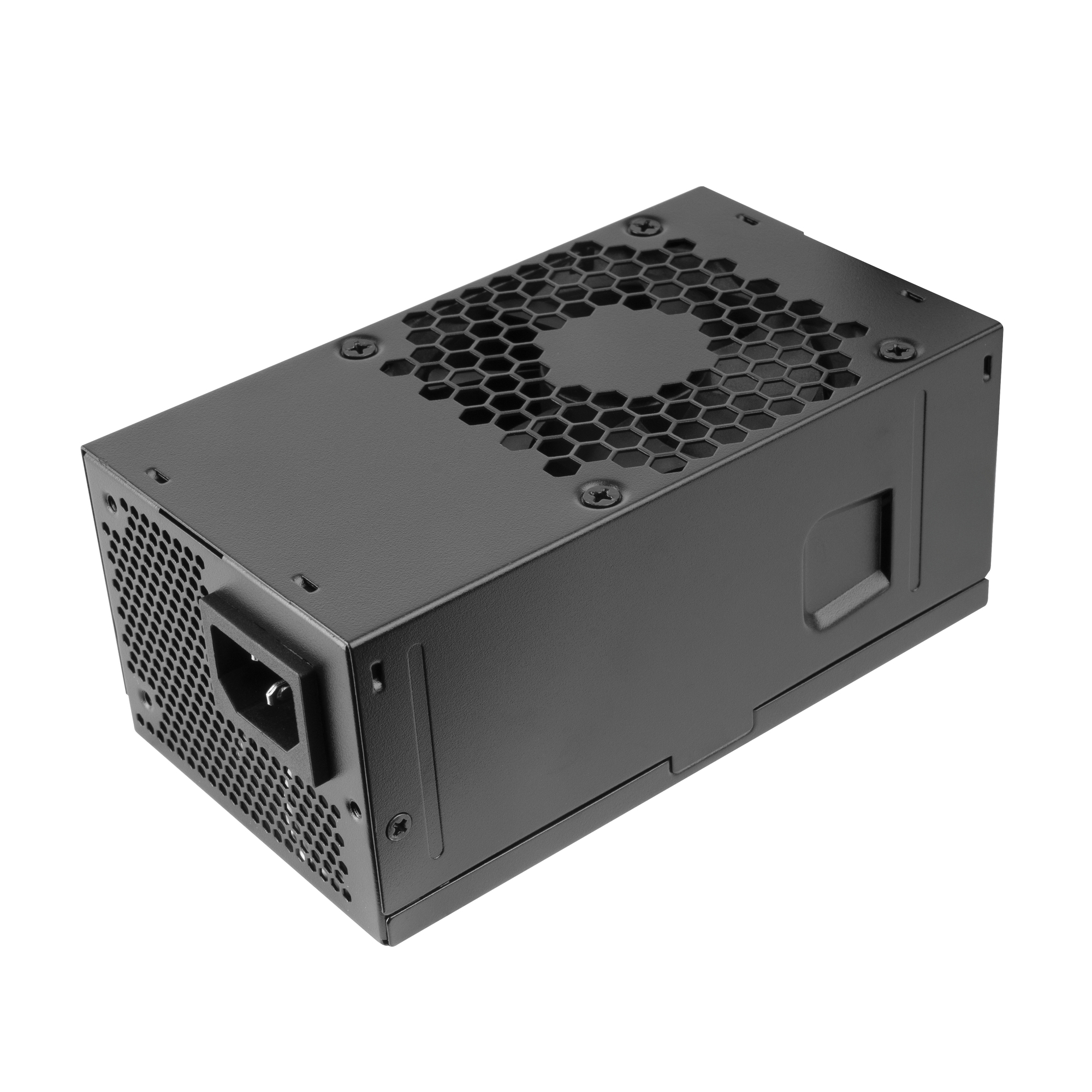

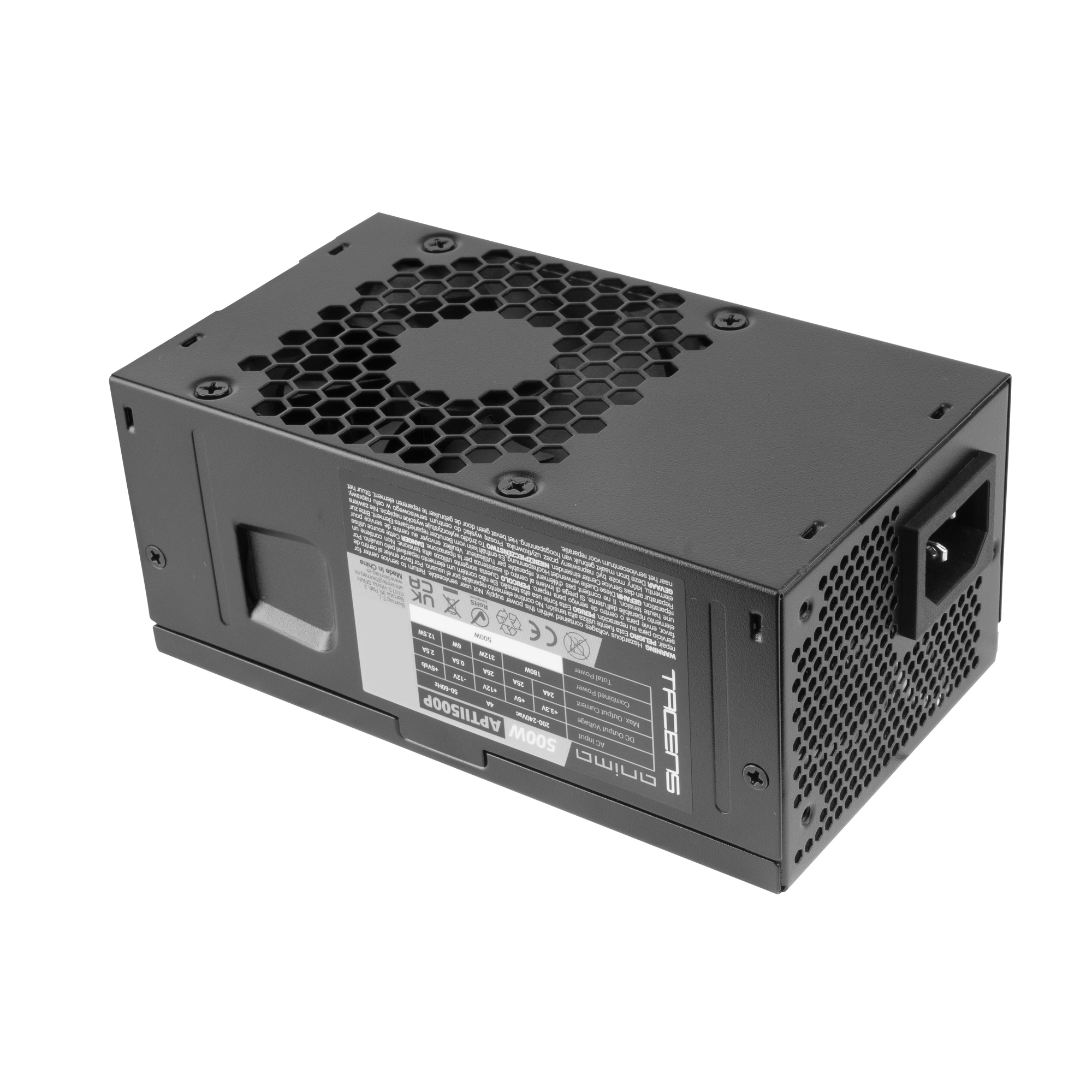

APTII500P power supply unit
500 W 24-pin ATX TFX Black
Model APTII500PEAN 8435693112372
31 specifications
- Weight557 g
- ColourBlack
- Total power500 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 557 g
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Tacens Anima
- Category
- Power Supply Unit
- Model
- APTII500P
- Part number
- APTII500P
- EAN / UPC
- 8435693112372
- Also known as
- Tacens Anima APTII500P power supply unit 500 W 24-pin ATX TFX Black
Specifications
31 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 4 A |
| Combined power (+3.3V) | 180 W |
| Combined power (+12V) | 312 W |
| Combined power (+5V) | 180 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 26 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (4+4 pin) | Yes |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | TFX |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan location | Top |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 85 mm |
| Height | 65 mm |
| Weight | 557 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 150 mm |
| Package depth | 90 mm |
| Package height | 195 mm |
