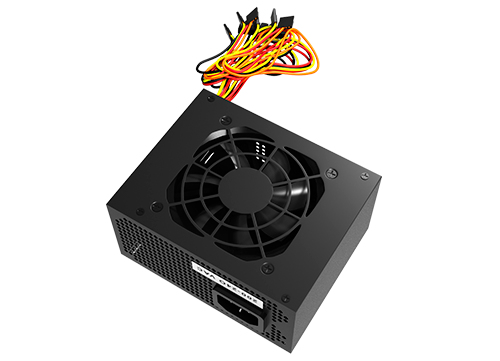

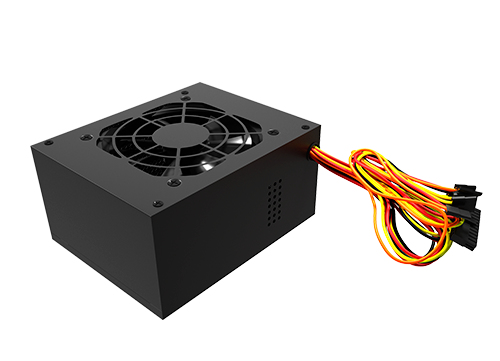

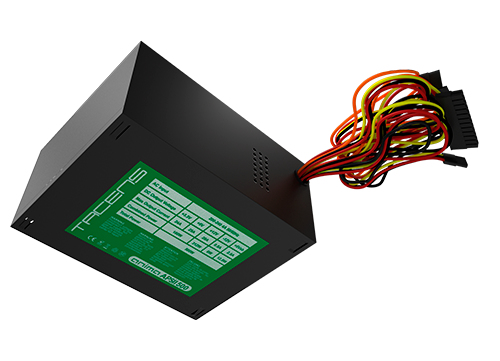

Tacens Anima APSII500 power supply unit
500 W 20+4 pin ATX SFX Black
Model APSII500EAN 4713105960266
33 specifications
- Noise18 dB
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width125 mm
Overview
- Noise
- 18 dB
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 125 mm
- Brand
- Tacens Anima
- Category
- Power Supply Unit
- Model
- APSII500
- Part number
- APSII500
- EAN / UPC
- 4713105960266
- Also known as
- Tacens Anima APSII500 power supply unit 500 W 20+4 pin ATX SFX Black
Specifications
33 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4 A |
| Combined power (+3.3V) | 180 W |
| Combined power (+12V) | 312 W |
| Combined power (+5V) | 180 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 26 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| Noise level | 18 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 100 mm |
| Height | 63.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
