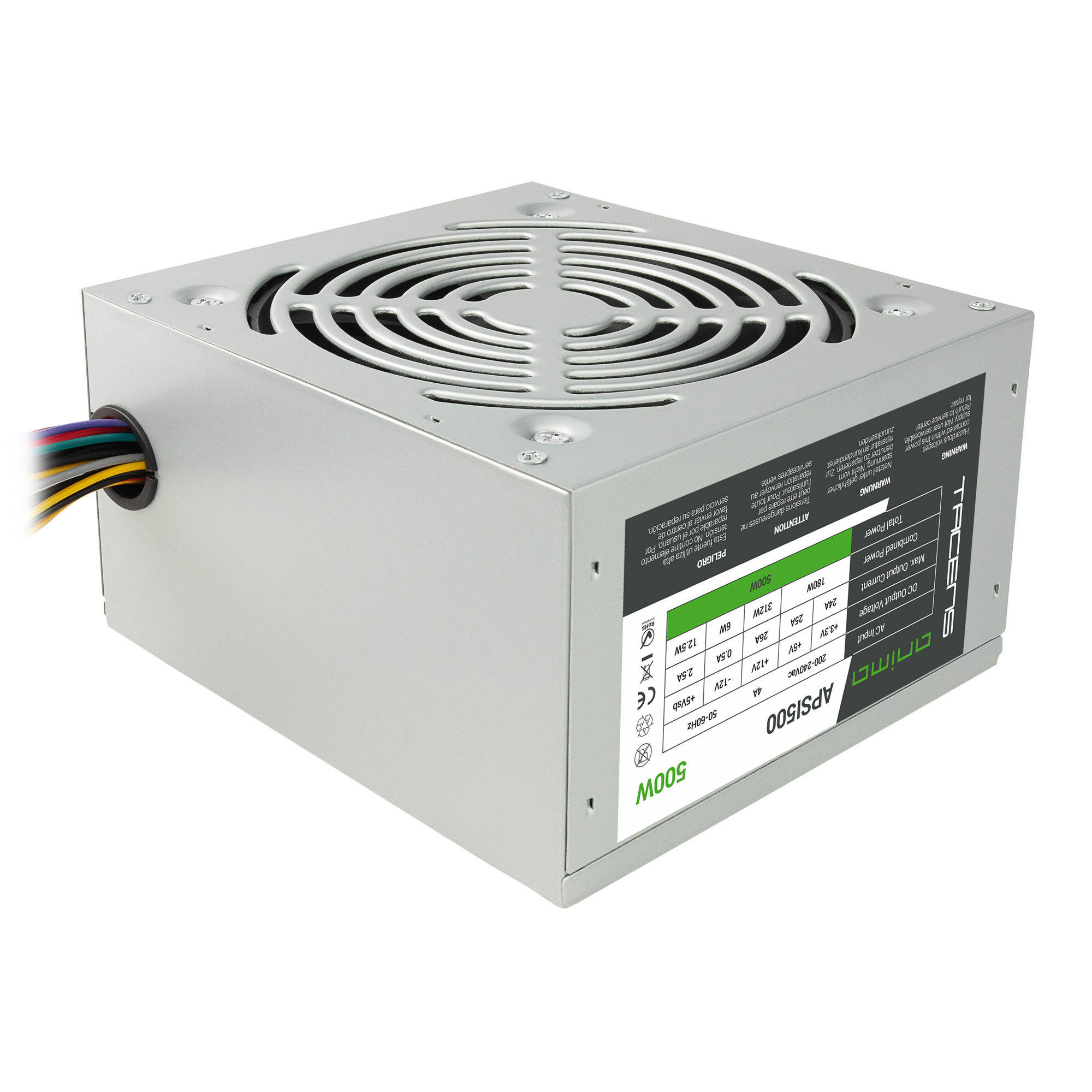

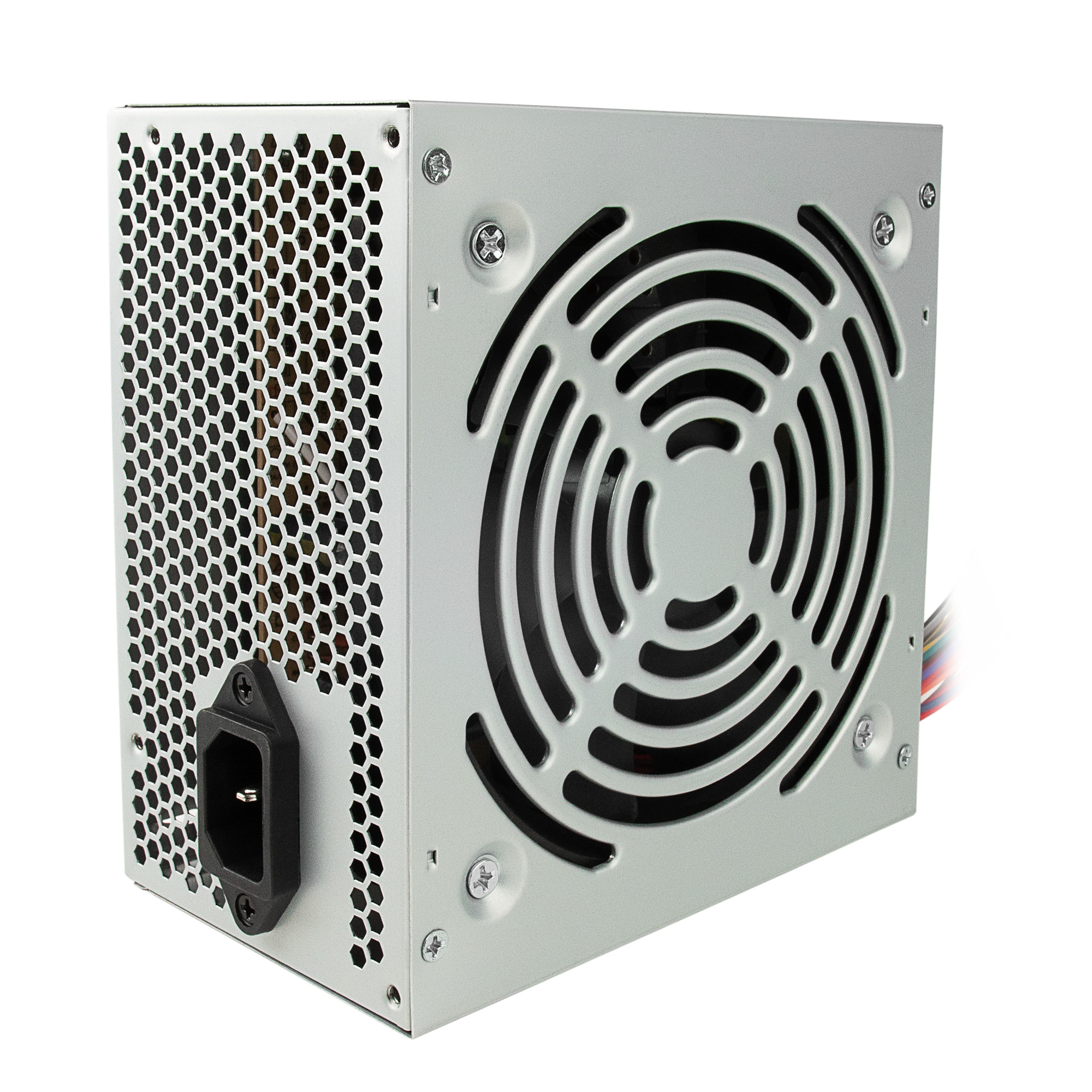

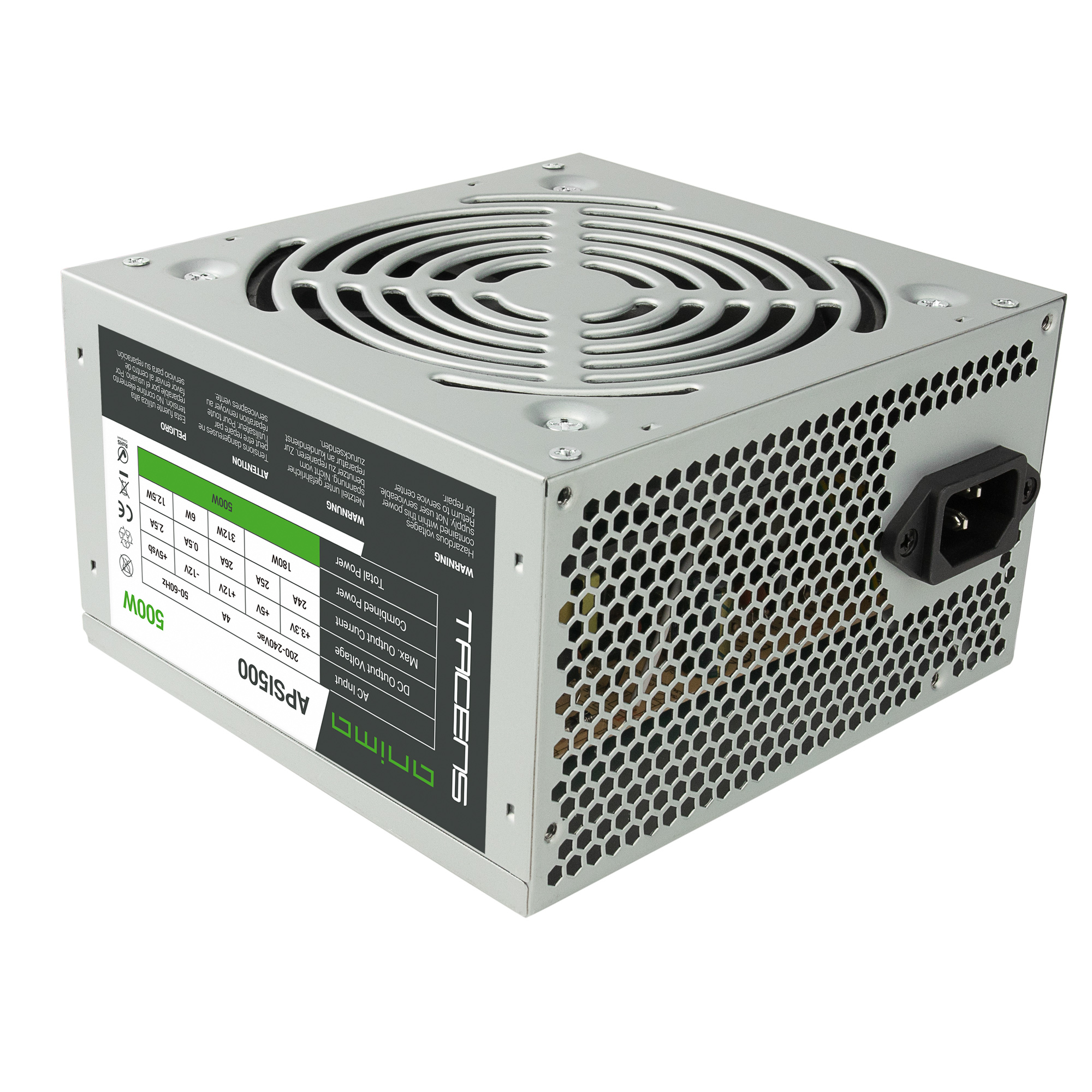

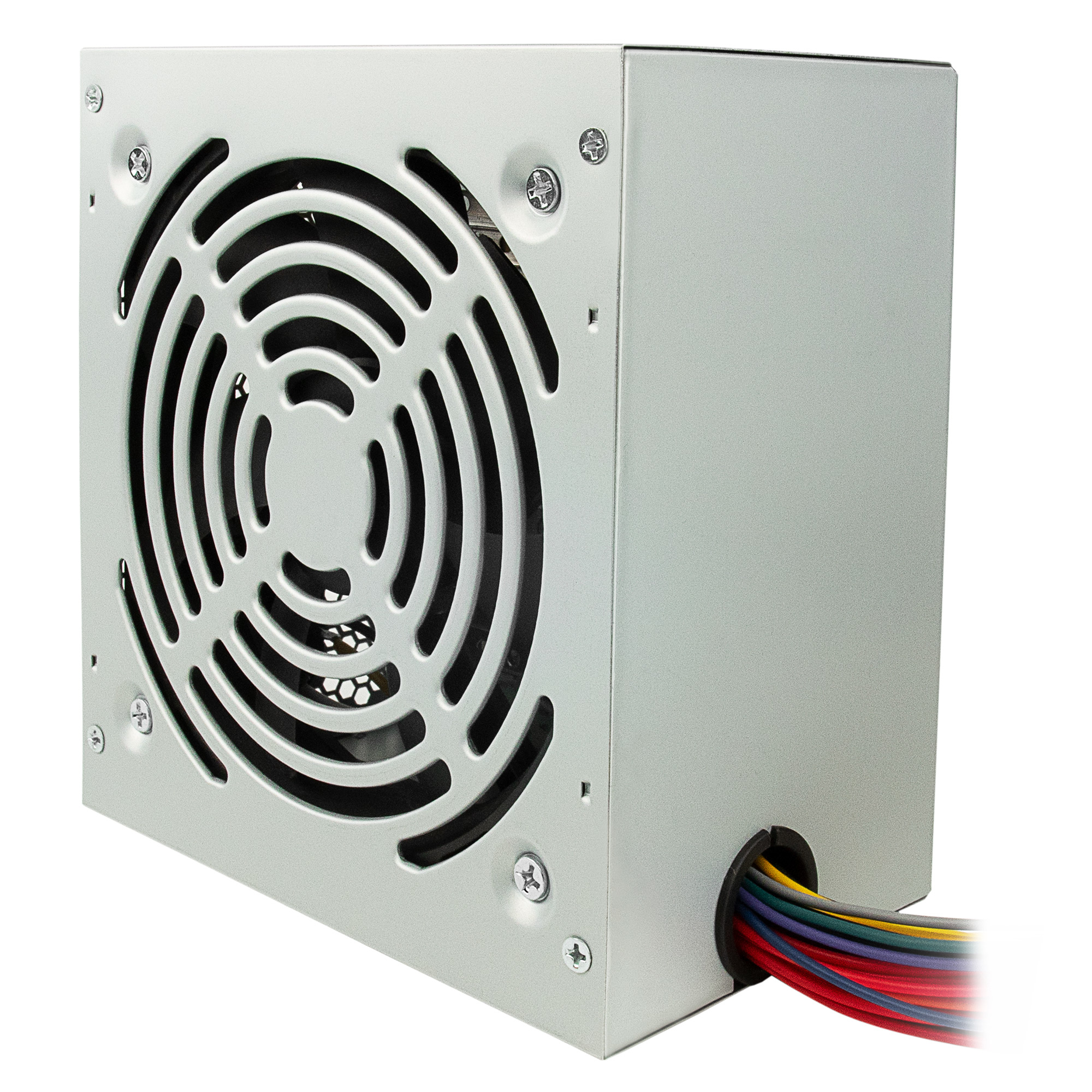

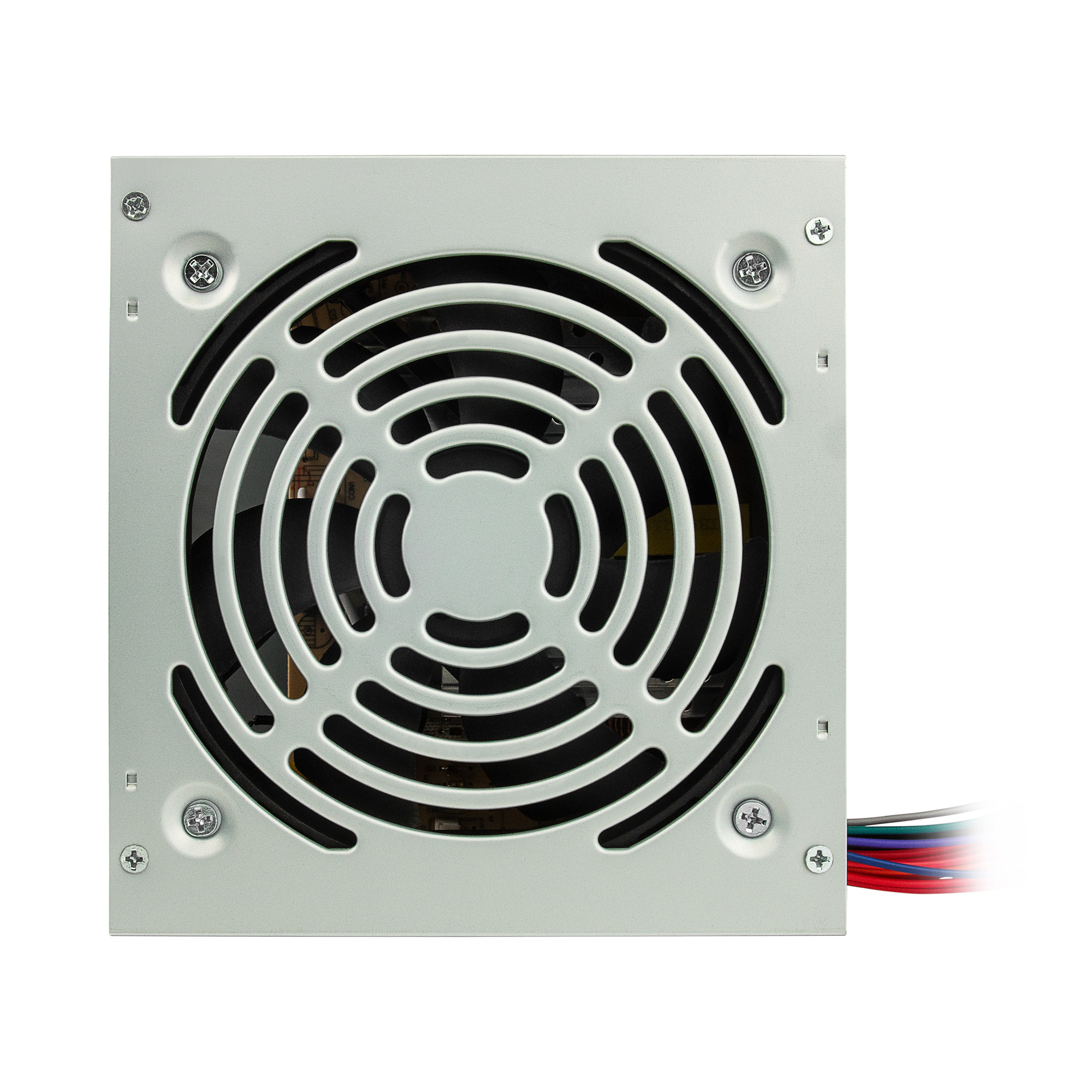

APSI500 power supply unit
500 W 20+4 pin ATX ATX Metallic
Model APSI500EAN 4718009156685
37 specifications
- Noise14 dB
- Weight726 g
- ColourMetallic
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 14 dB
- Weight
- 726 g
- Colour
- Metallic
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Tacens Anima
- Category
- Power Supply Unit
- Model
- APSI500
- Part number
- APSI500
- EAN / UPC
- 4718009156685
- Also known as
- Tacens Anima APSI500 power supply unit 500 W 20+4 pin ATX ATX Metallic
Specifications
37 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4 A |
| Combined power (+3.3V) | 180 W |
| Combined power (+12V) | 312 W |
| Combined power (+5V) | 180 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 26 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 2 |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 0 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Noise level | 14 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |
| Weight | 726 g |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 400 pc(s) |
| Products per master (outer) case | 10 pc(s) |
