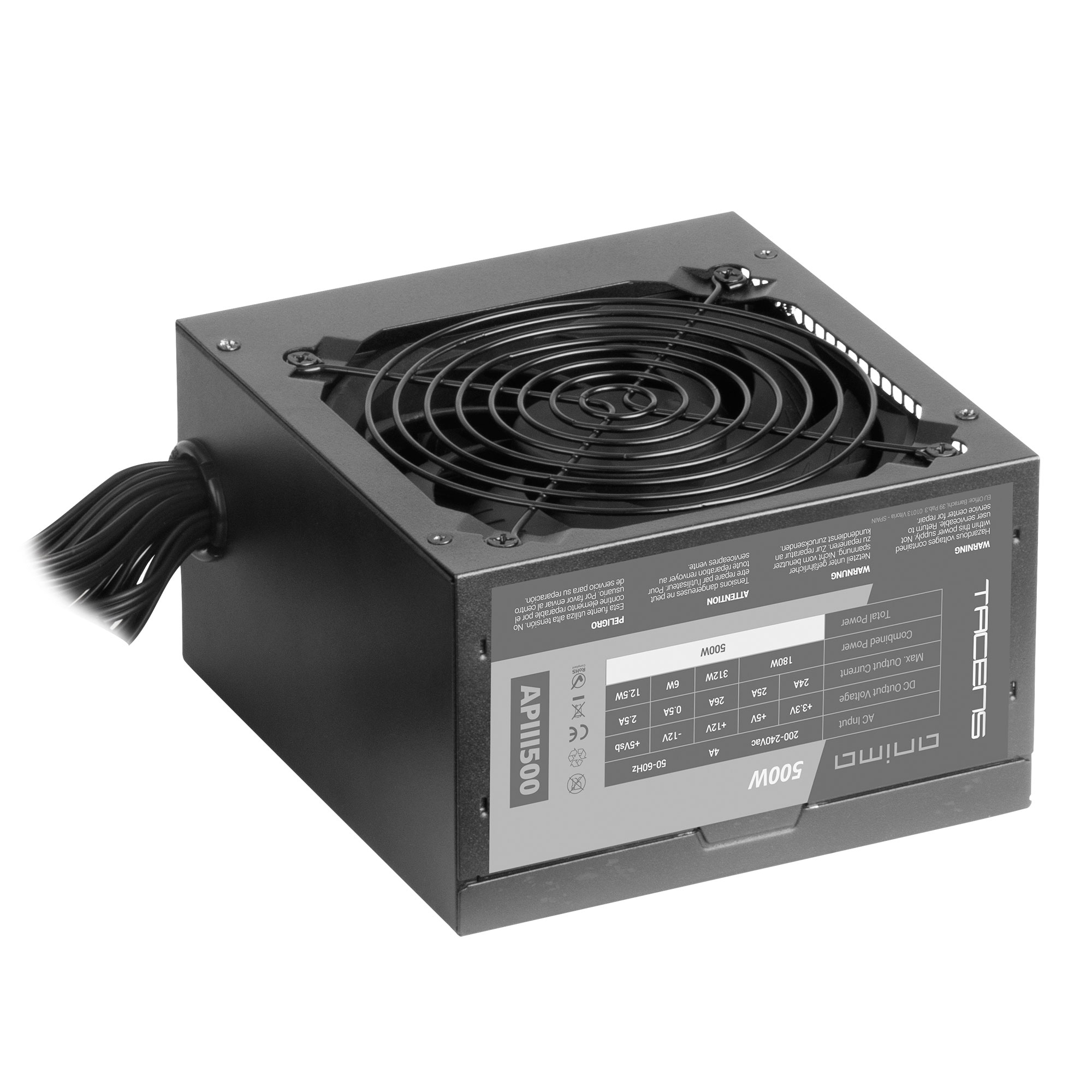

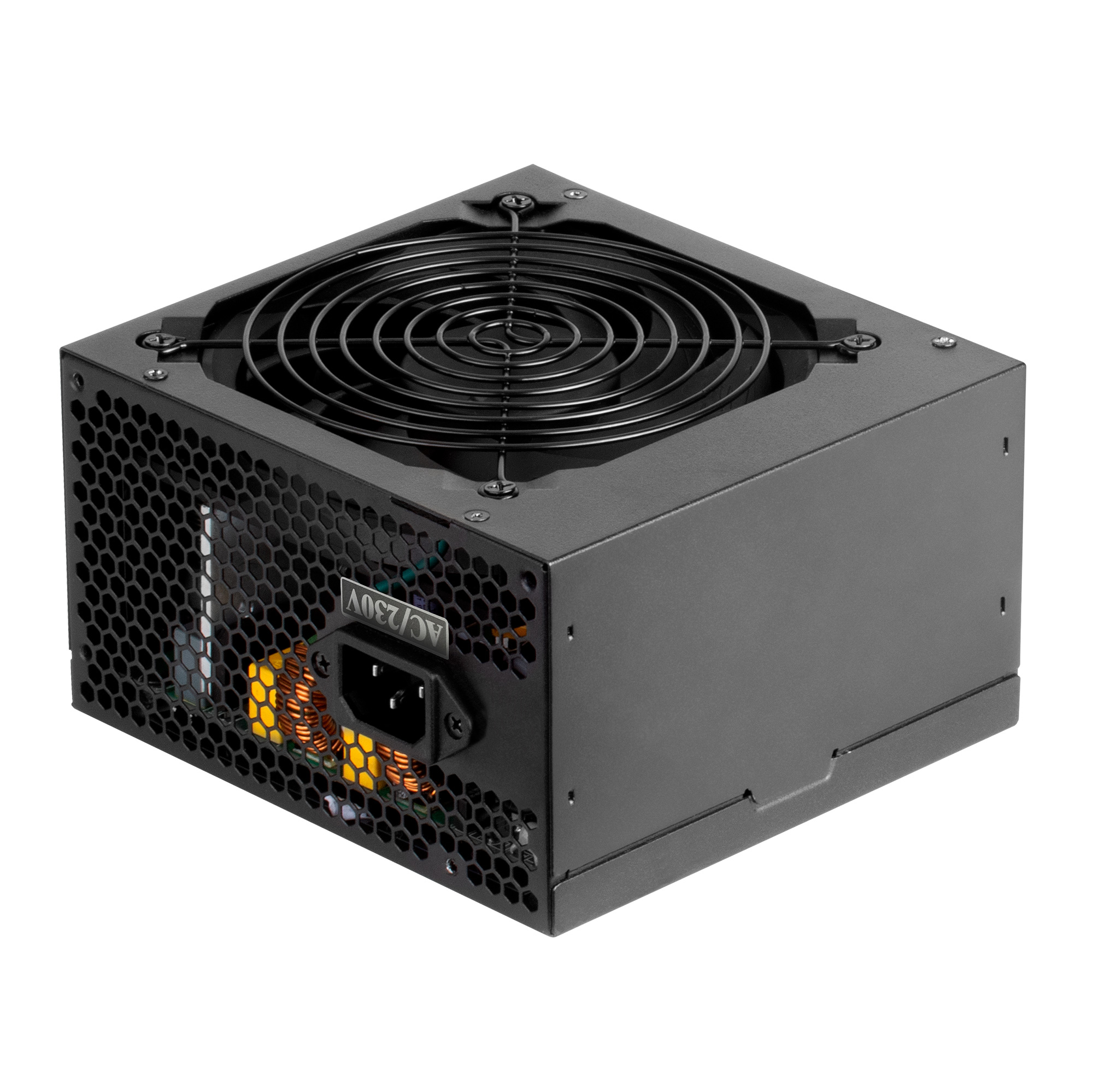

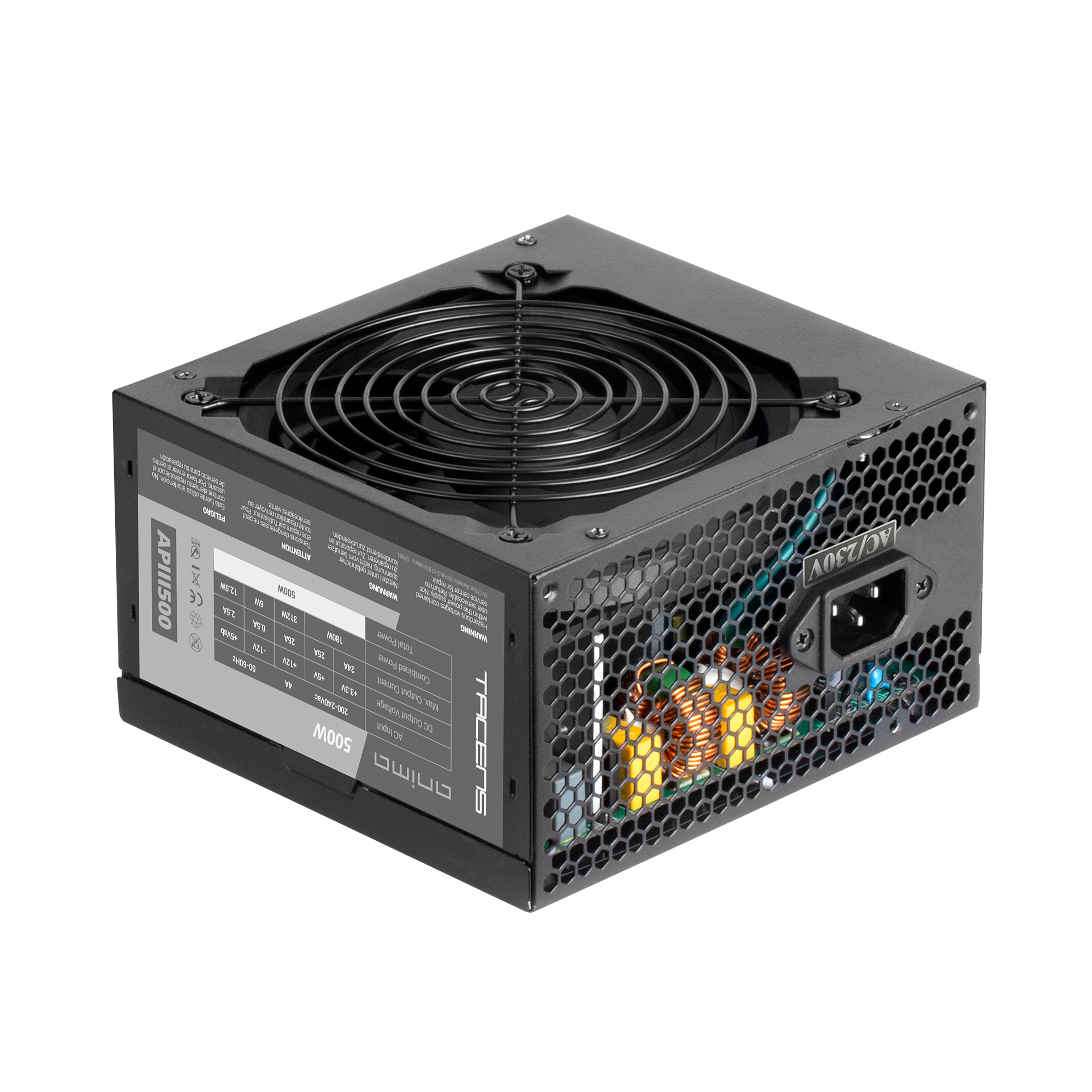

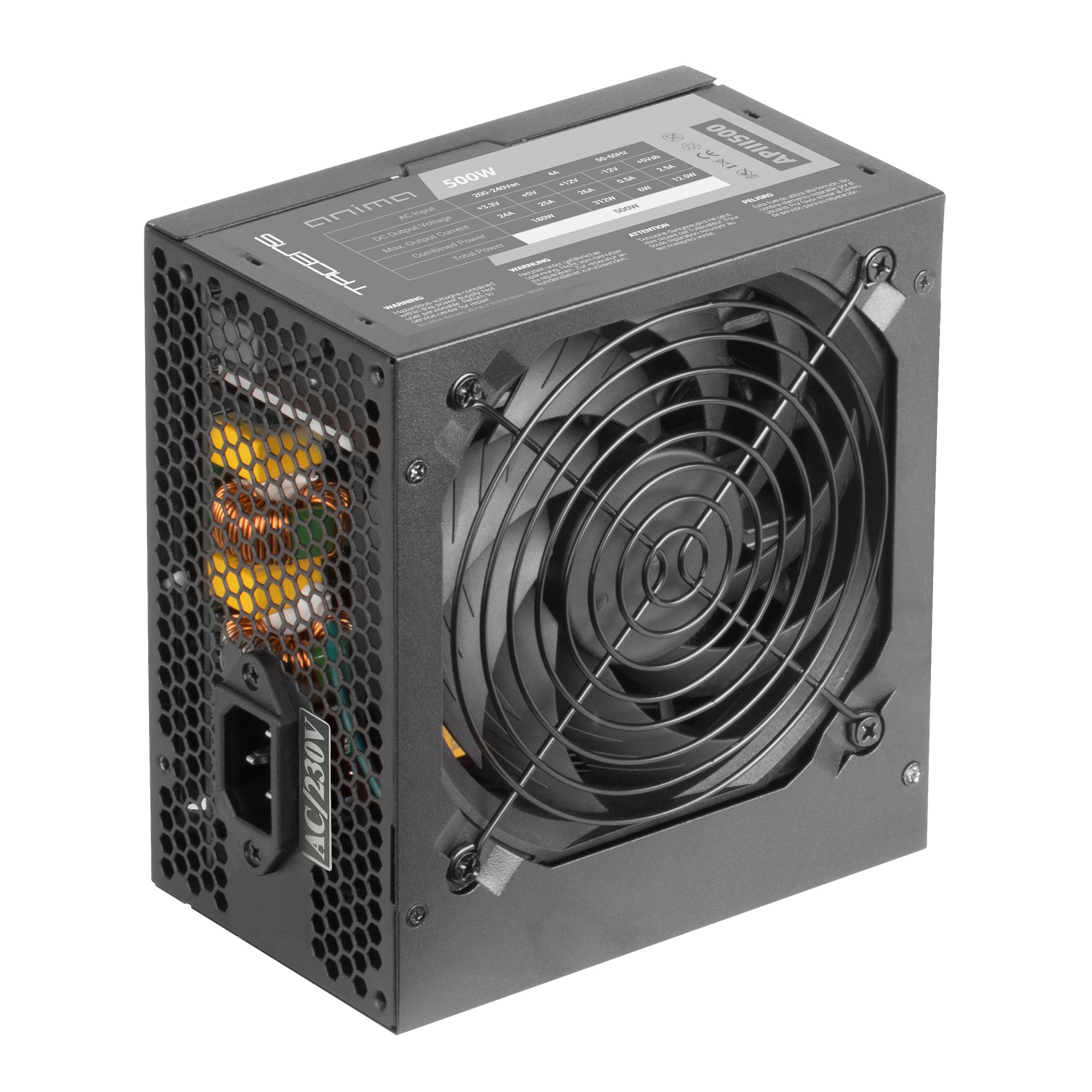

APIII500 PC ATX
500W Power Supply 85% Bronze 12V 12cm Fan
Model APIII500EAN 8437023608081
34 specifications
- Noise14 dB
- Weight890 g
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 14 dB
- Weight
- 890 g
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Tacens Anima
- Category
- Power Supply Unit
- Model
- APIII500
- Part number
- APIII500
- EAN / UPC
- 8437023608081
- Also known as
- Tacens Anima APIII500 PC ATX 500W Power Supply 85% Bronze 12V 12cm Fan
Specifications
34 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4 A |
| Combined power (+3.3V) | 180 W |
| Combined power (+12V) | 312 W |
| Combined power (+5V) | 180 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 26 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 2 |
| Number of SATA power connectors | 2 |
| EPS power connector (4+4 pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Noise level | 14 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 291 mm |
| Depth | 188 mm |
| Height | 345 mm |
| Weight | 890 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 125 mm |
| Package depth | 11 mm |
| Package height | 205 mm |
| Package weight | 1.1 kg |
