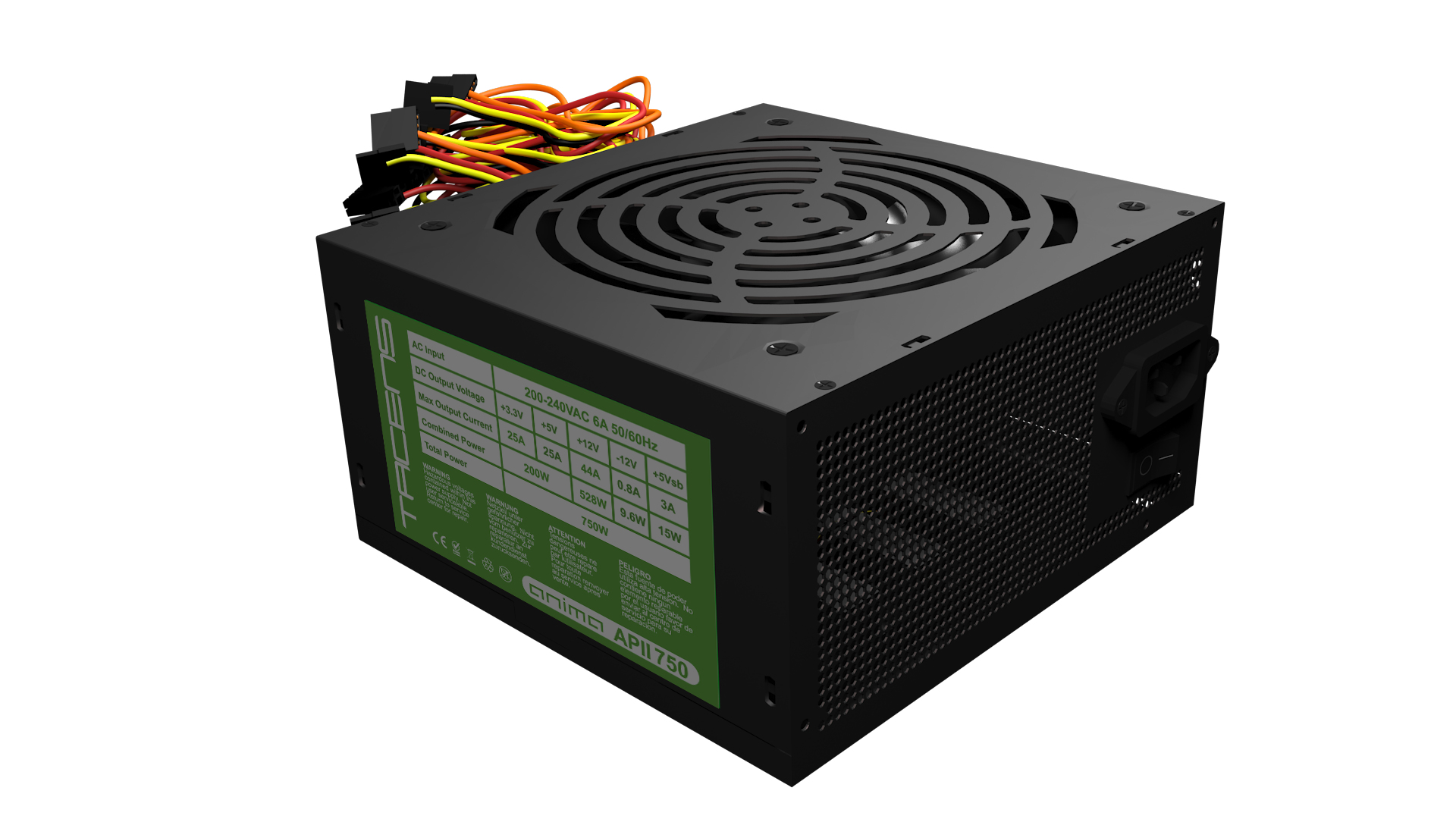

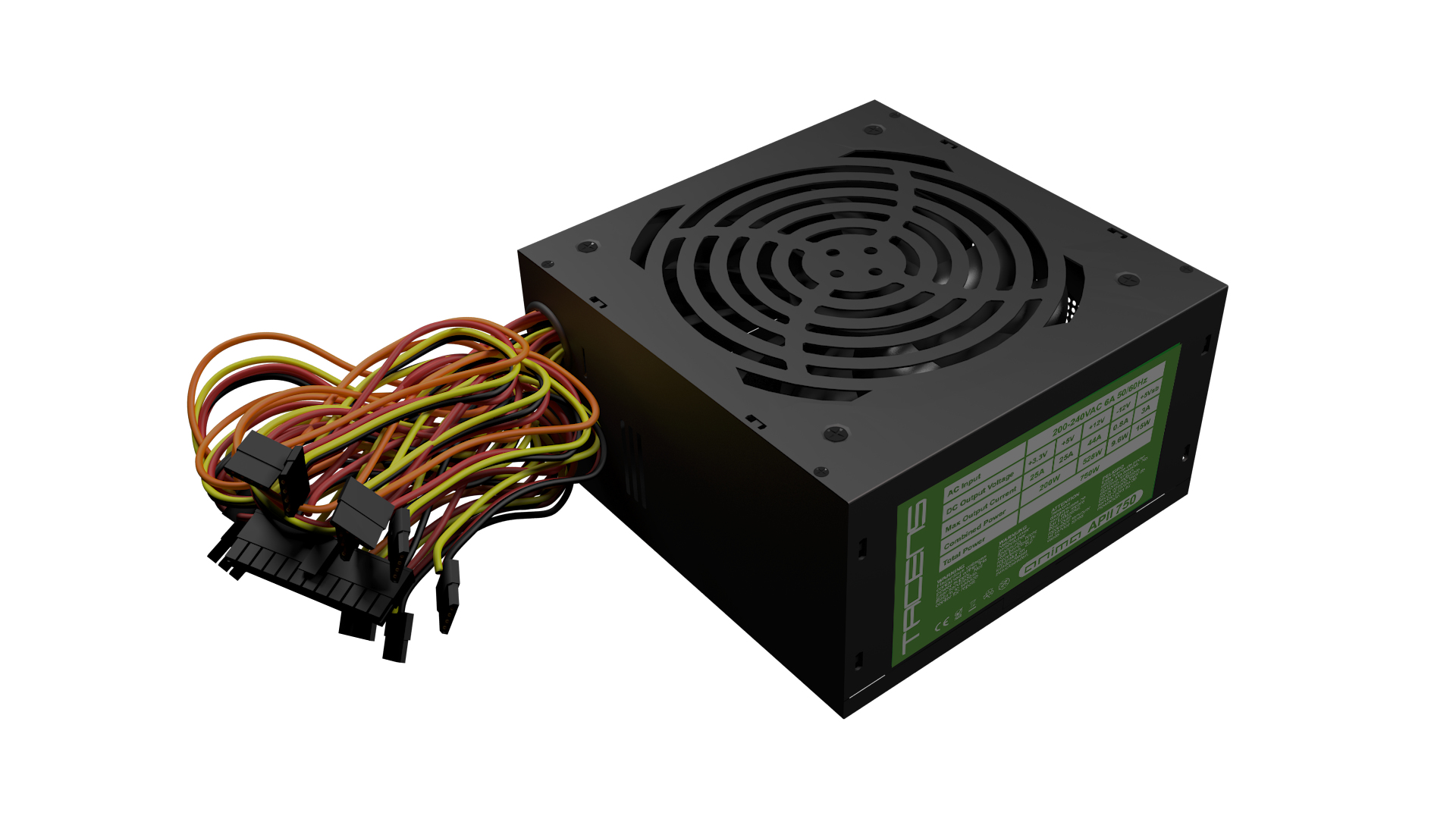

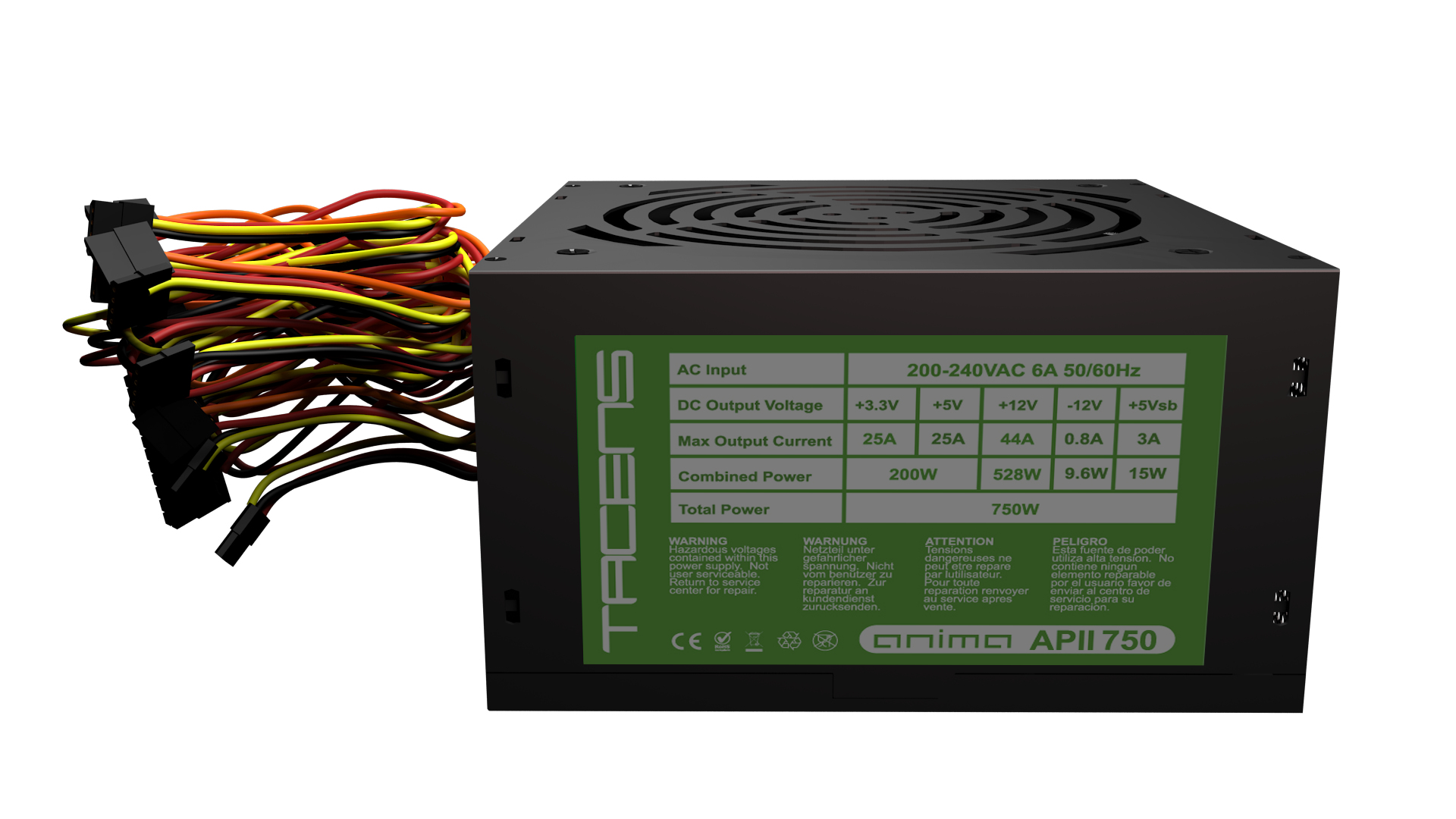

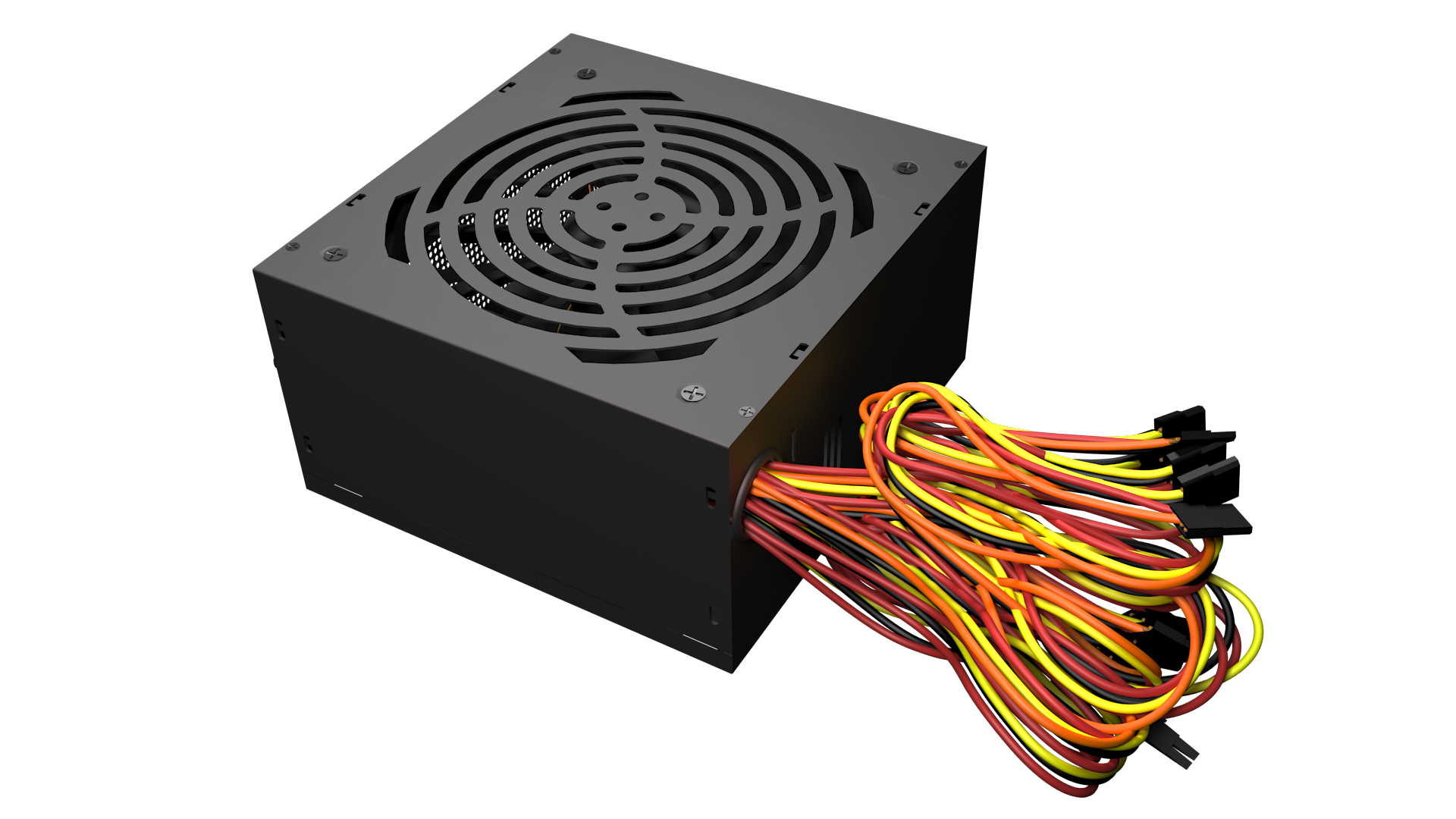

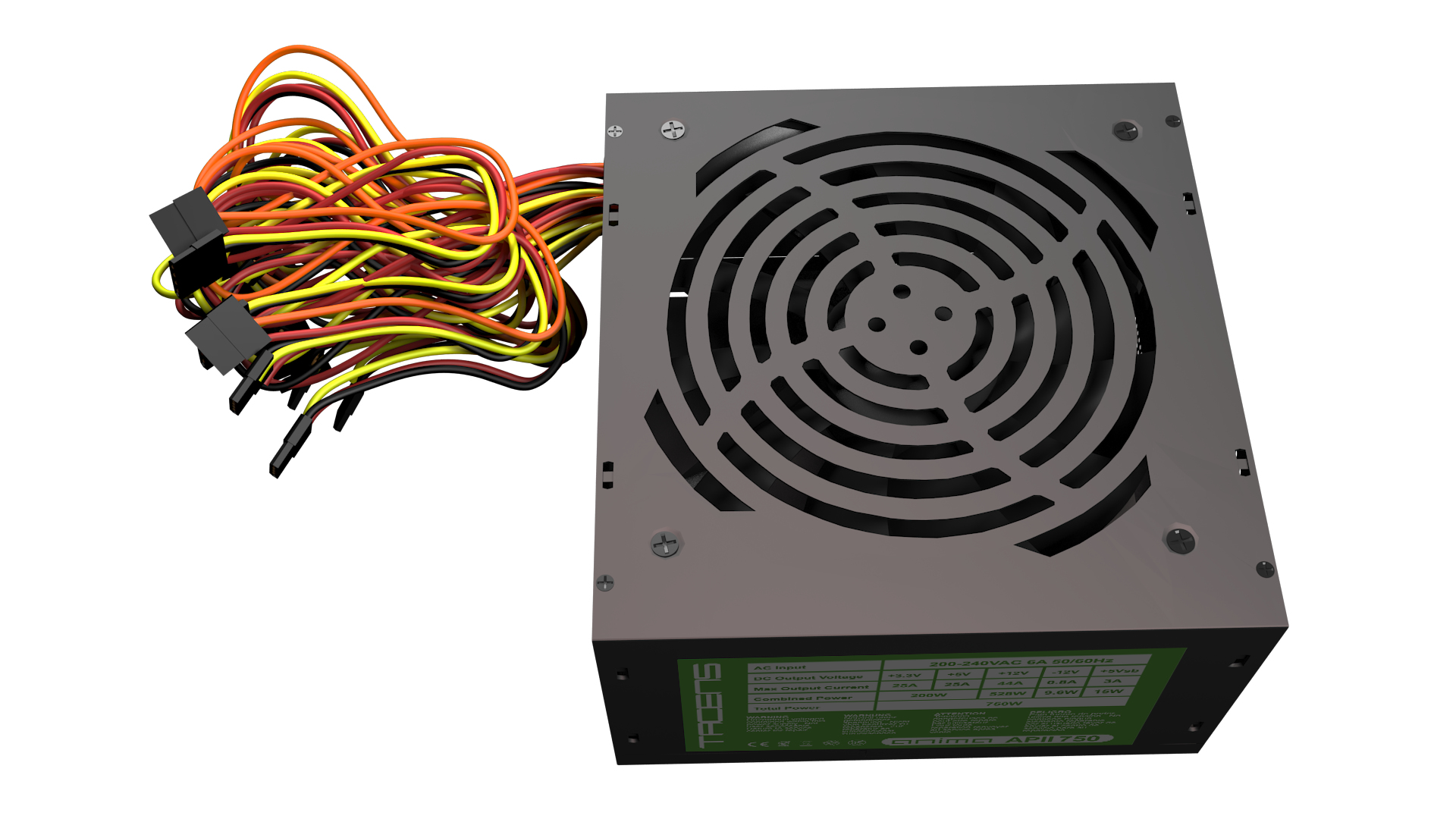

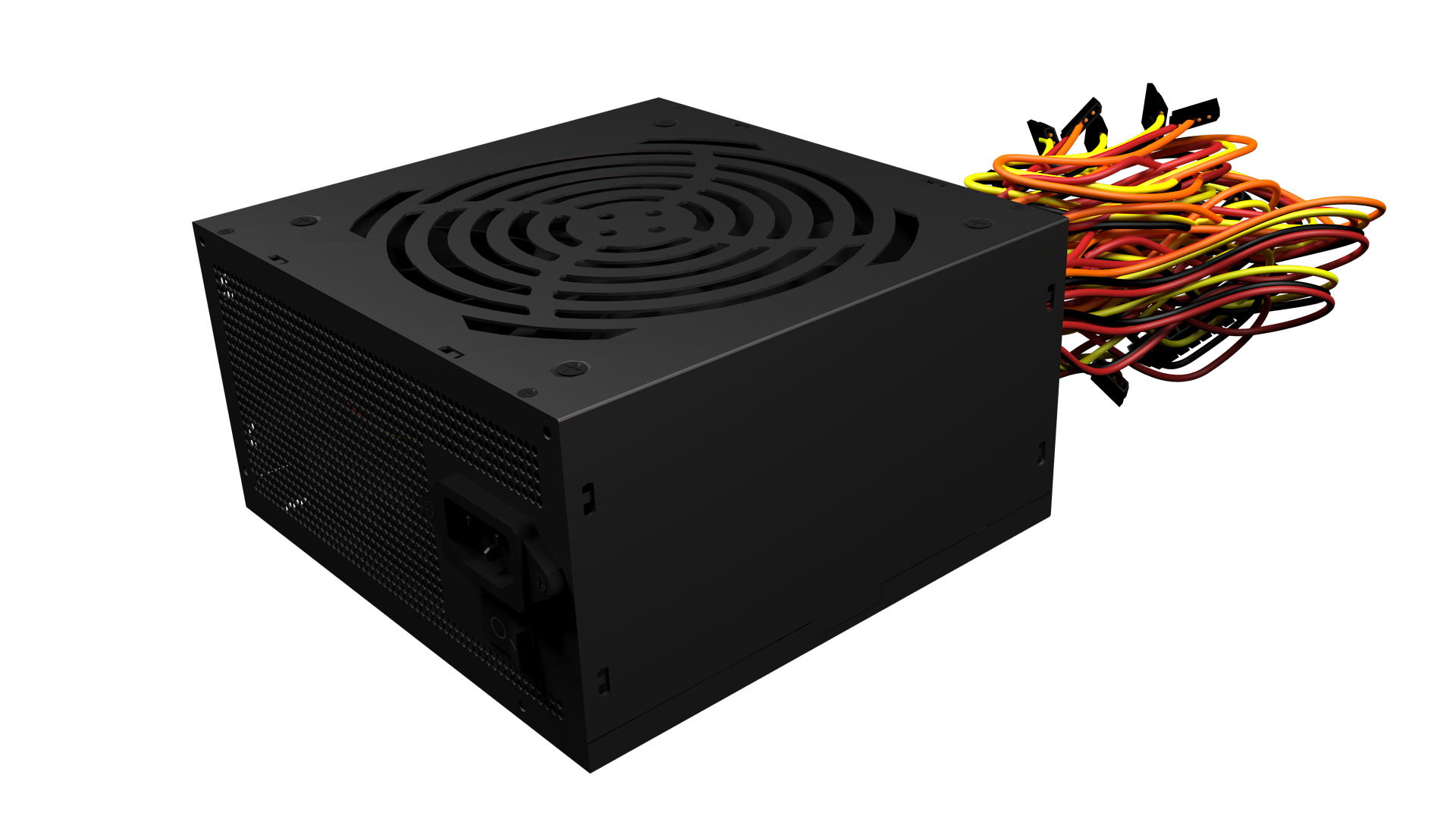

Tacens Anima APII750 power supply unit
750 W 20+4 pin ATX ATX Black
Model APII750EAN 4713105960365
39 specifications
- Noise14 dB
- Weight870 g
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 14 dB
- Weight
- 870 g
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Tacens Anima
- Category
- Power Supply Unit
- Model
- APII750
- Part number
- APII750
- EAN / UPC
- 4713105960365
- Also known as
- Tacens Anima APII750 power supply unit 750 W 20+4 pin ATX ATX Black
Specifications
39 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 6 A |
| Combined power (+3.3V) | 200 W |
| Combined power (+12V) | 528 W |
| Combined power (+5V) | 25 W |
| Combined power (-12V) | 9.6 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 44 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 2 |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Noise level | 14 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |
| Weight | 870 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet | 32 pc(s) |
| Products per pallet | 320 pc(s) |
| Master (outer) case gross weight | 14 kg |
| Products per master (outer) case | 10 pc(s) |
