APB650 power supply unit
650 W 24-pin ATX ATX Black
Model APB650EAN 8435693107521
44 specifications
- Noise14 dB
- Weight1.36 kg
- ColourBlack
- Total power650 W
- Motherboard power connector24-pin ATX
- PurposePC
Overview
- Noise
- 14 dB
- Weight
- 1.36 kg
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Brand
- Tacens Anima
- Category
- Power Supply Unit
- Model
- APB650
- Part number
- APB650
- EAN / UPC
- 8435693107521
- Also known as
- Tacens Anima APB650 power supply unit 650 W 24-pin ATX ATX Black
Specifications
44 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 7.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 80 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 80 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 10 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 10 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |

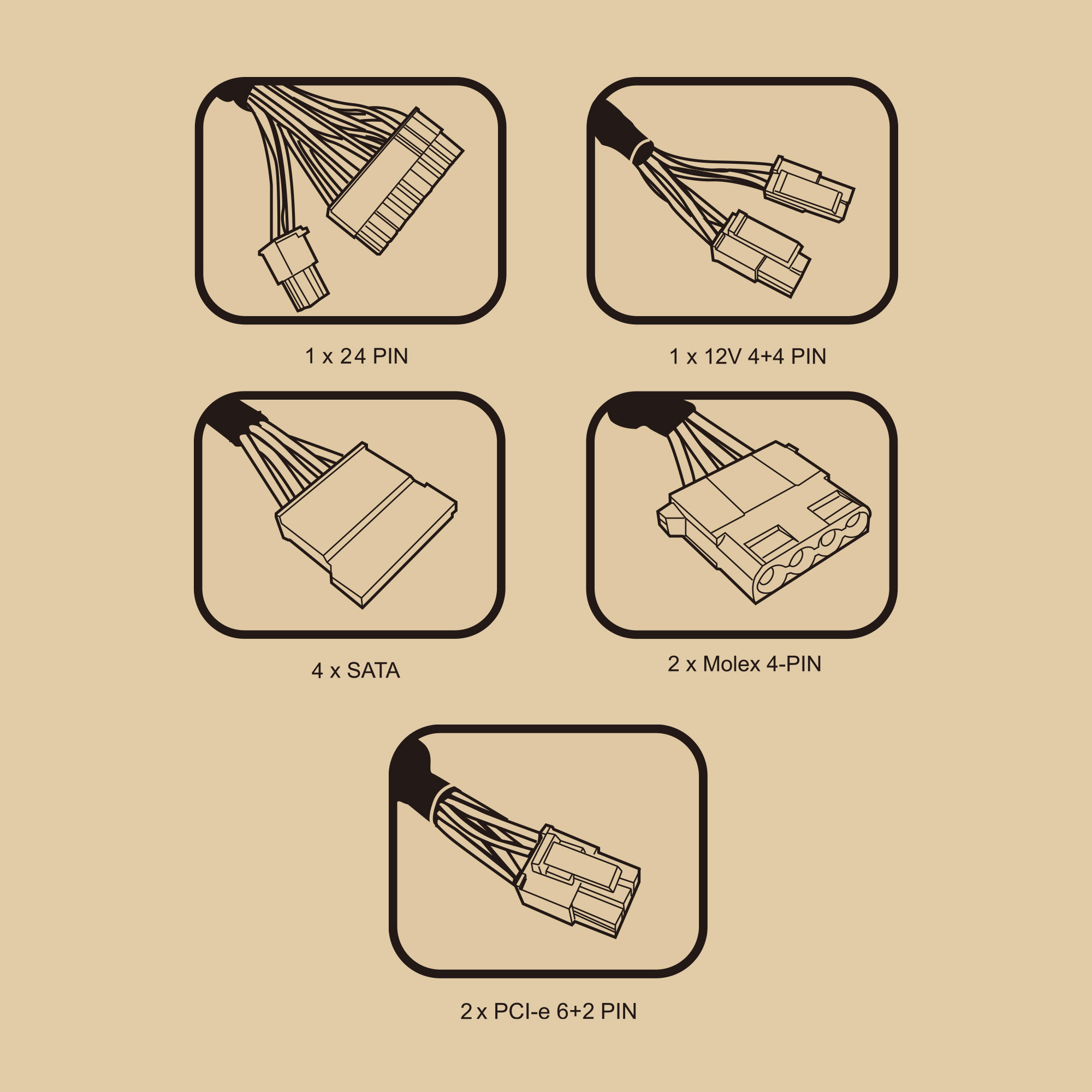

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Noise level | 14 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | No |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 145 mm |
| Height | 85 mm |
| Weight | 1.36 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 126 mm |
| Package depth | 237 mm |
| Package height | 203 mm |
| Package weight | 1.51 kg |
| Package type | Box |
