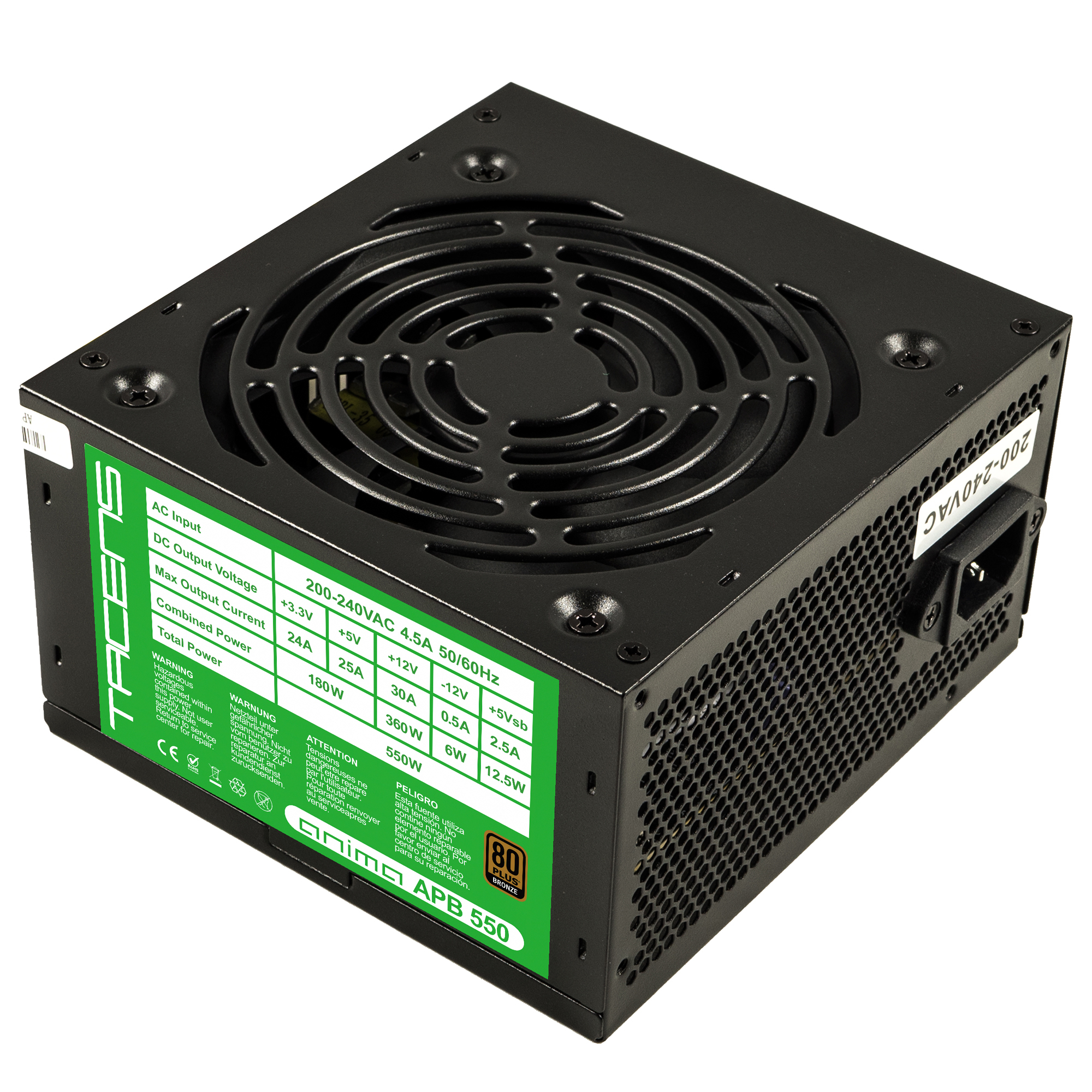

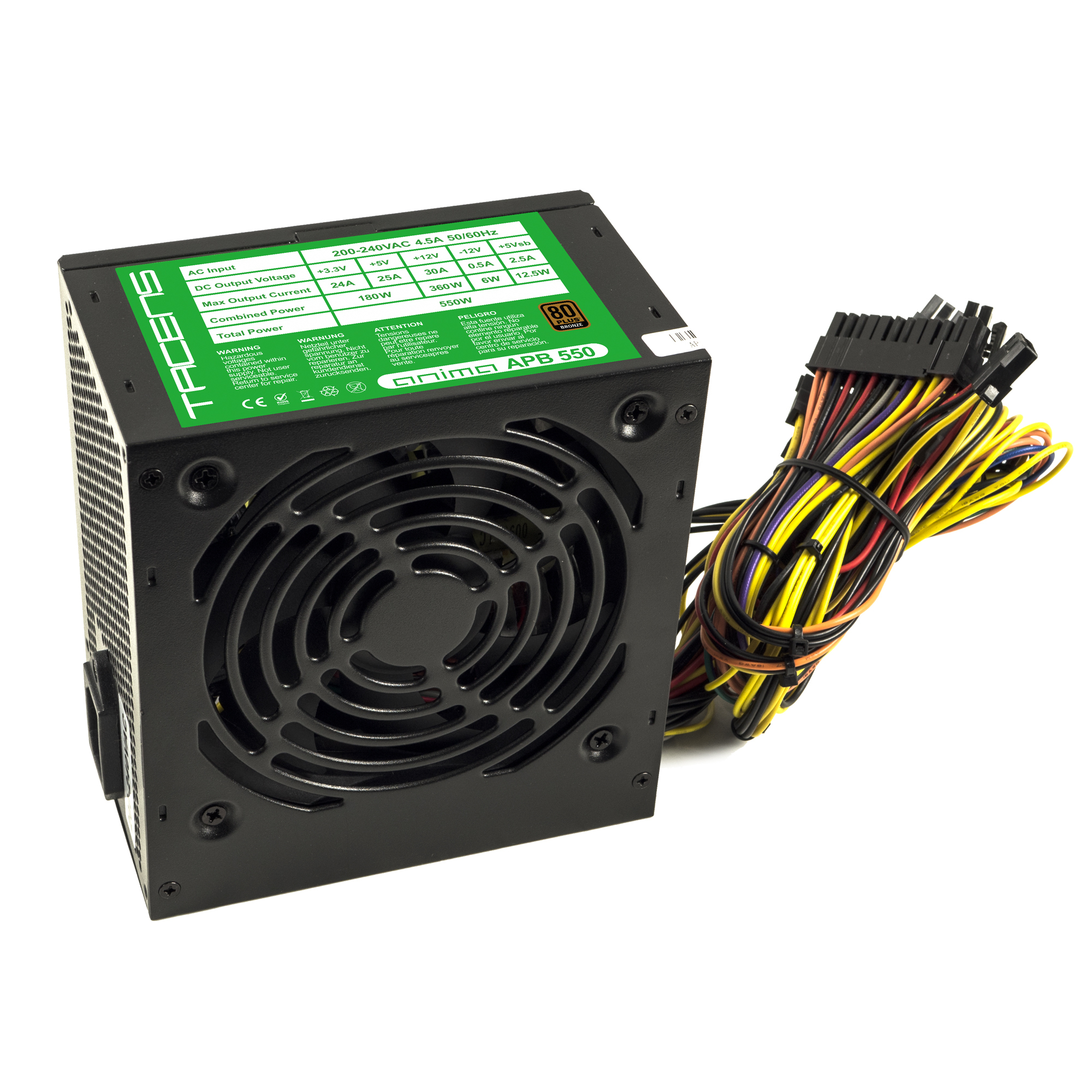

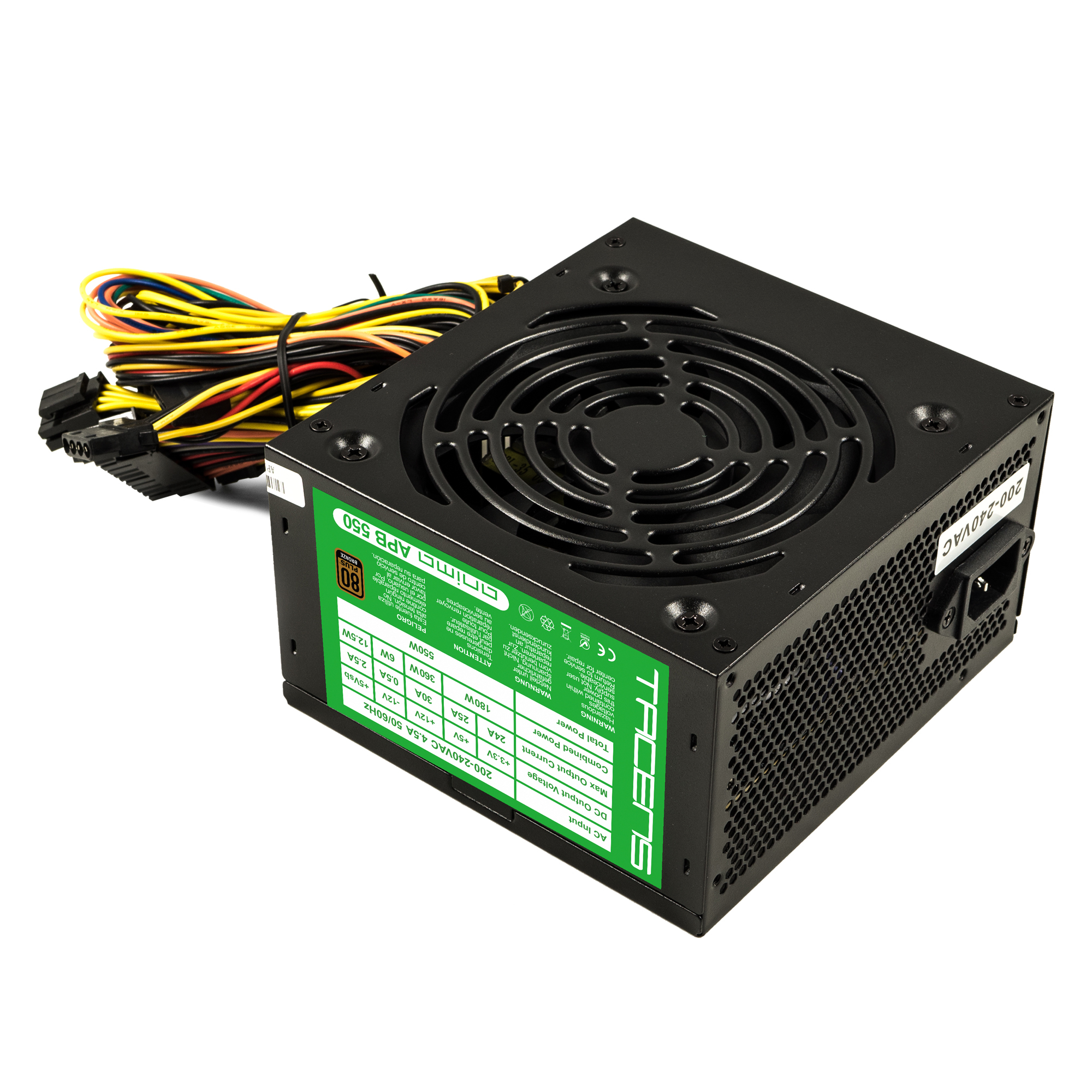

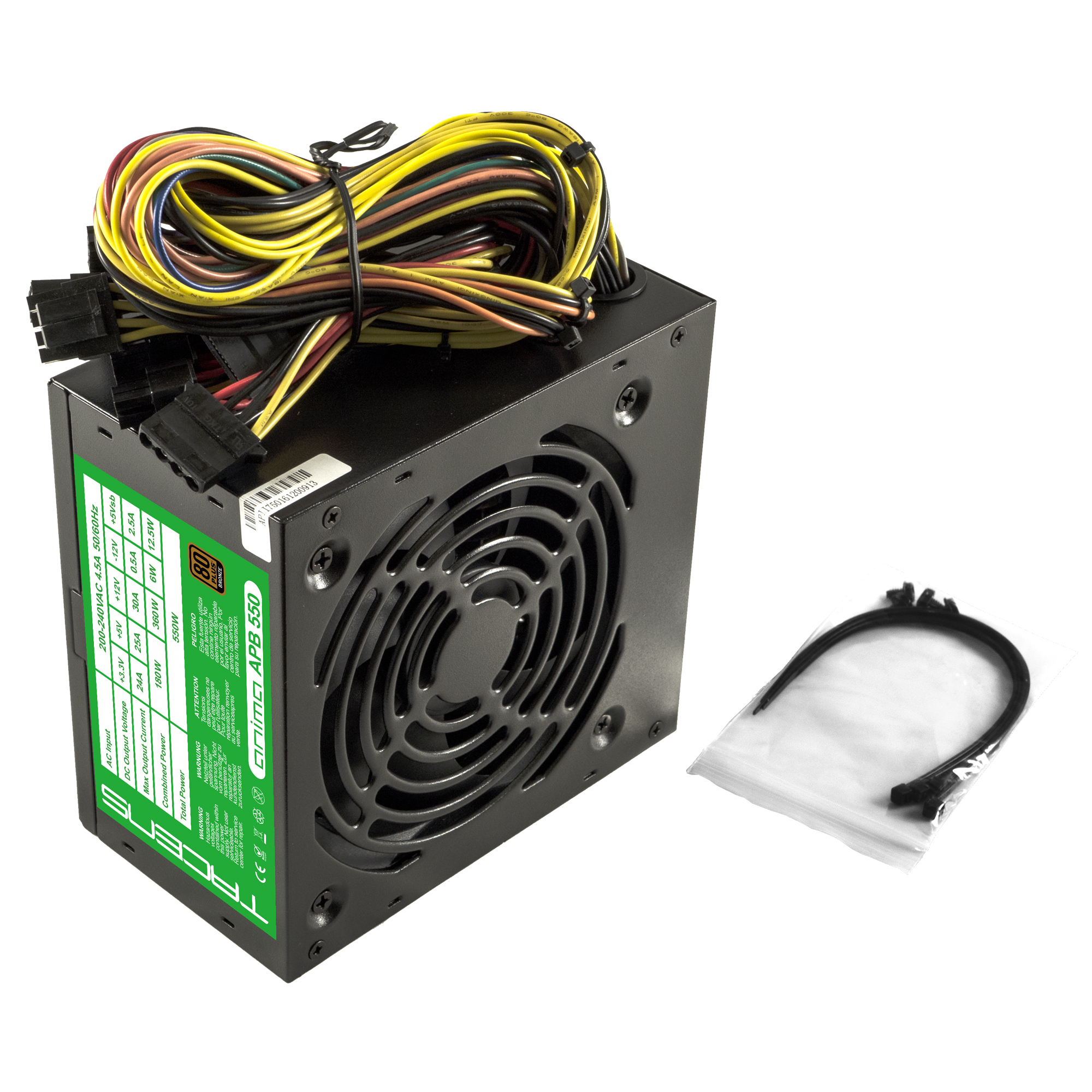

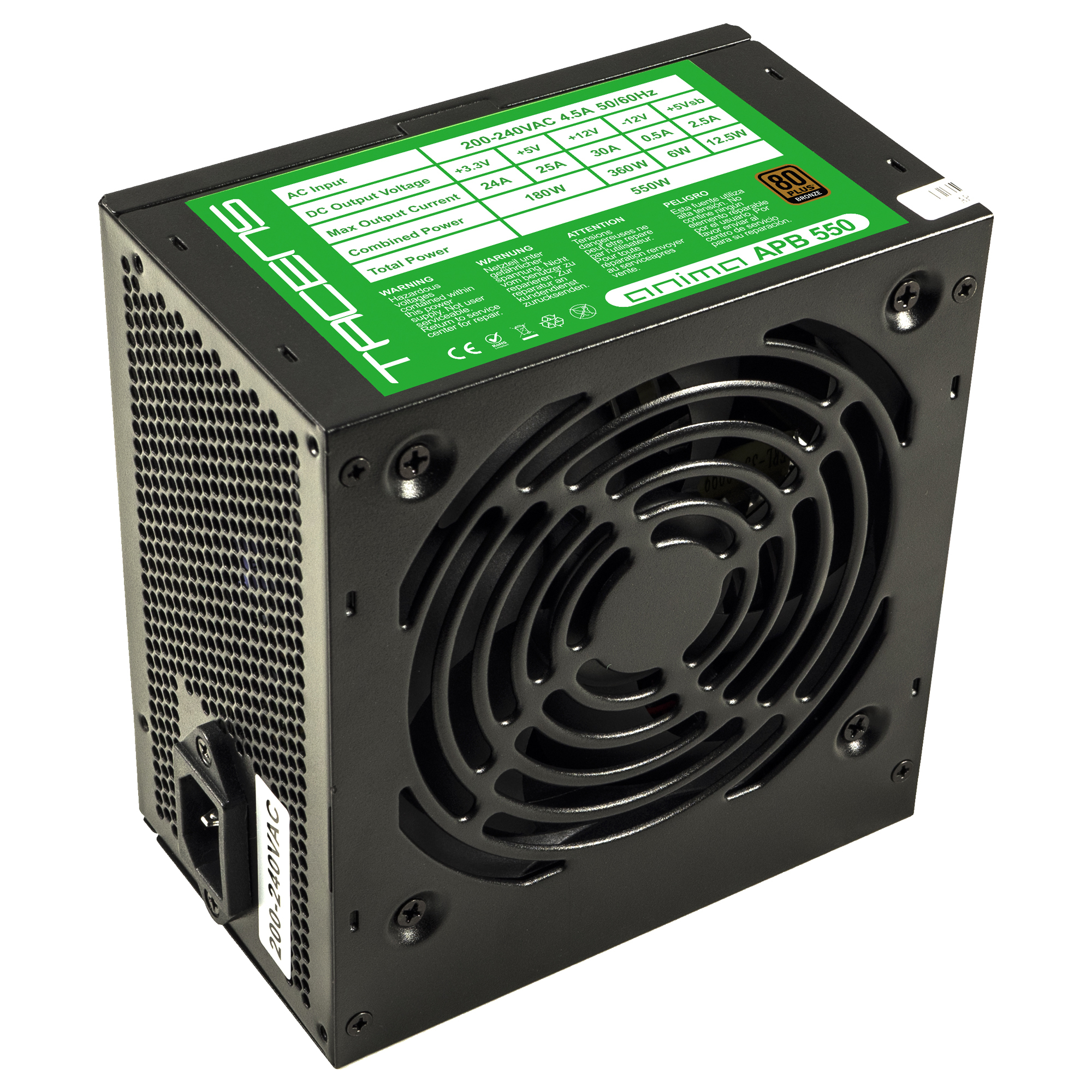

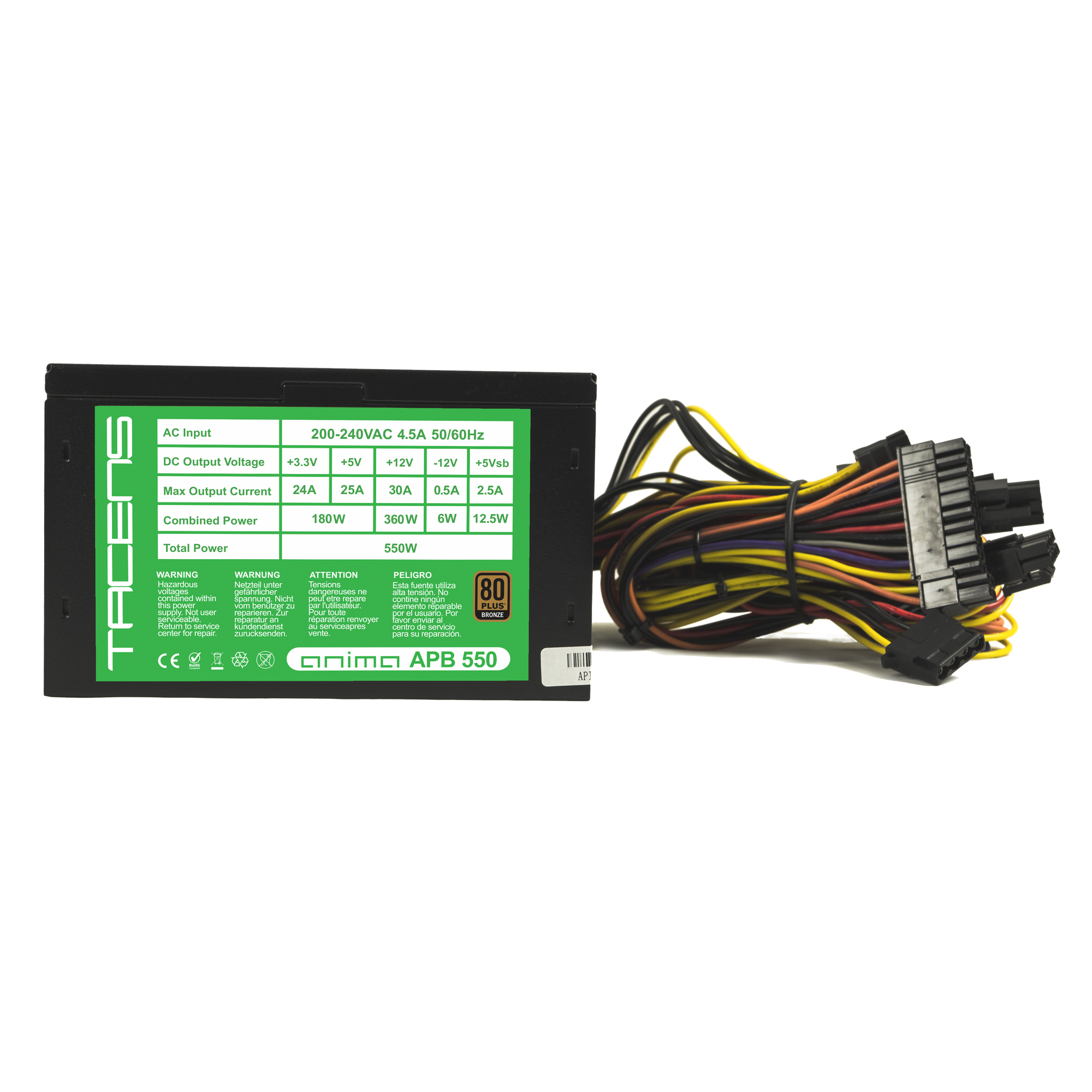

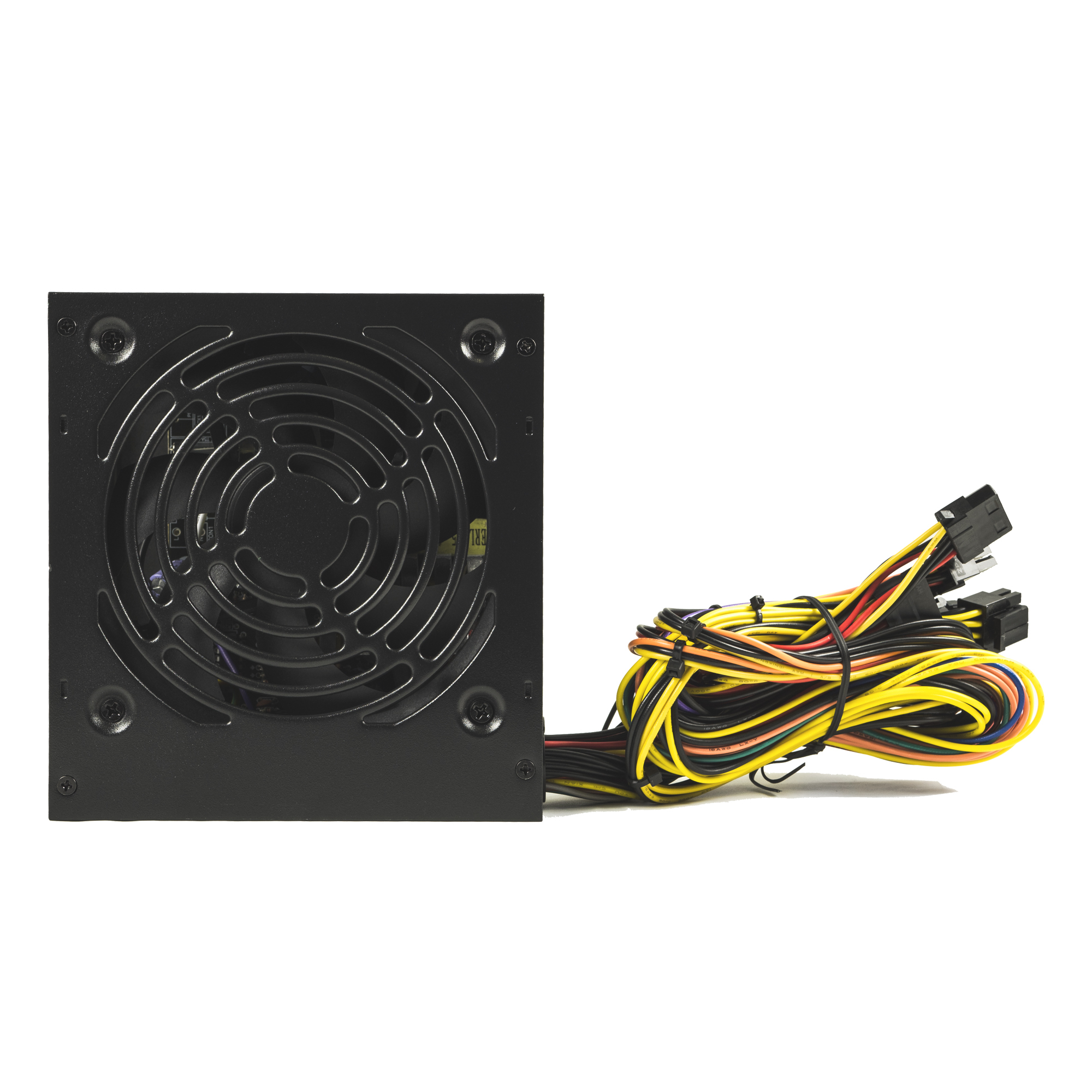

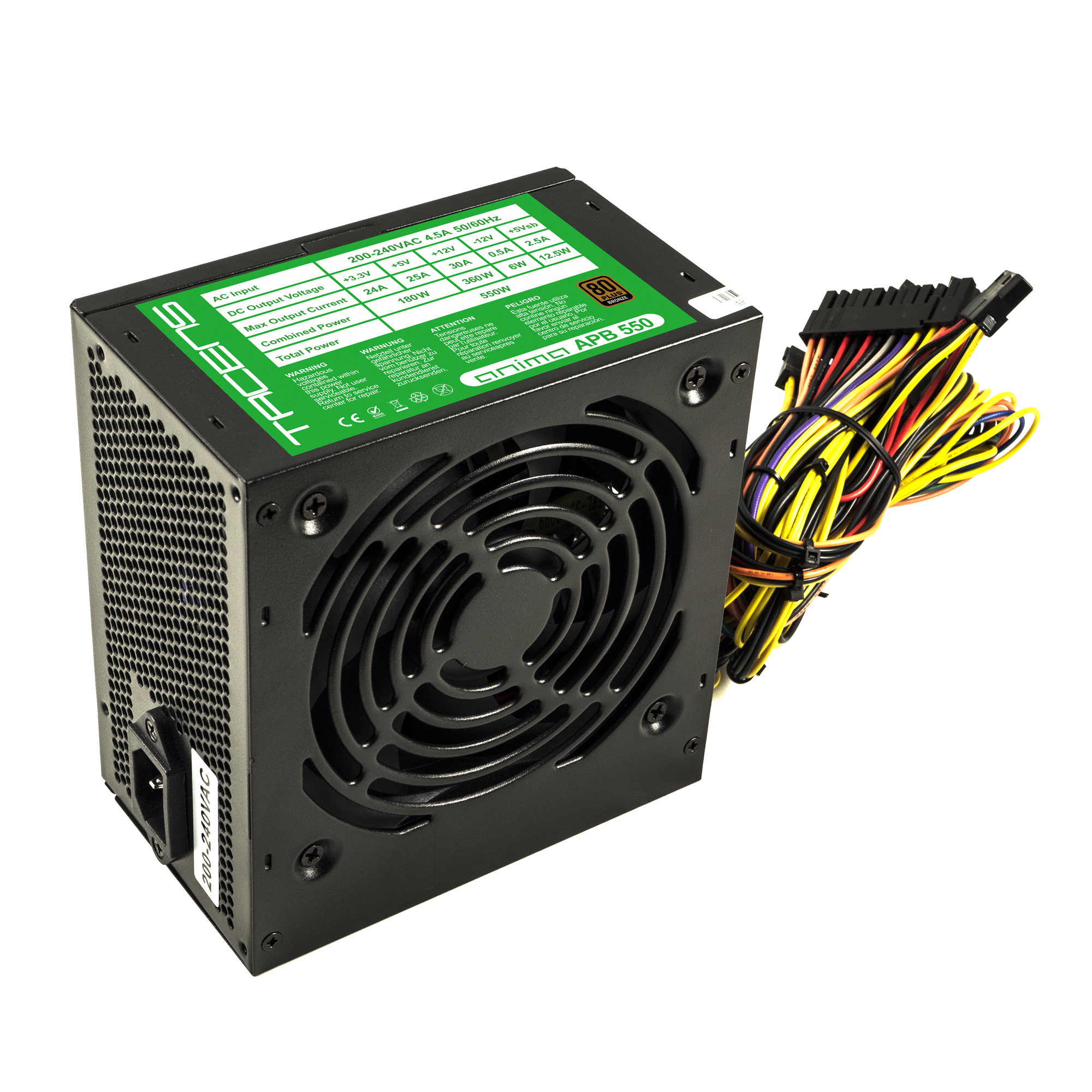

Tacens Anima APB550 power supply unit
550 W 20+4 pin ATX Black
Model APB550EAN 4710700957998
37 specifications
- Noise14 dB
- Weight1.28 kg
- ColourBlack
- Total power550 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 14 dB
- Weight
- 1.28 kg
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Tacens Anima
- Category
- Power Supply Unit
- Model
- APB550
- Part number
- APB550
- EAN / UPC
- 4710700957998
- Also known as
- Tacens Anima APB550 power supply unit 550 W 20+4 pin ATX Black
Specifications
37 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 180 W |
| Combined power (+12V) | 360 W |
| Combined power (+5V) | 180 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 30 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 2 |
| Number of SATA power connectors | 3 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Noise level | 14 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |
| Weight | 1.28 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 207 mm |
| Package depth | 165 mm |
| Package height | 100 mm |
| Package weight | 1.4 kg |
| Package type | Box |
What people say
Reviews & ratings
Tacens Anima APB550 power supply unit
No reviews yet
Be the first to tell others how Tacens Anima APB550 power supply unit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Tacens Anima APB550 power supply unit

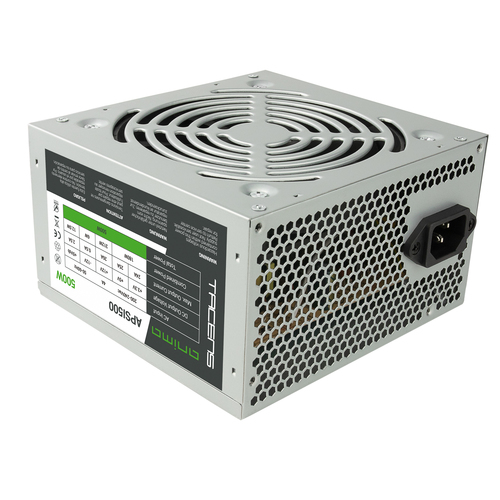

All power supply unit comparisons- Tacens Anima APB550 power supply unit vsTacens Anima APSI500 power supply unitCompare specs
