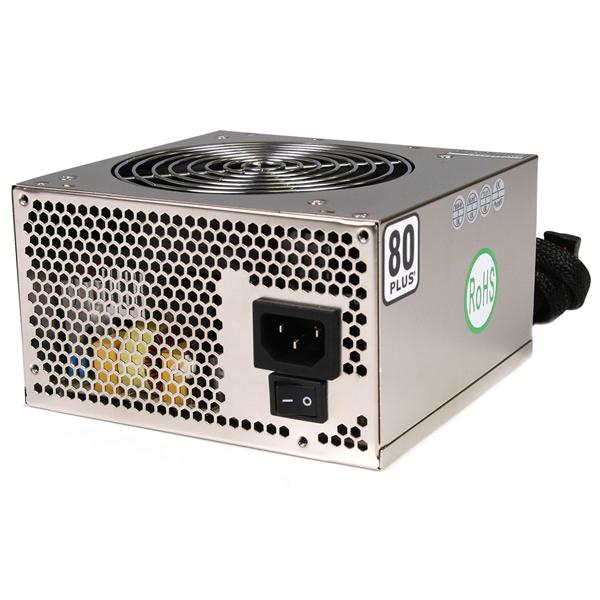

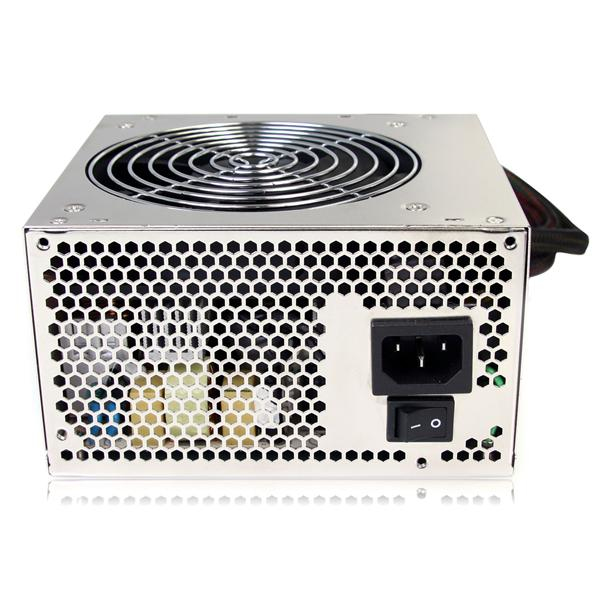

StarTech.com Pro 630W ATX12V 2.3 80 Plus Computer Modular Power Supply
Model ATX2PW630PROEAN 065030840224
24 specifications
- Noise31.3 dB
- Weight2.1 kg
- ColourSilver
- Total power630 W
- Number of SATA power connectors6
- Operating temperature (T-T)0 - 40 °C
Overview
- Noise
- 31.3 dB
- Weight
- 2.1 kg
- Colour
- Silver
- Total power
- 630 W
- Number of SATA power connectors
- 6
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- StarTech.com
- Category
- Power Supply Unit
- Model
- ATX2PW630PRO
- Part number
- ATX2PW630PRO
- EAN / UPC
- 065030840224
- Also known as
- StarTech.com Pro 630W ATX12V 2.3 80 Plus Computer Modular Power Supply
Specifications
24 specifications in 8 groups

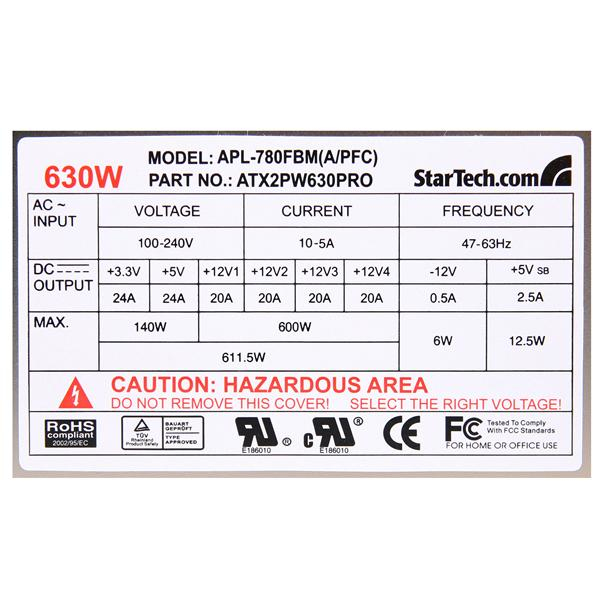

Power
| Specification | Value |
|---|---|
| Total power | 630 W |
| Peak power | 700 W |
| Input current | 10 A |
| Efficiency | 85.39% |

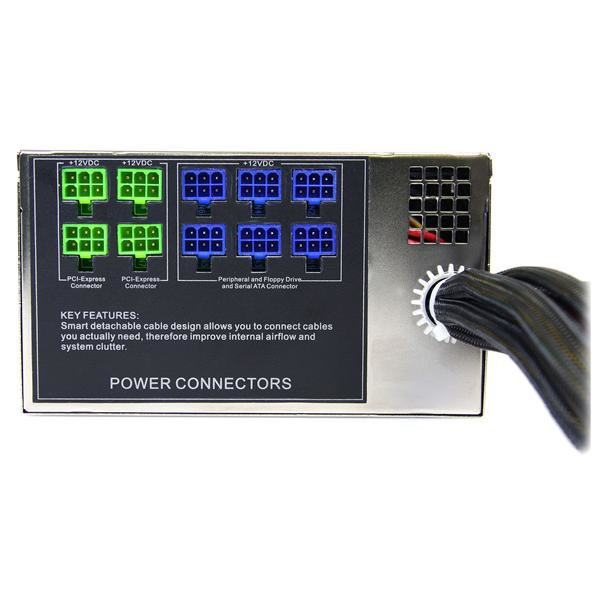

Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (8-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |

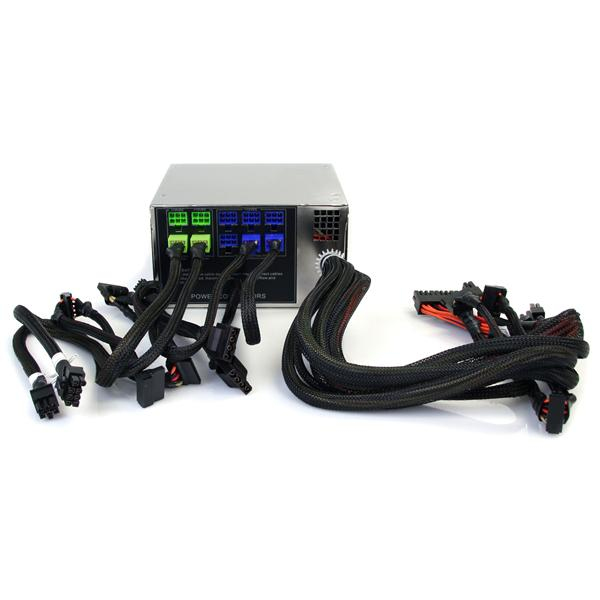

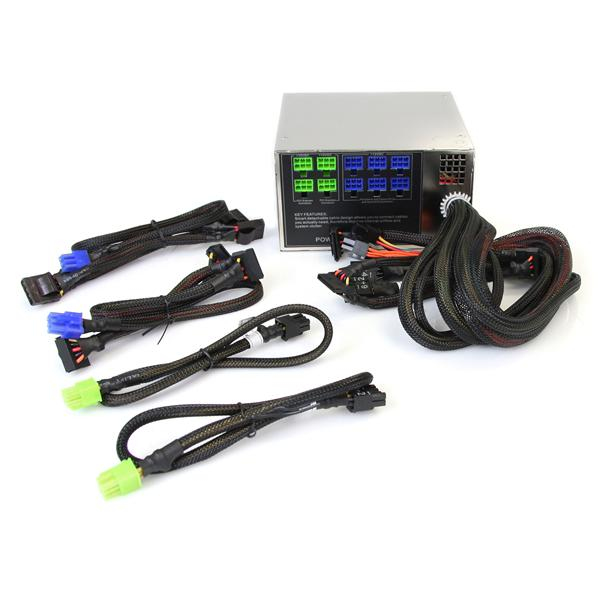

| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Noise level | 31.3 dB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Fan diameter | 12 cm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 260 mm |
| Package height | 220 mm |
| Package weight | 2.6 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 141 x 86 mm |
