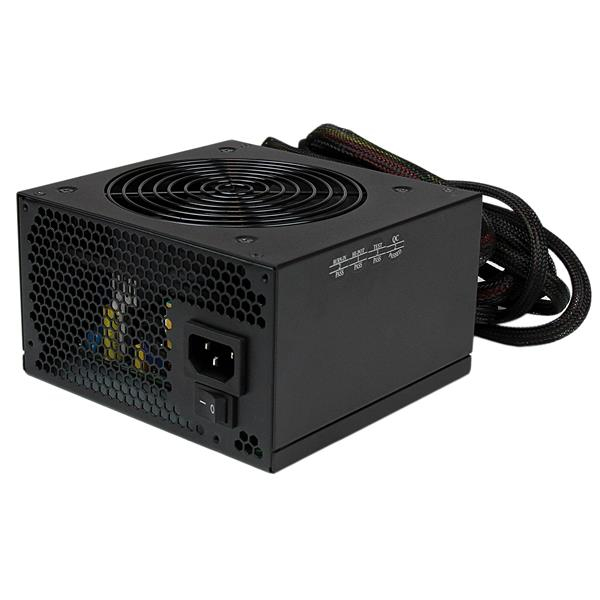

StarTech.com 450 Watt ATX12V 2.3 80 Plus Gold Computer Power Supply w/ Active PFC
Model ATX2PW450GOEAN 014444654286
47 specifications
- Weight197 g
- ColourBlack
- Total power450 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 197 g
- Colour
- Black
- Total power
- 450 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- StarTech.com
- Category
- Power Supply Unit
- Model
- ATX2PW450GO
- Part number
- ATX2PW450GO
- EAN / UPC
- 014444654286, 065030852944, 996700980127
- Also known as
- StarTech.com 450 Watt ATX12V 2.3 80 Plus Gold Computer Power Supply w/ Active PFC
Specifications
47 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 450 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | +12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V,-5V |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 37 A |
| Max output current (+12V2) | 37 A |
| Max output current (+12V3) | 37 A |
| Max output current (+12V4) | 37 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (8-pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.3 |
| EPS version | 2.92 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68 mm |
| Depth | 150 mm |
| Height | 140 mm |
| Weight | 197 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 202 mm |
| Package depth | 240 mm |
| Package height | 98 mm |
| Package weight | 2.41 kg |
Other features
| Specification | Value |
|---|---|
| Maximum current | 60 A |
