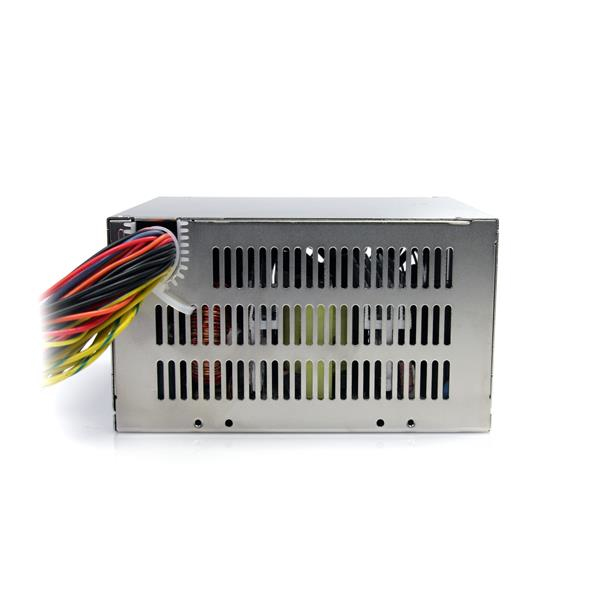

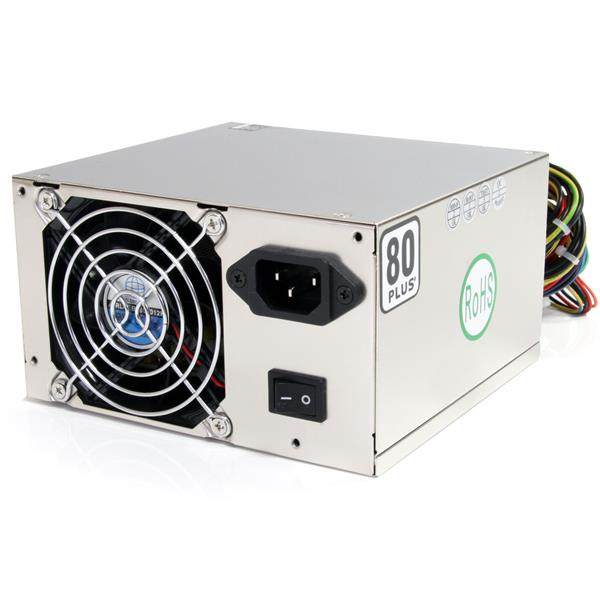

StarTech.com 430 Watt ATX12V 2.3 80 Plus PRO Computer Power Supply
Model ATX2PW430PROEAN 065030839846
30 specifications
- Noise31.3 dB
- Weight1.71 kg
- ColourGrey
- Total power430 W
- Number of SATA power connectors5
- Power supply unit (PSU) form factorATX
Overview
- Noise
- 31.3 dB
- Weight
- 1.71 kg
- Colour
- Grey
- Total power
- 430 W
- Number of SATA power connectors
- 5
- Power supply unit (PSU) form factor
- ATX
- Brand
- StarTech.com
- Category
- Power Supply Unit
- Model
- ATX2PW430PRO
- Part number
- ATX2PW430PRO
- EAN / UPC
- 065030839846
- Also known as
- StarTech.com 430 Watt ATX12V 2.3 80 Plus PRO Computer Power Supply
Specifications
30 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 430 W |
| Peak power | 500 W |
| Input current | 10 A |
| Efficiency | 84.81% |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6-pin) | 2 |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| Noise level | 31.3 dB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Fan diameter | 8 cm |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °F |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, 80 Plus, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.71 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 225 mm |
| Package height | 225 mm |
| Package weight | 1.96 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 140 x 86 mm |
| Maximum current | 60 A |

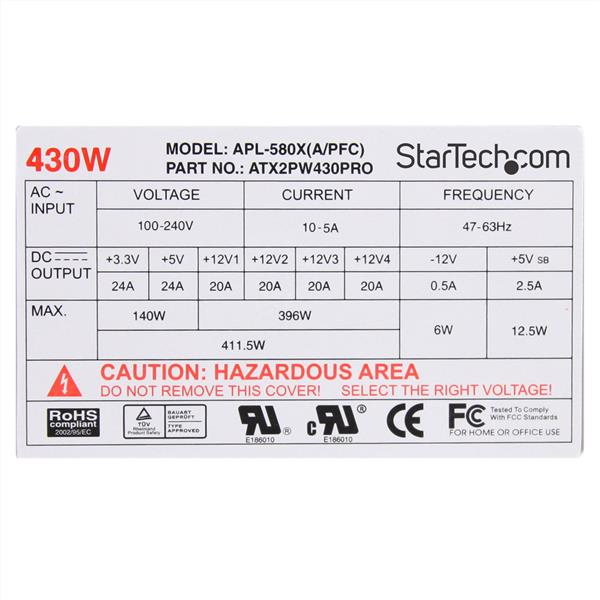

| Output voltage note | +12.0V1, +12.0V2, +12.0V3, +12.0V4, -12.0V, +3.3V, +5.0V, +5.0Vsb |
| Ports quantity | 13 |
